Unitech · Accessory

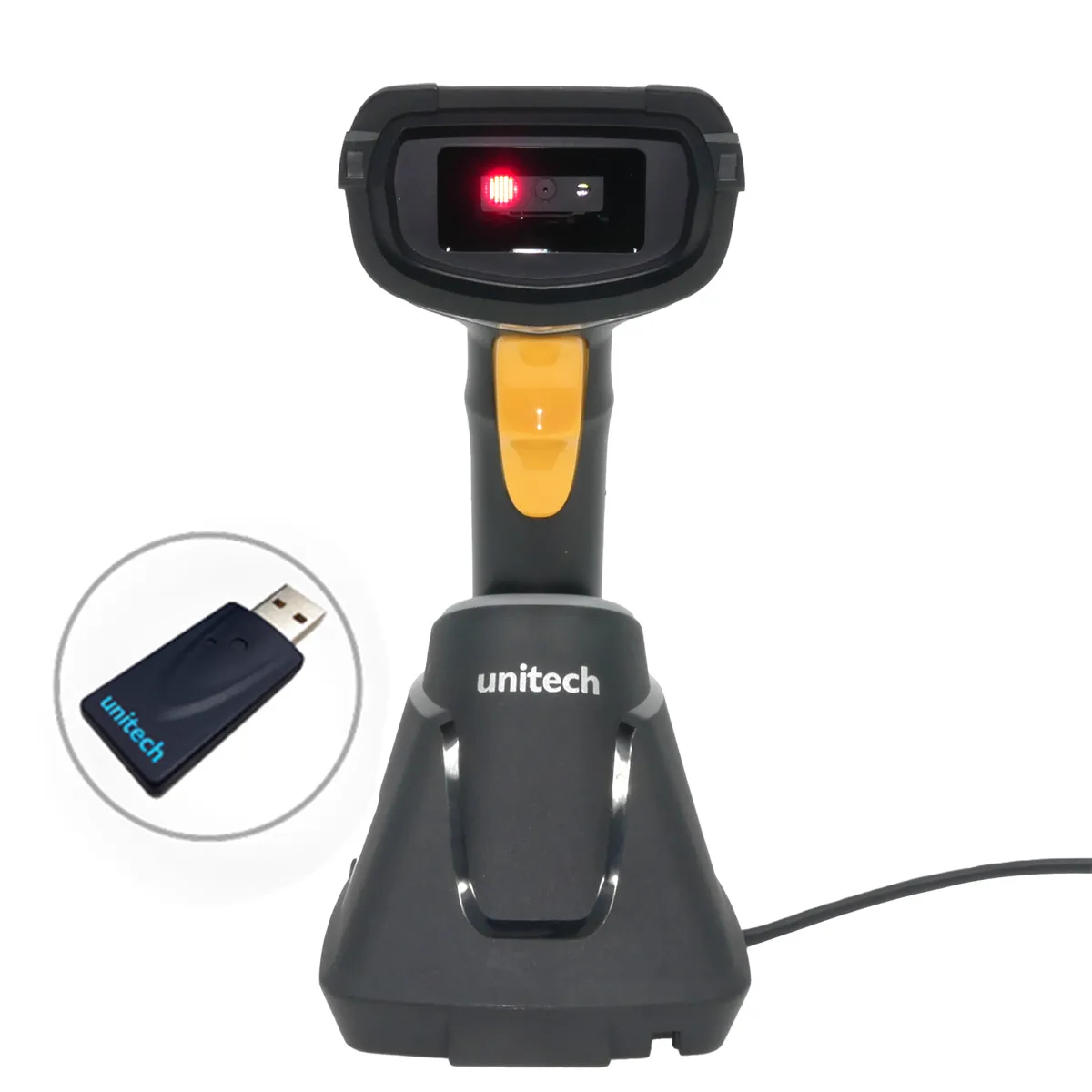

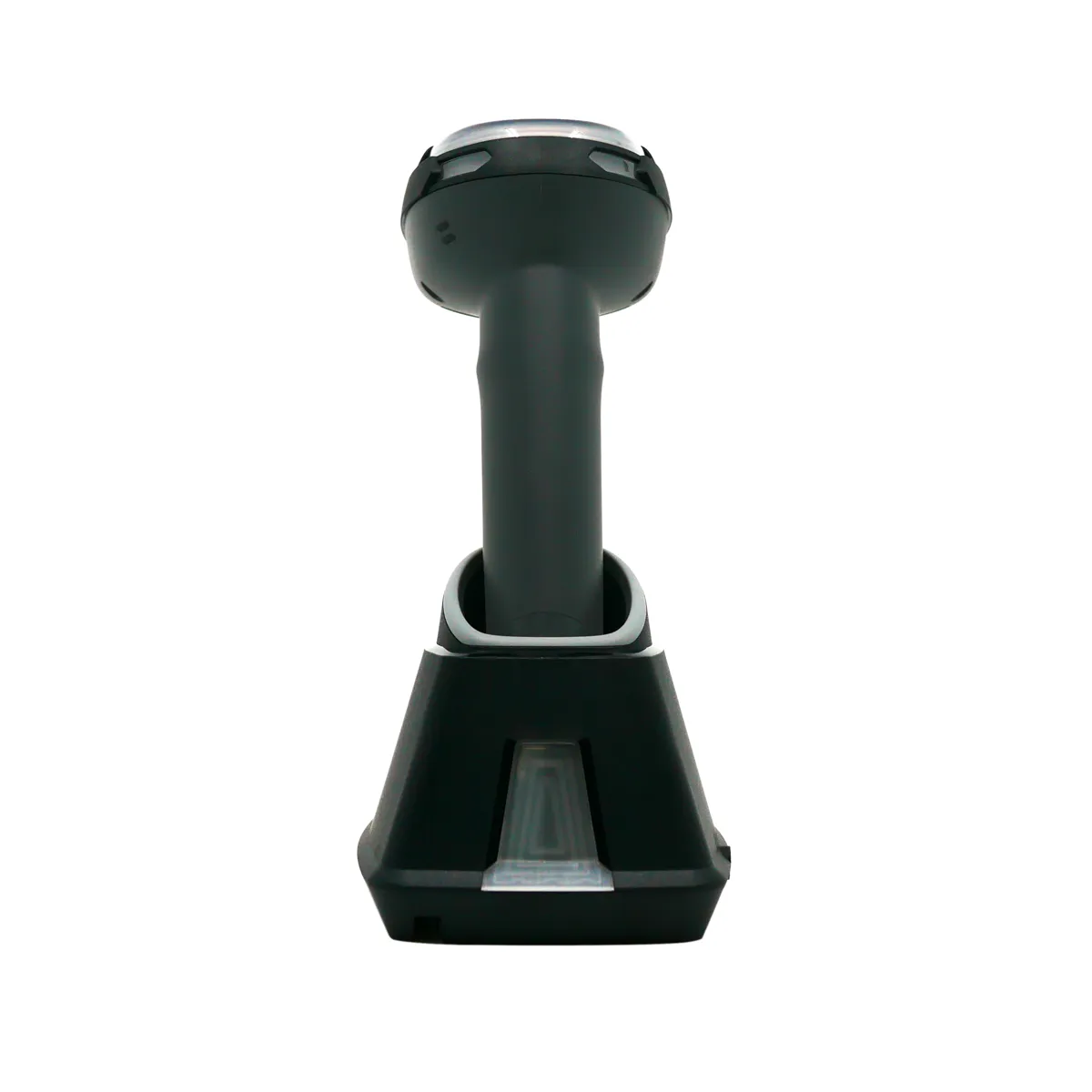

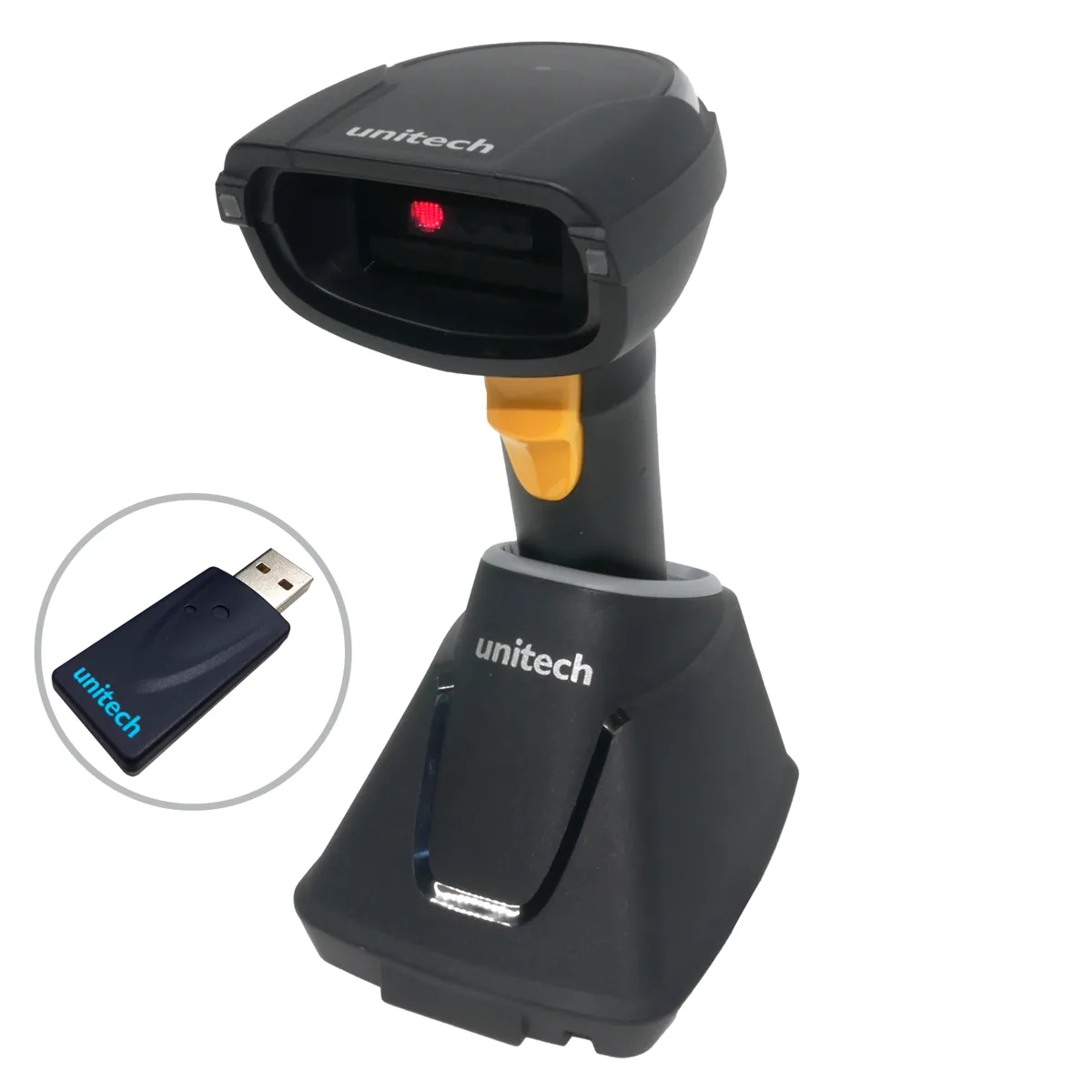

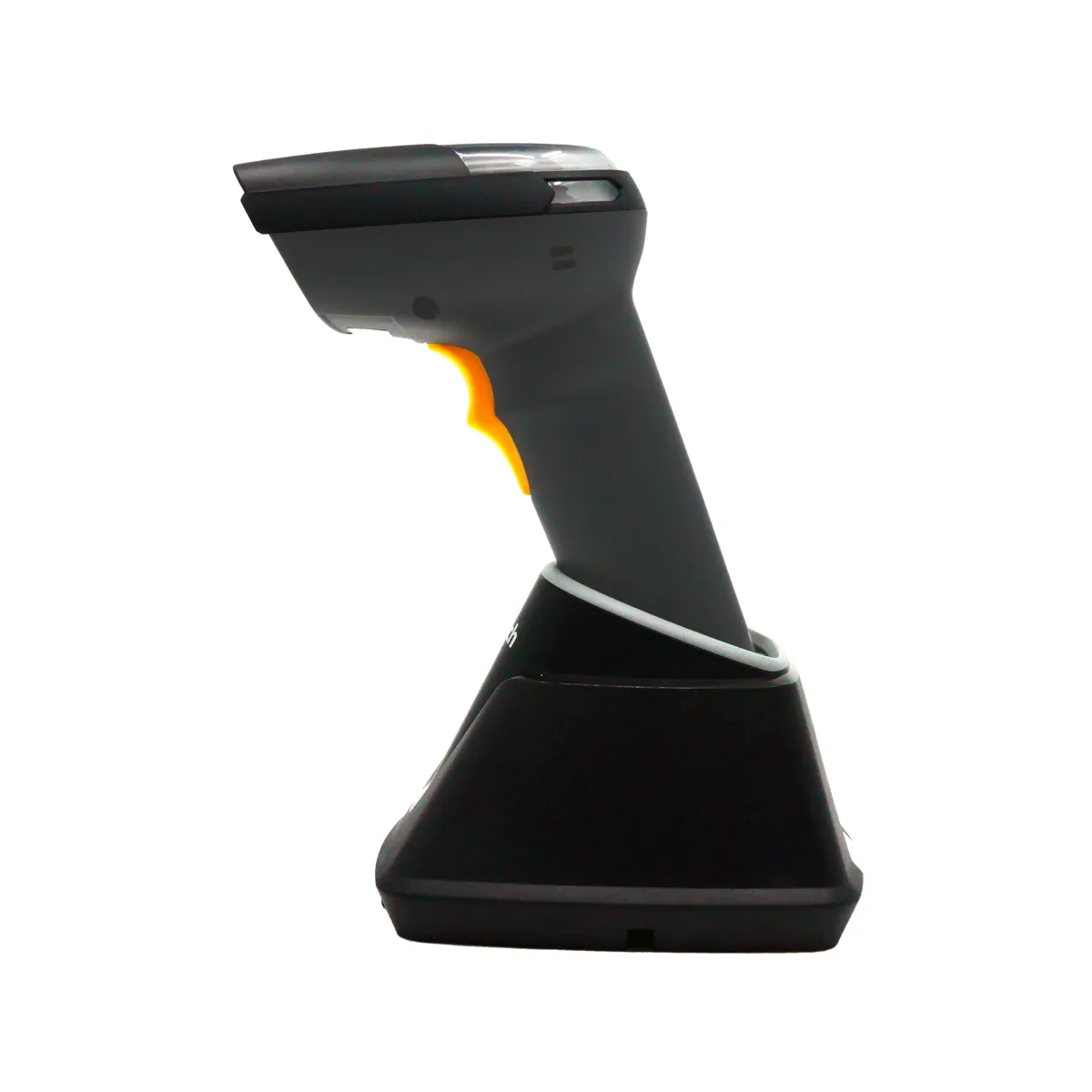

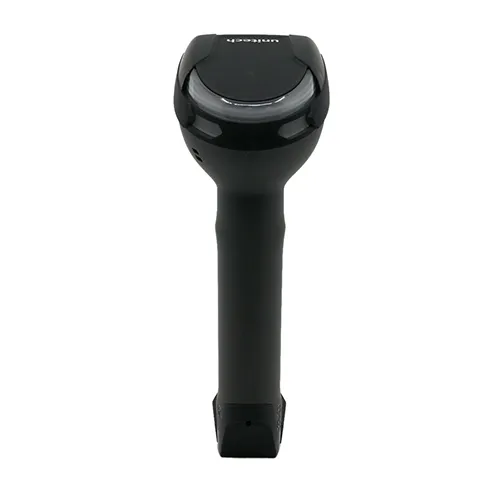

Unitech MS852P
Optimized to read 1D, 2D and OCR Barcodes｜ Plug-and-play with USB dongle｜15 hours of operation time｜IP42 + 2.1m drop protection
- BatteryLithium-ion 2850 mAh charged via the cradle
- SealingIP42
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D / 2D Barcode Scanner
- 1280 x 800 pixels High resolution
- 10 meters Transmission range
- Dongle Easy Plug-and-Play
- Key
- Trigger Key
- Sensor
- CMOS Sensor, 1280 x 800 pixels
- Aiming Element
- 655 nm Laser
- Illumination
- One (1) Hyper Red 660 nm LED
- Skew Angle
- ±60°
- Pitch Angle Sensor
- ±60°
- Roll Angle
- 360°
- Optical Resolution
- 3 mil (code 39), 5 mil (code128), 5 mil (PDF417)
- Scan range / decode distances
- Symbology/Resolution Near/Far Code 39: 3 mil 7.6 cm to / 14.7 cm Code 128: 5 mil / 5.8 cm to / 24.9 cm PDF417: 5 mil / 7.6 cm to / 20.1 cm PDF 417: 6.67 mil / 6.3 cm to/ 25.7 cm DataMatrix: 10 mil / 5.3 cm to / 27.8 cm UPCA (100%) / 4.1 cm to / 63.2 cm Code 128: 15 mil / 6.1 cm to/ 70.6 cm Code 39: 20 mil / 4.1 cm to / 91.7 cm QR Code: 20 mil / 2.8 cm to / 44.5 cm
- Radio
- Unlicensed 2.4GHz
- Wireless Coverage
- 10M( line of sight)
- Host Interface supported
- USB(via dongle)
- Dimensions
- 87.8 L x 71.6 W x 177.7 H (mm)
- Weight
- 213g without cradle
- Trigger Switch Life
- 10 million times
- Cradle Dimension
- 120.6 L x 88.7 W x 86.0 H (mm)
- 1D Barcodes
- Code 39, Code 128, Code 93, Codebar/NW7, Code 11, MSI, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 Italian Pharma)
- 2D Barcodes
- PDF417, Micro PDF417, Composite Codes, TLC-39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Chinese Sensible (Han Xin), Postal Codes. Supported OCR Symbologies: OCR-A, OCR-B
- Data Formatting
- Prefix, Suffix, Code ID, Reformatting Date
- Operation Voltage
- DC 3V to 5V
- Current Consumption
- Operation mode:80.6mA , Standby mode:14.6mA
- Indicator
- LED & Beeper & Vibrator
- Battery / runtime
- Lithium-ion
- Battery / runtime
- 2850 mAh charged via the cradle
- Battery Charging time
- 7 Hours
- Operating Time
- 15 Hours
- ESD Protection
- Functional after 8K Contact and 15K Air
- Mechanical Shock
- 2.1M onto concrete (scanner only)
- Operating temperature
- -10°C to 50°C (14°F to 122°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 95% non-condensing
- IP / sealing
- IP42
- Items
- ■ USB cable with ESD enhanced (PN#1550-905920G) ■ Protective Case (PN#386793G) ■ 5V/2A Adapter(US) (PN# 1010-900058G) ■ 5V/2A Adapter with universal plugs (PN# 1010-900067G) ■ Standard Hands Free Stand (PN#5200-900009G) ■ Desktop/ Wall Mount stand (PN#5200-900011G) ■ Battery (PN#1400-900055G) ■ MS852P 1-slot cradle (PN#5000-900104G)
- Regulatory Approvals
- CE, FCC, BSMI, VCCI, TAA Compliant
- The standard package contents
- ■ MS852P with battery ■ Dongle ■ USB Cable for cradle ■ Cradle ■ Power Adaptor
- Hardware Warranty
- 36 months
- Statement
- This product is warranted against defects in workmanship and materials for a period of three years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
