Unitech · Barcode scanner

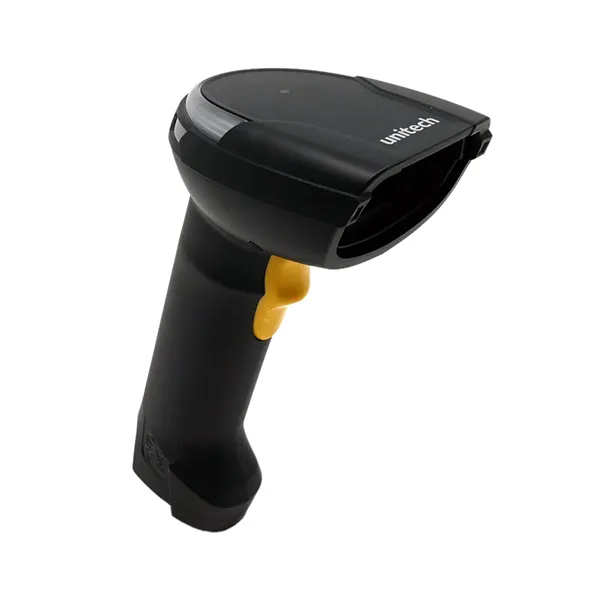

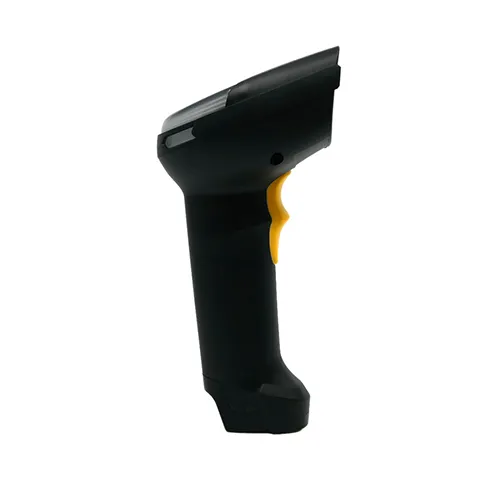

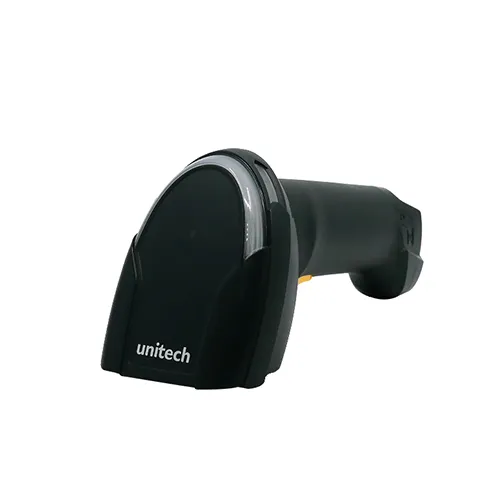

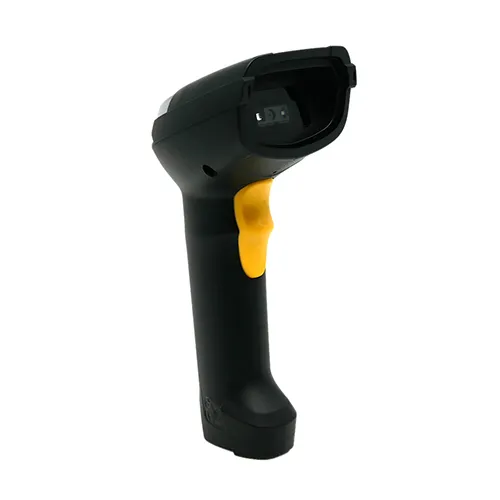

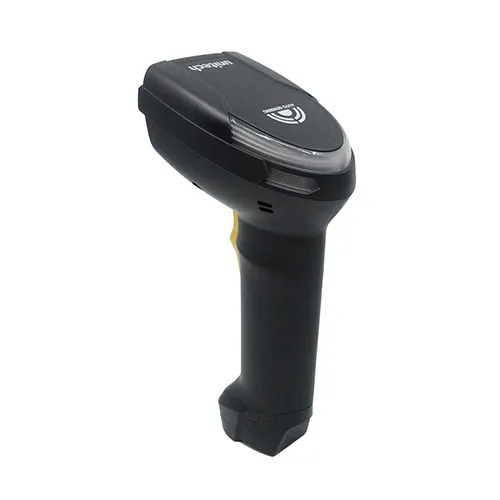

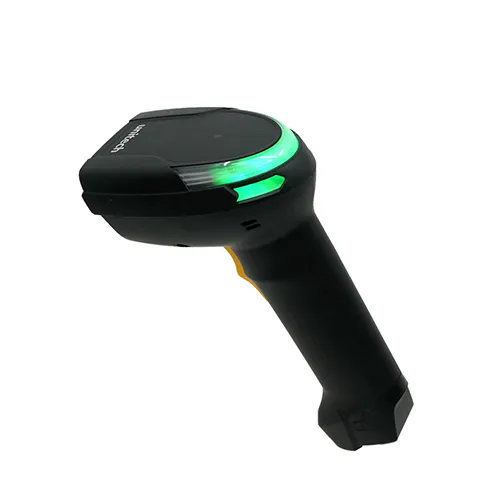

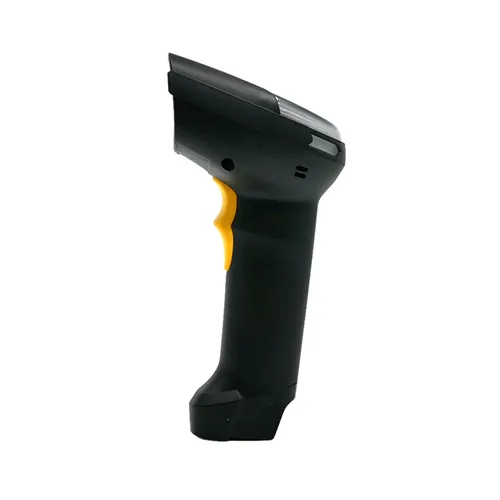

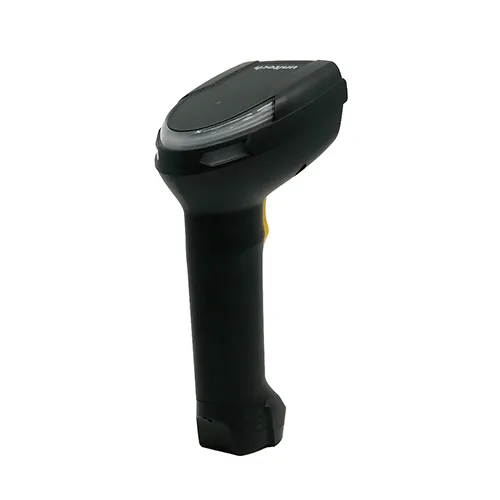

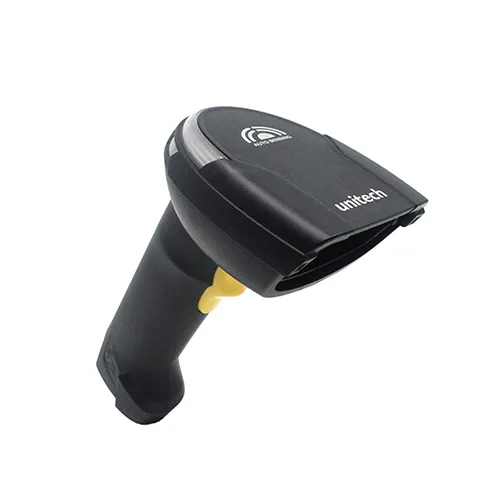

Unitech MS852 Plus
The MS852 Plus is a 2D barcode scanner, and it is available to read special OCR, DotCode, and Digimarc barcodes.
- SealingIP42
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Data capture
- Scan range / decode distances
- (DOF PCS=80%) -------------------------------------------------------SYMBOLOGY / X-DIM TYPICAL RANGE* Near Far 13 mil UPC 1.34 in / 3.4 cm 22.5 in / 57.3 cm 5 mil Code 39 2.76 in / 7 cm 11.85 in / 30.1 cm 10 mil Code 39 1.14 in / 2.9 cm 20.3 in / 51.7 cm 20 mil Code 39 1.38 in / 3.5 cm 31.5 in / 80 cm 15 mil Code 128 1.34 in / 3.4 cm 25.6 in / 65 cm 10 mil DM 2.84 in / 7.2 cm 11.7 in / 29.7 cm 6,7 mil PDF417 3.3 in / 8.4 cm 9.6 in / 24.4 cm 15 mil QR Code 1.3 in / 3.3 cm 15.35 in / 39 cm
Rugged
- IP / sealing
- IP42
- Operating temperature
- -10°C to 50°C (14°F to 122°F)
- Storage temperature
- -40°C to +70°C (-40°F to +158°F)
- Humidity
- 95% non-condensing
Size
- Weight
- 165g without cable
- Dimensions
- 87.8 L x 71.6 W x 177.7 H (mm)
