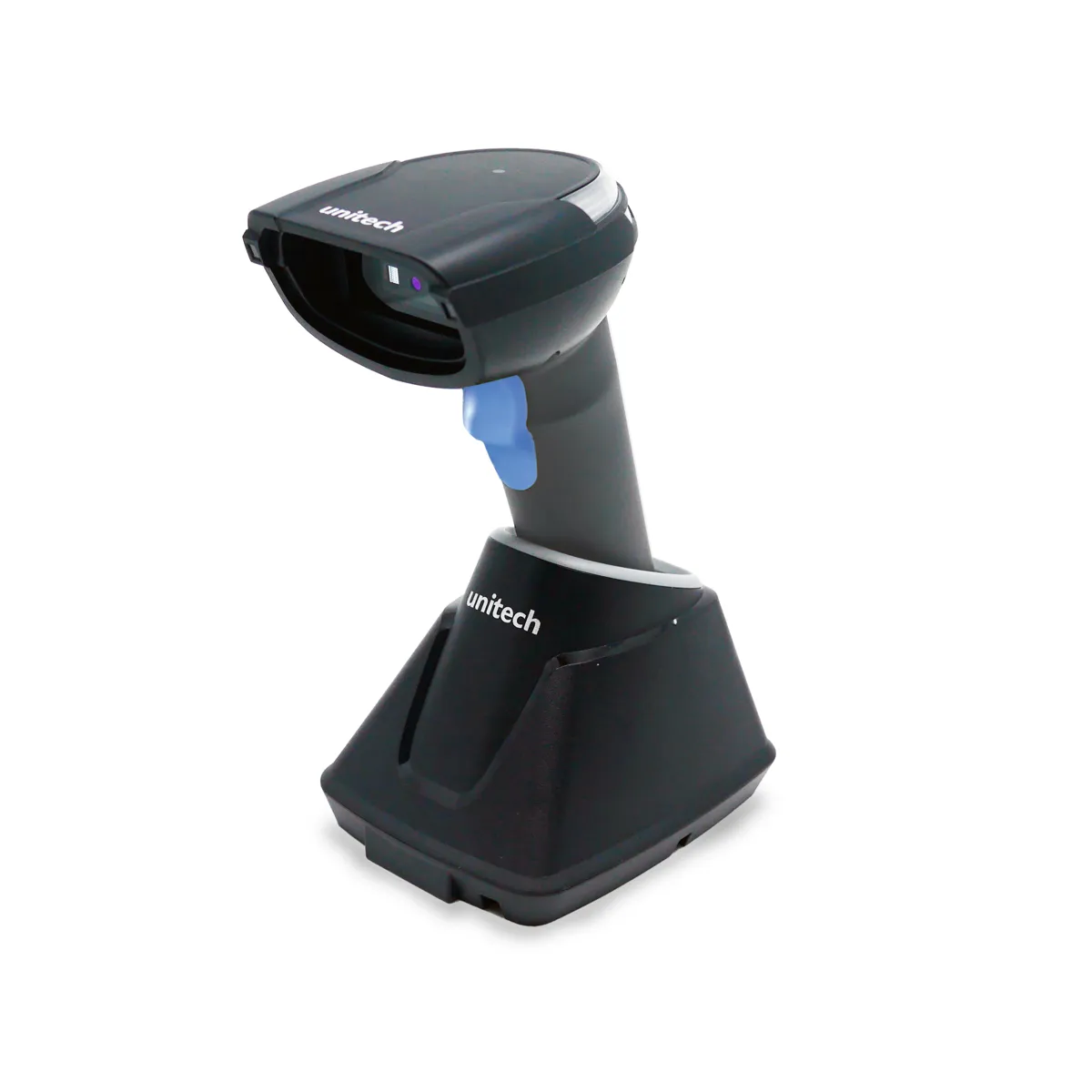

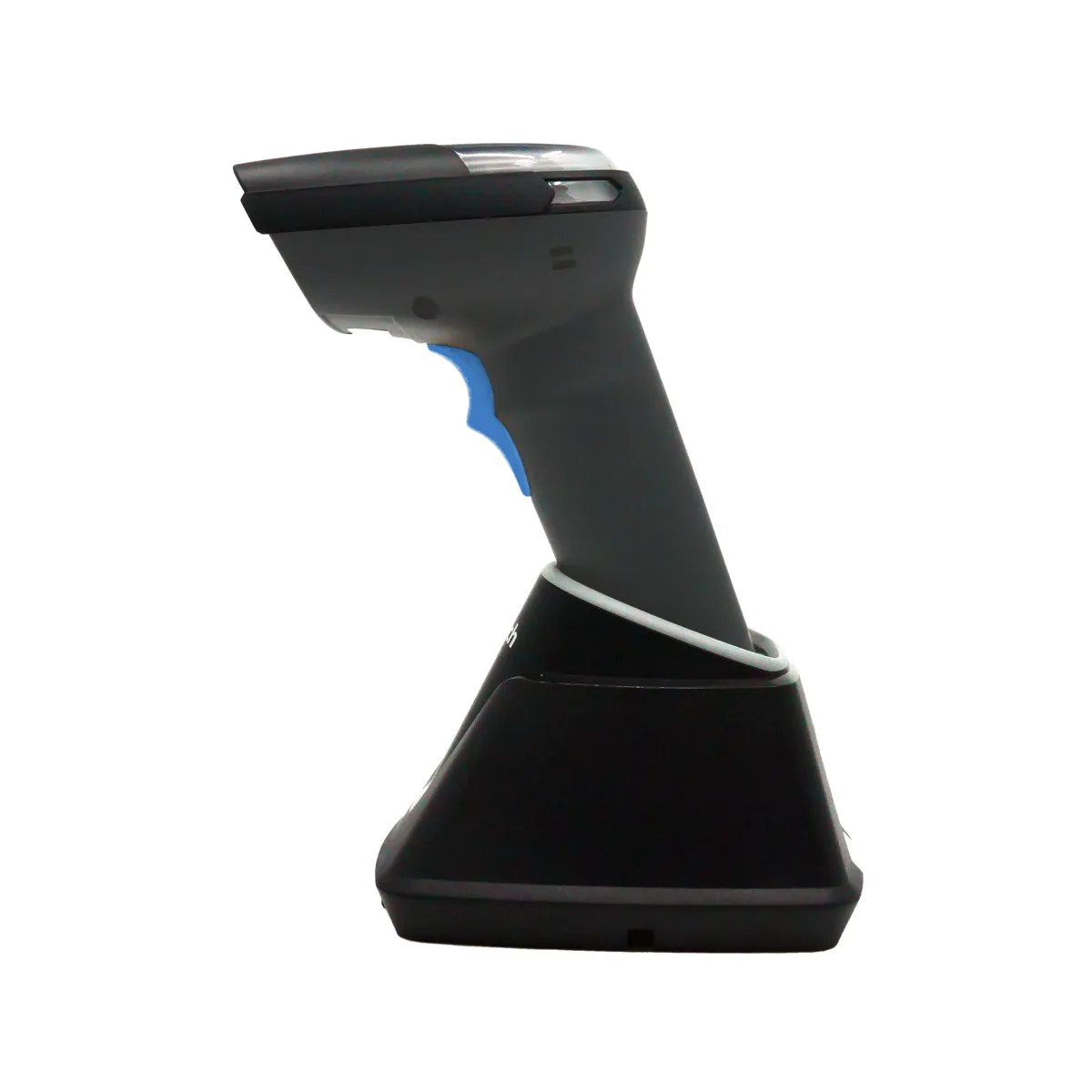

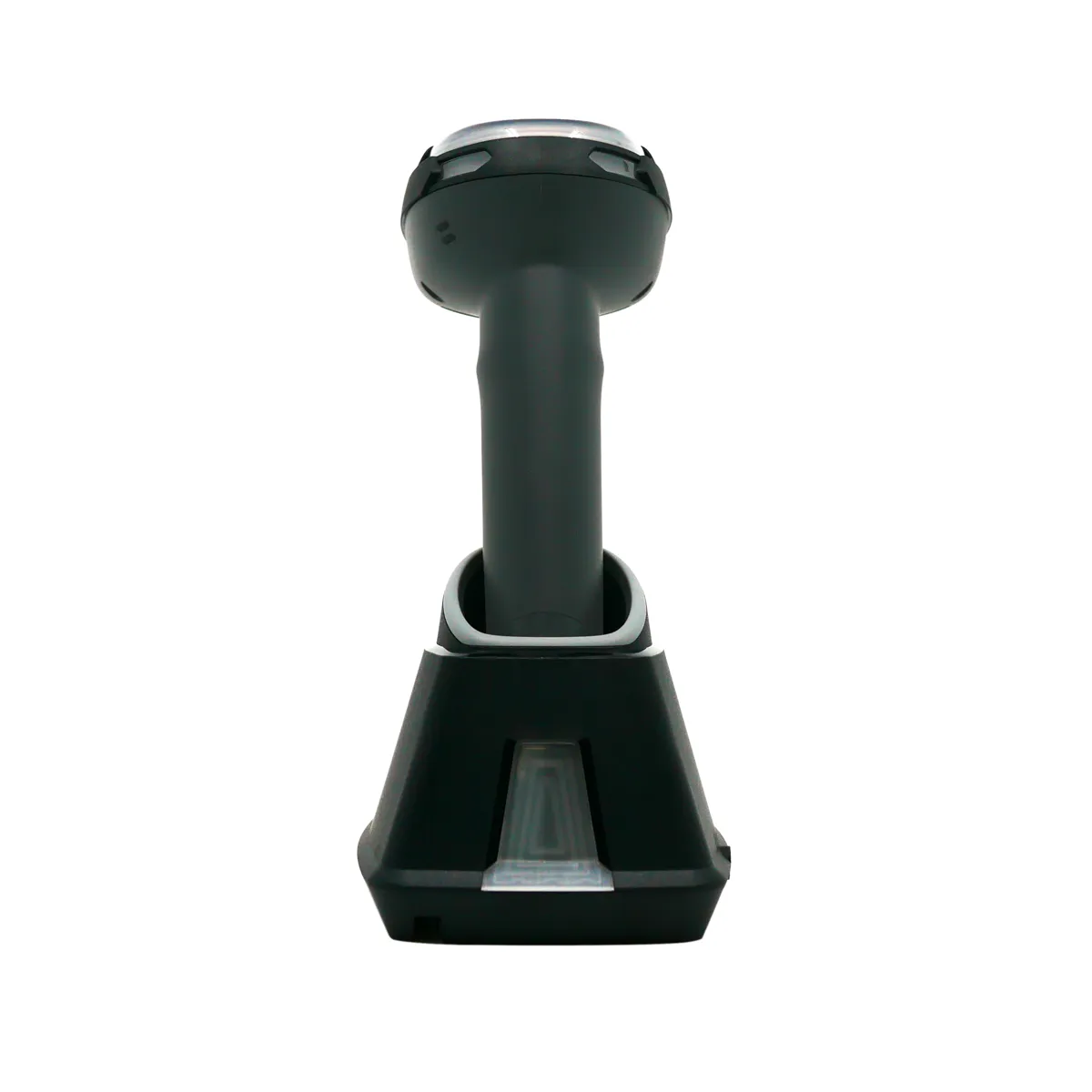

Unitech MS851B
The MS851B wireless barcode scanner optimizes data capture with its powerful laser scan engine.
- BatteryRechargeable and replaceable battery pack. 2850mAh
- SealingIP42
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- RAM / storage options
- 7.5MB (590,000 barcodes)
- Key
- Trigger Key
- Sensor
- 1D Laser
- Illumination
- 650 nm visible laser diode
- Ambient Light
- Sunlight: 8000 Ft Candles (86,111 Lux)
- Scan Rate
- 104 (± 12) scans/sec (bidirectional)
- Skew Angle
- ±40°
- Pitch Angle Sensor
- ±65°
- Roll Angle
- ± 35° from vertical
- Optical Resolution
- 4mil (0.1mm)
- Printing Contrast Scale
- minimum 20%
- Scan range / decode distances
- (DOF PCS=80%) -----------------------------------------------Symbology | Density | Near | Far Code 128, 5 mils | 3.55 cm | 17.78 cm Code 39, 5 mils | 3.05 cm | 26.67 cm Code 39, 7.5 mils | 3.04 cm | 41.91 cm Code 128, 10 mils | 3.05 cm | 40.46cm UPC, 13 mils | 4.57 cm | 63.50 cm Code 128, 15 mils | 5.08 cm | 66.04 cm Code 39, 20 mils | 3.56 cm | 116.84 cm Code 39, 55 mils | 8.64 cm | 177.80 cm Code 39, 100 mils | 60.96 cm | 457.20 cm
- Radio
- Bluetooth LE® V4.2 & Bluetooth® 2.1+EDR, Class 1 Dual mode
- Wireless Coverage
- 100m ( line of sight)
- Protocol
- Serial Port and HID profiles
- Host Interface supported
- USB, RS232
- Memory Buffer
- 7MB for batch mode/ 20KB for auto mode
- Dimensions
- 87.8 L x 71.6 W x 177.7 H (mm)
- Weight
- 213g without cradle
- Trigger Switch Life
- 10 million times
- Cradle Dimension
- 120.6 L x 88.7 W x 86.0 H (mm)
- 1D Barcodes
- Code 39, Full ASCII Code39, Interleave 2 of 5, UPC A/E/E1, MSI, Codabar, Code 11, EAN8/13, Code 93, Code 128, EAN128, Code32, GS1 databar Code, Bookland EAN, Discreate 2 of 5, Chinese 2 of 5, ISBT 128, UCC Coupon Extended Code, Bookland 128
- Data Formatting
- Prefix, Suffix, Code ID, Reformatting Date
- Indicator
- LED & Beeper & Vibrator
- Battery / runtime
- Rechargeable and replaceable battery pack.
- Battery / runtime
- 2850mAh
- Battery Charging time
- 7 hours
- Operating Time
- >30 hours
- ESD Protection
- Functional after 8K Contact and 15K Air
- Mechanical Shock
- 2.1M onto concrete (scanner only)
- Operating temperature
- -10°C to 50°C (14°F to 122°F)
- Storage temperature
- -40°C to +70°C (-40°F to +158°F)
- Humidity
- 95% non-condensing
- IP / sealing
- IP42
- Items
- ■ RS232 cable (PN# 1550-905891G) ■ 1-slot charging cradle (PN#5000-900064G) ■ Battery (PN# 1400-900055G) ■ Carrying bag (PN#3210-900025G) ■ power supply for RS232 cable (PN# 1010-900008G) ■ Standard Hands Free Stand (PN#5200-900009G) ■ USB cable with ESD enhanced (PN#1550-905920G) ■ Protective Case (PN#386793G) ■ 5V/2A Adapter(US) (PN#1010-900058G) ■ 5V/2A Adapter with universal plugs (PN#1010-900067G) ■ Desktop/ Wall Mount stand (PN#5200-900011G)
- Regulatory Approvals
- CE, FCC, BSMI, VCCI, NCC, TELEC, BQB, TAA Compliant
- The standard package contents
- ■ MS851B Scanner with battery ■ Cradle ■ Interface cable
- Hardware Warranty
- 36 months
- Statement
- This product is warranted against defects in workmanship and materials for a period of three years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
