Unitech · Barcode scanner

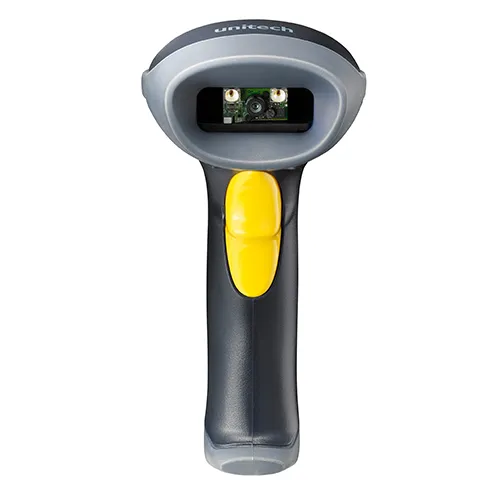

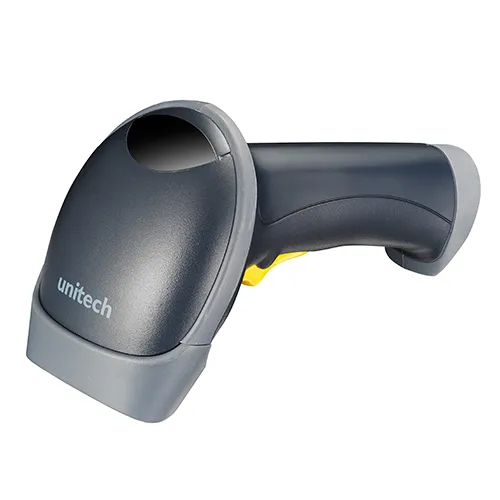

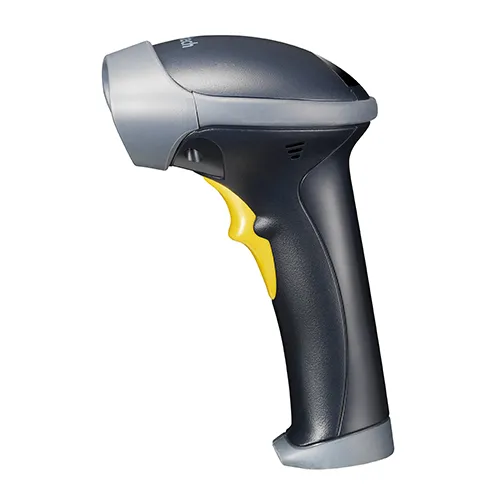

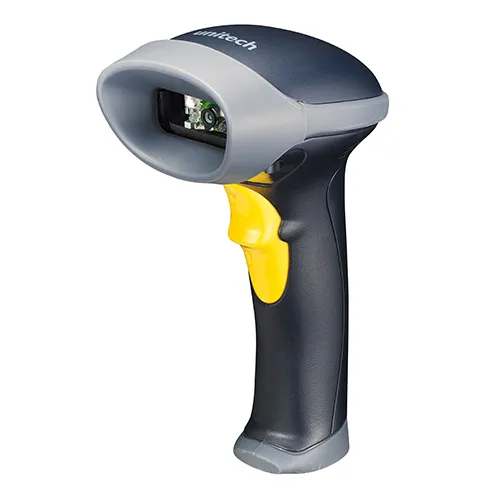

Unitech MS842P DPM
The MS842DPM handheld scanner support most 2D barcodes and some direct part marking (DPM).

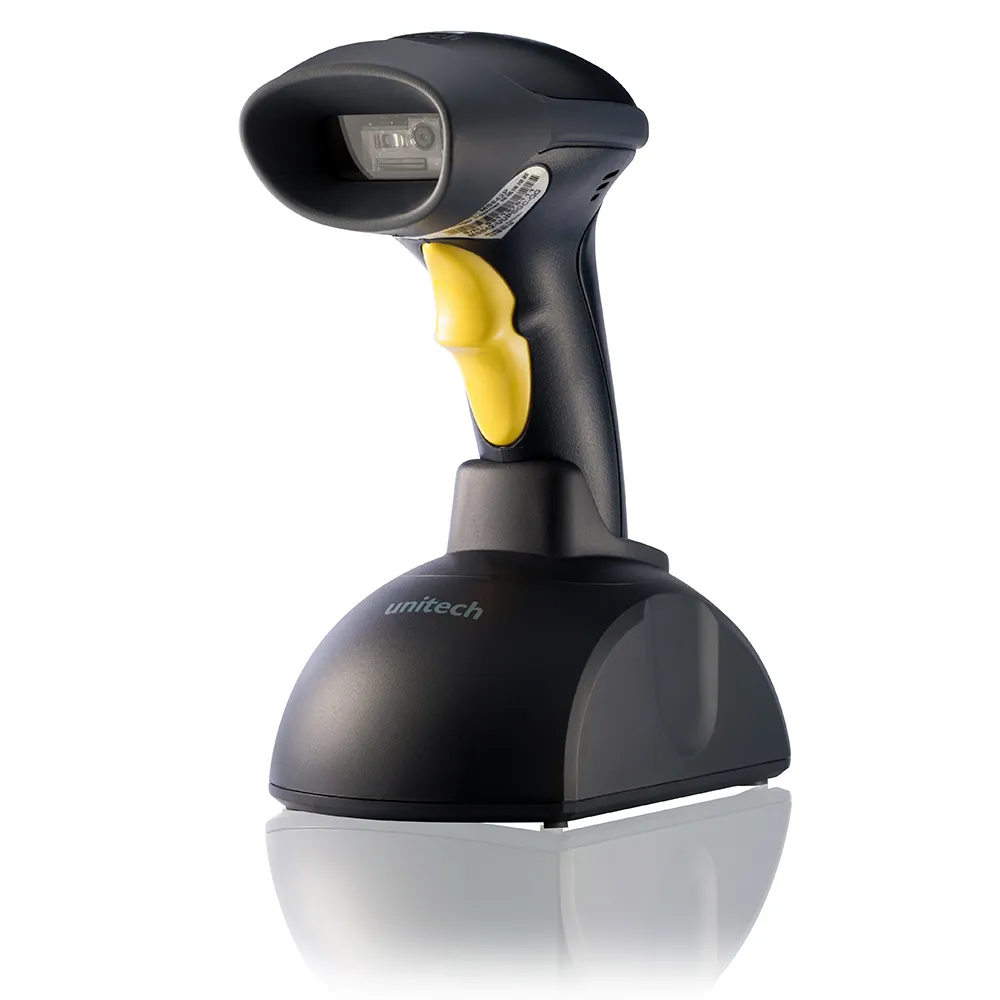

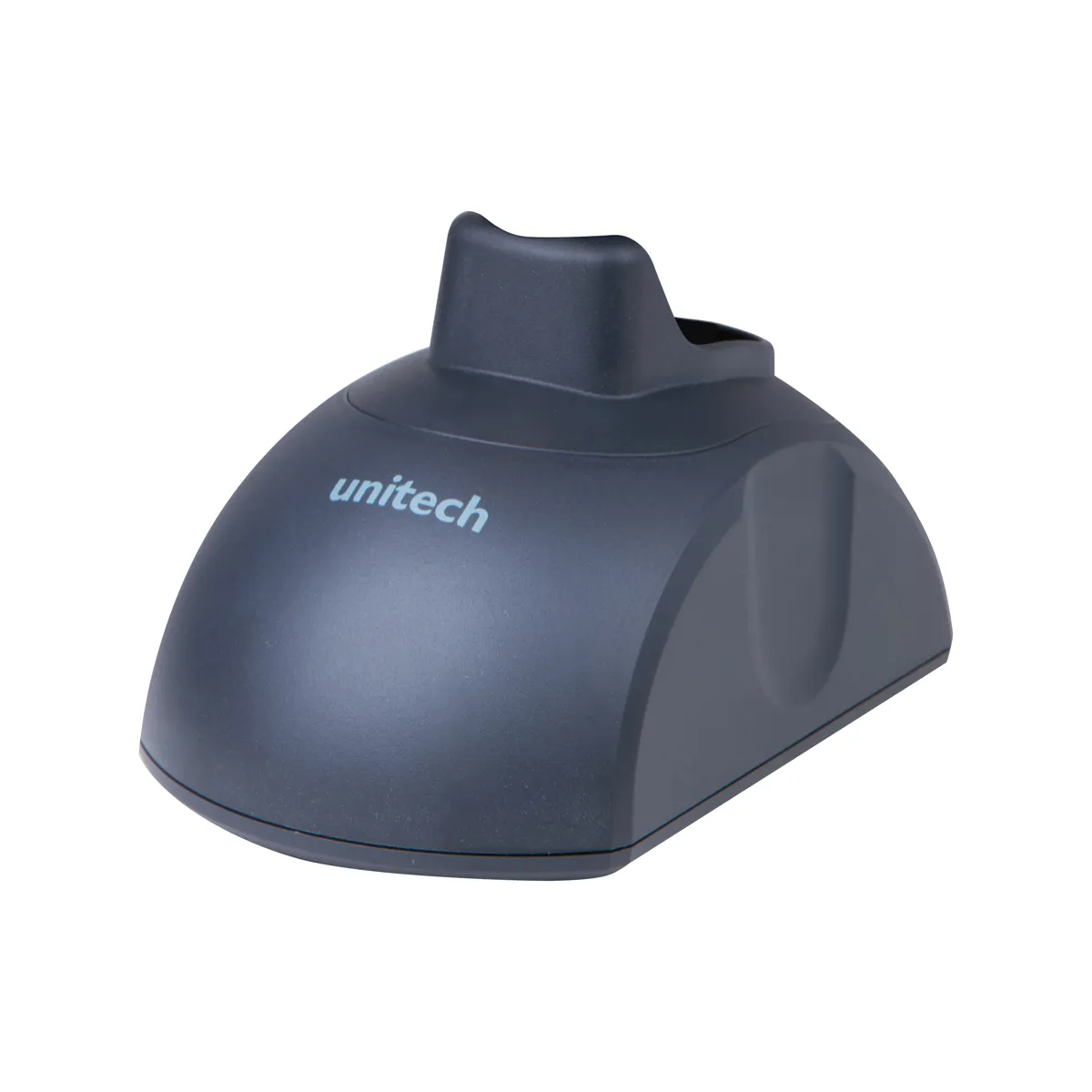

- BatteryLithium-ion 1600mAh charged via the cradle
- SealingIP42
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Data capture
- Scan range / decode distances
- (DOF PCS=80%) ------------------------------------------------------- Decode Range | Near | Far 3 mil Code 39 | 1.7 in./4.3 cm | 4.3 in./10.9 cm 5 mil Code 128 | 1.7 in./4.3 cm | 4.3 in./10.9 cm 5 mil PDF417 | 1.7* in./4.3 cm | 4.7 in./11.9 cm 6.67 mil PDF417 | 1.9 in./4.8 cm | 4.0 in./10.2 cm 10 mil DataMatrix | 1.6 in./4.1 cm | 4.9 in./12.4 cm 5 mil QR Code | 1.9 in./4.8 cm | 4.0 in./10.2 cm 10 mil QR Code | 1.1 in./2.8 cm | 5.0 in./12.7 cm 100% UPCA | 2.4* in./6.1cm | 7.3 in./18.5 cm -------------------------------------------------------
Power
- Battery / runtime
- Lithium-ion 1600mAh charged via the cradle
Rugged
- IP / sealing
- IP42
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -30°C to 70°C
- Humidity
- 5% to 90% non-condensing
Size
- Weight
- 210g (without cable)
- Dimensions
- 176 x 74 x 89 mm
