Unitech · Accessory

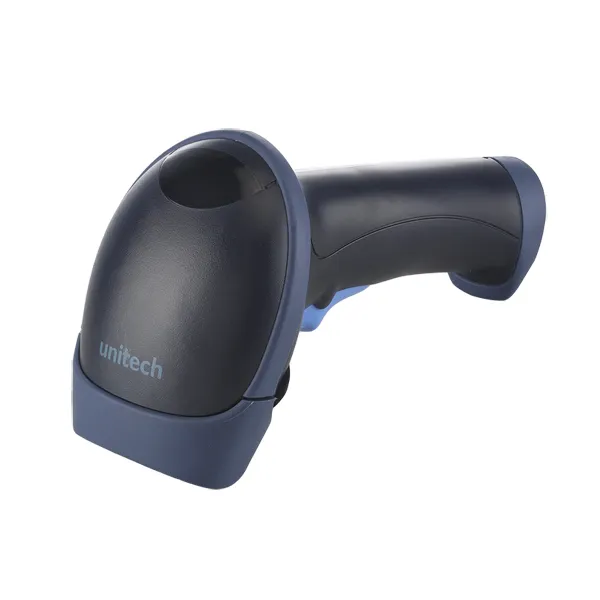

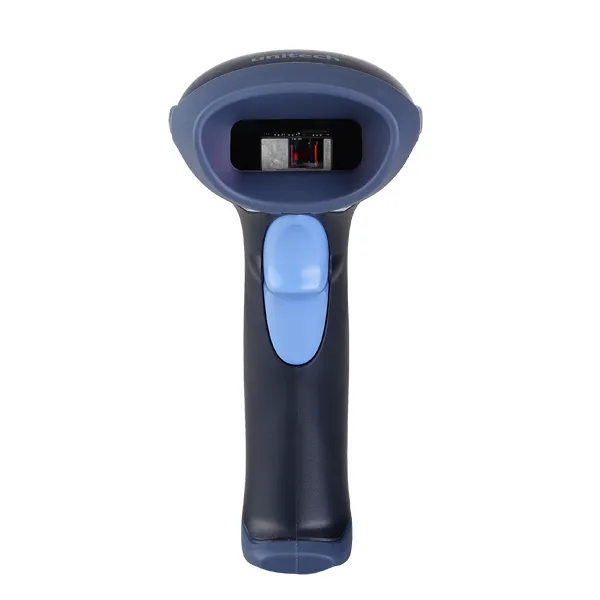

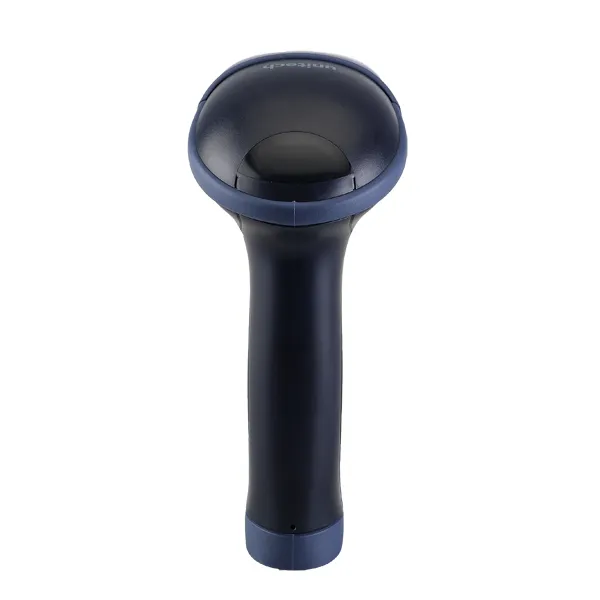

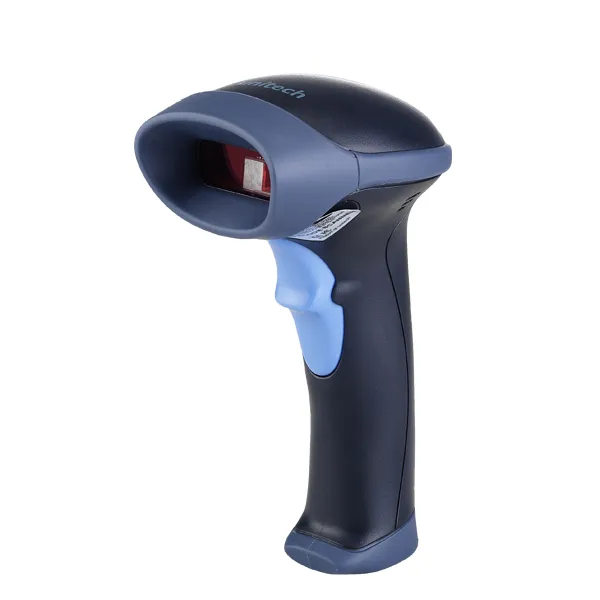

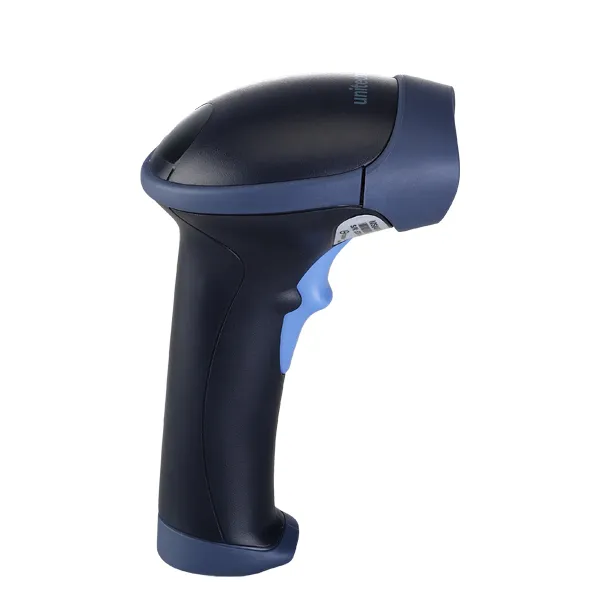

Unitech MS840P
MS840P the ideal scanner for a variety of applications in warehousing, retail and healthcare field.
- BatteryLithium-ion 1600mAh charged via the cradle
- SealingIP42
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Sensor
- Laser engine
- Illumination
- Visible Laser Diode 650 nm
- Scan Rate
- 104 scans/second
- Skew Angle
- 47°± 3° (typical), 35°± 3° (narrow)
- Optical Resolution
- 4mil (0.1mm)
- Scan range / decode distances
- (DOF PCS=80%) Decode Range | Near | Far Code 39, 4mil | 2.5cm | 13.9cm Code 39, 5mil | 3.18cm | 20.32cm Code 39, 7.5mil | 3.81cm | 33.02cm Code 39, 10mil | 3.81cm | 45.72cm Code 39, 13mil | 3.81cm | 60.96cm Code 39, 15mil | 3.81cm | 71.12cm Code 39, 20mil | 4.45cm | 83.82cm Code 39, 40mil | * | 91.44cm Code 39, 55mil | * | 114.3cm * dependent on width of bar code
- Radio
- Unlicensed 2.4GHz
- Wireless Coverage
- 10M( line of sight)
- Host Interface supported
- USB(via Cradle or dongle)
- Dimensions
- H176*W74*L89mm
- Weight
- 206g
- Operation Mode
- Trigger Mode, Flash Mode, Continuous Mode, Buffer mode
- 1D Barcodes
- Code 39, Full ASCII Code39, Interleave 2 of 5, Standard 2 of 5, China Postal, UPC, Delta Code, MSI, Plessy, Codabar, Code 11, EAN8/13, Code 93, Code 128, EAN128, Code32, Italian Pharmacy, Label Code,GS1 databar code
- Data Formatting
- Prefix, Suffix, Code ID, Reformatting Date
- Operation Voltage
- DC 3V to 5V
- Current Consumption
- Operation mode<170mA , Standby mode:<30mA
- Battery / runtime
- Lithium-ion
- Battery / runtime
- 1600mAh charged via the cradle
- Battery Charging time
- Fully charged in 4.5 hours
- Operating Time
- Over 80 hours at condition of 1 scan/3 sec
- ESD Protection
- Functional after 8K Contact and 12K Air
- Mechanical Shock
- 1.8m onto concrete (scanner only)
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -30°C to 70°C
- Humidity
- 5% to 90% non-condensing
- IP / sealing
- IP42
- Items
- ■ Cradle (PN# 5000-900039G) ■ Dongle (PN# 5500-900086G ) ■ Battery pack (PN# 1400-900014G) ■ USB Cable for dongle (PN# 1550-900058G) ■ USB cable for cradle (PN# 1550-600626G) ■ Power adaptor (PN# 1010-900014G)
- Regulatory Approvals
- CE, FCC, BSMI, TAA Compliant
- The standard package contents
- The standard package with dongle only: ■ MS840P scanner ■ Power adapter ■ Dongle, ■ USB Extension Cable for dongle The standard package with dongle & cradle: ■ MS840P scanner ■ Power adapter ■ Dongle, ■ Cradle connection cable ■ Cradle
- Hardware Warranty
- 15 months
- Statement
- The warranty covers natural failures due to regular usage. Damages caused by drops or other incidents are not covered. And different regions may have varying warranty terms. Please contact your local representative for further extended information.
