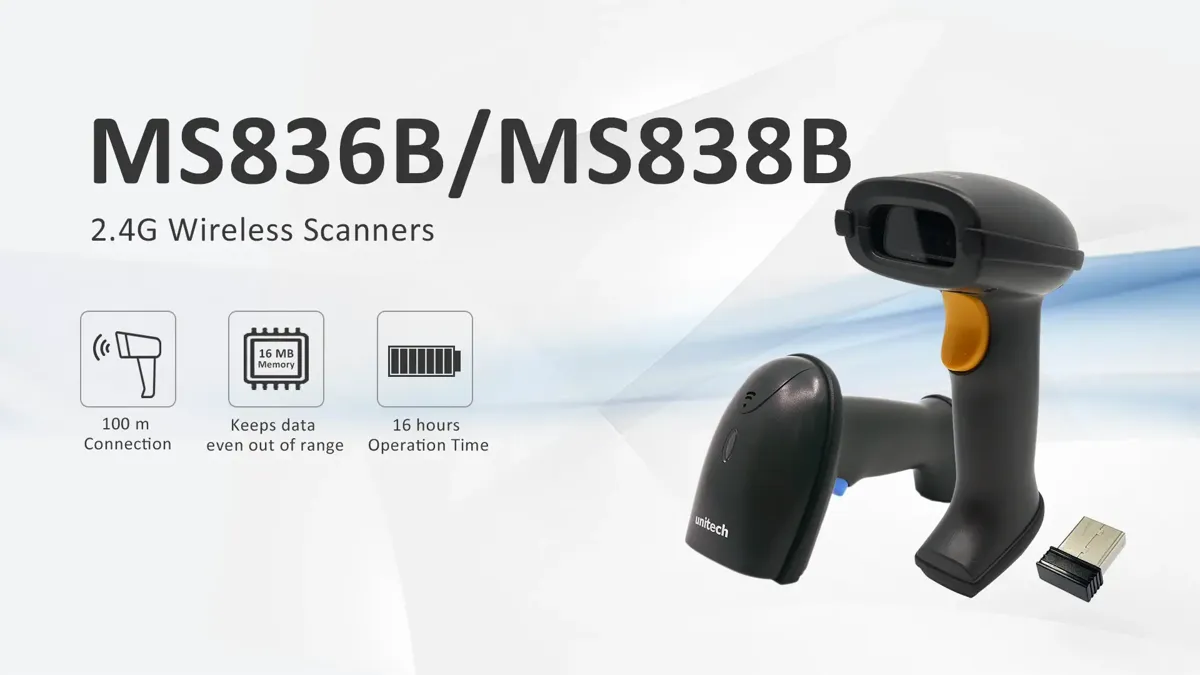

Unitech MS838B
100 m Connection | Keeps data even out of range | 16 hours operation time
- BatteryLithium-ion 2600mAh 18650 battery
- SealingIP42
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 2MB Memory
- Inventory Mode
- 1D / 2D Support
- Up to 60 fps Frame Rate
- Up to16 hours Operating Time
- 2600 mAh Battery
- RAM / storage options
- 2MB
- Key
- Trigger Key
- Sensor
- CMOS Sensor,640 x 480 pixels
- Aiming Element
- Red LED
- Illumination
- White LED
- Ambient Light
- 0-100,000 Lux
- Scan Rate
- 60fps
- Skew Angle
- ±65°
- Pitch Angle Sensor
- ±60°
- Roll Angle
- 0 - 360°
- Optical Resolution
- ≥ 3mil(code 39)
- Scan range / decode distances
- 13 mil EAN13 Near 60 mm Far 310 mm
- Radio
- 2.4G Wireless Bluetooth V4.2 Class 2
- Wireless Coverage
- 2.4G 100 m( line of sight) Bluetooth: 10 m
- Protocol
- 2.4G USB HID, BLE ,SPP
- Host Interface supported
- USB Type C
- Memory Buffer
- 2MB
- Dimensions
- 174mm × 72mm × 96mm (L x W x H)
- Weight
- 200g
- 1D Barcodes
- Codabar, Code11, Code39, Code32, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5, Code93, Code128, GS1-128, UPC-A, UPC-E, EAN 8, EAN 13, GS1 DataBar (RSS14), GS1 DataBar Limited, GS1 DataBar Expanded, etc
- 2D Barcodes
- PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code
- Data Formatting
- Prefix, Suffix, Code ID
- Operation Voltage
- DC 5V
- Current Consumption
- Operation mode:＜250mA , Standby mode:＜48mA
- Indicator
- Buzzer LED light
- Battery / runtime
- Lithium-ion
- Battery / runtime
- 2600mAh 18650 battery
- Battery Charging time
- Fully charged in 5 hours
- Operating Time
- Over 16 hours
- Mechanical Shock
- 1.5m onto concrete (scanner only)
- Operating temperature
- -10°C to 50°C
- Storage temperature
- -20°C to 60°C
- Humidity
- 5- 95% non-condensing
- IP / sealing
- IP42
- Items
- ■ 2.4G Dongle (PN:5500-900098G) ■ Hans-Free Stand (PN:5200-900014G)
- Regulatory Approvals
- CE, FCC, BSMI, VCCI
- The standard package contents
- ■ MS838B scanner ■ 2.4G Dongle ■ USB cable (Type C USB)
- Hardware Warranty
- 15 months
- Statement
- This product is warranted against defects in workmanship and materials for a period of fifteen months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
