Unitech · Accessory

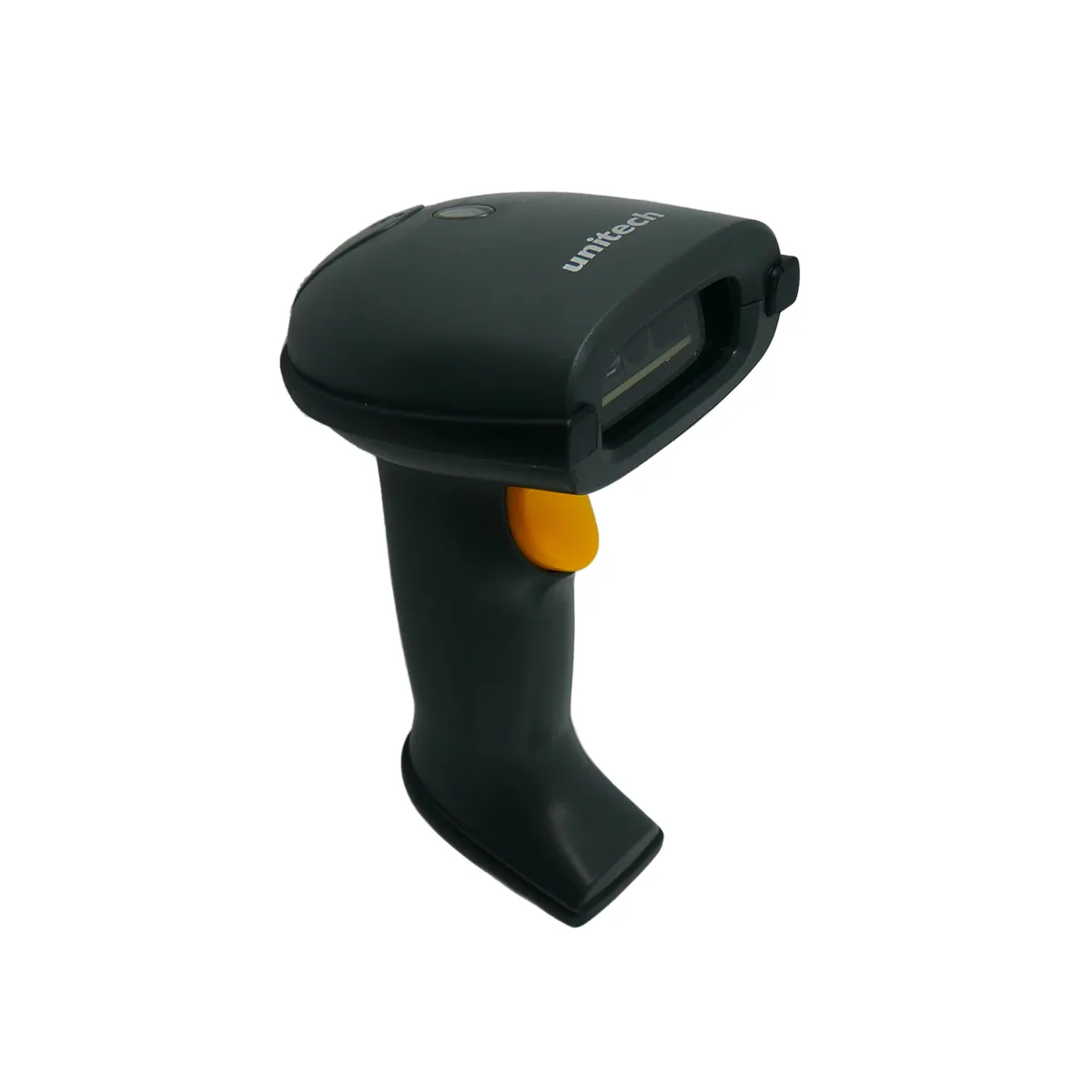

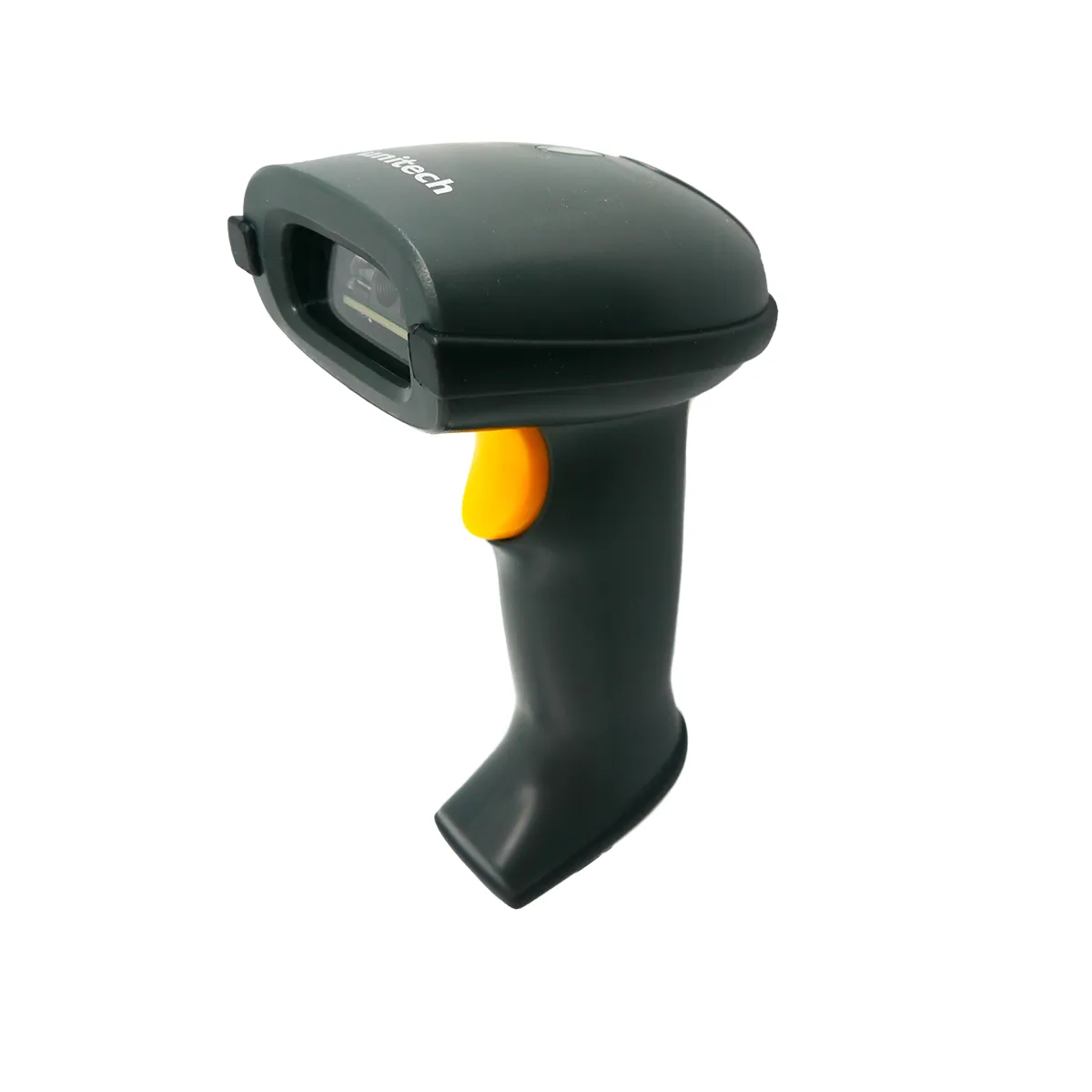

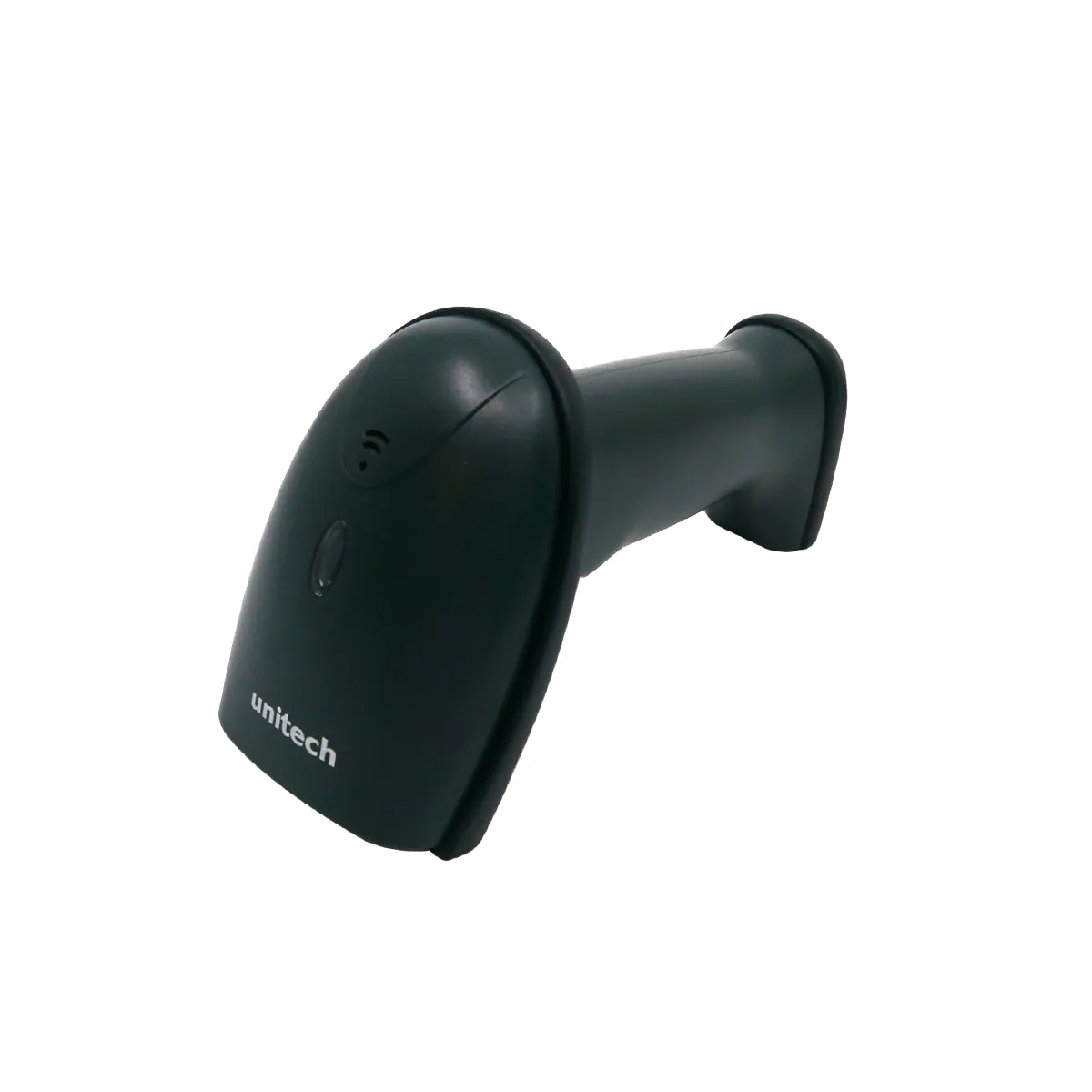

Unitech MS838
High C/P value | IP52 protection + 1.5 m drop | Read 3 mil barcode
- SealingIP52
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- USB / RS232 Interface
- Hands-Free Stand (Optional)
- Sensor
- 640 X 480 CMOS
- Aiming Element
- Red LED
- Illumination
- White LED
- Ambient Light
- 0~100,000lux (natural light)
- Scan Rate
- 60fps
- Skew Angle
- ±60°
- Pitch Angle Sensor
- ±60°
- Roll Angle
- 0 - 360°
- Optical Resolution
- (1D)≥3mil
- Scan range / decode distances
- 60-360mm (13 mil PCS=90%)
- Host Interface supported
- USB / RS232
- Dimensions
- 174mm × 72mm × 96mm (L x W x H)
- Weight
- 245g
- Trigger Switch Life
- 1 million times
- Operation Mode
- Trigger Mode, Presentation Mode
- 1D Barcodes
- Code 128, EAN-13, EAN-8, Code 39, Code 32, UPC-A, UPC-E, Codabar, Interleaved 2 of 5, Code 93, GS1-128, GS1 Databar, GS1 Databar Limited, GS1 Databar Expanded, Matrix 2 of 5, Code 11, Industrial 2 of 5, Matrix 2 of 5,
- 2D Barcodes
- PDF417, Micro PDF417, QR Code, Micro QR, Data Matrix, Aztec Code
- Data Formatting
- Prefix, Suffix, Code ID, Reformatting Date
- Current Consumption
- Operation mode: <142mA, Standby mode: <42mA
- Indicator
- Buzzer, LED
- Mechanical Shock
- 1.5m onto concrete
- Operating temperature
- -10°C to 50°C
- Storage temperature
- -20°C to 60°C
- Humidity
- 5%-95% non-condensing
- IP / sealing
- IP52
- Items
- ■ Hands-Free Stand (P/N: 5200-900014G) ■ Power Adaptor (P/N: 1010-900058G)
- Regulatory Approvals
- CE, FCC, BSMI, VCCI
- The standard package contents
- ■ MS838 Scanner ■ Interface cable ■ Hands-Free Stand (optional)
- Hardware Warranty
- 15 months
- Statement
- This product is warranted against defects in workmanship and materials for a period of thirty-six months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
