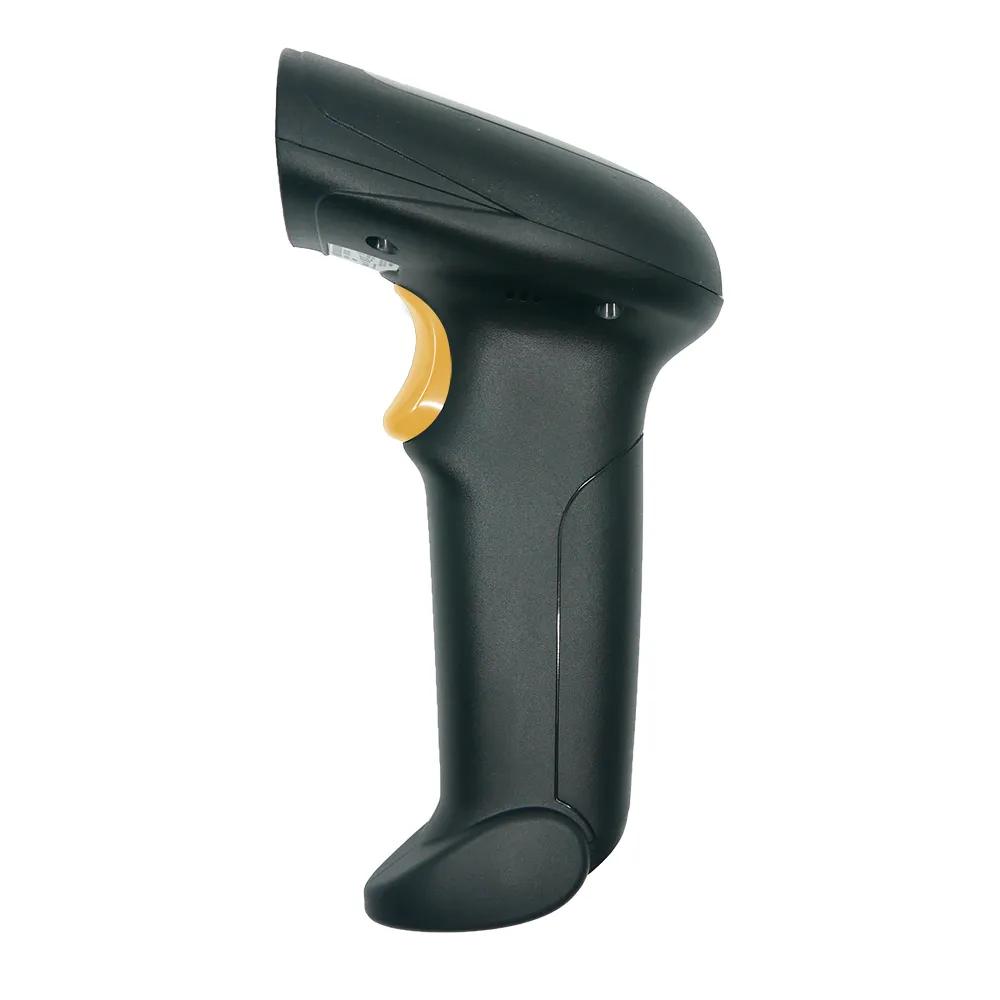

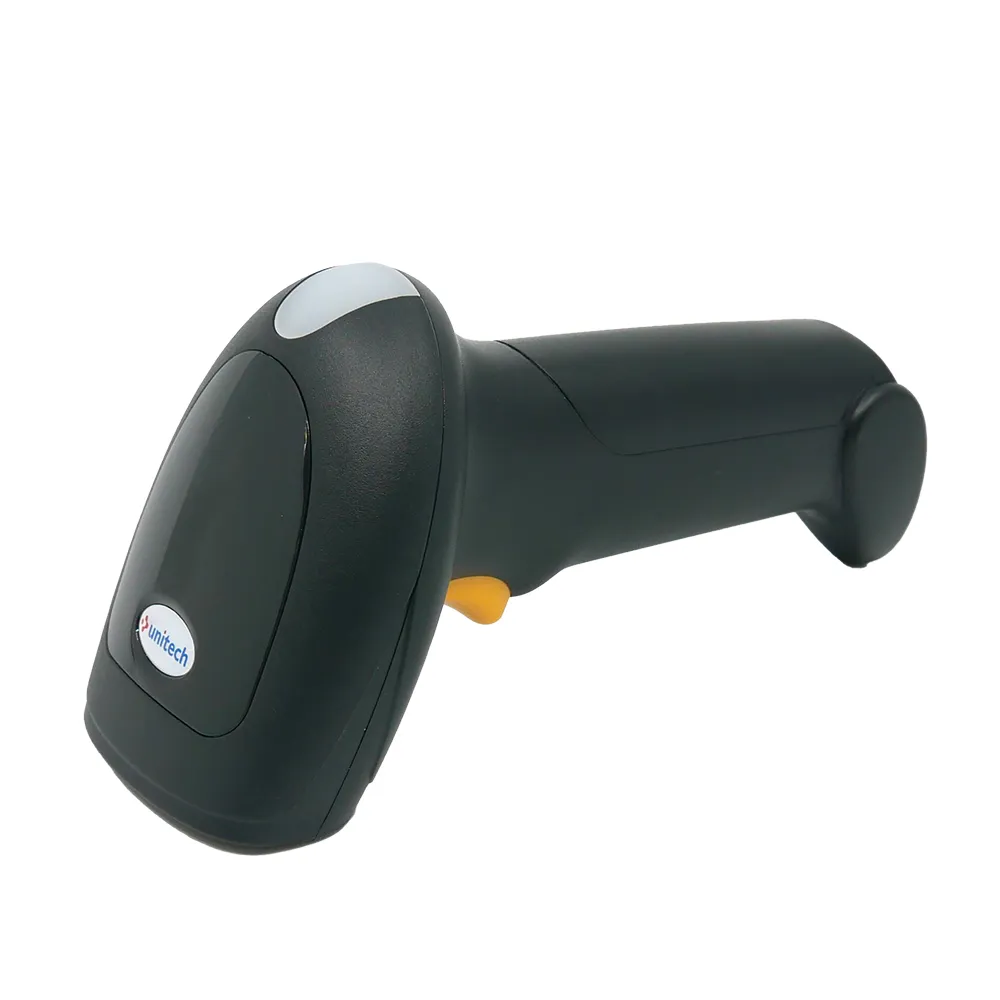

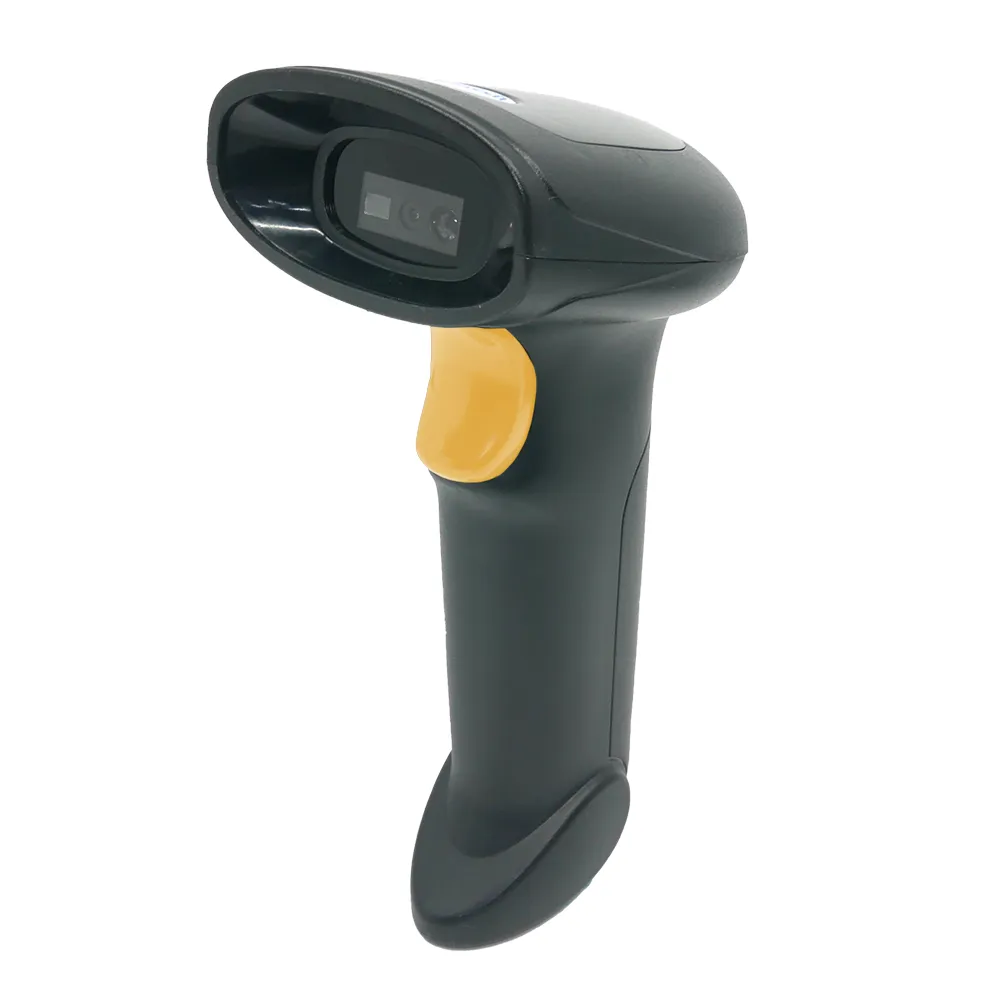

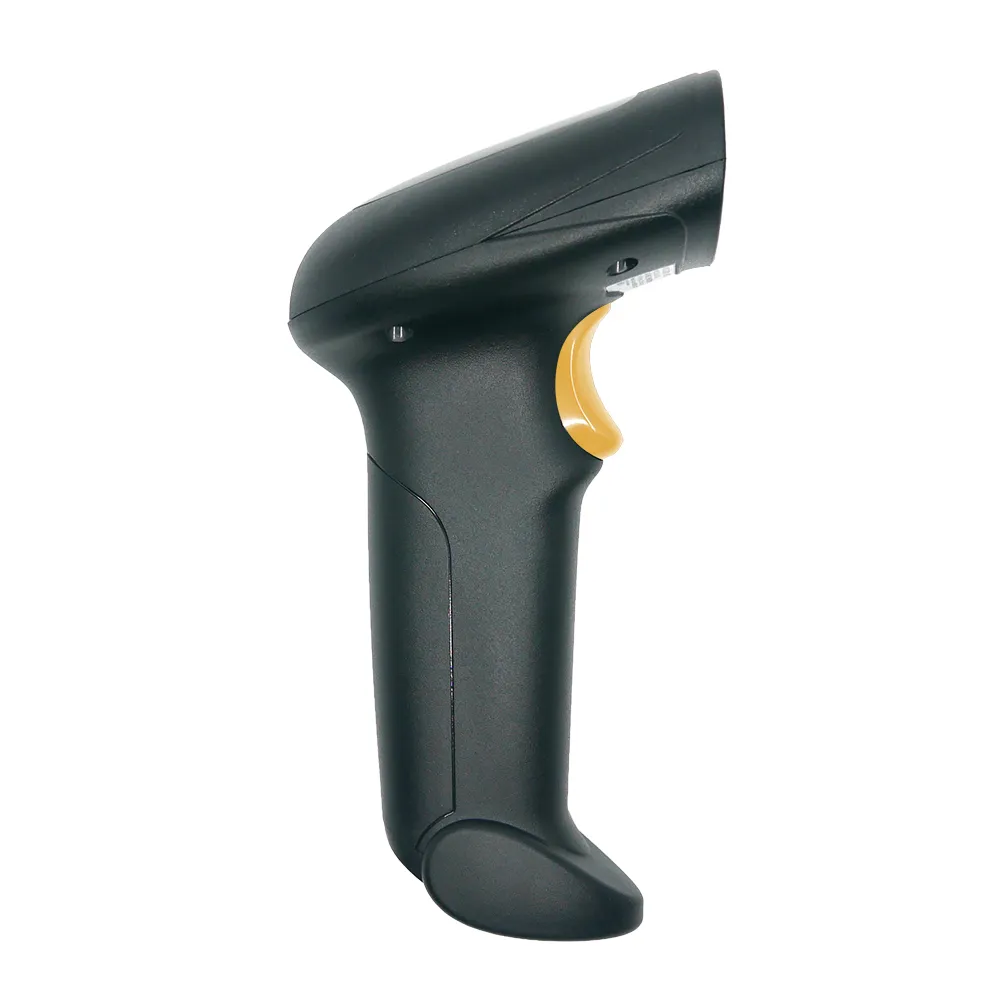

Unitech MS822B
100M operation range | IP52 and 1.5m drop | Up to 40 hours operation time
- BatteryLithium-ion 2600mAh 18650 battery
- SealingIP52
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- RAM / storage options
- 4 MB
- Key
- Trigger Key
- Sensor
- 1280 x 800 pixels, CMOS Sensor
- Aiming Element
- 625 nm LED
- Illumination
- Color temperature 6000-6500 k
- Ambient Light
- 0-100,000lux
- Scan Rate
- 60fps/s
- Skew Angle
- ±65°
- Pitch Angle Sensor
- ±65°
- Roll Angle
- 360°
- Optical Resolution
- 3mil（code 39） 3mil（EAN13）
- Scan range / decode distances
- 13 mil EAN13 Near 50 mm Far 510 mm
- Radio
- 2.4G Wireless Bluetooth V4.2 Class 2
- Wireless Coverage
- 2.4G: 100 m ( line of sight) Bluetooth: 10 m
- Protocol
- 2.4G USB HID, BLE ,SPP
- Host Interface supported
- USB Type C
- Dimensions
- 96.5 L x 72 W x 161 H (mm)
- Weight
- 180g
- Trigger Switch Life
- 1,000,000 times
- Cradle Dimension
- 106 L x 80.5 W x 70 H (mm)
- Operation Mode
- Trigger Mode, Buffer Mode, Presentation Mode
- 1D Barcodes
- 1D:Codabar、Code11、Code39、Code32、Interleaved 2 of 5、Industrial 2 of 5、Matrix 2 of 5、Code93、Code128、GS1-128、UPC-A、UPC-E、EAN 8、EAN 13、GS1 DataBar（RSS14）、GS1 DataBar Limited、GS1 DataBar Expanded、
- 2D Barcodes
- 2D: PDF417、Micro PDF417、QR Code、Micro QR、Data Matrix、Aztec Code
- Data Formatting
- Prefix, Suffix, Code ID
- Operation Voltage
- DC 5V
- Current Consumption
- Operation mode:＜290mA , Standby mode:＜55mA
- Indicator
- Buzzer LED light
- Battery / runtime
- Lithium-ion
- Battery / runtime
- 2600mAh 18650 battery
- Battery Charging time
- Fully charged in 6 hours
- Operating Time
- Over 40 hours
- ESD Protection
- Functional after 4K Contact and 8K Air
- Mechanical Shock
- 1.5m onto concrete (scanner only)
- Operating temperature
- -10°C to 50°C (14°F to 122°F)
- Storage temperature
- -20°C to 60°C
- Humidity
- 5% to 95% non-condensing
- IP / sealing
- IP52
- Regulatory Approvals
- CE, FCC, BSMI, VCCI
- The standard package contents

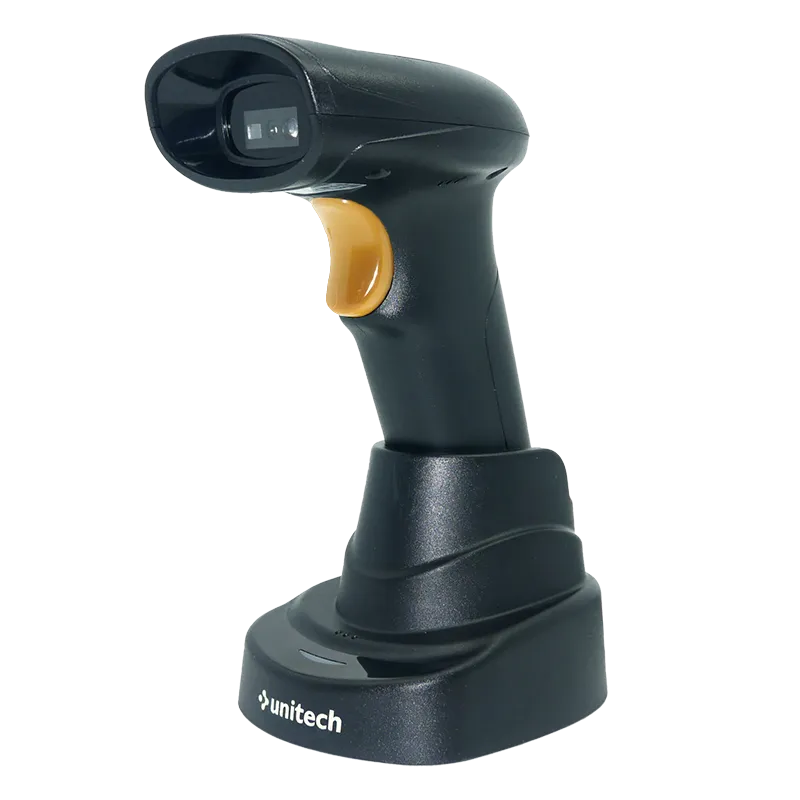

- The standard package : ■ MS822B scanner ■ Cradle integrated with 2.4G Dongle and cable
- Hardware Warranty
- 36 months
- Statement
- This product is warranted against defects in workmanship and materials for a period of fifteen months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
