Unitech · Wearable scanner

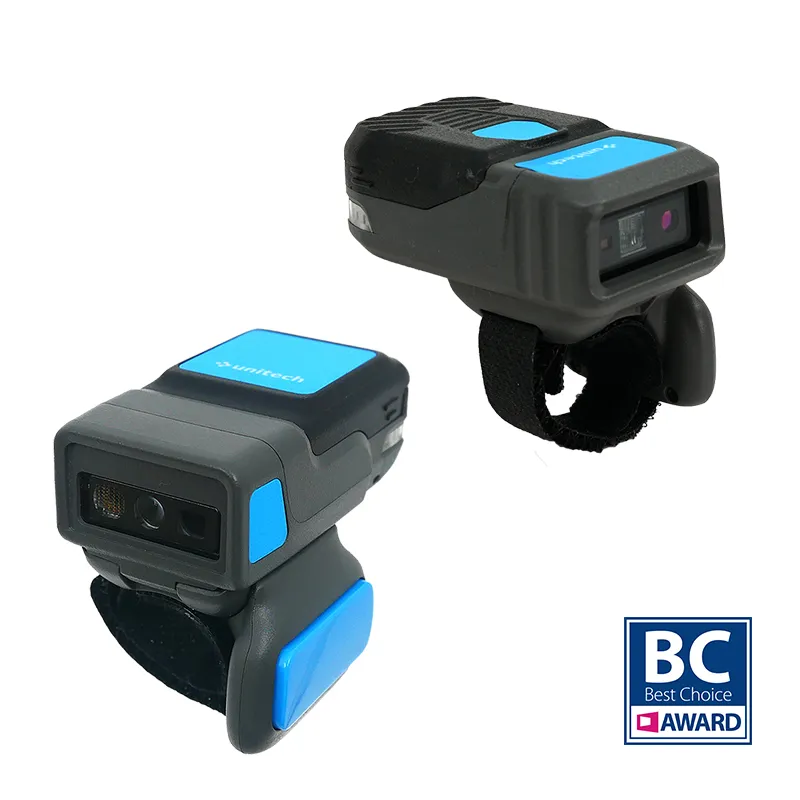

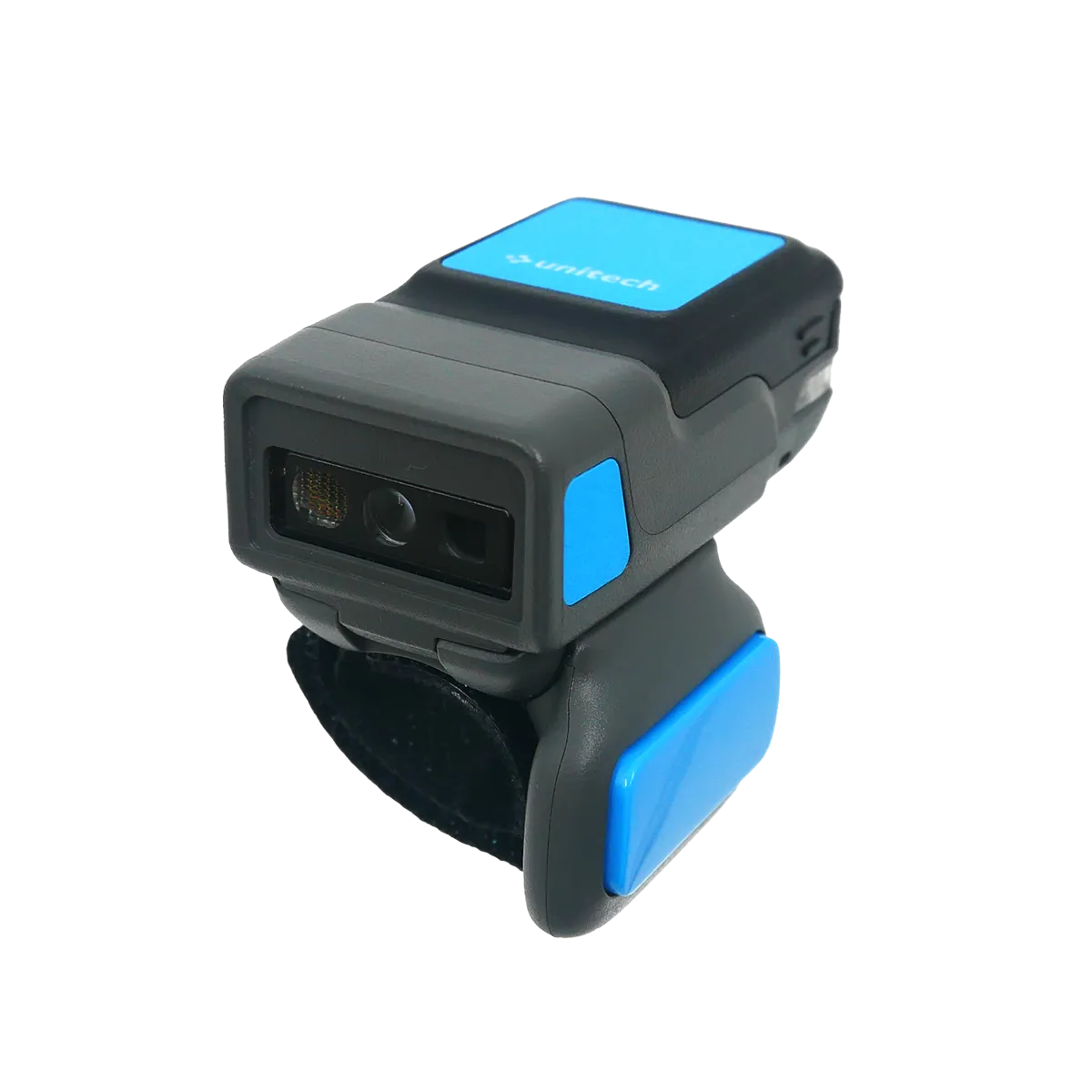

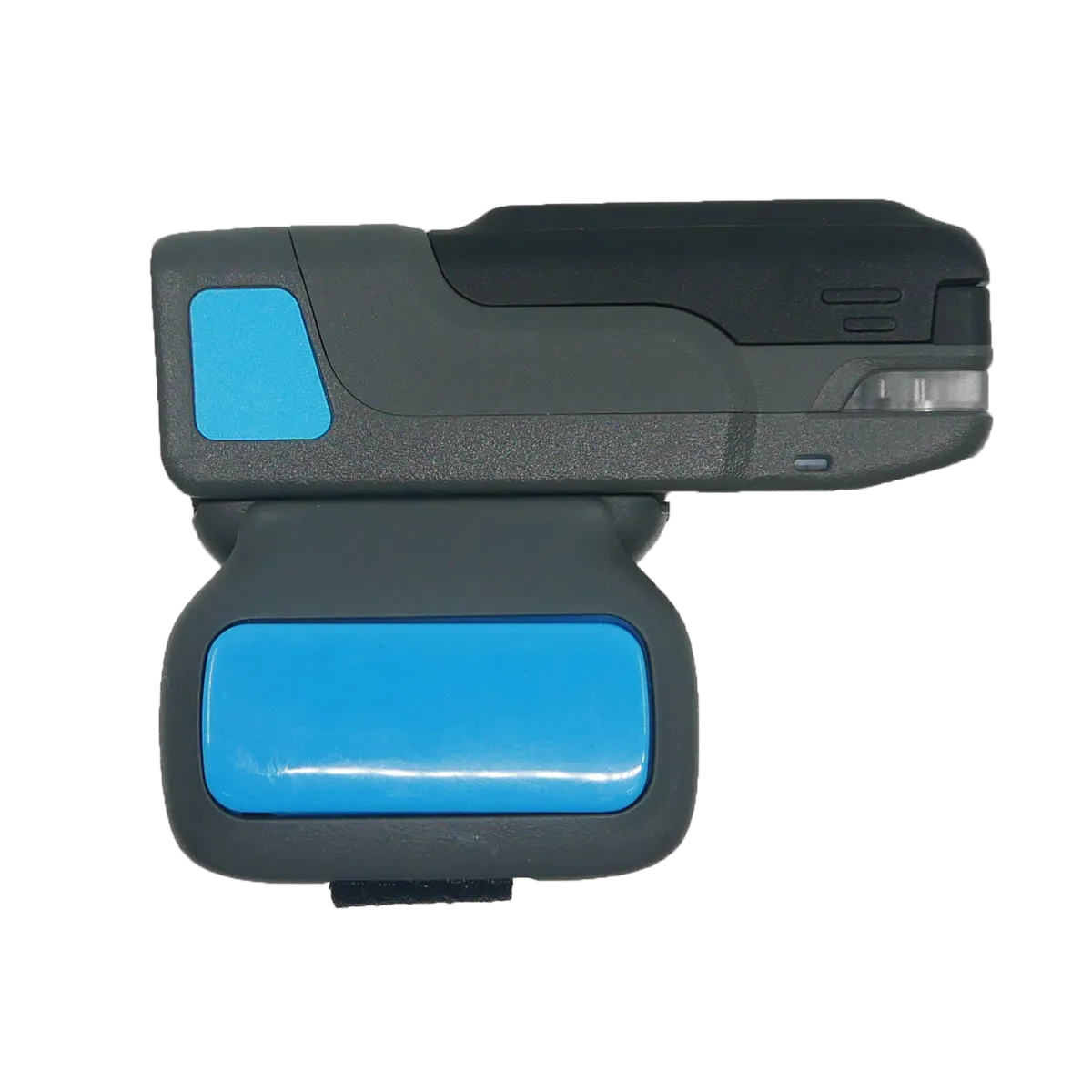

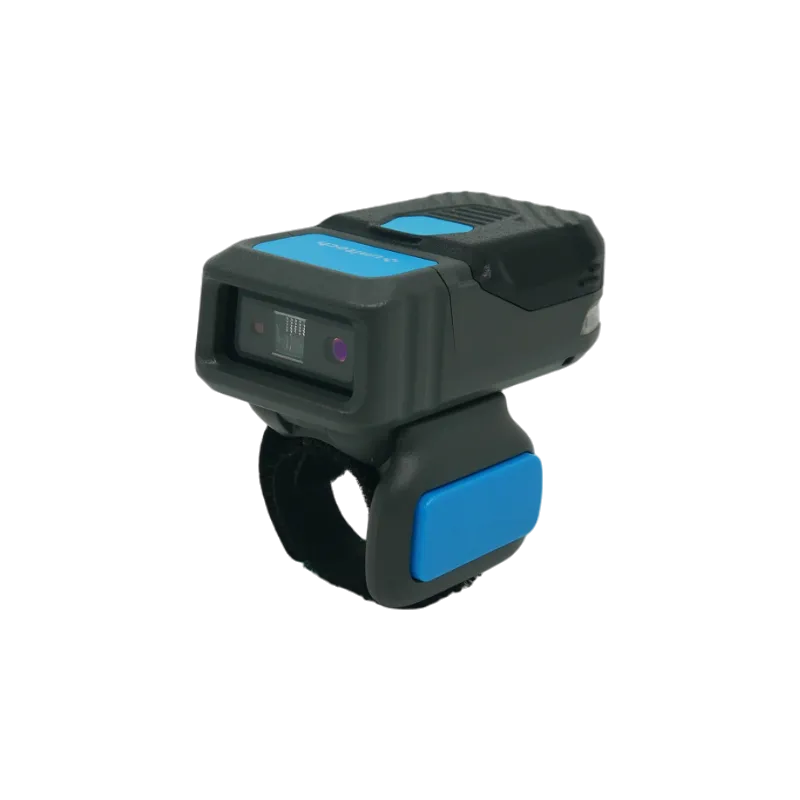

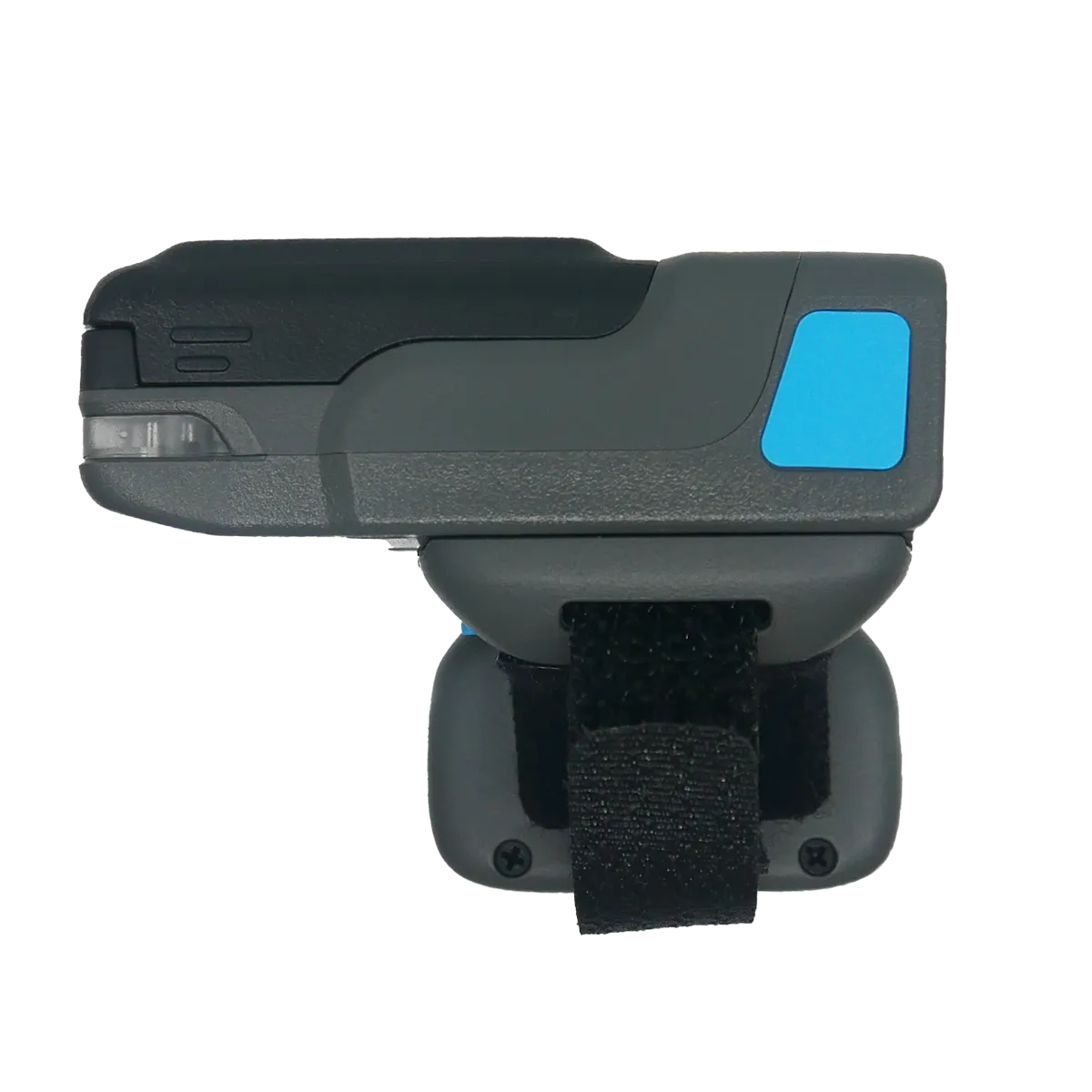

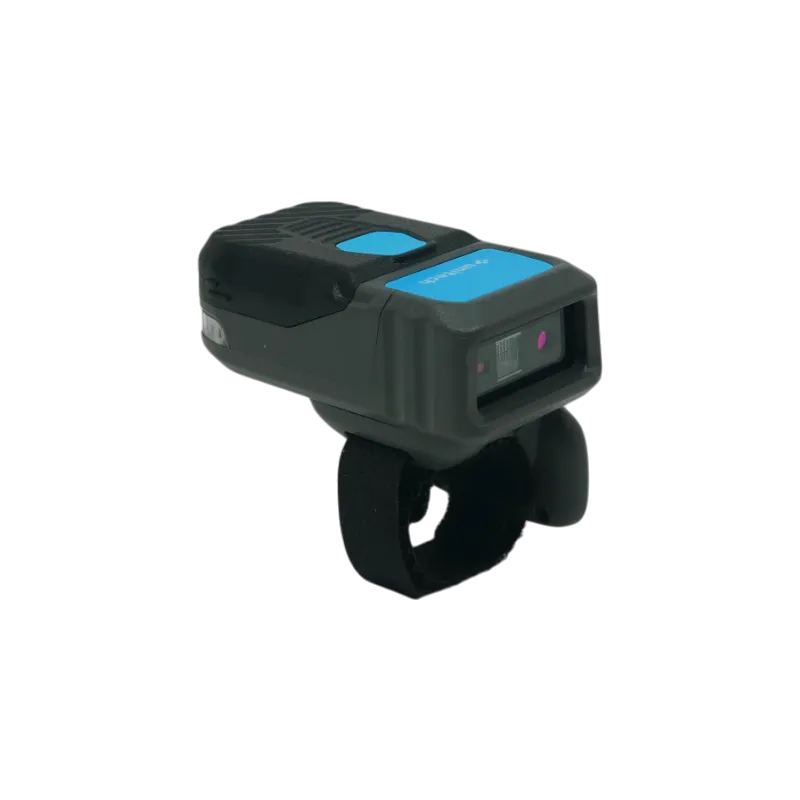

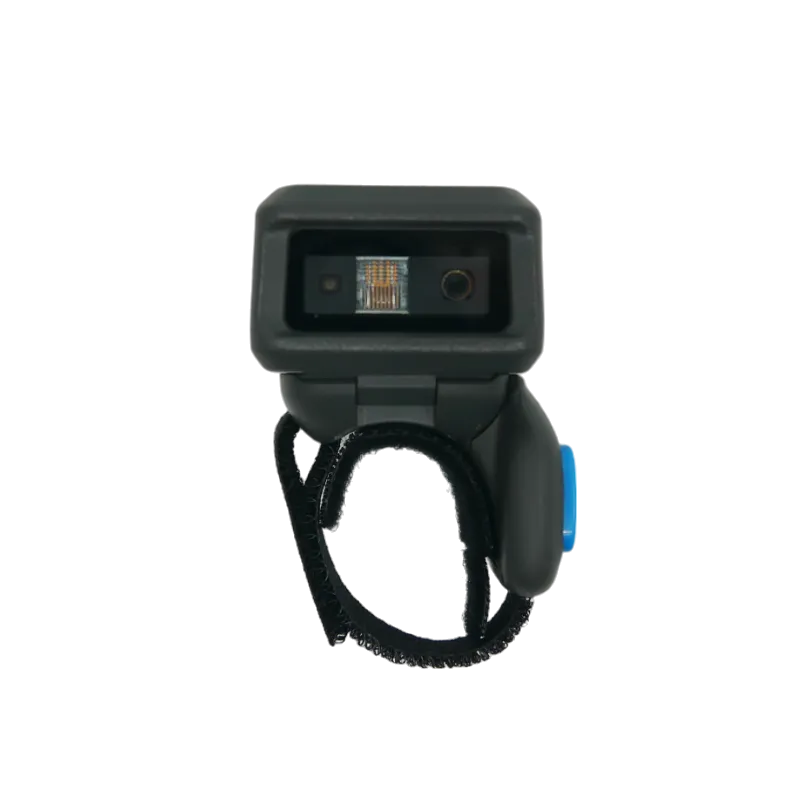

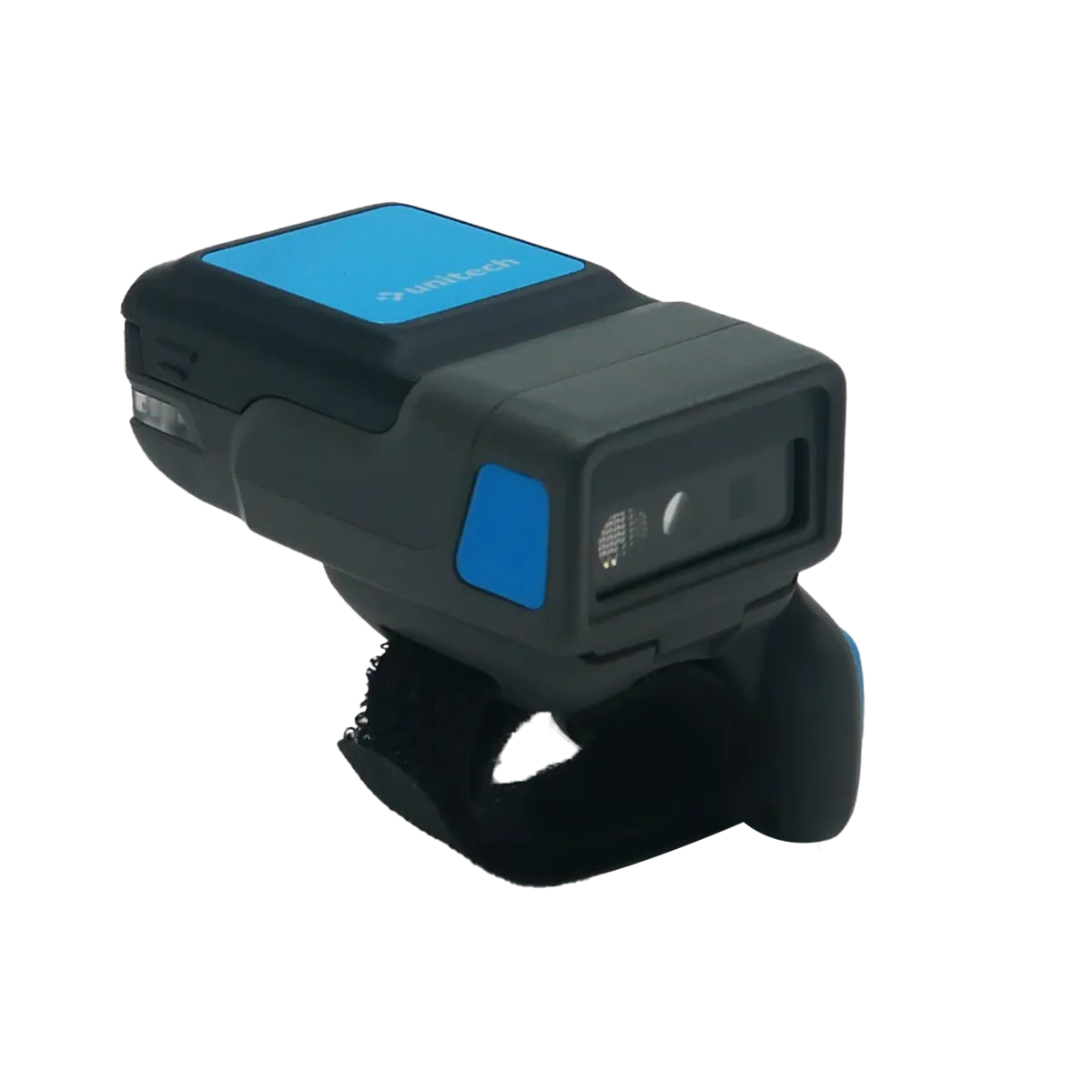

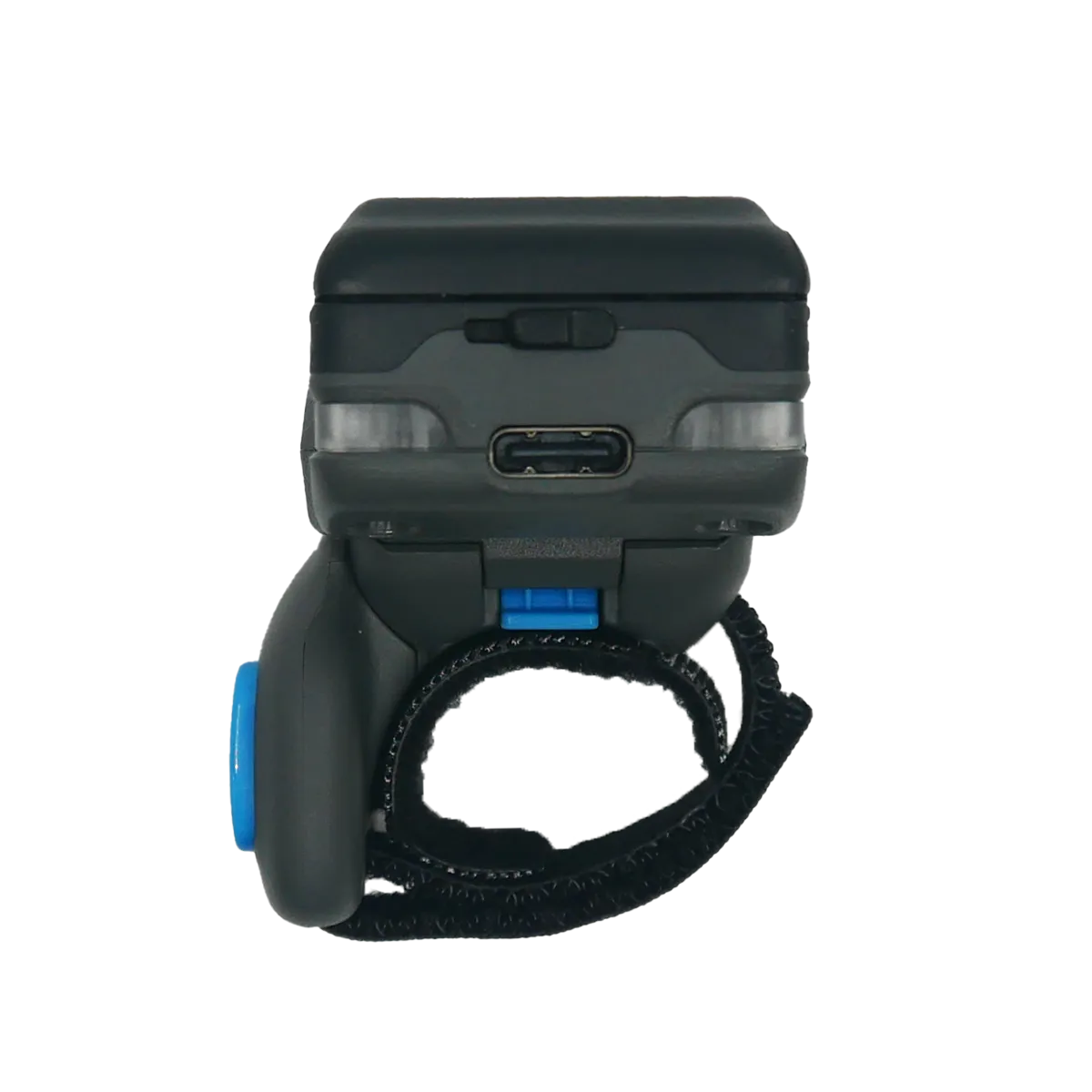

Unitech MS633
56g Lightweight Design｜12m Barcode Reading Distance｜Support ScanBridge Utility & Scanner SDK
- Battery600mAh
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Data capture
- Scan range / decode distances
- MS633: 5mil Code39: 6.1cm~24.1cm/2.4in.~9.5in. 5mil Code128: 7.1cm~22.9cm/2.8in.~9.0in. 6.67mil PDF417: 6.1cm~20.3cm/2.4in.~8.0in. 10mil DataMatrix: 7.4cm~21.6cm/2.9in.~8.5in. 100% UPCA: 4.6cm~49.5cm/1.8in.~19.5in. 15mil QR Code: 3.0cm~29.2cm/1.2in.~11.5in. 20mil QR Code: 3.0cm~35.6cm/1.2in.~14.0in. MS633 LR: 3mil Code 39: 6.9cm~41.1cm/2.7in.~16.2in. 5mil Code 39: 6.4cm~67.6cm/2.5in.~26.6in. 5mil PDF417: 7.1cm~49.8cm/2.8in.~19.6in. 6.7mil PDF417: 6.6cm~65cm/2.6in.~25.6in. 10mil DataMatrix: 5.6cm~68.8cm/2.2in.~27.1in. 100% UPC(13mil): 6.4cm~180cm/2.5in.~71in. 15mil Code 128: 18.2cm~182.9cm/7.2in.~72in. 200mil DataMatrix: 20cm~1440cm/7.9in.~566.9in. 200mil QR: 25cm~1800cm/9.8in.~708.7in.
Power
- Battery / runtime
- 600mAh
Rugged
- Operating temperature
- 14°F ~ 122°F / -10°C~50°C
- Storage temperature
- 14°F ~ 122°F / -10°C~50°C
- Humidity
- 5% to 85% non-condensing
Size
- Weight
- MS633: 56g MS633 LR: 67g
- Dimensions
- MS633: 64.8mm(L)×34.5mm(W)×24.7mm(D) MS633 LR: 70.0mm(L)×36.4mm(W)×28.4mm(D)
