Unitech · Accessory

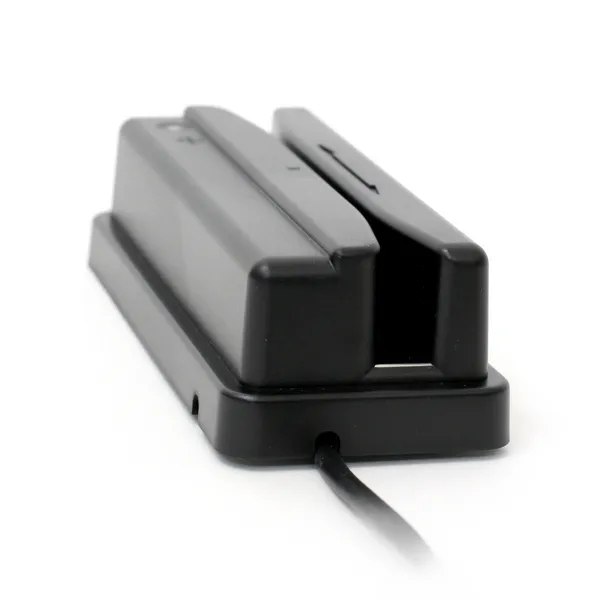

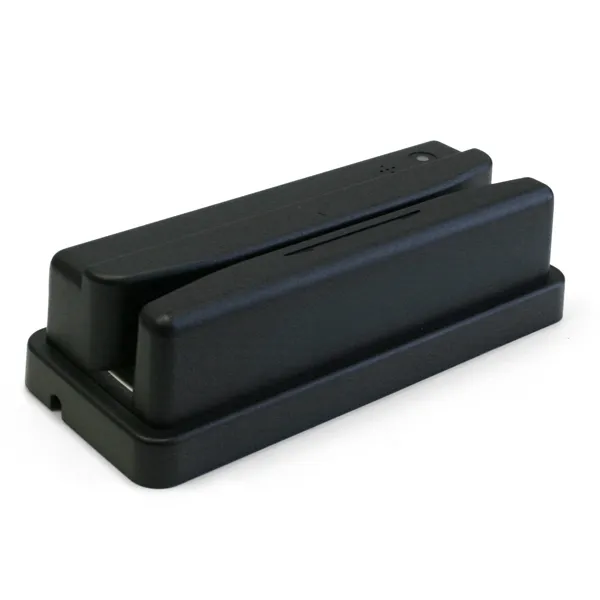

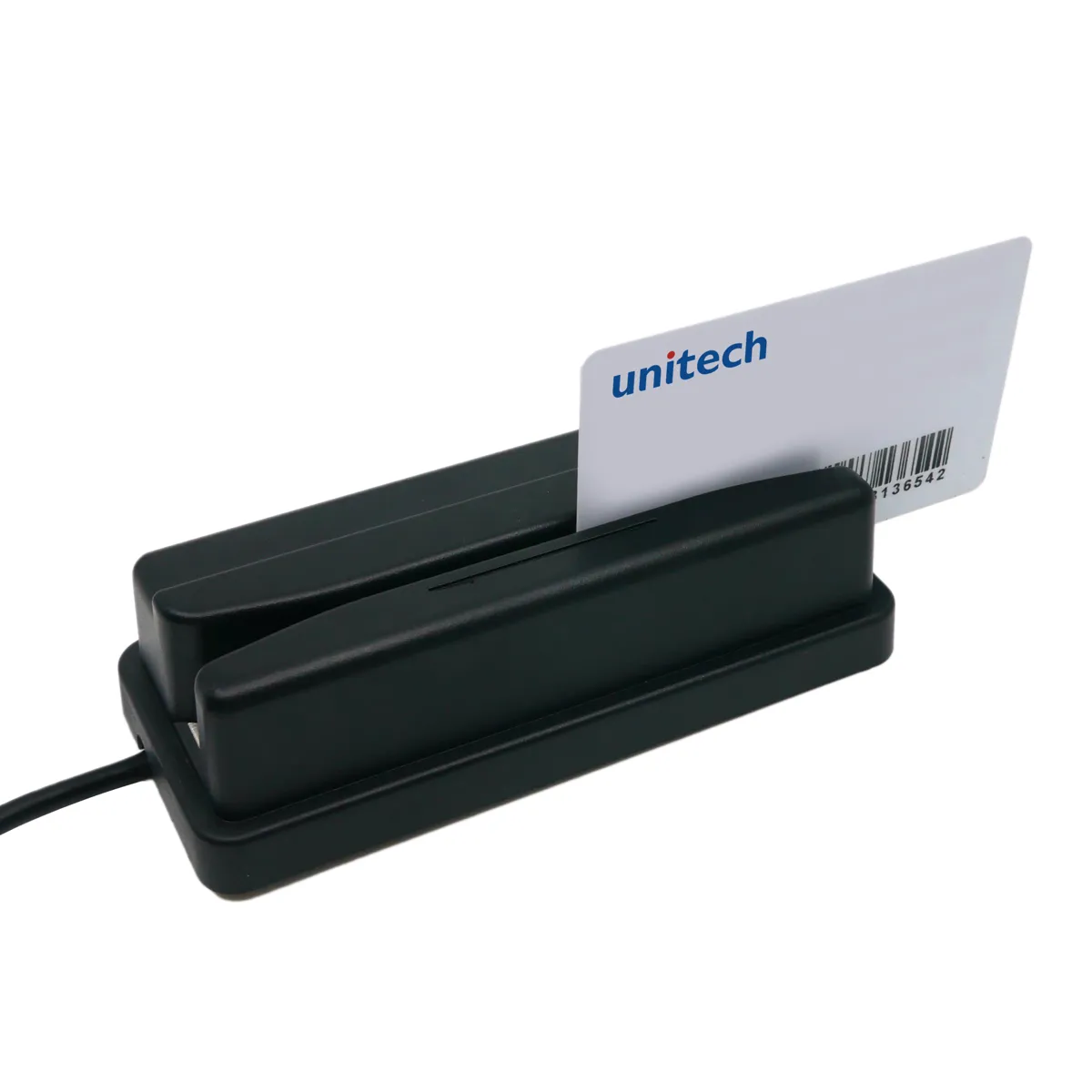

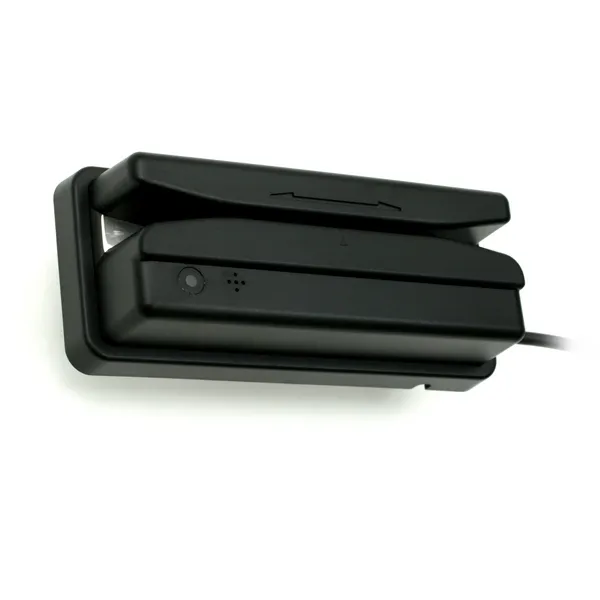

Unitech MS146
The MS146 barcode card reader is designed for time and attendance, security, and access control applications that use badges, cards, or forms.
- SealingIP54
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Sensor
- Photo diode
- Aiming Element
- Infrared: 930nm LED Visible light: 660nm LED
- Scan Rate
- 50 ~ 700mm/sec
- Optical Resolution
- 6mils (0.15mm) min
- Printing Contrast Scale
- 0.6 minimum
- Scan range / decode distances
- 2mm
- Dimensions
- 128 x 53 x 33 mm
- Weight
- 180g
- 1D Barcodes
- Code 39 standard and full ASCII, EAN-13, UPC-A, EAN-8, UPC-E, Standard 2 of 5, Code 128, Code 93, MSI, Code 11, Code 32, Delta Code, Label Code, Plessey Code, Codabar
- Mechanical Shock
- 1.5M onto concrete (scanner only)
- Operating temperature
- 0°C to 50°C
- Storage temperature
- -20°C to 60°C
- Humidity
- 0 ~ 95% RH non-condensing
- IP / sealing
- IP54
- Regulatory Approvals
- TAA Compliant
- The standard package contents
- MS146 Slot Reader
- Hardware Warranty
- 24 months
- Statement
- This product is warranted against defects in workmanship and materials for a period of two years from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
