Unitech · Handheld computer

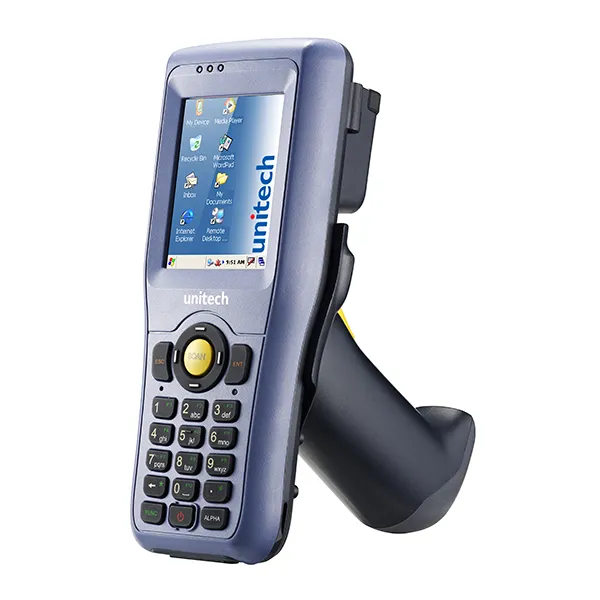

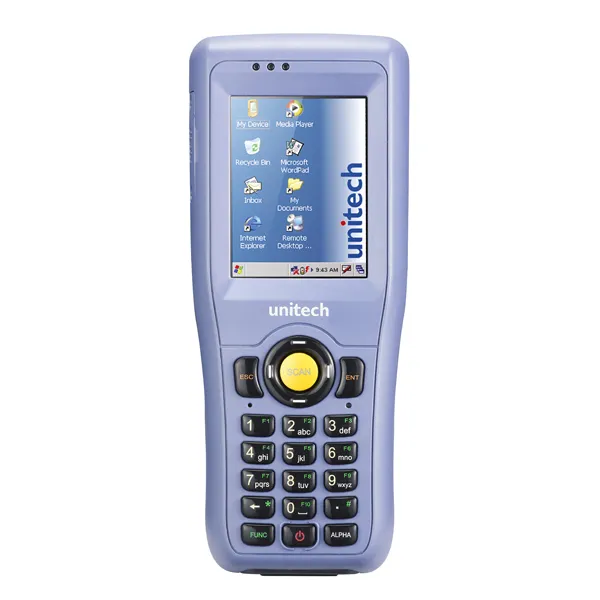

Unitech HT682LR (Long Range)
• Microsoft Windows Embedded CE 6.0 • TI OMAP AM3703, 800MHz CPU • Omnidirectional Long-range 1D/2D imager (reading distance up to 15 meters) • High performance - reads poorly printed, damaged and bar codes down to 3mil resolution • Future proofed - reads 1D, composite, stacked and 2D bar codes, to comply with the newest industry standards • Gold plated non-rusting connector pins • IP65 rated and 1.8-meter drop test to concrete • Built-in VT terminal emulation and MDM supported (12Manage)
- Operating systemWindows Embedded CE 6.0
- Display2.8 inch QVGA color screen
- Battery8.14 Watt-Hour 3.7V @ 2200 mAH ; 14.8 Watt- Hour 3.7V @ 4000mAH
- SealingIP65
- Drop1.8m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Windows Embedded CE 6.0
- Processor
- 800MHz, TI OMAP AM3703
- RAM / storage options
- 512MB RAM / 512MB Flash
Display
- Display size
- 2.8 inch QVGA color screen
- Touch panel
- Transflective TFT touch screen ; With screen backlight adjustment
Power
- Battery / runtime
- 8.14 Watt-Hour 3.7V @ 2200 mAH ; 14.8 Watt- Hour 3.7V @ 4000mAH
Connectivity
- Wi-Fi / WLAN
- CXv4 certified Summit Radio 802.11 a/b/g/n, WEP, WPA,WPA2, WEP, RC4 Algorithm. TKIP, RC4 Algorithm,AES, Rijndael Algorithm, Static (40-bit and 128-bit lengths),Pre-Shared (PSK), Dynamic EAP-FAST,EAP-TLS,EAP-TTLS,PEAP-GTC
Rugged
- IP / sealing
- IP65
- Drop specification
- 1.8m
- Operating temperature
- -10℃ to 50℃
- Storage temperature
- -20℃ to 60℃
- Humidity
- 5% ~ 95% ( non-condensing )
Size
- Weight
- 310g(With standard battery pack)
- Dimensions
- 170mm x 55mm x 30mm
Send a request
Get a quote for the HT682LR (Long Range)
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
