Unitech · Handheld computer

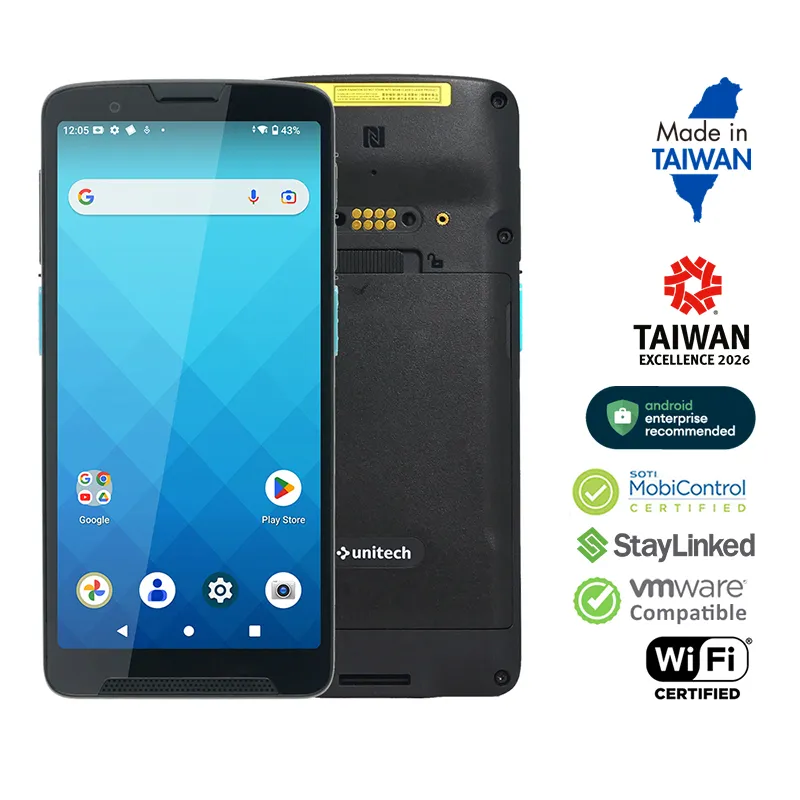

Unitech EA660 Wi-Fi Ver. (3rd Gen)
Wi-Fi 6E｜6” Gorilla® Glass Victus® & 630nits display｜12m Barcode Reading Distance
- Operating systemAndroid 15 (upgradable to A17) Support Google ARcore
- Display6", 18:9 Full-HD+ (2160X1080), color screen, High sunlight visibility- LCD backlight up to 630nits
- Battery3.87V, 5000mAh UL certified smart battery Support Warm SWAP
- SealingIP65 & IP68
- Drop1.5m drops to concrete per MIL-STD-810H 1.8m with boot case
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 15 (upgradable to A17) Support Google ARcore
- Processor
- Qualcomm Snapdragon™ 4490 Processor, 64bits, Octa Cores up to 2.4GHz
- RAM / storage options
- 6GB RAM / 8GB RAM (option) Flash 128GB UFS Flash
Display
- Display size
- 6", 18:9 Full-HD+ (2160X1080), color screen, High sunlight visibility- LCD backlight up to 630nits
- Touch panel
- Corning® Gorilla® Glass Victus®, Multi-Touch User Interface with Capacitive, stylus (5.5mm) , glove mode (3mm), wet-finger Compatibility
Data capture
- Cameras
- 5 MP Front camera, 16 MP Rear with auto-focus function and Flash Light
Power
- Battery / runtime
- 3.87V, 5000mAh UL certified smart battery Support Warm SWAP
Connectivity
- Wi-Fi / WLAN
- Wi-Fi 6E (2.4GHz & 5 GHz & 6 GHz) IEEE 802.11 a/b/g/n/ac/ax/d/e/h/i/k/r/v (MU-MIMO 2X2) Supports Dual Band Simultaneous (DBS) and Fast Roaming (802.11r with PMKID caching) Security WPA3, WPA2, WPA, WEP, EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, Wi-Fi CERTIFIED™
- Bluetooth
- Bluetooth® 5.2, support BLE
Rugged
- IP / sealing
- IP65 & IP68
- Drop specification
- 1.5m drops to concrete per MIL-STD-810H 1.8m with boot case
- Tumble specification
- 0.5m tumbles for 300 cycles / 600 drops for EA660 1m tumbles for 500 cycles / 1000 drops for EA660 with boot case
- Operating temperature
- -20°C to 55°C
- Storage temperature
- -40°C to 70°C (without battery)
- Humidity
- 5% ~ 95% (Non-Condensing)
Size
- Weight
- 270g ± 1.5% (with battery)* *The weight will vary depending on the configuration.
- Dimensions
- 162.9mm x 77mm x 14.9mm
