Unitech · Handheld computer

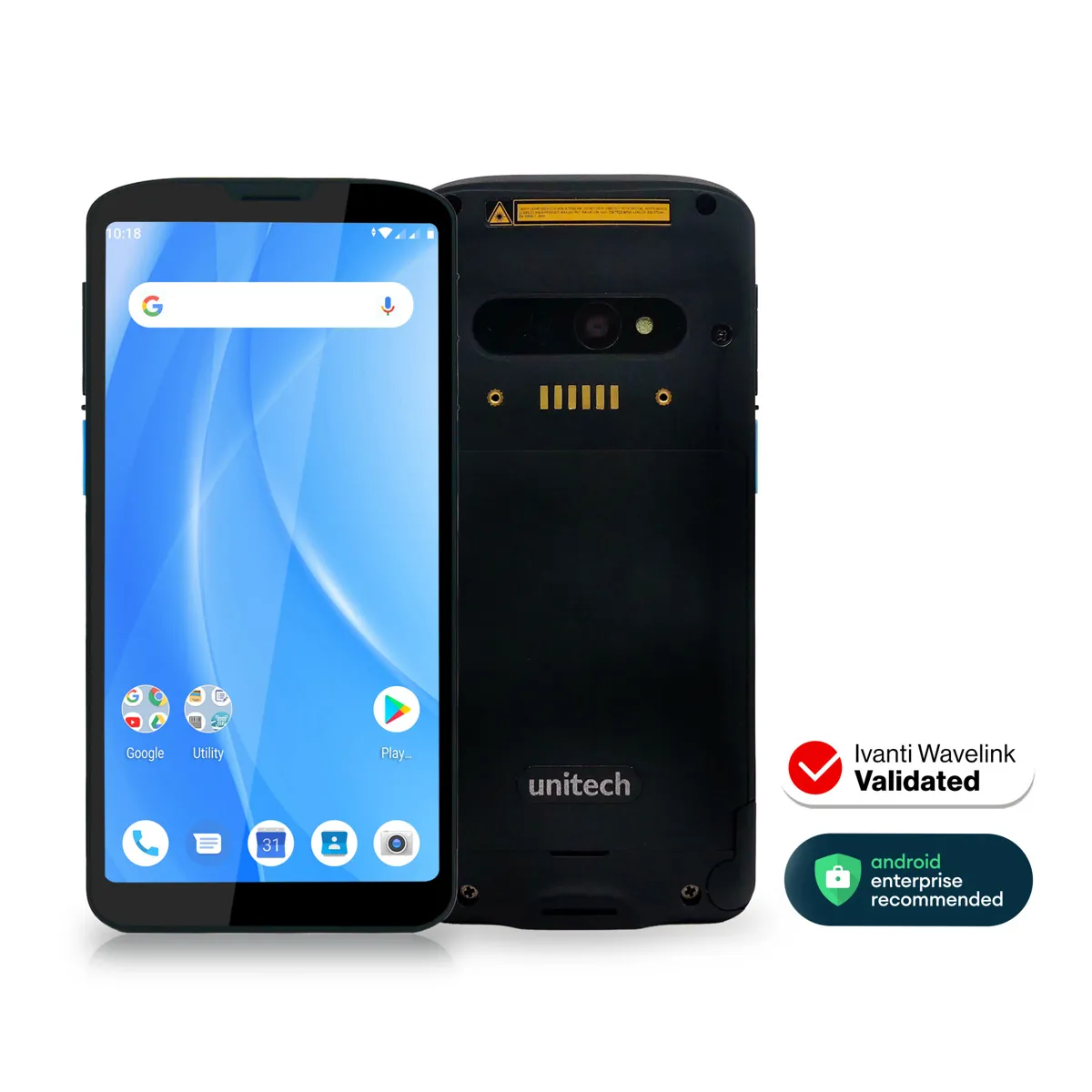

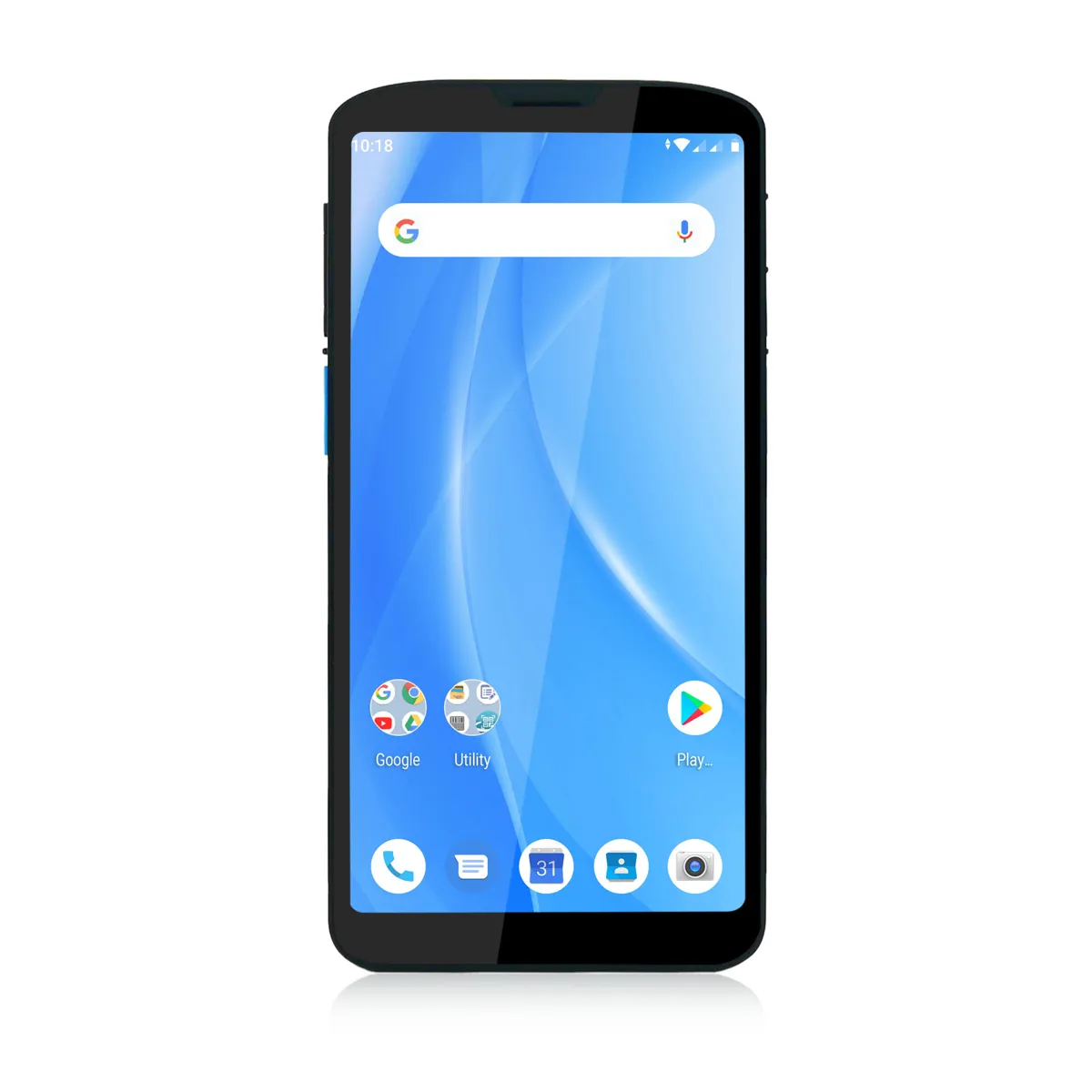

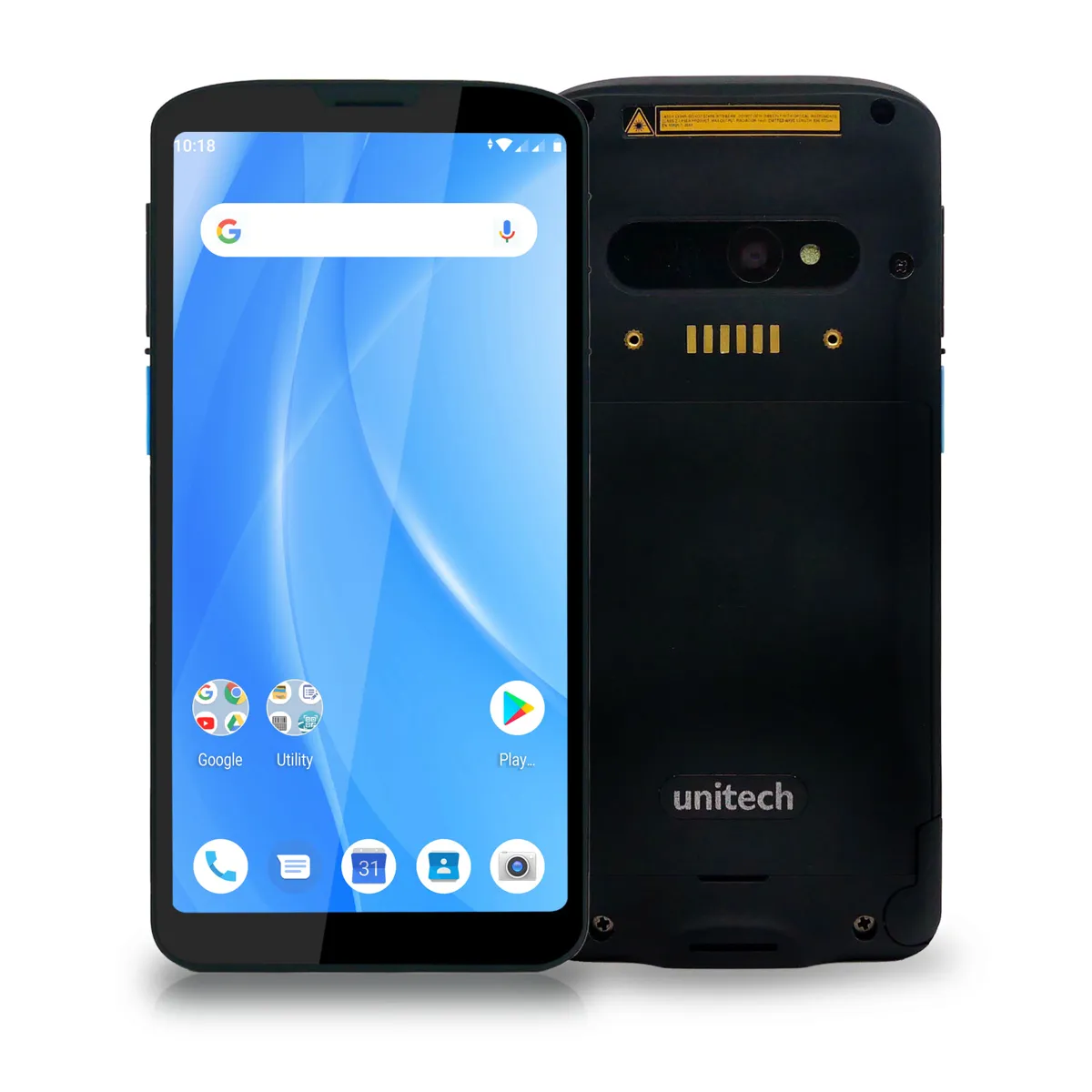

Unitech EA630

Operating systemAndroid 10
Display6”, 18:9 Full-HD ( 2160 x 1080 ) color screen (450nits)
Battery3.85V, 4000mAH Li-polymer battery
SealingIP65
Drop1.2m, 1.5m with boot case MIL-STD 810G

Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps

Videos

Unitech EA630

Specifications

Platform

Operating system: Android 10
Processor: 1.8GHz, Qualcomm® Snapdragon™ 636 Octa-core Processor, 64bits
RAM / storage options: 3 GB RAM / 32 GB Flash

Display

Display size: 6”, 18:9 Full-HD ( 2160 x 1080 ) color screen (450nits)
Touch panel: Gorilla® 6 Glass with 5-point Capacitive Touch Panel, compatible with gloves and supports wet resistance

Data capture

Cameras: 16 MP Rear and Flash Light

Power

Battery / runtime: 3.85V, 4000mAH Li-polymer battery

Connectivity

Wi-Fi / WLAN: Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Support 802.11d/e/h/i/k/r/v, fast roaming Compliant with WEP, WPA and IEEE 802.11i WPA2
Cellular / WWAN: GSM: 850,900,1800,1900 MHz WCDMA: Band 1, Band 2, Band 5, Band 8 LTE:FDD-LTE (B1/B2/B3/B4/B5/B7/B8/B 12/B17/B19/B20/B28) TDD-LTE (B38/B39/B40/B41) Dual nano SIM Slot
Bluetooth: Bluetooth® 5
Location / GPS: AGPS, GPS, GLONASS, Beidou, Galileo, QZSS, SBAS

Rugged

IP / sealing: IP65
Drop specification: 1.2m, 1.5m with boot case MIL-STD 810G
Tumble specification: 600 tumbles @ 0.5 m
Operating temperature: -10°C to 50°C
Storage temperature: - 30°C to 70°C (without battery)
Humidity: 10% ~ 90% (Non-Condensing)

Size

Weight: 230g (with battery)
Dimensions: 157mm x 76.4mm x 13.9mm
