Unitech · Handheld computer

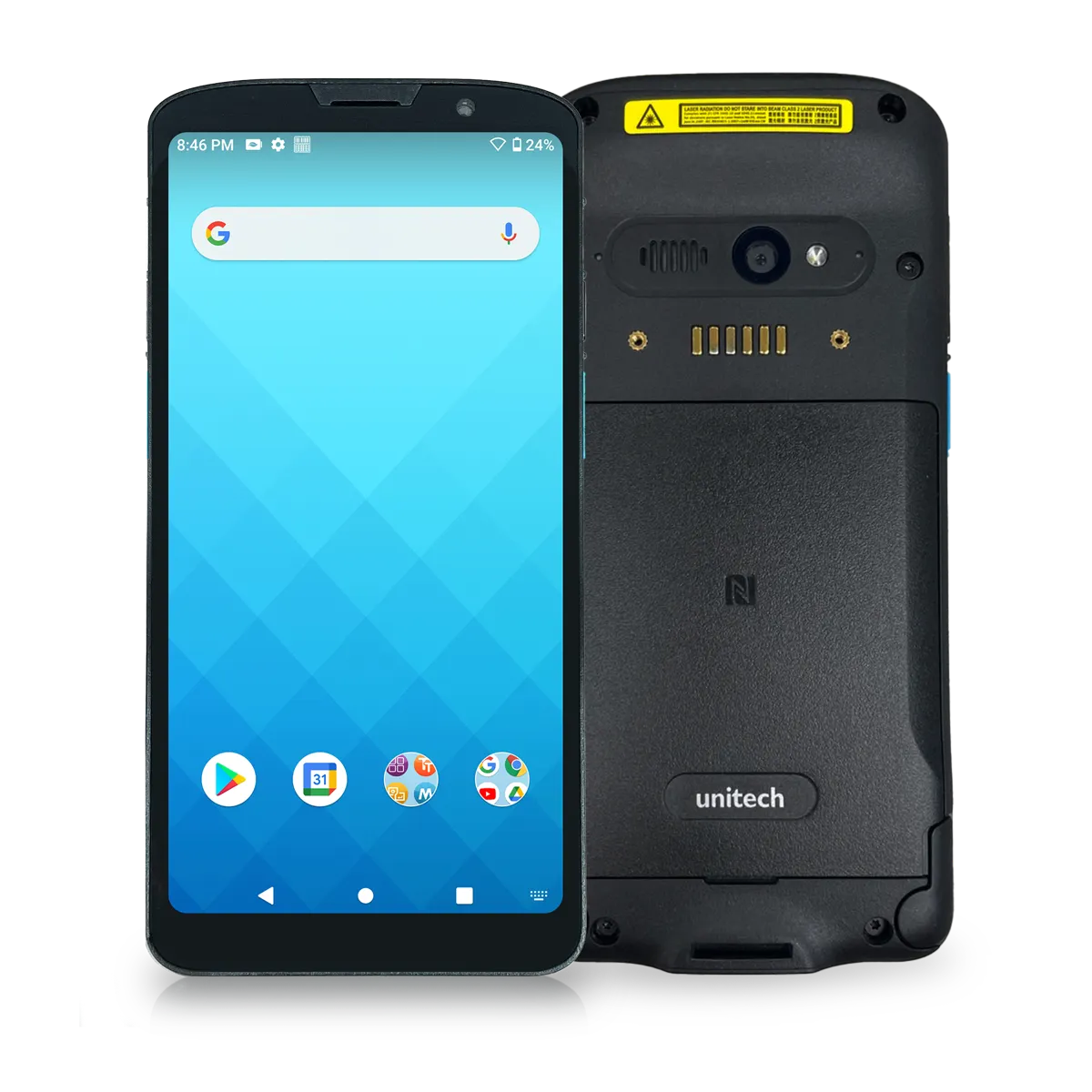

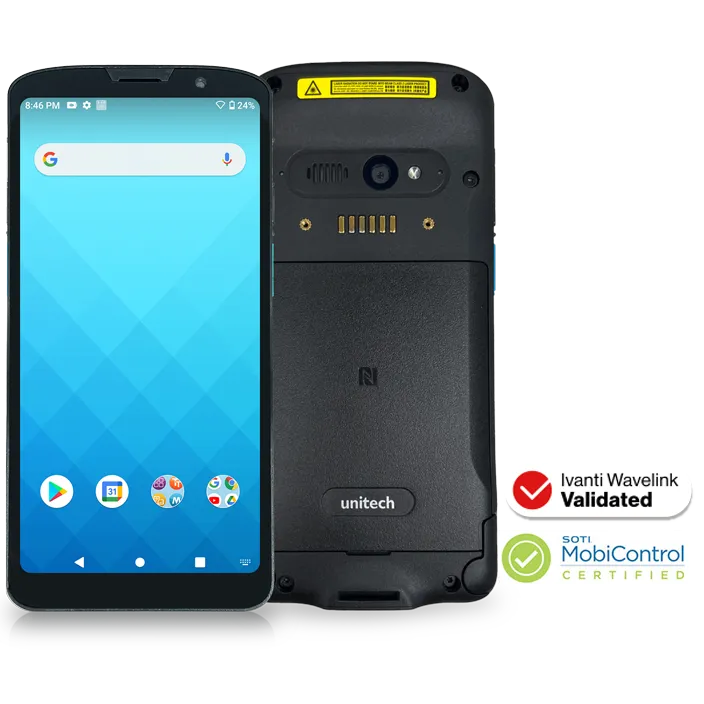

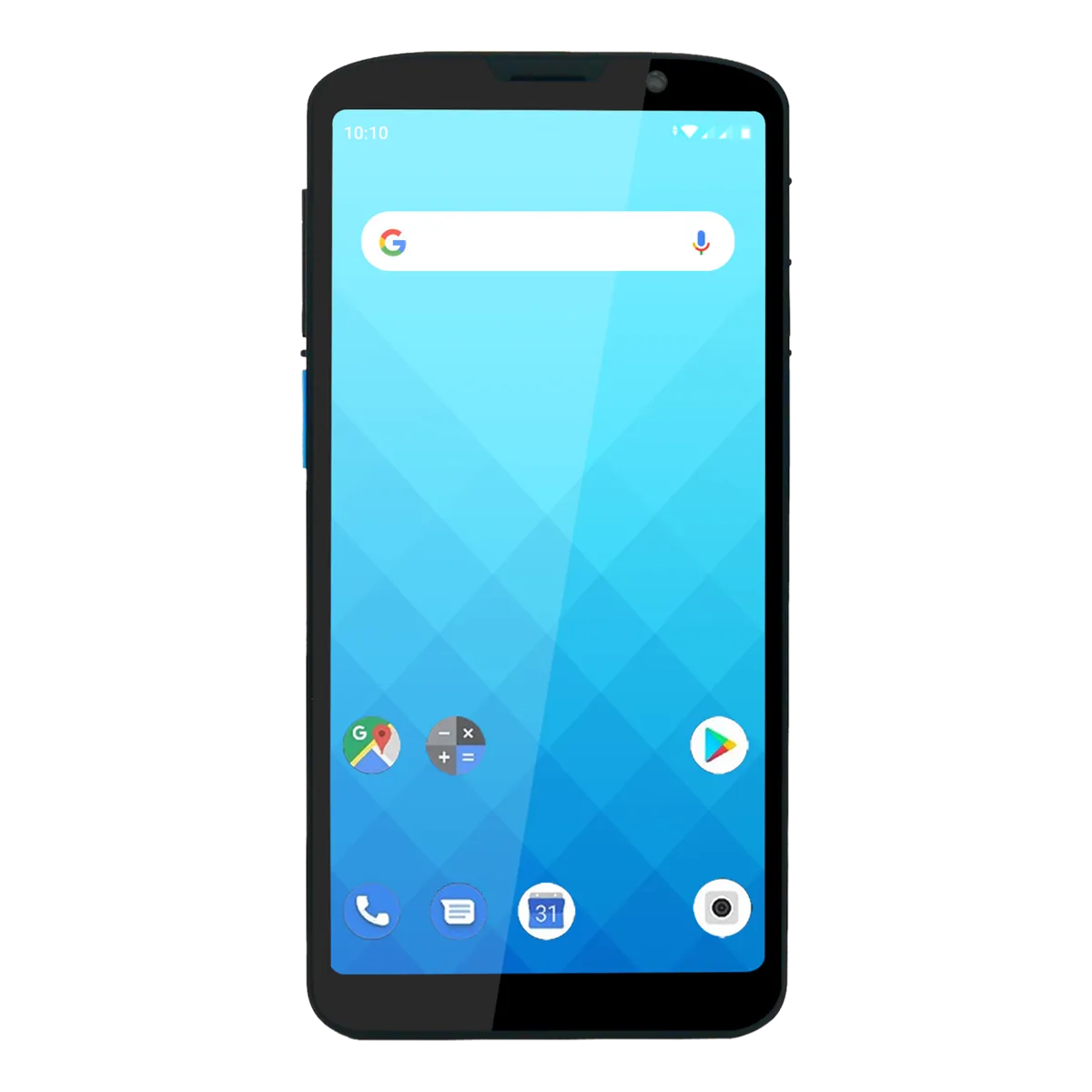

Unitech EA630 Plus (2nd Gen)
2D Barcode Scanner with Laser Aimer｜6” Gorilla Glass Display｜Android 12 with 4G/64G memory
- Operating systemAndroid 12
- Display6”, 18:9 Full-HD (2160x1080), color screen backlight up to 450nits
- Battery3.85V, 4000mAH Li-polymer battery RTC battery: back up 4 days
- SealingIP65
- Drop1.2m, 1.5m with boot case
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 12
- Processor
- 2GHz, Qualcomm® Snapdragon™ 662, 64bits Octa-core Processor
- RAM / storage options
- RAM 4GB Flash 64GB
Display
- Display size
- 6”, 18:9 Full-HD (2160x1080), color screen backlight up to 450nits
- Touch panel
- Gorilla® Glass with 5-point Capacitive Touch Panel, compatible with gloves and supports wet resistance
Data capture
- Cameras
- 5 MP Front camera, 16 MP Rear withauto-focus function and Flash Light
Power
- Battery / runtime
- 3.85V, 4000mAH Li-polymer battery RTC battery: back up 4 days
Connectivity
- Wi-Fi / WLAN
- Wireless LAN 802.11a/b/g/n/ac, 2.4GHz and 5GHz Support 802.11d/e/h/i/k/r/v, fast roaming Compliant with WEP, WPA and IEEE 802.11i WPA2
- Cellular / WWAN
- 4G LTE (FDD): B1/B2/B3/B4/B5/B7/B8/B12/B17/B19/B20/B28 LTE (TDD):B38/B39/B40/B41 3G WCDMA: B1/B2/B5/B8 GSM: 850/900/1800/1900 MHz Dual nano SIM Slot
- Bluetooth
- Bluetooth® 5
- Location / GPS
- AGPS, GPS, GLONASS, Beidou, Galileo
Rugged
- IP / sealing
- IP65
- Drop specification
- 1.2m, 1.5m with boot case
- Tumble specification
- 0.5m tumbles for 300 cycles / 600 drops
- Operating temperature
- -10°C to 50°C
- Storage temperature
- - 30°C to 70°C (without battery)
- Humidity
- 10% ~ 90% (Non-Condensing)
Size
- Weight
- 232g (with battery)
- Dimensions
- 76.4mm x 157mm x 13.9mm
Send a request
Get a quote for the EA630 Plus (2nd Gen)
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
