Unitech · Handheld computer

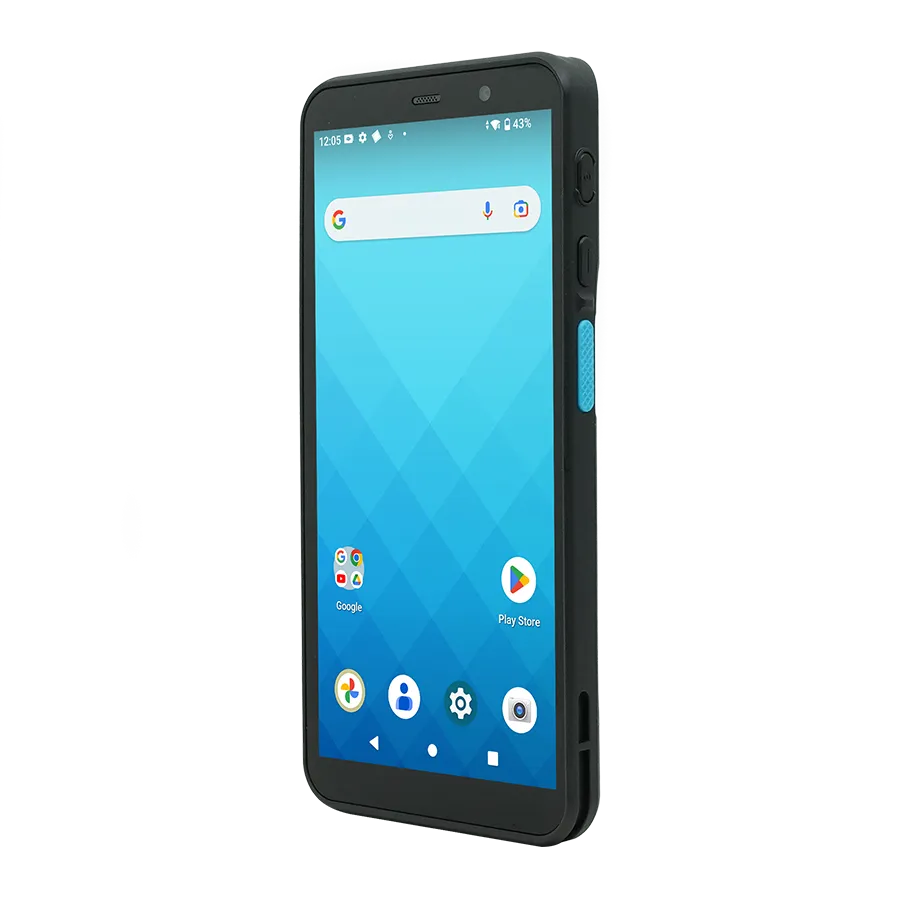

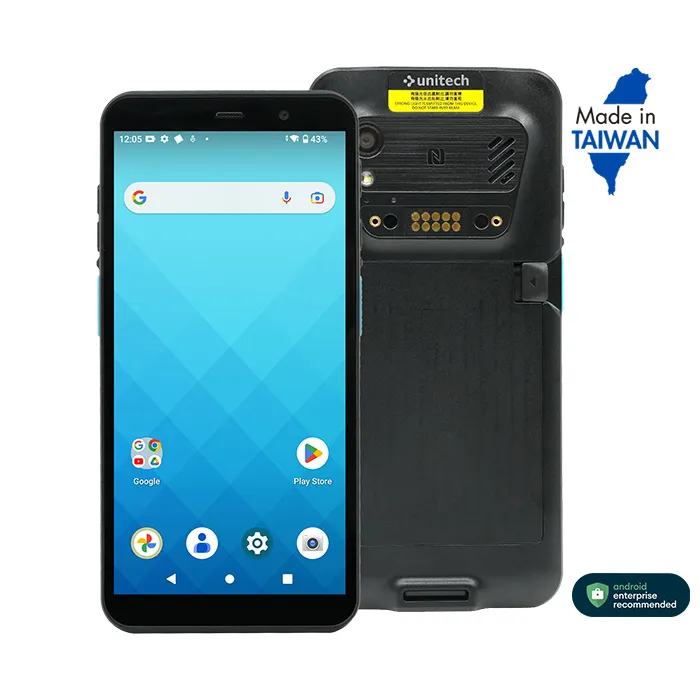

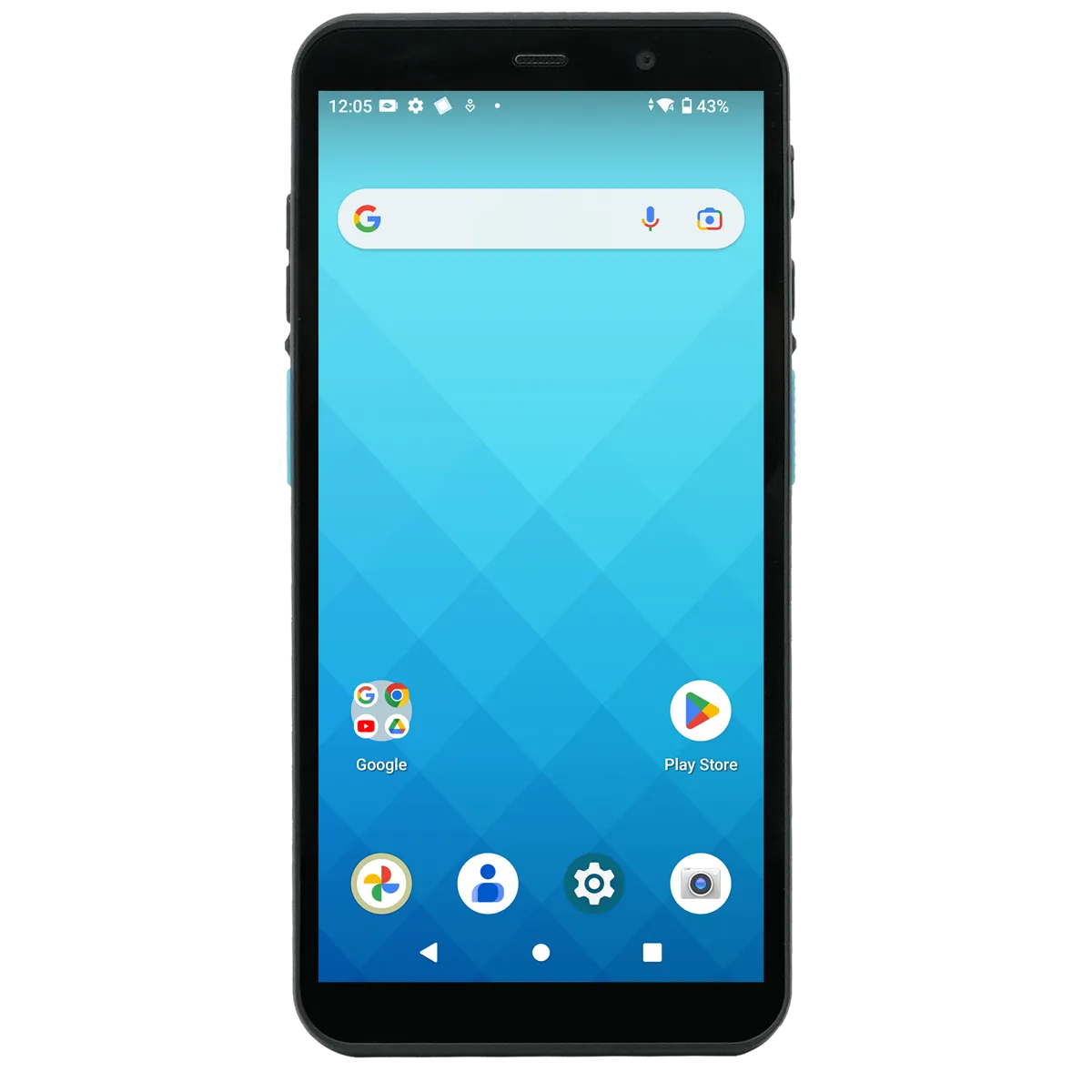

Unitech EA530 Wi-Fi Ver. (3rd Gen)
IP65 & IP68 + 1.5m Drop | Warm-Swappable 4250mAh Quick-Release Battery | Optional UHF RFID (up to 1.8m)
- Operating systemAndroid 15 (upgradable to A17)
- Display6”, HD+ (720x1440) color screen, backlight 500nits
- BatteryWarm Swappable 4250mAh Li-Polymer battery* / battery with cover in one piece *Warm-swappable battery is…
- SealingIP65 & IP68
- Drop1.5m, 1.8m with boot case
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 15 (upgradable to A17)
- Processor
- Octa-core 2.2GHz Processor
- RAM / storage options
- RAM 6GB Flash 64GB
Display
- Display size
- 6”, HD+ (720x1440) color screen, backlight 500nits
- Touch panel
- Multi-Touch Capacitive Touch Panel, support stylus, glove, wet-finger Compatibility
Data capture
- Cameras
- 8MP front camera 16M rear camera with auto-focus function and Flash Light
Power
- Battery / runtime
- Warm Swappable 4250mAh Li-Polymer battery* / battery with cover in one piece *Warm-swappable battery is supported on standard 4G and Wi-Fi models only. The UHF model does not support warm swap.
Connectivity
- Wi-Fi / WLAN
- Wi-Fi 6E, 2.4GHz & 5GHz & 6GHz IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/u/w/v/ax, Support DBS Security: WPA3, WPA2, WPA & WEP
- Bluetooth
- Bluetooth® 5.2, BLE
Rugged
- IP / sealing
- IP65 & IP68
- Drop specification
- 1.5m, 1.8m with boot case
- Tumble specification
- 0.5m tumbles for 300 cycles / 600 drops
- Operating temperature
- -20°C to 50°C
- Storage temperature
- -30°C to 70°C (without battery)
- Humidity
- 5% ~ 95% (Non-Condensing)
Size
- Weight
- 242g ± 1% (with battery)
- Dimensions
- 161mm x 76.8mm x 14.15mm
