Unitech · Handheld computer

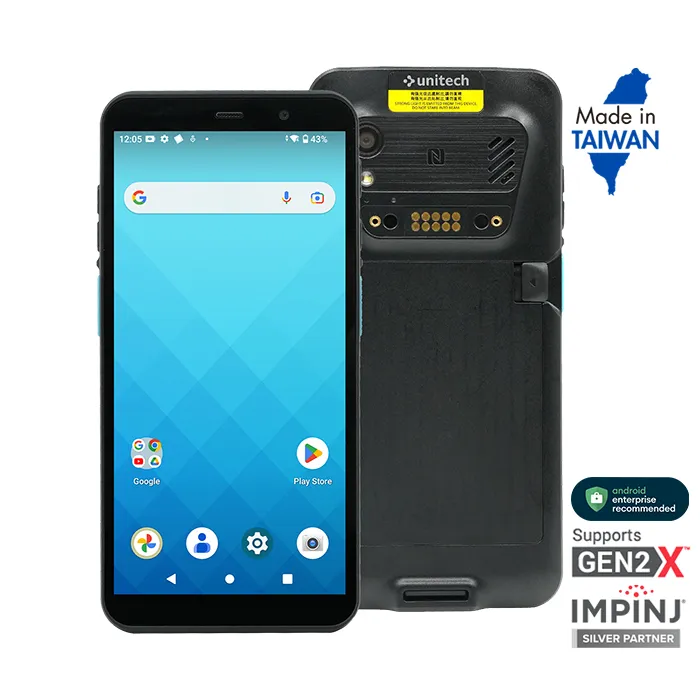

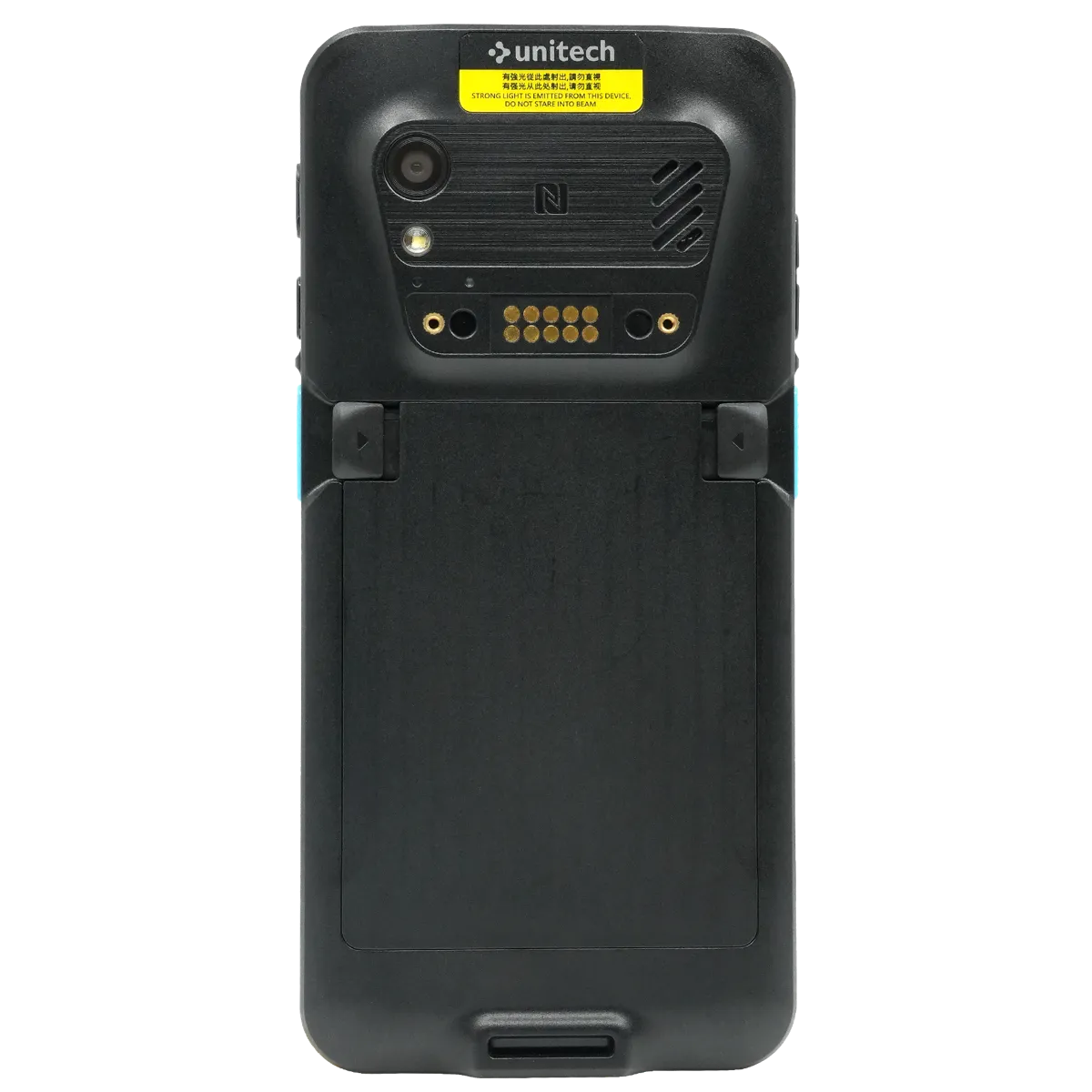

Unitech EA530 UHF
IP65 & IP68 + 1.5m Drop | 4250mAh Quick-Release Battery | UHF RFID (up to 1.8m)
- Operating systemAndroid 15 (upgradable to A17)

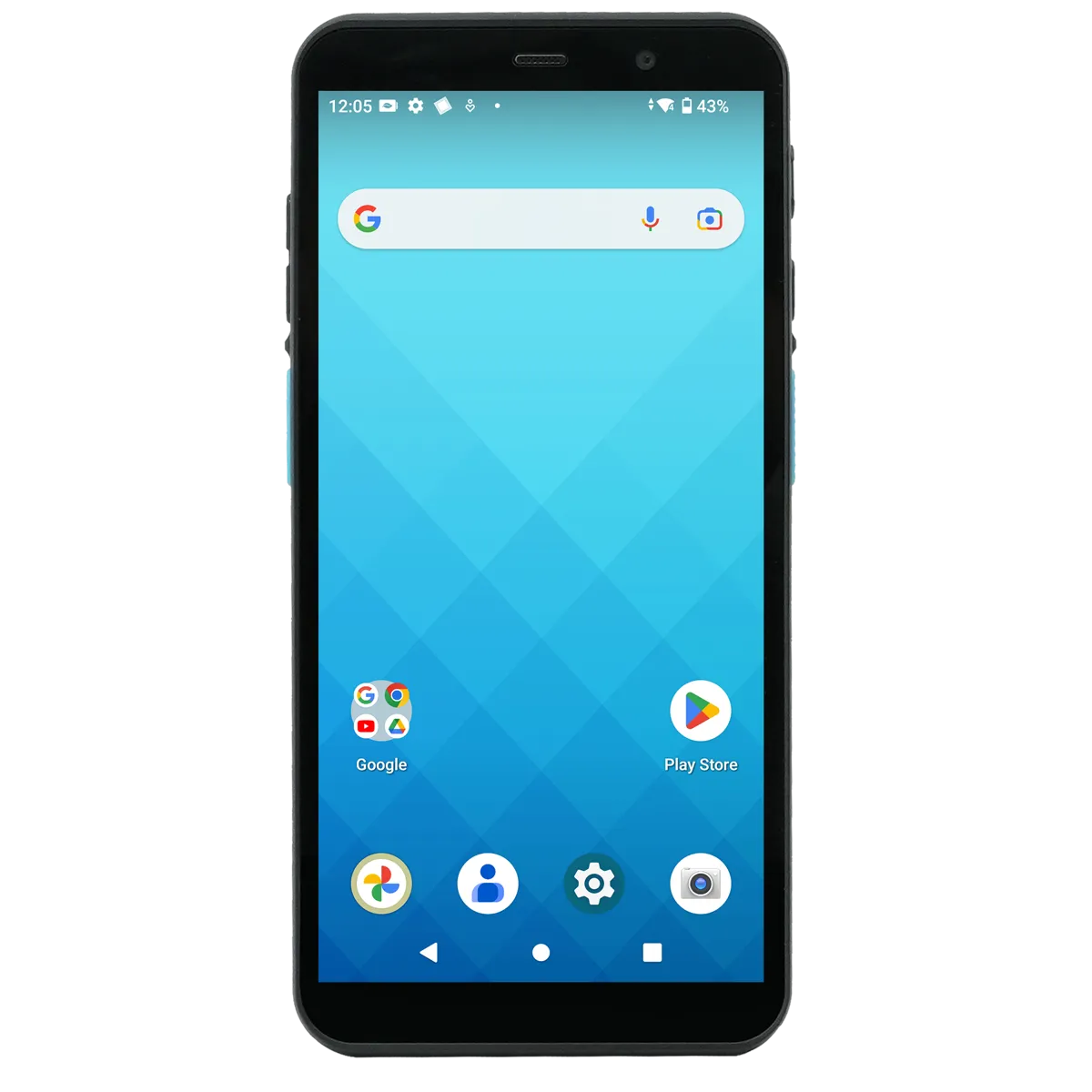

- Display6”, HD+ (720x1440) color screen, backlight 500nits
- Battery4250mAh quick-release Li-Polymer battery / battery with cover in one piece
- SealingIP65 & IP68
- Drop1.5m, 1.8m with boot case
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Videos
Specifications
Platform
- Operating system
- Android 15 (upgradable to A17)
- Processor
- Octa-core 2.2GHz Processor
- RAM / storage options
- RAM 6GB Flash 64GB
Display
- Display size
- 6”, HD+ (720x1440) color screen, backlight 500nits
- Keyboard / keys
- 6 keys- Programmable function button; dual dedicated scan buttons; volume up & down buttons; on/off button
Data capture
- Cameras
- 8MP front camera 16M rear camera with auto-focus function and Flash Light
Power
- Battery / runtime
- 4250mAh quick-release Li-Polymer battery / battery with cover in one piece

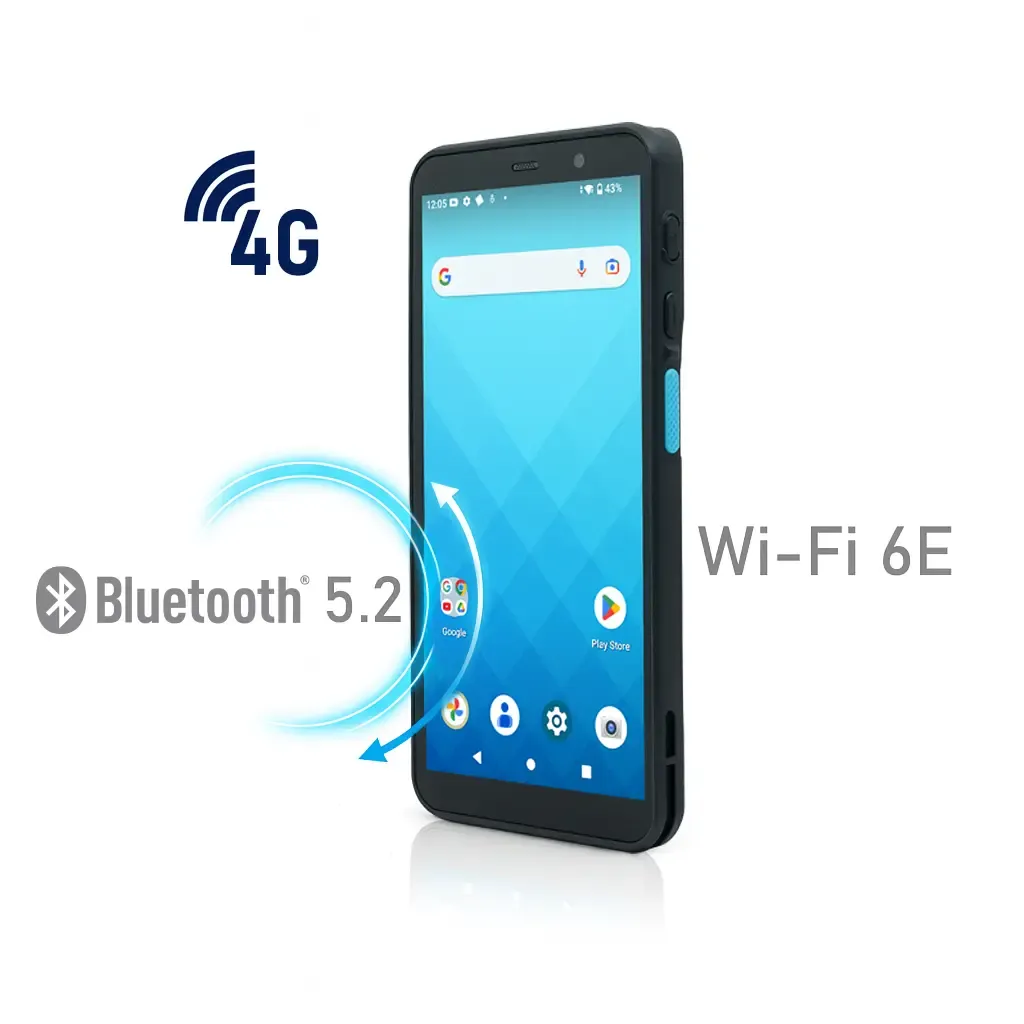

Connectivity
- Wi-Fi / WLAN
- Wi-Fi 6E, 2.4GHz & 5GHz & 6GHz IEEE 802.11a/b/g/n/ac/d/e/h/i/k/r/u/w/v/ax, Support DBS Security: WPA3, WPA2, WPA & WEP
- Cellular / WWAN
- 4G LTE (FDD): B1/2/3/4/5/7/8/12/17/19/20/28a&b/66 LTE (TDD): B38/39/40/41 3G WCDMA: B1(2100MHz), B2(1900MHz), B4(1700MHz), B5(850MHz), B8(900MHz) 2G GSM: B2(1900MHz),B3(1800MHz), B5(850MHz), B8(900MHz)
- Bluetooth
- Bluetooth® 5.2, BLE
- Location / GPS
- GPS, Beidou, Glonass, Galileo, A-GP
Rugged
- IP / sealing
- IP65 & IP68
- Drop specification
- 1.5m, 1.8m with boot case
- Operating temperature
- -20°C to 50°C
- Storage temperature
- -30°C to 70°C (without battery)
- Humidity
- 5% ~ 95% (Non-Condensing)
Size
- Weight
- 242g ± 1% (with battery)
- Dimensions
- 161mm x 76.8mm x 14.15mm
