Unitech · Accessory
Unitech ANP300
‧ Wide operating temperature design: -40°C ~ 85°C ‧ Available in right hand circularly polarization ‧ Waterproof: IP66 rating
- SealingIP66
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Antenna polarization
- Right-Hand Circular
- Frequency Range
- US: 902 - 928 MHz EU: 865 - 868 MHz
- VSWR
- Less than 1.5 : 1
- Antenna gain
- 9 dBi
- Antenna connector
- N Jack
- Cinnector Location
- Bottom
- Dimensions
- 260 * 260 * 44mm
- Weight
- 0.9 KG
- IP / sealing
- IP66
- Operating temperature
- -40°C ~ 85°C
- Impedance
- 50 Ω
- The standard package contents
- 1 unit in a box
- Applications
- Outdoor Transportation ● Parking lot management Logistics ● Cold chain data monitoring Warehouse ● Asset tracking
- SKUs
- 4060-900007G (US) ; 4060-900008G (EU)
- Items

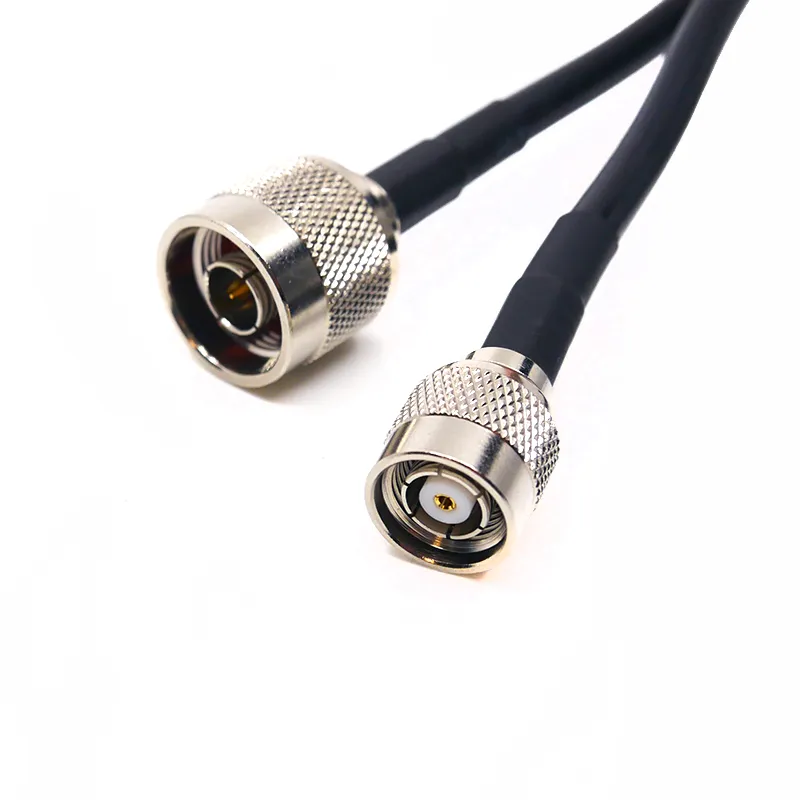

- For RS804 ■ 3 M RF Cable: N male to RP TNC male (PN#1550-905912G ) ■ 10 M RF Cable: N male to RP TNC male (PN#1550-905913G)
- Hardware Warranty
- 12 months
- Statement
- This product is warranted against defects in workmanship and materials for a period of one year from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
