Unitech · Accessory
Unitech ANP100
‧ Lightweight & convenient installation ‧ Available in right hand circularly polarization ‧ Waterproof: IP65 rating
- SealingIP65
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Antenna polarization
- Right-Hand Circular
- Frequency Range
- US: 902 - 928 MHz EU: 865 - 868 MHz
- VSWR
- Less than 1.5 : 1
- Antenna gain
- 8 dBi
- Antenna connector
- SMA Jack
- Cinnector Location
- Bottom
- Dimensions
- 180 * 200 * 31.5 mm
- Weight
- 0.4 KG
- IP / sealing
- IP65
- Operating temperature
- -20°C ~ 60°C
- Impedance
- 50 Ω
- The standard package contents
- 1 unit in a box
- Applications
- Indoor & Outdoor Retail ● Smart shelves Warehouse ● Inventory racks Logistics ● Forklift Mount
- SKUs
- 205367G (US); 205488G (EU)
- Items

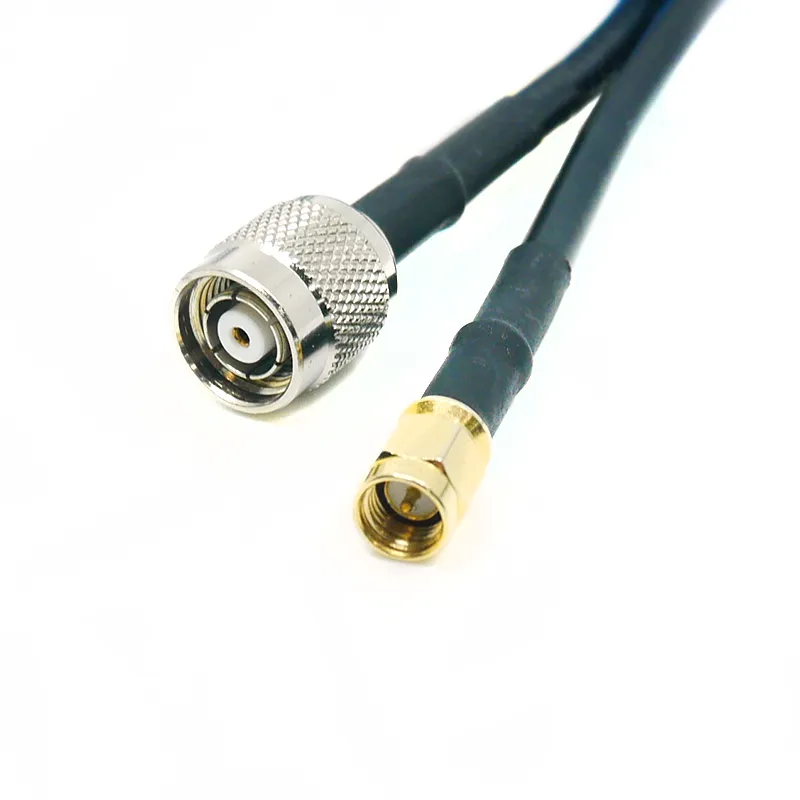

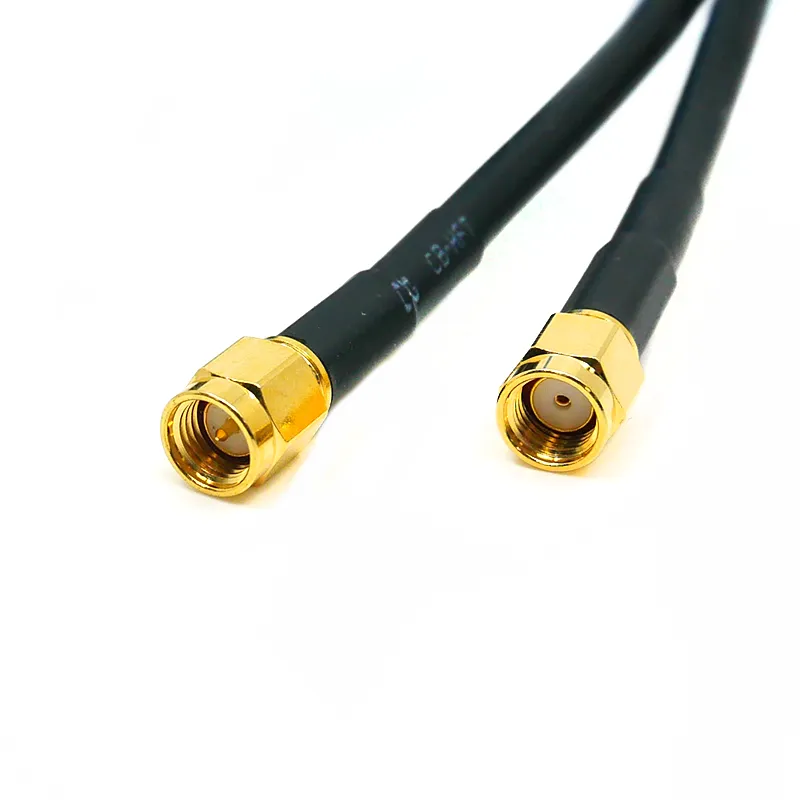

- For RS804 ■ 3 M RF Cable: SMA male to RP TNC male (PN#1550-905894G ) ■ 10 M RF Cable: SMA male to RP TNC male (PN#1550-905895G) For RS200 ■ 3 M RF Cable: SMA male to RP SMA male (PN#1550-900102G ) ■15 M RF Cable: SMA male to RP SMA male (PN#1550-905898G)
- Hardware Warranty
- 12 months
- Statement
- This product is warranted against defects in workmanship and materials for a period of one year from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
