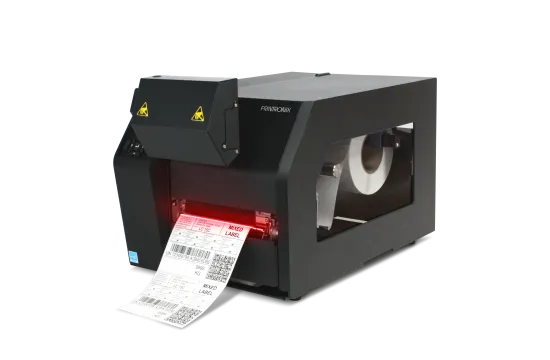

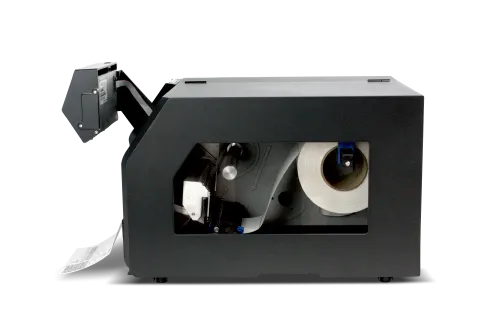

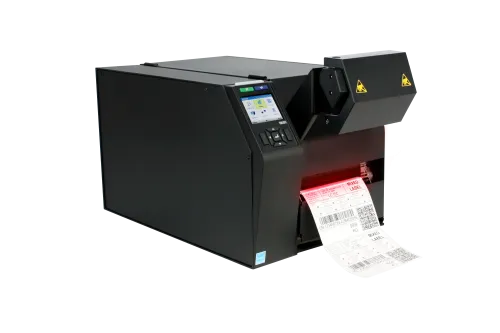

TSC T8000 Series 6-Inch Enterprise Industrial ODV-2D Printers
Our most versatile 24/7/365 printer with 6-inch print width, the T8000 Series features color display, multi-connectivity capability with optional ODV-2D inline barcode verifier technology.
- DisplayColor LCD with buttons
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- View Datasheet
- T8206 ODV-2D | T8306 ODV-2D
- Resolution
- 203 dpi (8 dots/mm) | 300 dpi (12 dots/mm)
- Print method
- Direct thermal/Thermal transfer
- Display
- Color LCD with buttons
- Hardwire Connectivity
- Ethernet Serial RS-232 USB
- Wireless Connectivity
- Wi-Fi
- Enterprise Printer Management
- PrintNet Enterprise SOTI Connect (license required)
- Type
- Verifier
- Print speed
- 8 ips (203.2 mm/s) @ 200 dpi | 8 ips (203.2 mm/s) @ 300 dpi
- Print width
- 6.6” (168 mm)
- RAM / storage options
- 512 MB RAM
- Flash
- 128 MB
- Max. Media Width
- 6.8” (172.7 mm)
- Media Type
- Gap; Mark; Advanced Gap; Advanced Notch
- Max. Ribbon Length
- 625 Meters
- Media Core Diameter
- 1.5" to 3.0" (37.5 - 76 mm)
- Min. Label Length
- 0.25"(6.35 mm)/1.0"(25.4 mm) continuous/tear-off; 0.5"(12.7 mm) peel-off
- Construction
- Die-cast aluminum frame and print mechanism; steel cover; large clear media view window
- Programming Languages
- Most Major Printer Languages
