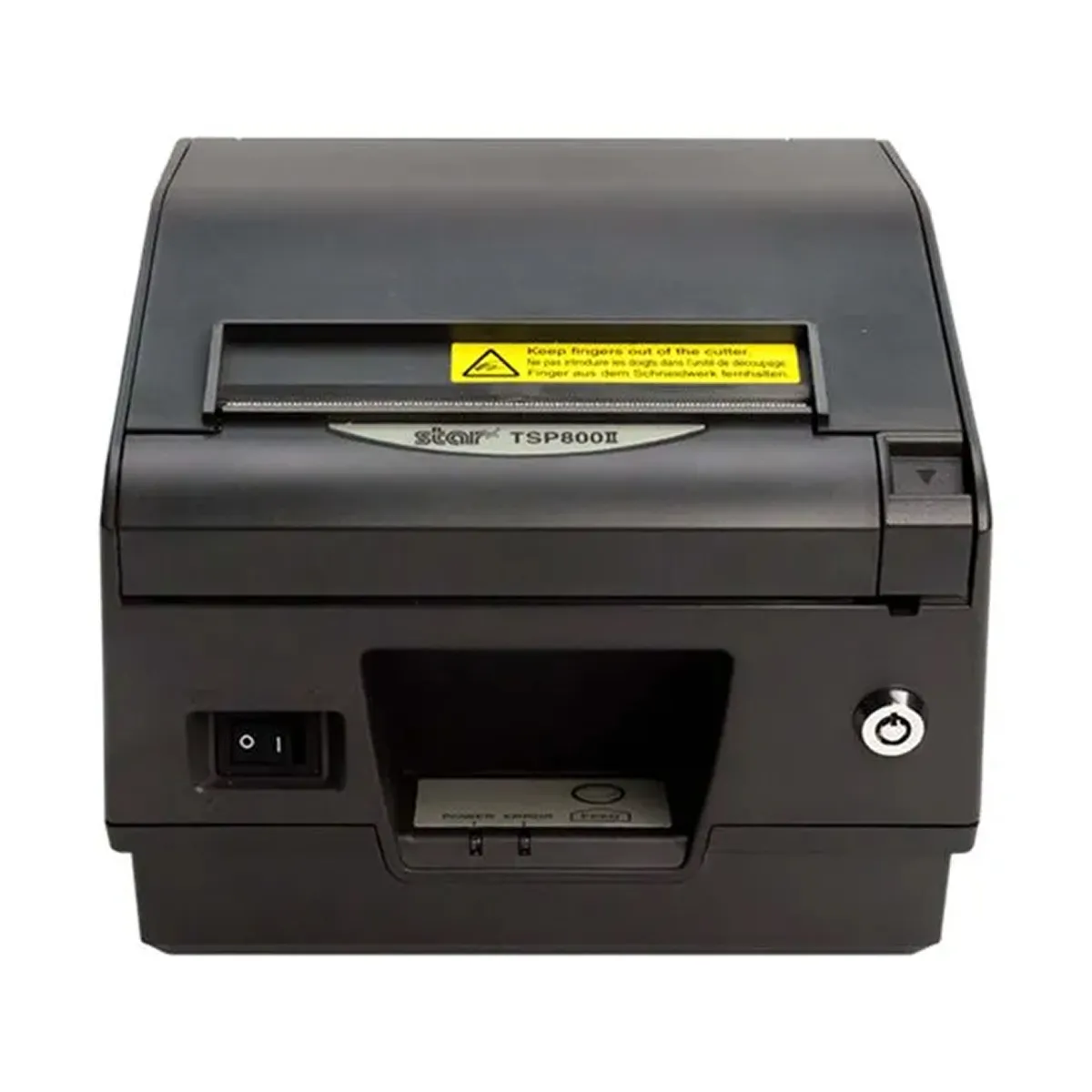

Star Micronics TSP847IIRx

Specifications

Part #

39441590

SKU

39441590

UPC

088047237344

High Speed

Can print 37 prescriptions per minute (180 mm/sec)

High Reliability

MCBF: 37 Million Lines Guillotine Auto Cutter: 2 Million Cuts

Secure Locking Paper Chamber

Deter prescription theft by locking the printer. Once the lock is engaged, the cover cannot open

Disabled Paper Feed Button

Further deters prescription theft. Users are unable to advance blank prescriptions out of the printer by pressing the feed button

Print One Script At a Time

Print only what is needed and save paper cost and waste. Desktop printers require A4 paper with 4 scripts per page. If a doctor needs to print only one prescription, the desktop printer will provide three blank, unusable scripts which wastes valuable script paper.

Small Footprint

Save precious counter space

Lock Slot for Locking Cable Harness

Secure the entire printer and paper by locking the TSP800Rx to the counter

Wide Area Printing (112 mm)

Replace large, bulky desktop printers with the compact TSP800. Shrink any A4 document and print it on a 112 mm wide receipt

“Drop In & Print” Paper Loading

Clamshell design allows for very fast and easy paper loading

Swappable Interface Connections

Future interface upgrades are fast and simple to do. With swappable interfaces, there’s no need to purchase a new printer just to upgrade the connection

Horizontal or Vertical Orientation

Use the printer in the orientation that suits you best

Wall Mountable

Need more counter space? Create more room by mounting the printer to the wall

Energy Star Certified

Energy-saving design for lower operating costs

Simple-to-Use Utilities

Available for download from website, free, easy to use

Zoom Raster Driver

Shrink A4 documents to print on standard prescription width

Ethernet Interface Set Up Utility

Setting up and configuring an ethernet printer has never been more quick and easy!

Printer Method

Direct Line Thermal

Print speed

37 Receipts Per Minute (180 mm/sec)

Printer Case Color

Available only in Gray

Model Available

TSP847IIRx Includes Both Tear Bar and Auto Cutter with Locking Mechanism

Print Resolution (Vertical x Horizontal)

203 (8 dots per mm)

No. of Columns

104mm Max with A4 Reduction Facility

Font Size

12 x 24

Character Matrix

ANK, 12 x 24, IBM Graphic 12 x 32

Character Set

ANK 95, 32 Int 128 Graphic

Code Pages / Character Table

40 Code Pages, Katakana, IBM

Bar Codes

9 versions

Line Spacing

3 mm or 4 mm or programmable

  Paper Specifications

Width: 104mm standard Thickness: 0.065 ~ 0.15mm Roll Diameter: Up to 100mm Easy-Load: "Drop-In & Print" Paper-Out Sensor: Standard Black Mark Sensor: Standard Paper Low Sensor: Standard Maximum Print Width: 104mm Maximum

Top Margin

15 mm minimum default

External Paper Feed Support

Yes

Auto Cutter

Guillotine (Full or Partial Cut Selectable)

Cover Open Sensor

Yes

Flash ROM / SRAM

2 x 8 MBbit plus 2 x 1 Mbit Statis RAM

Label Support

Yes; Black timing marks between labels required

Charging / power

External; Required PS60A External Power Supply Included

Drivers Available

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS, and Android, and Scalable Raster Driver

Swappable Interfaces

Yes

Connectivity

Apple MFi Certified Bluetooth, Serial, Parallel, USB, and Ethernet, WebPRNT Browser App

Emulation Modes

Star Mode, DP8340 Mode, ESC/POS™

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.1 Amp. Standby Required PS60A External Power Supply Included

Operating Conditions

Temperature: 5ºC to 45ºC Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20ºC to 60ºC Humidity: 10% - 90% RH

Dimensions

180 x 148x 213 (w x h x d)mm 1.7 kg

Safety Standards

UL, C-UL, TüV, CB, FCC, VCCI, EN55022, CE

Reliability MCBF Auto Cutter

37 Million Lines 2 Million Cuts

Included with Printer

User Manual, PS60A External Power Supply, Keys, Ferrite Core

Warranty

2 Year Full Manufacturer Warranty

Options

Vertical Stand (VS-T800) Wall Mount Bracket (WB-T800) Paper Guide (DIVIDER T800) Swappable Interfaces Swap-A-Star® Extended Warranty Program (US) Extend-A-Star® Extended Warranty Program (US and Canada)
