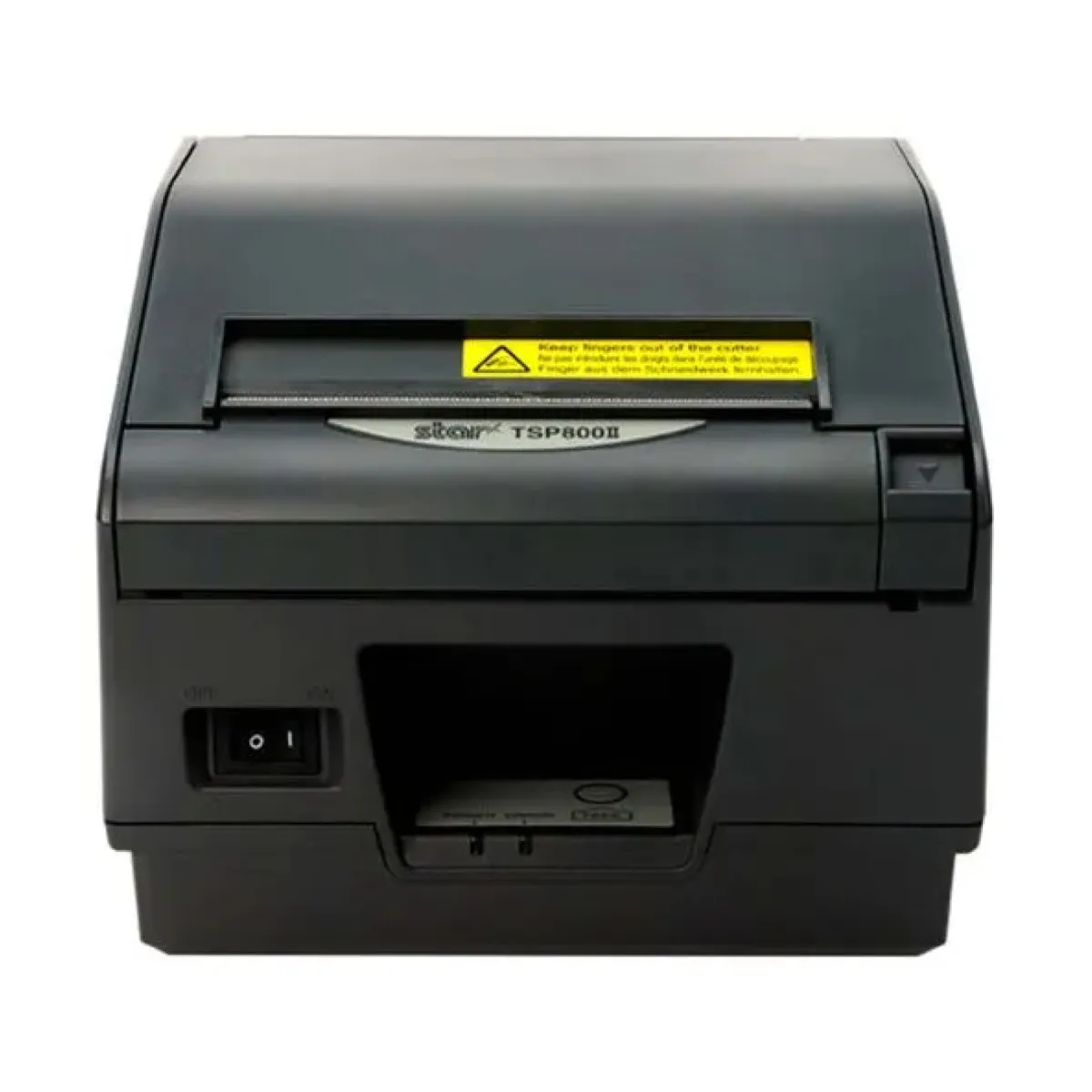

Star Micronics TSP847II

Specifications

Part #

39443911

SKU

37968230

UPC

088047237054

Print speed

180 mm/s

Six-inch receipts per minute

37

Maximum media width

112 mm

Wide-Format Printing

Supports media up to 112 mm (4.4 inches) wide for larger receipts, labels, forms, and tickets.

High-Speed Printing

Print speeds up to 180 mm/sec, producing up to 37 six-inch receipts per minute for fast wide-format output.

Media Versatility

Prints receipts, labels, tickets, forms, barcodes, and graphics from a single wide-format thermal printer.

Flexible Connectivity

Available with Serial, Parallel, USB, Ethernet, Bluetooth, CloudPRNT, WebPRNT, and AirPrint connectivity options.

High Reliability

Built for demanding environments with a rated MCBF of 37 million lines and a guillotine auto cutter rated for up to 2 million cuts.

Easy Paper Loading

“Drop-In and Print” clamshell design simplifies media changes and helps keep workflows moving.

Swappable Interfaces

Supports swappable communication interfaces for easier upgrades and long-term deployment flexibility.

Flexible Placement

Can be used in horizontal or vertical orientation to fit counters, workstations, and space-constrained environments.

Printer Type

4-Inch Wide-Format Direct Thermal Printer

Print method

Direct Line Thermal

Print speed

Up to 180 mm/sec, or 37 six-inch receipts per minute

Case Color

Putty or Gray

Available Models

TSP847 models available with tear bar and auto cutter configurations

Print resolution

203 dpi (8 dots per mm)

Print width

104 mm

Maximum Print Columns

104 mm max with A4 reduction facility

Font Size

12 x 24

Character Matrix

ANK 12 x 24, IBM Graphic 12 x 32

Character Set

ANK 95, 32 International, 128 Graphic

Code Pages

40 code pages, Katakana, IBM

Barcodes

9 barcode formats supported

Line Spacing

3 mm, 4 mm, or programmable

Media Width

112 mm (4.4 inches) standard; adjustable to 82.5 mm, 80 mm, and 58 mm with paper guide

Paper Thickness

0.065 to 0.15 mm

Roll Diameter

Up to 100 mm

Paper Loading

“Drop-In and Print”

Paper Out Sensor

Standard

Black Mark Sensor

Standard

Paper Low Sensor

Standard

Top Margin

15 mm minimum default

External Paper Feed Support

Yes

Auto Cutter

Guillotine, full or partial cut selectable

Cover Open Sensor

Yes

Flash ROM / SRAM

2 x 8 Mbit Flash ROM plus 2 x 1 Mbit static RAM

Multiple Copy Support

Supported through 2nd Copy Raster Driver

Label Support

Yes; black timing marks between labels required

Charging / power

External; requires PS60A external power supply

Drivers Available

Windows 10, Windows 8.1, Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Mac OS X, StarIO SDK for iOS and Android, and Scalable Raster Driver

Swappable Interfaces

Yes

Connectivity

USB, Ethernet, Serial, Parallel, WebPRNT, WebPRNT Browser App, Apple MFi-certified Bluetooth, and AirPrint support

Emulation Modes

Star Mode, ESC/POS

Peripheral Drive Circuit

2 circuits (24V max. 1A), 1 compulsion input

Power Consumption

Average 1.8 Amp printing, 0.1 Amp standby; requires PS60A external power supply

Operating Conditions

Temperature: 5°C to 45°C; Humidity: 10% to 90% RH, non-condensing

Storage Conditions

Temperature: -20°C to 60°C; Humidity: 10% to 90% RH

Dimensions

180 x 148 x 213 mm (W x H x D)

Weight

1.7 kg

Safety Standards

UL, C-UL, TÜV, CB, FCC, VCCI, EN55022, CE

Reliability (MCBF)

37 million lines

Cutter Life

Up to 2 million cuts

Included with Printer

User manual, ferrite core

Warranty

2-year full manufacturer warranty
