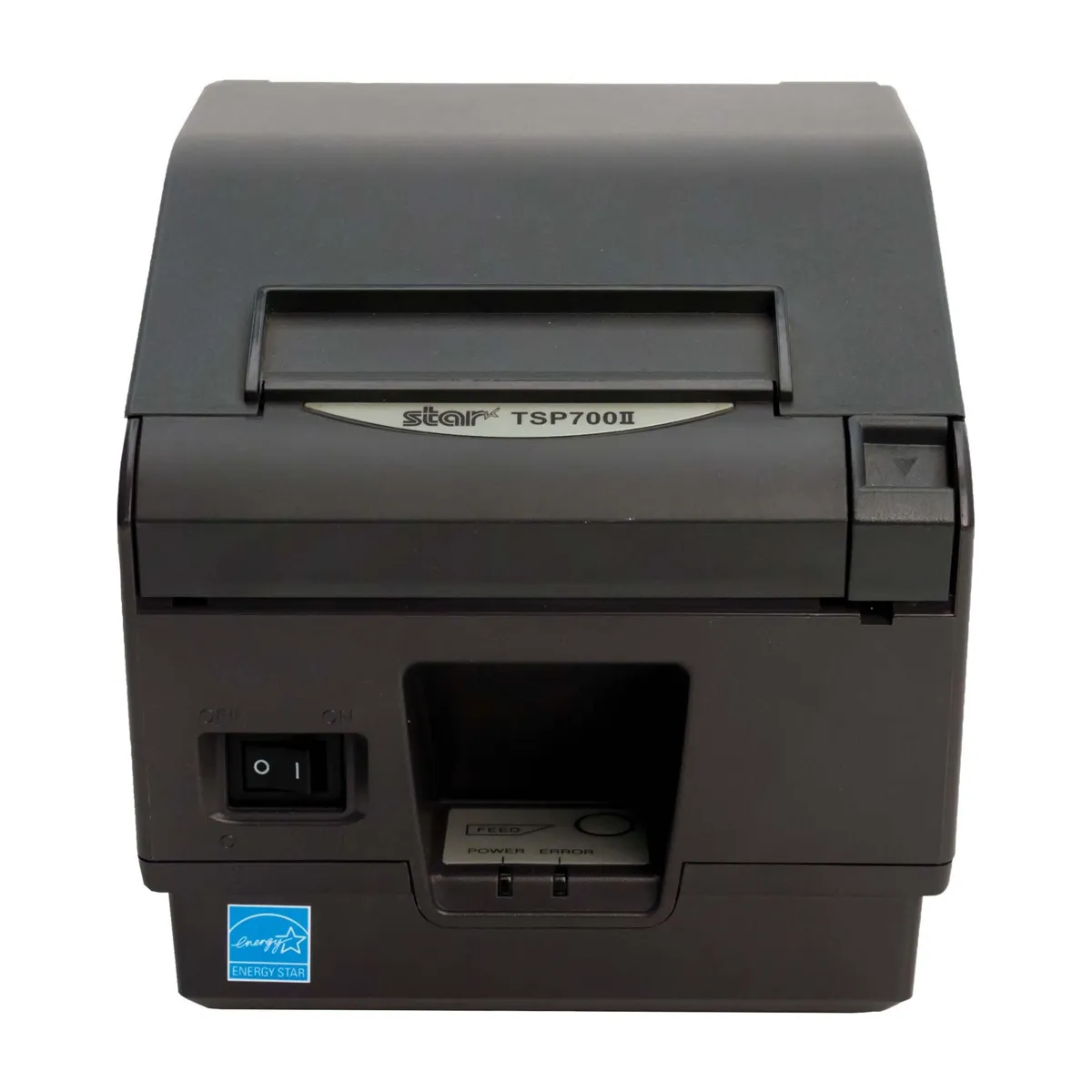

Star Micronics TSP743II

Specifications

Part #

39442310

SKU

39442511

UPC

088047228045

Ultra High Speed

Can print 48 six inch receipts per minute (250 mm/sec)

High Reliability

MCBF: 60 Million Lines

Ultra Reliable Guillotine Auto Cutter

MCBF: 2 Million Cuts

Small Foot Print

Save precious counter space

“Drop In & Print” Paper Loading

Clamshell design allows for very fast and easy paper loading

Apple MFi certified Bluetooth Interface

Provides dedicated wireless label printing via Apple MFi certified Bluetooth with support for iOS devices such as iPad®, iPhone® and iPod Touch® in addition to Android and Windows devices

WebPRNT Ethernet Interface

Enables Printing from Web-based Applications Via HTTP Requests

Swappable Interface Connections

Future interface upgrades are fast and simple to do. With swappable interfaces, there’s no need to purchase a new printer just to upgrade the connection

Included Interface Cover

Helps protect cables from being damaged on the counter top

Horizontal or Vertical Orientation

Use the printer in the orientation that suits you best

Spill / Dust Proof Design

Foam inserts in the printer cavity, a new cover, and removable sticker over the rear feed slot are just some of the new features to help protect the printer and paper from damage from moisture or airborne debris

Rear Feed Slot

Use a larger paper roll mounted behind the printer by feeding it externally through the rear feed slot

Double Resolution Mode

Increase resolution to 406 x 203 dpi for beautifully crisp and clear graphics and bar codes

2D Bar Code Printing

2D bar codes store more information than traditional 1D types and replicate the data multiple times for better scanning reliability. PD417 and QR Code are supported

Wall Mountable

Need more counter space? Create more room by mounting the printer to the wall

Maintenance Counter

Keep track of how many times the auto cutter has cut and the distance that the print head has printed for hardware performance measurables

Digitally Signed Driver (WHQL)

Certified by Microsoft for worry-free operation

Installation CD Included in Box

No need to download drivers or utilities

Innovative Value Add Receipt Design Software

Customize and brand receipts to keep customers coming back time and time again with professional graphics (logos, coupons, and merge images)

Energy Star Certified

Energy-saving design for lower operating costs

Simple-to-Use Utilities

Included on Installation CD, free, easy to use

Partial futurePRNT Receipt Redesign Software

Quickly and easily add logos and coupons for professional receipt branding, Reverse Text for vertical orientation, and more!

Logo Utility

Store logos and other graphics for professional receipt branding

Memory Switch Utility

Fine-tune your print outs or print in different languages by enabling, changing, or disabling certain settings

Ethernet Interface Set Up Utility

Setting up and configuring an ethernet printer has never been more quick and easy!

Printer Method

Direct Line Thermal

Print speed

45 Receipts Per Minute (250 mm/sec)

Printer Case Color

Gray

Print Resolution (Vertical x Horizontal)

203x203 dpi, 406x203 dpi

No. of Columns

48 / 64 or 58 / 71 (Depends on Paper Width) Includes 1st column print for lottery applications

Font Size

12 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added

Bar Codes

9 versions / PDF417, QR, Maxicode Options

Line Spacing

3 mm or 4 mm or programmable

Width

80mm standard, 82.5 and 58mm with paper guide

Thicknes

0.065 ~ 0.15 mm

Roll Diameter

Up to 100 mm

Easy - Load

"Drop-In & Print"

Paper Out Sensor

Standard

Black Mark Sensor

Standard

Paper Low Sensor

Standard

Print width

80mm paper = 72mm, 82.5mm paper = 80mm, 58mm paper = 52mm

Top Margin

13 mm minimum default (3mm selectable via Memory Switch Utility)

External Paper Feed Support

Yes

Auto Cutter

Guillotine (Full or Partial Cut Selectable)

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit Flash ROM with Graphic Management Software

Flash ROM

16 Mbit

Label Support

Yes; Black timing marks between labels required

Charging / power

External; Requires PS60A External Power Supply

Drivers Available

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS™, JavaPOS™, USB Vendor Class, Linux™, Mac OS X, StarIO SDK with support for iOS and Android

Digitally Signed (WHQL)

Yes

Swappable Interfaces

Yes

Connectivity

Apple MFi Certified Bluetooth, CloudPRNT, Serial, Parallel, USB, Powered USB, Ethernet, Virtual Serial Port to USB, Virtual Serial Port to Ethernet
