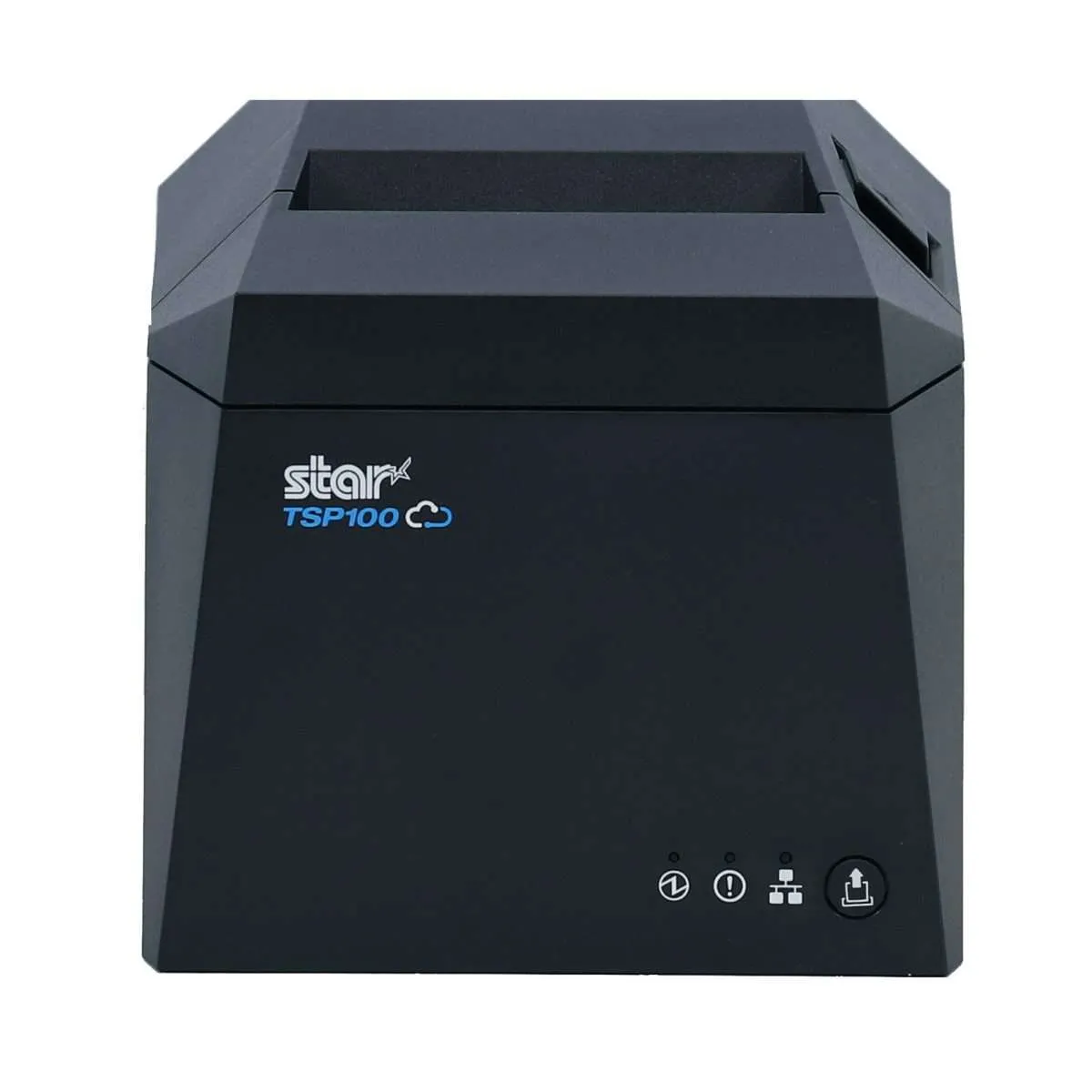

Star Micronics TSP143IV Thermal Receipt Printer

Specifications

Part #

39473110

SKU

39473110

UPC

088047261110

Interfaces in one printer

4

Smaller than previous TSP100 models

20 %

Dual-band wireless support

5 GHz

Compact and Modern Design

About 20% smaller than the TSP143III, the TSP143IV can be wall-mounted vertically or placed on a desktop

AOA Technology

Both TSP143IVUE and TSP143IV X4 models feature Android Open Accessory (AOA) protocol, enabling smooth communication and power delivery to Android devices

CloudPRNT Next

Both models support Star’s CloudPRNT Next technology, offering faster, more reliable cloud-based printing through MQTT protocol

Connectivity Options

The TSP143IV X4 includes USB, LAN, WLAN, and Bluetooth connectivity, while the TSP143IVUE features dual USB/LAN interfaces

Star Cloud Ready

Connect to any cloud application that supports Star’s CloudPRNT technology and also access Star Micronics Cloud Services for device monitoring, custom-designed coupons, and more

Warranty-Protected

The TSP143IV comes with a 2-year standard warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR®

Compatible with Previous Versions

Easily swap out your previous TSP100s with the new TSP143IV

Printer Method

Direct Line Thermal

Print speed

250 mm/sec

Printer Case Color

White or Gray

Connectivity

TSP143IV UE Models: USB/LAN Dual Interface (USB-C and USB-A), Android Open Accessory (AOA), CloudPRNT Next (with updated firmware) TSP143IV X4 Models: USB-C, LAN, WLAN, and Bluetooth, Android Open Accessory (AOA), CloudPRNT Next

Print resolution

203 dpi (8 dots per mm)

No. of Columns

Star Mode = 48

Font Size

12 x 24

Character Set

ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

International Code Pages

Star Mode=48

Bar Codes

Extended barcode functionality - 9 versions / PDF 417, Maxicode Option

Line Spacing

3 mm or 4 mm or programmable

Paper Width

80mm standard, 58mm with paper guide

Paper Thickness

0.049 ~ 0.085 mm

Paper Roll Diameter

Up to 83 mm

Paper Loading

"Drop-In & Print"

Paper-Out Sensor

Yes

Print width

80mm paper = 72mm, 58mm paper = 50.8mm

Top Margin

11 mm default

Auto-Cutter

Guillotine (Partial Cut Only)

Cover-Open Sensor

Yes

Logo Store Capacity

512KB Internal Printer Memory

Journal Capability

Available through Starmicronicscloud.com

Drivers Available

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™ (Windows/Mac/Linux), USB Vendor Clss, CUPS (Mac/Linux), Mac, Mac OS X, Linux™, StarPRNT SDK (iOS/Android/Windows Desktop/UWP), StarXpand SDK (React Native), Star WebPRNT Brower (Android), Star PassPRNT (iOS/Android/UWP)

Digitally Signed (WHQL)

Yes

Emulation Modes

Star Graphics Mode/StarPRNT

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 compulsion input

Power Consumption

Average 1.6 Amp. Printing, 0.1 Amp. Standby [Approx. 43W while printing; up to 53 W with a 1.5 A device connected. Approx 3.5 W in Standby;up to 13 W with a 1.5A device connected]

Operating temperature

5 o C to 45 o C

Humidity

10% - 90% RH (without condensation)

Storage temperature

Temperature: -20 o C to 60 o C

Storage Humidity

10% - 90% RH

Dimensions

140 X 123 X 169 (w x h x d)mm

Weight

1.3kg

Safety and Regulatory Standards

UL, C-UL, TuV, FCC, VCCI, EN55022, CE

Reliability MCBF

60 Million Lines

Print Head

100km

Auto-Cutter Reliability

2 Million Cuts

Sustainability*

Eco Friendly Packaging

What's in the Box

Power Cable LAN Cable (UE model only) USB Cable Paper Guide Rubber Feet Safety Instructions Easy Setup Guide

Footprint Features

Energy Star-Certified
