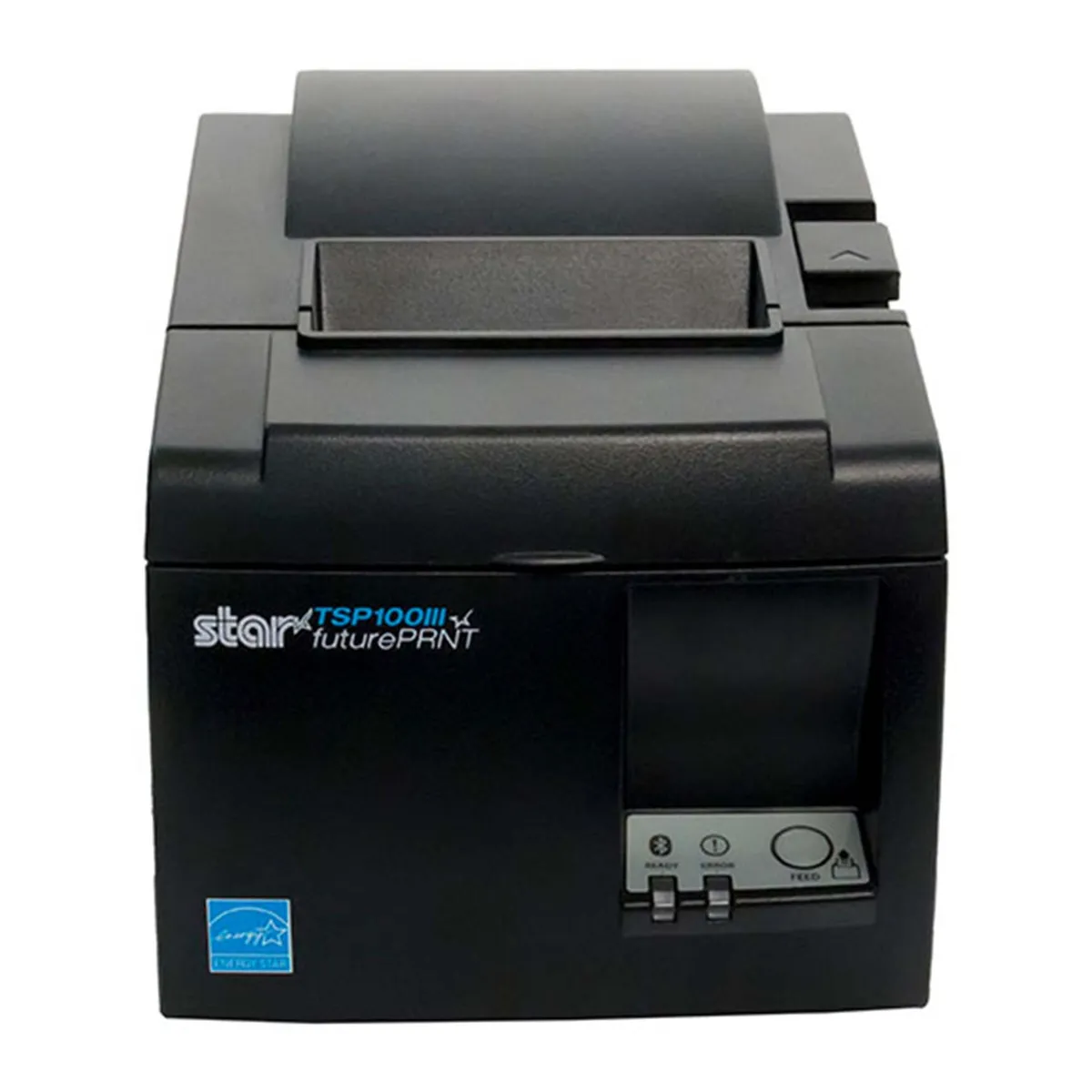

Star Micronics TSP143III

Specifications

Part #

39464810

SKU

39464810

UPC

088047255119

All In One Box

All accessories included in the box with the printer

High Speed

Can print 45 six inch Receipts per Minute (250mm/sec)

High Reliability

MCBF: 60 Million Lines Guillotine Auto Cutter: 2 Million Cuts

Small Footprint

Save precious counter space

Embedded Power Supply

No more power brick, saving even more counter space

“Drop In & Print” Paper Loading

Clamshell design allows for very fast and easy paper loading

Recessed Cable Connections

Helps protect cables from being damaged on the counter top

Horizontal or Vertical Orientation

Use the printer in the orientation that suits you best. An optional eye-pleasing vertical stand (VS-T650) is available for vertical operation.

Wall Mountable

Need more counter space? Create more room by mounting the printer to the wall. The futurePRNT Configuration Utility allows for Text Reversal so the receipt is printed to face the user.

Digitally Signed Driver (WHQL)

Certified by Microsoft for worry-free operation

futurePRNT Receipt Redesign Software

Customize and brand receipts to keep customers coming back time and time again with professional graphics (logos, coupons, and merge images), word-triggered advertising, and MORE!

Energy Star Certified

Energy-saving design for lower operating costs

futurePRNT Configuration Utility

Free, simple to use, provides a powerful marketing tool to brand receipts and give customers incentive to return (Windows only)

Add Graphics

Easily add logos, coupons, merge images, and more

Target Marketing

Assign key words to trigger coupons based off of what customers purchase to keep them returning

Text Replacement

Easily replace unwanted text with other words or white space

Enhance Barcodes

Adjust barcode size for professional looking receipts

Print Preview Tool

See an image of your receipt design before you print it, thus saving paper in the receipt design phase

Electronic Journal

Keep an electronic record of all transactions saved directly to your PC organized by date. Save paper by reducing the need for an extra copy

Text Reversal

Reverse the entire receipt for vertical orientation; when the receipt is printed, it will be presented front-side up to the user

OPOS/JPOS Configuration

Very easily configure for OPOS or JPOS use

Printer Method

Direct Line Thermal

Print speed

43 RPM (Receipts Per Minute)

Printer Case Color

Ultra White or Gray

Models Available

Auto-Cutter with Emergency tear bar on the front guide

Print resolution

203 dpi (8 dots per mm)

Font Size

12 X 24

Character Set

ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

International Code Pages

Star Mode=48

Bar Codes

Extended barcode functionality - 9 versions / PDF 417, Maxicode Option

Line Spacing

3 mm or 4 mm or programmable

Top Margin

11 mm default

Paper Specifications

Width: 80mm standard, 58mm with paper guide Thickness: 0.053 ~ 0.085 mm Roll Diameter: Up to 83 mm Easy - Load: "Drop-In & Print" Paper Out Sensor: Standard Paper Low Sensor: N/A Maximum Print Width: 80mm paper = 72mm, 58mm paper = 50.8mm

Auto Cutter

Guillotine (Partial Cut Only)

Cover Open Sensor

Yes

Logo Store Capacity

Unlimited

Multiple Copy Support

Supported through futurePRNT Software

Journal Capability

Supported through futurePRNT Software

Charging / power

Internal with power cable supplied

Drivers Available

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Class, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android

Digitally Signed (WHQL)

Yes

Connectivity

TSP100IIIWLAN (802.11b/g/n with 2.4GHz) TSP100IIIBi - Bluetooth iOS (Apple MFi-certified) TSP100IIILAN - Ethernet (10/100BaseT, UTP) with 1 m cable included TSP100IIIU - USB with 1.8 m cable included Virtual Serial Port to USB - Supported through futurePRNT Software (TSP100, TSP100PUSB, TSP100LAN) Virtual Serial Port to LAN - Supported through futurePRNT Software (TSP100LAN)

Emulation Modes

Star Mode SDKs (Raster only)

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 compulsion input

Power Consumption

Average 1.6 Amp. Printing, 0.1 Amp. Standby

Operating Conditions

Temperature: 5 o C to 45 o C Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20 o C to 60 o C Humidity: 10% - 90% RH

Dimensions

142 X 132 X 204 (w x h x d)mm

Weight

TSP143IIILAN – 1.73kg TSP143IIIBi – 1.53kg TSP143IIIW – 1.72kg TSP143IIIU – 1.72kg

Safety Standards

UL, C-UL, TuV, FCC, VCCI, EN55022, CE

Reliability MCBF

60 Million Lines Printhead: 100km Auto Cutter: 2 Million Cuts

What's in the Box

Wall Mount Bracket, 58mm Paper Guide, 6ft Power Cable, Power Switch Cover, Easy Setup Guide, Installation CD with Drivers and futurePRNT Receipt Design Software Auto Reverse Text Output Software (Power Cable not included with PUSB versions), Interface cables are included with the LAN and USB models

Warranty

2 Year Limited Manufacturer Warranty (US & Canada)

Options

Splash Proof Cover (SPC-T100) Vertical Stand (VS-T650) Kitchen Buzzer (BU01-24-A) Swap-A-Star Extended Warranty Program (US) Extend-A-Star Extend Warranty Program (US and Canada)

Ports / interfaces

• Available in White & Gray High-Speed Printing (250mm/s)
