Star Micronics · Receipt printer

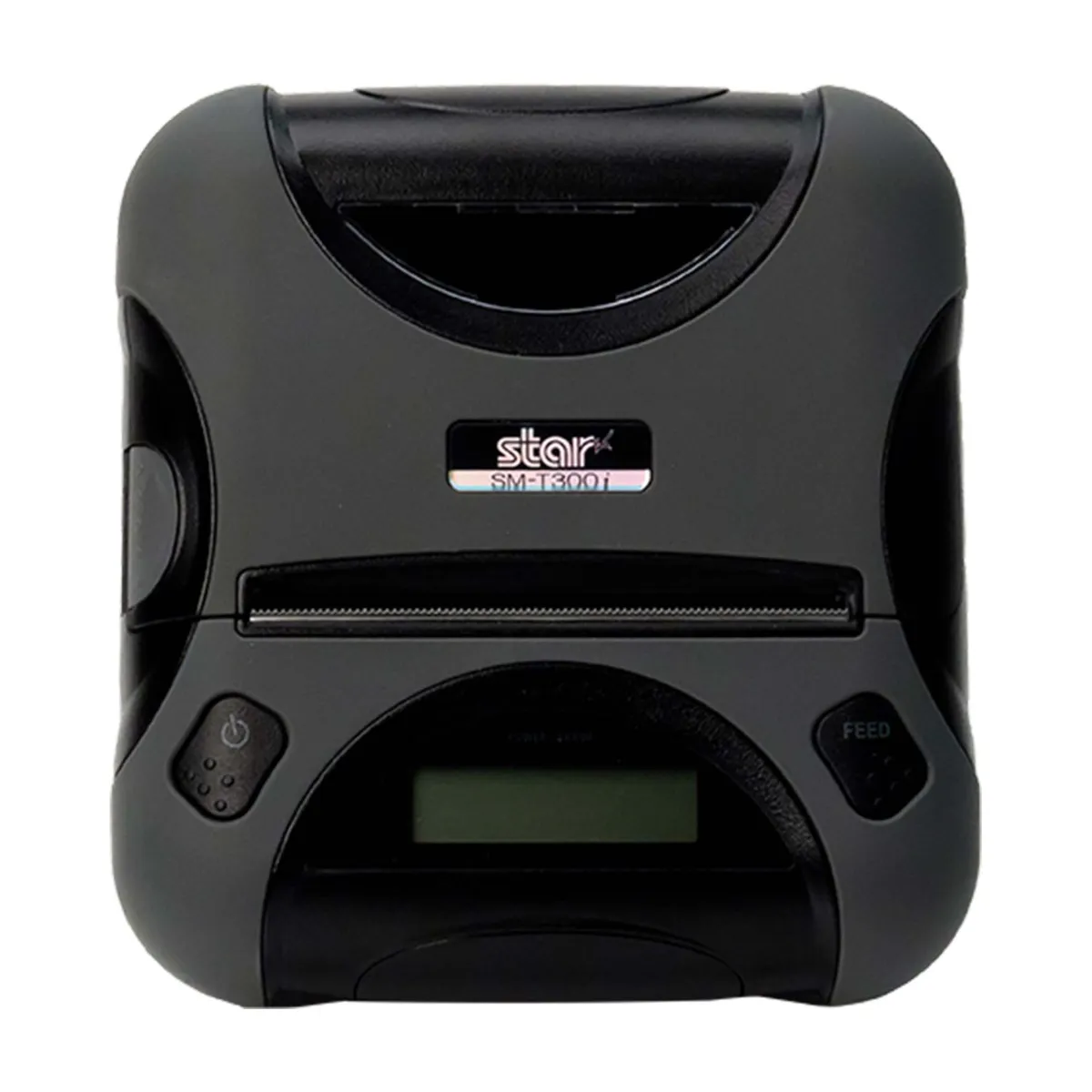

Star Micronics SM-T300
The Star Micronics SM-T300 three-inch portable receipt printer is durable and IP-rated, ideal for field service applications, and Bluetooth compatible.
- BatteryLithium Ion
- DropWith MSR: 4ft (1.2m) drop test, Without MSR 5ft (1.5m) drop test With MSR: 5ft (1.5m) drop test, Without MSR…
Product page at Star Micronics
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Part #
- 39634910
- SKU
- 39634910
- UPC
- 088047256512
- 3-Inch Print Outs
- Perfect handheld solution for receipt printing
- Small, Light Weight Design
- Perfect for potential rush environments
- Ultra High Durability
- Ultra durable design to withstand harsh conditions and long periods of use
- Long-Lasting Battery Life
- 8 hour battery life at 5 minute printing intervals
- LCD Display
- Easy to determine battery life and error type
- Power Down Mode
- Configurable to get in Sleep mode after 1~5 minutes of inactivity
- Direct Thermal Printing
- No ribbon required for high quality printouts
- Fast Output
- Prints text at 75mm/sec
- Standard Bluetooth Connection
- A true portable solution; no strings attached
- Magnetic Stripe Reader
- Optional on the printer for user convenience
- Barcode / Graphics Printing Support
- Print standard barcodes, 2D barcodes, and images
- “Drop In & Print” Paper Loading
- Clamshell design allows for very fast and easy paper loading
- Cover Open Sensor
- Alerts the user if the cover was closed improperly
- Ready for Use Out of Box
- Ships with AC Adapter, Battery Pack, Sample Paper Roll, Belt Clip and Setup Sheet
- StarIO Software Development Kit
- Enables developers to easily communicate with and retrieve status from Star printers. SDK available in C#, VB.NET, Visual C++, Embedded Visual C++ 4.0
- 3-Inch Print Outs
- Perfect handheld solution for standard size printouts
- Ultra High Durability
- Ultra-durable design to withstand harsh conditions and long periods of use
- Long-Lasting Battery Life
- 13 hour battery life at 5-minute printing intervals
- Power Down Mode
- Configurable to get into sleep mode after 1~5 minutes of inactivity
- Direct Thermal Printing
- No ribbon required for high-quality printouts
- Apple MFi Certified
- Supports iOS, Android, Windows and all other operating systems
- Ready for Use Out of Box
- Ships with AC Adapter, Battery Pack, Belt Clip and Setup Sheet
- Printer Method
- Direct Line Thermal Printing
- Print speed
- 75mm/sec
- Print width
- 72mm
- Print resolution
- 203 dpi
- Dimensions
- 120 x 58 x 130 (w x h x d)mm
- Weight
- T300 WLAN 429g / 0.946lbs (battery loaded)
- Battery / runtime
- Lithium Ion
- Battery Duration
- 11 Hour Printing (5 Minute Intervals)
- AC Adapter
- 4 Hours Full Charge Time
- Power Voltage
- 7.4 V
- Paper Specifications Media Loading Method Width Thickness Roll Diameter Black Mark Sensor
- Thermal Paper "Drop-In & Print" 80mm 0.06 - 0.07mm 50mm Supported (Tickets Only); Black Marks Required on Front of Ticket Stock
- Ports / interfaces
- Bluetooth 2.1
- Reliability MCBF Print Head
- 37M Lines 50km
- Bar Code
- Code39/93/128, JAN/EAN8, JAN/EAN13, EAN128, I2/5, KAN, UPC, CODABAR, PDF417, QR Code, DATA Matrix
- Drop specification
- With MSR: 4ft (1.2m) drop test, Without MSR 5ft (1.5m) drop test
- Drivers
- Windows® 7 32/64 Bit Windows® Vista 32/64 Bit Windows® XP Windows® Mobile SDK available for Android®, Blackberry® and iOS
- Supported OS
- iOS, Android and Windows (requires SM-S200 Driver Package)
- Mag Stripe Reader
- Standard 1&2 Track (2&3 Optional)
- Auto Power Down Mode
- Auto sleep mode after 1-5 Minutes, Configurable
- Characters per Line
- 64cpl
- Character Support
- ANK, Simplified/Traditional Chinese, Arabic, Cyrillic, Russian, Turkish, Greek, Japanese, Persian, Latin 9 and Others (Upon Request)
- Included
- AC Adapter, Battery, Serial Cable, Setup Sheet
- Warranty
- 1 Year Limited Manufacturer Warranty
- Options
- Shoulder Strap Car Charger Extra Battery Pack Extra Battery Charger 4 Unit Battery Charger Extend-A-Star Extended Warranty Program (US, Canada and Mexico) Swap-A-Star Extended Warranty Program (US)
- Dimensions
- 120(W) x 130.5(D) x 58.4(H) mm
- Weight
- 424g (with battery pack, no card reader) 429g (with battery pack & card reader)
- Paper Specifications Media Loading Method Width Thickness Roll Diameter
- Thermal Paper "Drop-In & Print" 80mm 0.06 - 0.07mm 50mm
- Ports / interfaces
- RS232C & Bluetooth Ver 2.1 + EDR
- Emulation Modes
- StarPRNT, ECS/POS™
- Mag Stripe Reader
- Supports 3DES encryption
- Drop specification
- With MSR: 5ft (1.5m) drop test, Without MSR 4ft (1.2m) drop test
- Supported OS
- iOS, Android, Windows and Mac OS X (StarPRNT) iOS and Android (ESC/POS™)
- Dimensions
- Weight: 24g with Battery Pack without Card Reader, 429g with Battery Pack
- Operating System Support
- iOS, Android, Windows, etc.
