Star Micronics SK5-31

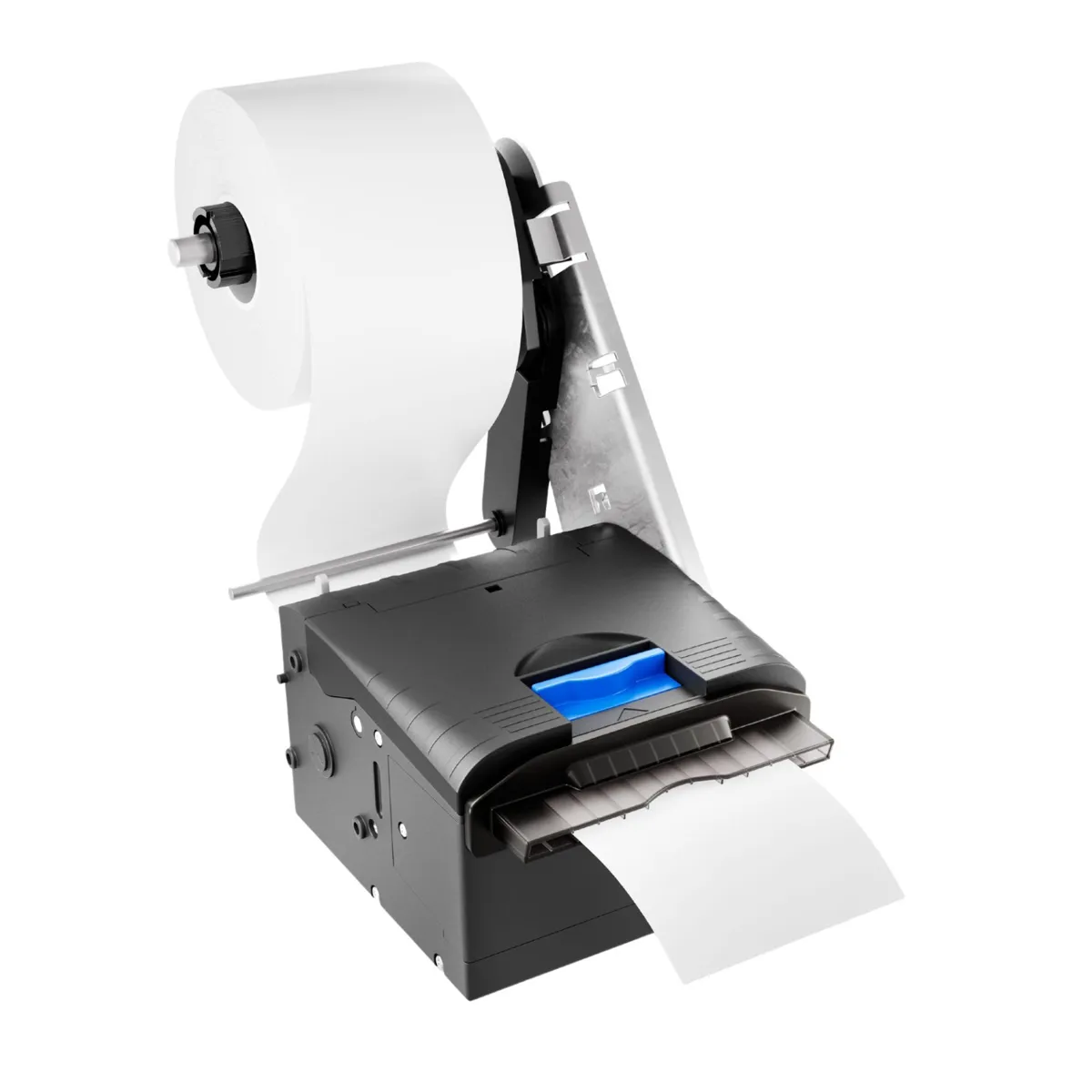

The Star SK5-31 kiosk printer is fully enclosed with an adjustable paper arm and built-in presenter and LED bezel, ideal for parking, self-service, & more.
Product page at Star Micronics
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Part #
- 37951620
- SKU
- 37951620
- UPC
- 088047287035
- Adjustable paper arm positions
- 12
- Maximum paper width
- 82.5 mm
- Print speed
- 250 mm/s
- Paper ejection speed
- 600 mm/s
- Speed and Quality
- High-speed printing up to 250mm/s with exceptional print clarity at 203dpi resolution
- Design and Usability
- Fully enclosed printer design with an integrated presenter for easy maintenance. It features a stylish design, standard LED Bezel, and presenter for increased usability.
- Versatility and Paper Handling
- Able to print on receipts, traditional black mark labels, and black mark tickets with an adjustable 2-inch to 3-inch paper guide. It features an anti-paper jam function, easy paper jam removal, and paper eject assistance function.
- Connectivity and Compatibility
- USB/Serial (RS-232C) or Ethernet (LAN)/USB models. It's compatible with StarPRNT and ESC/POS emulation for effortless integration.
- Advanced Features
- Paper retract mode, receipt capture functionality for unclaimed tickets, and extraordinarily fast paper ejection speed of 600mm/s.
- Longevity and Durability
- Cutter life expectancy that doubles the competition and a comprehensive sensor system including paper-in, paper near-end, and paper load sensors.
- Printer Method
- Direct Line Thermal Printing
- Print speed
- Max 250mm/sec
- Paper Ejection Speed
- Max 600mm/sec
- Paper/Ticket Ejection Length
- 60mm - 250mm
- Adjustable Paper Width
- 54mm to 82.5mm (variable paper widths)
- Print Widths
- Max 80mm
- Paper Diameter
- 150mm standard (with options that extend to 200mm or 254mm)
- Presenter
- Clamp mode (bottom loop only), Retract mode, Continuous mode
- Paper Sensors
- Near-end Sensor, Paper-end Sensor, BM (Black mark) Sensor, Presenter Sensor
- Resolution
- 8 dots/mm (203 dpi)
- Font
- 8x16, 12x24 dots
- Character Types
- Katakana, PC437/850/852/857/858/863/865/866/860/862/864/737, WPC1252/1252_2/1254/1250/1251/PC1253
- Bar Code
- UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128, GS1 Databar Omni-directional, Truncated, Limited, Stacked, Stacked Omni-directional
- 2D Bar Code
- QR, MicroQR, MaxiCode, MicroPDF417, PDF417, DataMatrix
- Ports / interfaces
- USB2.0/Serial (RS-232C) or Ethernet(LAN)/USB2.0 models available
- Emulation Modes
- StarPRNT or ESC/POS
- Cutter
- Full cut
- Operating temperature
- -20 o C to 70 o C
- Optimal Print Quality Temperature
- 5 o C to 40 o C
- Humidity
- 20 to 85% (non condensing)
- Operating Voltage
- DC 24V
- External Dimensions
- 116 x 143.5 x 76.4mm (W x D x H) (including LED Bezel, excluding paper holder and projections)
- Reliability MCBF (Printer) Print Head Auto Cutter Life
- 200 Million Lines 150km 2 Million Cuts or more
- Safety Standard
- VCCI, FCC, CE CLASS A
- Warranty
- 1 Year Standard Warranty
- Printer Method
- Direct Line Thermal
- Print speed
- 250 mm/s
- Resolution
- 203 dpi (8dot/mm)
- Paper Width
- 54 – 82.5mm
- Ports / interfaces
- USB 2.0 and RS-232C LAN and USB 2.0
- Sensors
- Near end Sensor/ Paper end Sensor/ BM (Black mark) Sensor Presenter Sensor
- Charging / power
- DC Power supply DC 24V±5% / TYP 2.7A
- Dimensions (Excl. paper roll and holder)
- 116(W) 143.5(L) x 76.4(H)mm
- Ports / interfaces
- USB 2.0 and RS-232C
- Sensors
- Near end Sensor/ Paper end Sensor/ BM (Black mark) Sensor
