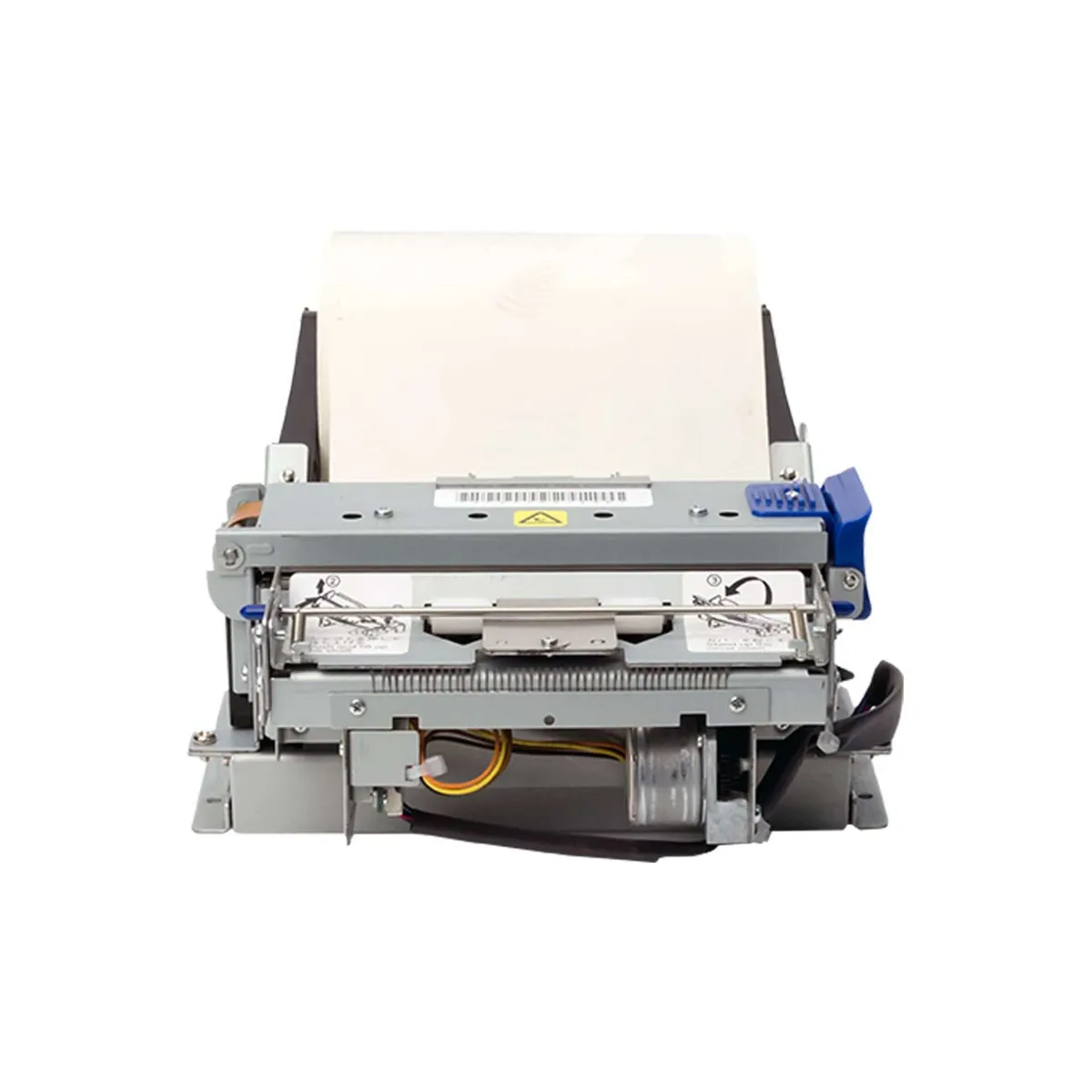

Star Micronics SK1-41
The Star Micronics SK1-41 4” thermal self-service kiosk printer is available with or without presenter and is ideal for warehouse and shipping industries.
Product page at Star Micronics
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Part #
- 37963693
- SKU
- 37963693
- UPC
- 088047275254
- High Speed
- Max 150mm/sec
- High Reliability
- MCBF: 200 Million Pulses Auto Cutter 1.5 Million Cuts
- 4-Inch Paper Width
- Provides 4 inch wide receipts to customers ideal for information intensive receipts
- Easy to Integrate
- 2 different models to accommodate any application: SK1-41ASF4-LQ (standard paper roll holder), SK1-41ASF4-LQP (standard paper roll with presenter)
- Printer Method
- Direct Line Thermal Printing
- Print speed
- Max 150mm/sec
- Paper Width
- 80mm, 83mm, 112mm
- Print width
- 72mm, 80mm 104mm
- Paper Roll Holder
- 120mm
- Resolution
- 8 dots/mm (203 dpi)
- Font
- 8x16, 12x24 dots
- Character Types
- PC437/850/852/857/858/860/863/865/866, WPC 1252
- Bar Code
- JAN8/13, CODE39, ITF, CODABAR, CODE128, UPC-A/E
- 2D Bar Code
- QR, Maxicode, Micro PDF-417, PDF-417, DataMatrix
- Ports / interfaces
- Dual Serial (RS232C) & USB(V2.0 FULL SPEED)
- Cutter
- Full and partial cut (command selectable)
- Operating temperature
- -20 o C to 60 o C
- Optimal Print Quality Temperature
- 5 o C to 40 o C
- Humidity
- 20 to 85% (non condensing)
- Operating Voltage
- DC 24V
- External Dimensions
- 160.9 x 159.3 x 88.1 (W x H x D) mm
- Reliability MCBF (Printer) Print Head Auto Cutter Life
- 200 Million Lines 150km 1.5 Million Cuts
- Safety Standard
- CE, FCC, VCCI
- Warranty
- 1 Year Warranty for Parts and Labor
- Printer Method
- Direct Line Thermal
- Print speed
- Max 150mm/sec
- Paper Width
- 80mm, 83mm, 112mm
- Print width
- 72mm, 80mm, 104mm
- Resolution
- 8 dots/mm (203dpi)
- Ports / interfaces
- Dual Serial (RS232C) & USB (V2.0 FULL SPEED)
- Operating Voltage
- DC 24V
- External Dimensions
- SK1-41: 160.9 x 159.3 x 88.1 (w x h x d) mm
