Star Micronics · Receipt printer

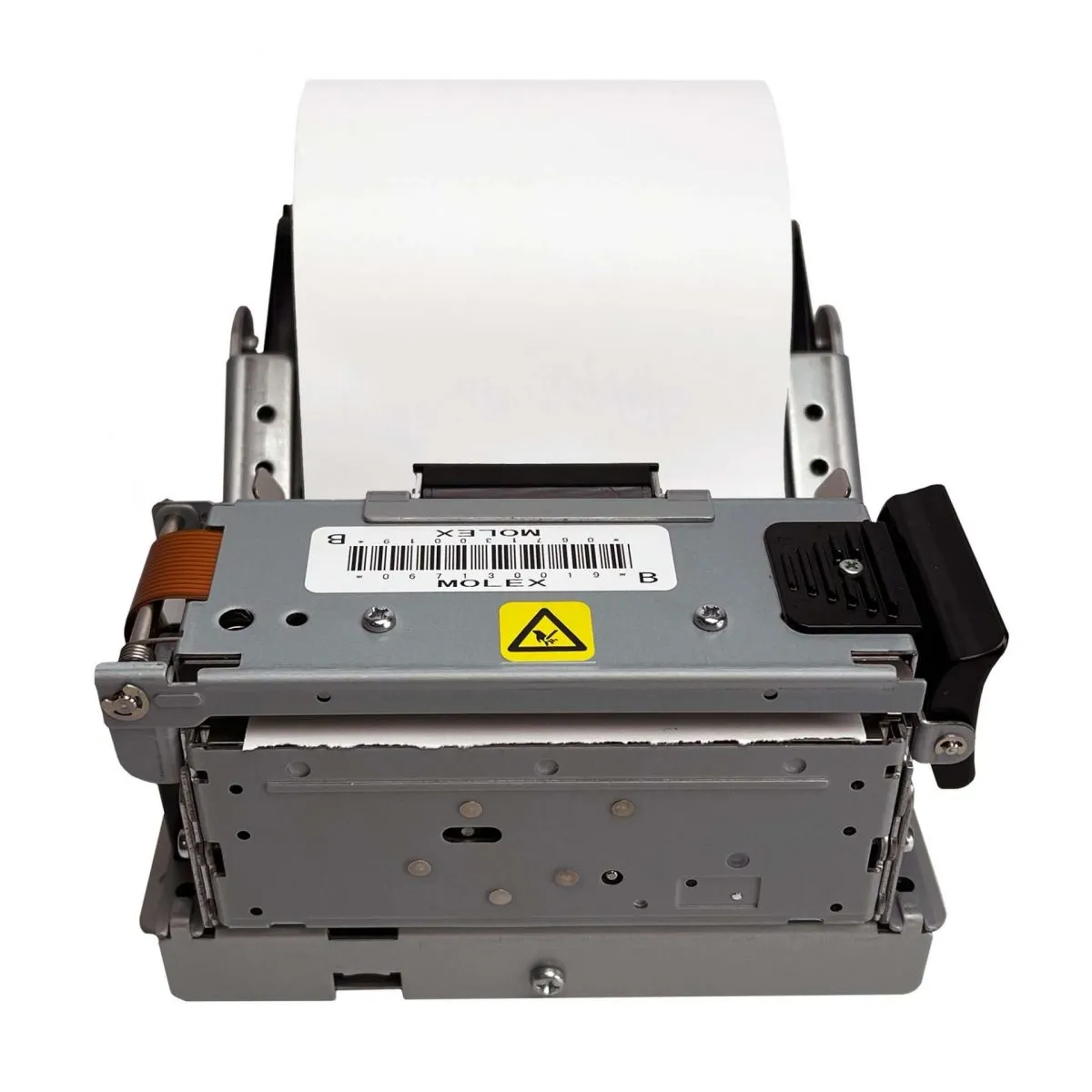

Star Micronics SK1-311
The SK1-311 SK 3" linerless label kiosk printer uses repositionable sticky paper, perfect for self-service, or the food & travel industries.
Product page at Star Micronics
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Part #
- 37951300
- SKU
- 37951300
- High Speed
- Max 200 mm/sec
- High Reliability
- MCBF: 150 Million Pulses Auto Cutter: 1+ Million Cuts
- Self-Service
- Perfect for any self-service application requiring repositionable linerless sticky labels
- Eco-Friendly
- Linerless labels have no coated paper backing which cuts down on waste
- Printer Method
- Direct Line Thermal Printing
- Print speed
- Max 200mm/sec
- Paper Width
- 80mm, 83mm
- Print width
- 72mm, 80mm
- Paper Roll Holder
- Max 83mm
- Paper Specifications
- Dimensions: Max.φ83mm Core Diameter: Internal φ25.4mm x External φ29.4mm
- Resolution
- 8 dots/mm (203 dpi)
- Font
- 8x16, 12x24 dots
- Character Types
- ASCII Characters: PC437/850/852/857/858/863/865/866/860/862/864/737 WPC1252/1252_2/1254/1250/1251/PC1253
- Bar Code
- UPC-A/E, JAN13/8, CODE39, ITF, CODABAR, CODE128, GS1 Databar Omni-directional, Truncated, Limited, Stacked, Stacked Omni-directional
- 2D Bar Code
- QR, MicroQR, MaxiCode, MicroPDF417, PDF417, DataMatrix
- Ports / interfaces
- USB & Serial (RS-232)
- Auto-Cutter
- Full and partial cut (command selectable)
- Operating temperature
- 5 o C to 40 o C
- Optimal Print Quality Temperature
- 5 o C to 40 o C
- Humidity
- 20 to 85% (non condensing)
- Operating Voltage
- DC 24V
- External Dimensions
- 127(W) × 129.2(D) × 73.6(H)mm
- Weight
- Approx. 630g (without paper roll)
- Reliability MCBF (Printer) Print Head Auto-Cutter Life
- 150 Million Lines 100km or more 1M cuts or more (with recommended paper)
- Safety Standard
- CE, FCC, VCCI(Class A) / RoHS/ UL
- Warranty
- 1 Year Warranty for Parts and Labor
- Part #
- 37963776
- SKU
- 37963776
- UPC
- 088047285499
- High Speed
- Max 250 mm/sec
- High Reliability
- MCBF: 200 Million Pulses Auto Cutter: 2 Million Cuts
- 3-Inch Paper Width
- Provides small width tickets or receipts to customers to fit your application
- Printer Method
- Direct Line Thermal Printing
- Print speed
- Max 250mm/sec
- Paper Width
- 58mm, 60mm, 80mm, 83mm
- Print width
- 54mm, 56mm, 72mm, 80mm
- Paper Roll Holder
- 120mm
- Resolution
- 8 dots/mm (203 dpi)
- Font
- 8x16, 12x24 dots
- Character Types
- PS427/850/852/857/858/860/863/865/866, WPC 1252
- Bar Code
- JAN8/13, CODE39, ITF, CODABAR, CODE128, UPC-A/E
- 2D Bar Code
- QR, Maxicode, Micro PDF-417, PDF-417, DataMatrix
- Ports / interfaces
- Dual Serial (RS232C) & USB (V2.0 FULL SPEED)
- Cutter
- Full and partial cut (command selectable)
- Operating temperature
- -20 o C to 60 o C
- Optimal Print Quality Temperature
- 5 o C to 40 o C
- Humidity
- 20 to 85% (non condensing)
- Operating Voltage
- DC 24V
- External Dimensions
- 127 x 137 x 79 (W x D x H) mm
- Reliability MCBF (Printer) Print Head Auto Cutter Life
- 200 Million Lines 150km 2 Million Cuts
- Safety Standard
- CE, FCC, VCCI
- Warranty
- 1 Year Warranty for Parts and Labor
- Print method
- Direct line thermal
- Print width
- 72mm/80mm
- Print speed
- Max.200 mm/sec
- Charging / power
- DC24V
- Ports / interfaces
- USB & Serial (RS-232)
