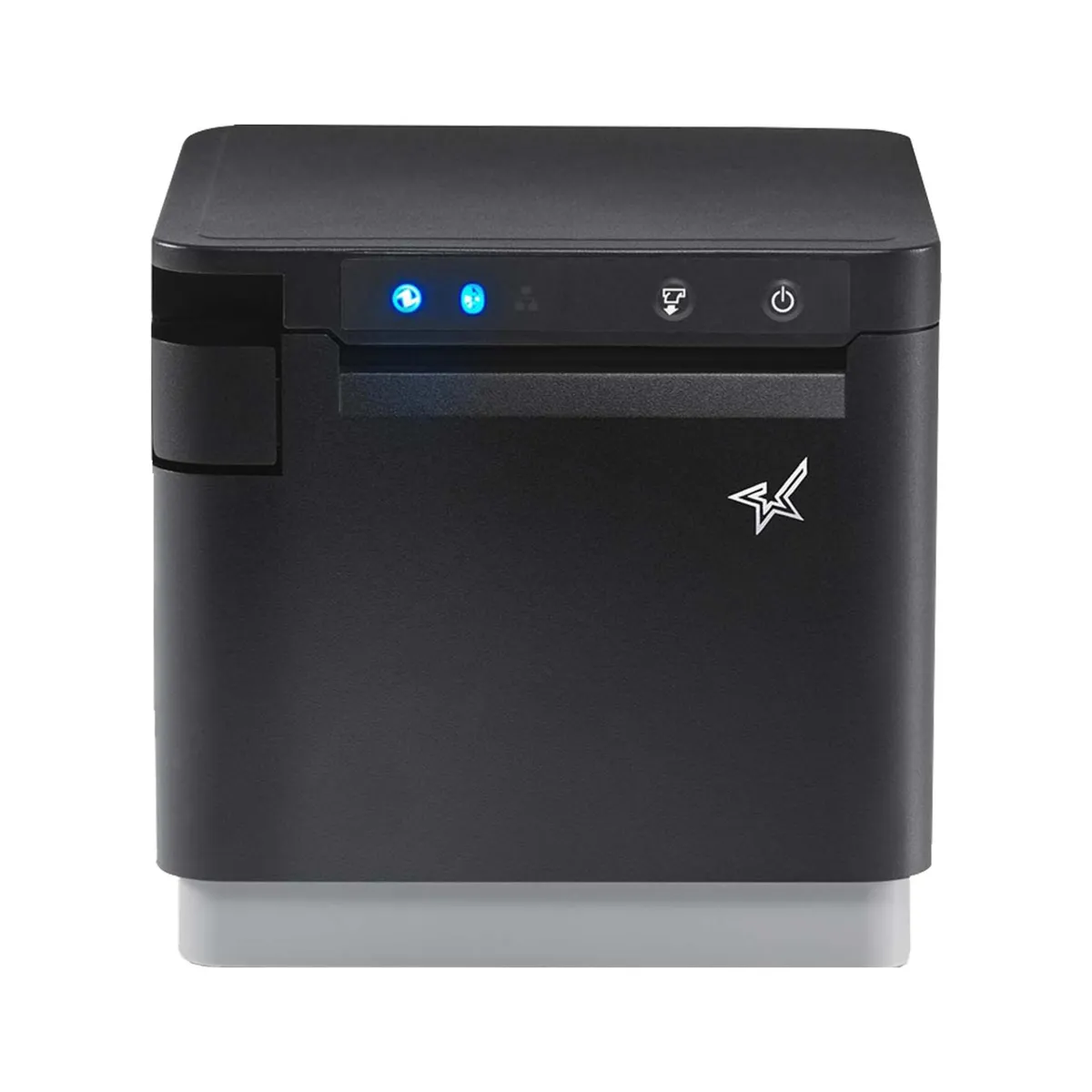

Star Micronics mC-Print3

Specifications

Part #

39654110

SKU

39654110

UPC

088047258141

Sleek Modern Design

Stylish look to complement the mCollection®

User-Friendly Interface

Effortless setup and operation

Common SDK

Ideal for ISVs, ensures seamless integration

Fast Print Speeds

250 mm/s (MCP30 models) 400 mm/s (MCP31 models)

Ports / interfaces

mCP31L NH & mCP31LBi NH: LAN, USB-B, 1 USB-A (2.4A), DK Port, DC 24V, Bluetooth* (*mCP31LBi NH model only) mCP31L & mCP31LBi: LAN, USB-B, 3 USB-A (one 2.4A & two 0.5A), DK Port, DC 24V, Bluetooth* (*mCP31LBi model only) mCP30: LAN, USB-B, DK Port, DC 24V mCP31C & mCP31CB: LAN, 1 USB-C (18W), 2 USB-A (0.5A), DK Port, DC 24V, Bluetooth* (*mCP31CB model only) mCP31W & mCP31WBi: WLAN, LAN, USB-B, USB-A (0.5A), DK Port, DC 24V, Bluetooth* (*mCP31WBi model only) mCP31Ci & mCP31CBi: LAN, 1 USB-C (20W),

Ultra-C Technology

20W power and data transfer with USB-C (2nd generation only)

CloudPRNT Next

Advanced cloud printing with faster, more reliable performance (2nd generation only)

2x Faster Bluetooth

Enhanced Bluetooth connectivity for rapid communication (Bluetooth models only)

External Hub Support

Connect up to 3 peripherals easily with external USB hub (2nd generation only)

Sustainable Packaging

Eco-friendly packaging made entirely of recyclable materials (2nd generation only)

Multiple Connectivity Options

Supports legacy, modern, and future systems

Print-Flat Technology

Prints come out perfectly flat with no curl

SteadyLAN®

Reliable power and network access for tablets

Small Footprint

Compact design saves valuable counter space

Cloud Ready

Engage with customers through cloud-based services, including Star Micronics Cloud Services with benefits for software developers and business owners

PromoPRNT

Create customized promotional receipts with ease

External Power Supply

Compact power supply unit, 30% smaller

Front Paper Loading

Convenient front paper loading for easy access

Cable Management

Efficient cable management for a tidy workspace

Front Exit Printing

Prints exit from the front for under-counter setups

Digitally Signed Driver (WHQL)

Microsoft certified for secure and reliable operation

Feature

1st Generation (MCP30 Models) | 2nd Generation (MCP31 Models)

Printer Method

Direct Line Thermal | Direct Line Thermal

Print speed

250 mm/sec | 400 mm/sec

Printer Case Color

White or Black | White or Black

Models Available

USB, Lightning, Ethernet (LAN), CloudPRNT, Bluetooth* (*mCP31LB & mCP31WBi only) | Ultra-C USB-C for iOS, Android, & Windows, Ethernet (LAN), WLAN, CloudPRNT Next, Bluetooth* (*mCP31CBi & mCP31WCBi only)

Print resolution

203 dpi (8 dots per mm) | 203 dpi (8 dots per mm)

No. of Columns

Star Mode = 48 | Star Mode = 48

Font Size

12 X 24 | 12 X 24

Character Set

ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese | ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

International Code Pages

Star Mode = 48 | Star Mode = 48

Bar Codes

Extended barcode functionality - 9 versions / PDF 417, Maxicode Option | Extended barcode functionality - 9 versions / PDF 417, Maxicode Option

Line Spacing

3 mm or 4 mm or programmable | 3 mm or 4 mm or programmable

Paper Specifications

Width: 80mm standard, 58mm with paper guide Thickness: 0.053 ~ 0.075 mm Roll Diameter: Up to 83 mm | Width: 80mm standard, 58mm with paper guide Thickness: 0.049 ~ 0.075 mm Roll Diameter: Up to 83 mm

Paper Load

Easy Front Loading | Easy Front Loading

Paper Out Sensor

Standard | Standard

Paper Low Sensor

No | Standard

Print width

80mm paper = 72mm, 58mm paper = 51mm | 80mm paper = 72mm, 58mm paper = 51mm

Top Margin

11 mm default | Supports 2mm (11 mm default)

Auto-Cutter

Guillotine (Partial Cut Only) | Guillotine (Partial Cut Only)

Cover-Open Sensor

Yes | Yes

Paper End Sensor

Yes | Yes

Near-End Sensor

No | Yes

Cash Drawer Detector

No | Yes

Logo Store Capacity

Unlimited | Unlimited

Label Support

N/A | N/A

Charging / power

External: PS60A-24C | External: PS65AT-24A

Drivers Available

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Clss, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android | Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Clss, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android

Digitally Signed (WHQL)

Yes | Yes

Swappable Interfaces

N/A | N/A

Connectivity

mCP30 : Ethernet (LAN), USB-B, CloudPRNT | mCP31Ci : USB-C (Ultra-C) 20W Power + Data to iOS, Android (AOA) & Windows, USB-A, Ethernet (LAN), CloudPRNT Next (MQTT) mCP31CBi : USB-C (Ultra-C) 20W Power + Data to iOS, Android (AOA) & Windows, USB-A, Ethernet (LAN), CloudPRNT Next (MQTT), Bluetooth mCP31WCi : USB-C (Ultra-C) 20W Power + Data to iOS, Android (AOA) & Windows, Ethernet (LAN), CloudPRNT Next (MQTT), WLAN (MCW10) mCP31WCBi : USB-C (Ultra-C) 20W Power + Data to iOS, Android (AOA) & Windo

Emulation Modes

StarPRNT | StarPRNT

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 compulsion input | 2 circuits, (24V max. 1A), 1 compulsion input

Power Consumption

Average 1.6 Amp. Printing, 0.1 Amp. Standby | Average 1.6 Amp. Printing, 0.1 Amp. Standby

Operating Conditions

Temperature: 5 o C to 45 o C Humidity: 10% - 90% RH (without condensation) | Temperature: 5 o C to 45 o C Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20 o C to 60 o C Humidity: 10% - 90% RH | Temperature: -20 o C to 60 o C Humidity: 10% - 90% RH

IP / sealing

IPX2 | IP22
