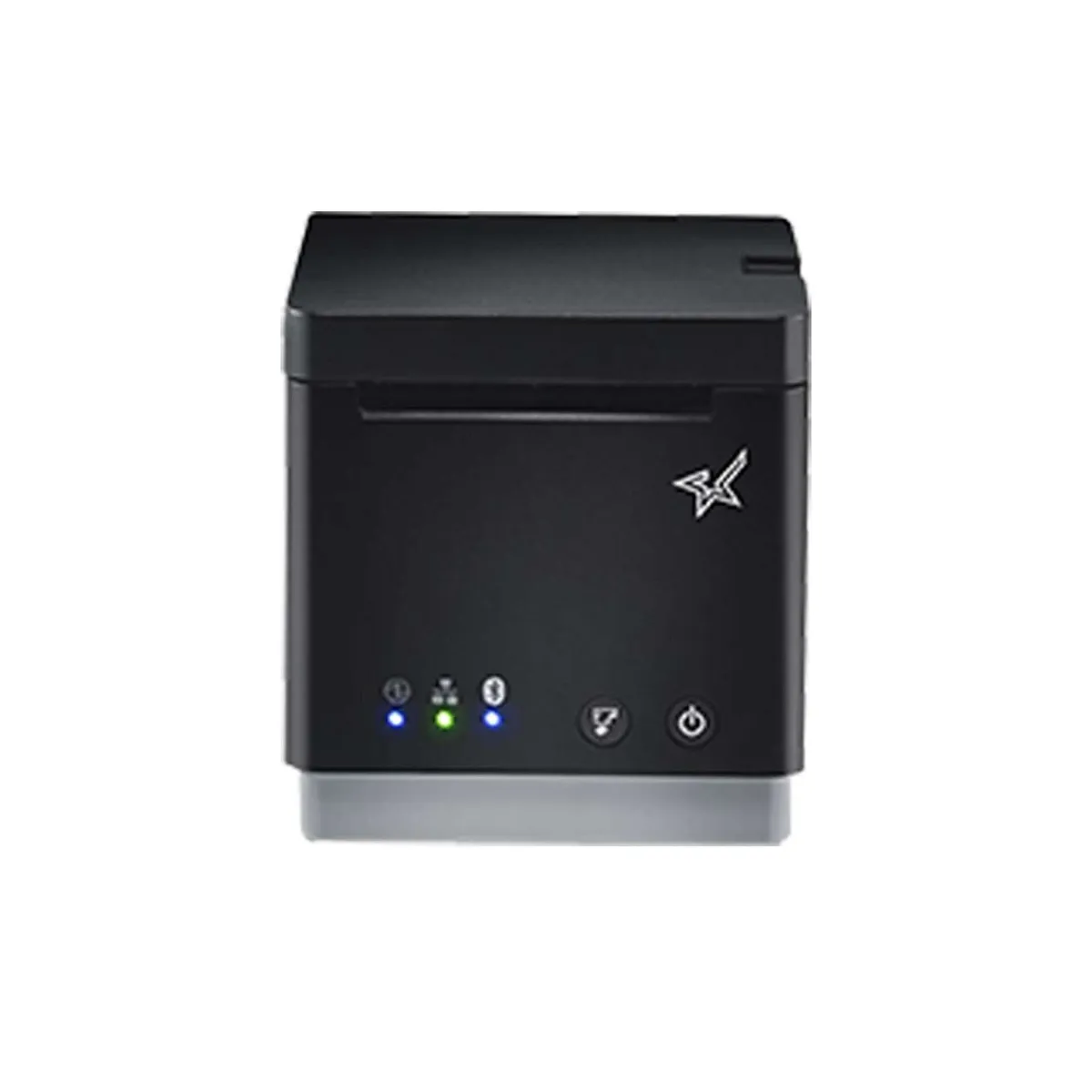

Star Micronics mC-Print2

Specifications

Part #

39653010

SKU

39653010

UPC

088047260137

All-In-One Box

All accessories included in the box with the printer

Unique Design

Modern, compact design across the mCollection

HUB

3 USB-A w/HID Support (1 Port 2.4A, 2 Ports 0.5A)

HID Support

Connect any HID device including Bump Bar, Scanners, & Displays (Keyboard Mode)

Multiple Connections

Able to connect with 4 different interfaces

Print Flat Technology

Every print job comes out flat with no paper curl

SteadyLAN®

Provides reliable power and network access to tablet

Small Footprint

Save precious counter space

External Power Supply

New Smaller Power Supply

“Drop-In & Print” Paper Loading

Top loading design allows for very fast and easy paper loading

Recessed Cable Connections

Helps protect cables from being damaged on the countertop

Digitally Signed Driver (WHQL)

Certified by Microsoft for worry-free operation

Cloud Ready

Engage with customers through multiple cloud-based services, including Star Micronics Cloud Services with benefits for software developers and business owners

Enhance Barcodes

Adjust barcode size for professional looking receipts

Text Reversal

Reverse the entire receipt for vertical orientation; when the receipt is printed, it will be presented front-side up to the user

Print speed

100 mm/s

Print resolution

203 dpi (8 dots per mm)

No. of Columns

Star Mode = 48

Font Size

12 X 24

Character Set

ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

International Code Pages

Star Mode=48

Bar Codes

Extended barcode functionality - 9 versions / PDF 417, Maxicode Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications

Width: 50mm standard Thickness: 0.053 ~ 0.075 mm Roll Diameter: Up to 50 mm Easy Paper Load: "Drop-In & Print" Paper Out Sensor: Standard Paper Low Sensor: N/A Maximum Print Width: 58mm paper = 50.8mm print width

Top Margin

11 mm default

Auto-Cutter

Guillotine (Partial Cut)

Cover-Open Sensor

Yes

Charging / power

New Smaller External with power supply included

Drivers Available

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Clss, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android

Digitally Signed (WHQL)

Yes

Connectivity

mCP20 - USB, Ethernet (LAN), CloudPRNT mCP21LB - USB, Ethernet (LAN), CloudPRNT, Lightning, Bluetooth, and HUB mCP21W - Ethernet (LAN), CloudPRNT, WLAN (2.4 GHz / 5 GHz) mCP21WBi - Ethernet (LAN), CloudPRNT, WLAN (2.4 GHz / 5 GHz), Bluetooth

Emulation Modes

StarPRNT

HUB

1 Port (2.4A), 2 Ports (0.5A)

Power Consumption

Average 1.6 Amp. Printing, 0.1 Amp. Standby

Operating Conditions

Temperature: 5 o C to 45 o C Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20 o C to 60 o C Humidity: 10% - 90% RH

Dimensions

96 X 115 X 100mm (W x H x D)

Weight

0.8Kg

Safety Standards

UL, C-UL, TuV, FCC, VCCI, EN55022, CE

Reliability MCBF Print Head Auto-Cutter

60 Million Lines 100km 2 Million Cuts

Warranty

2 Year Limited Manufacturer Warranty (US & Canada)

Optional Accessories

mG-S322, mG-S1501, mG-S8200, 2D Barcode Scanner/Imager , Line Display, Kitchen Buzzer, Cash Drawer

Warranty Options

Swap-A-Star Extended Warranty Program (US) Extend-A-Star Extend Warranty Program (US and Canada)

Wi-Fi / WLAN

- 2.4 GHz 802.11b/g/n

Color

White or Black

Print speed

100 mm/sec

Width

2 1/4” (58 mm)

Sensor

Paper End

USB-B USB-A/Lightning Bluetooth* Ethernet Cash Drawer Port

WLAN - 2.4 GHz 802.11b/g/n - 5 GHz 802.11a/n/ac Security - WEP (64/128 Bit) - WPA-PSK - WPA2-PSK - WPA3-Personal Ethernet Bluetooth* (WBi Model) CloudPRNT/WebPRNT SteadyLAN Cash Drawer Port

Charging / power

External Power Supply Included (PS60A-24C)
