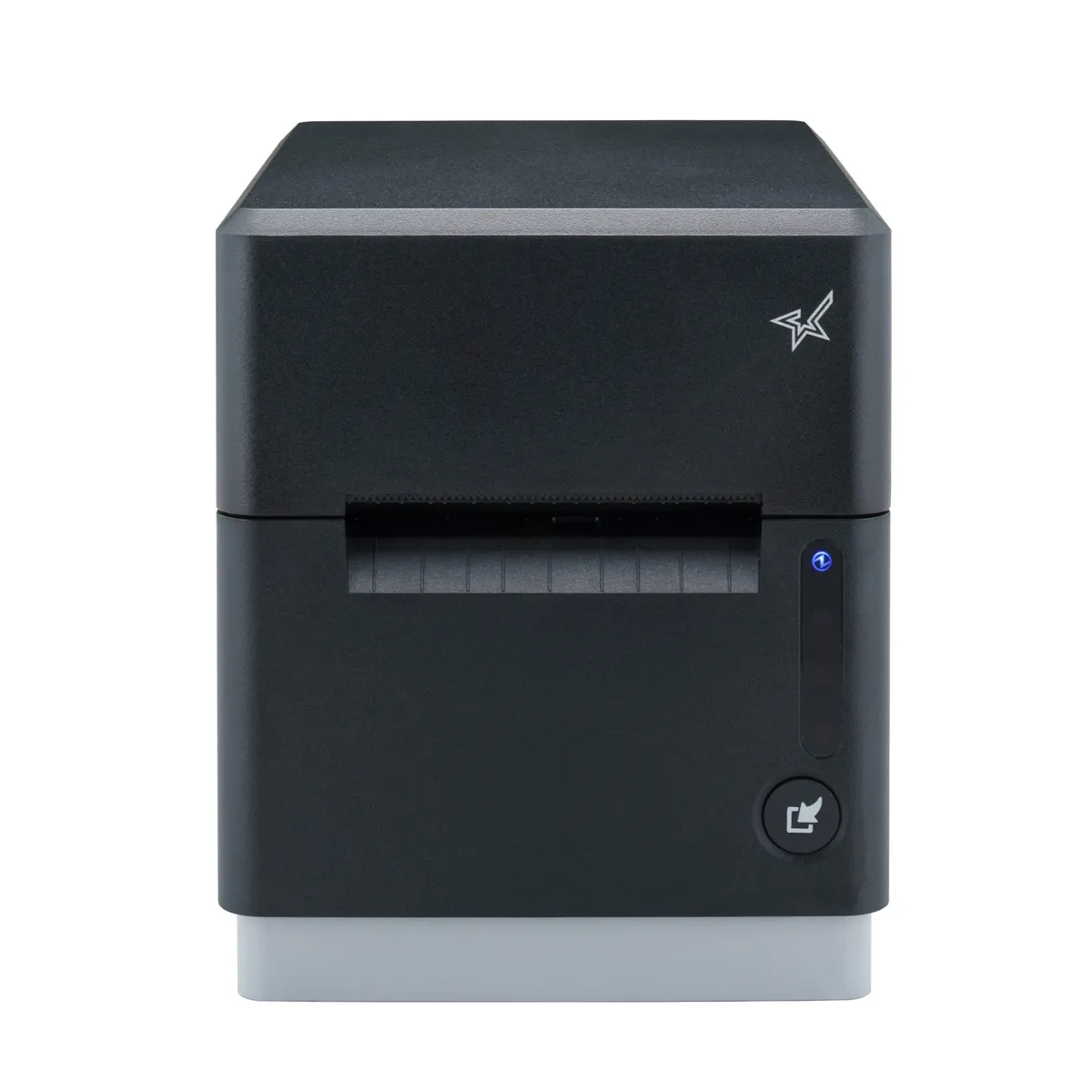

Star Micronics mC-Label3

Specifications

Part #

39658310

SKU

39658310

UPC

088047264128

Sleek Elegant Design

Modern look to match the rest of the mCollection®

Easy User Experience

Simple to setup, easy to use

Common SDK

Perfect for ISVs, easy to integrate

Ports / interfaces

• LAN • Bluetooth (iOS, Android, Windows - MCL32CBi & MCL32WCBi models only) • USB-C for Windows and Android with Power Delivery (up to 20W). Charging only for iOS (MFi). • Android Open Accessory Protocol (AOA) via USB-C port • USB-A for Peripherals, Configuration by USB memory stick, Power for MCW10 (Wireless LAN Unit) • Drawer Kick (DK) • Power Adapter PS65AT-24A

TetherLAN Technology

With CloudPRNT, allows a connected device (4G & 5G) to share its network connection with the mC-Label3, creating a cloud-based printing environment anywhere.

SteadyLAN Technology

Provides reliable power and network access to tablet (paired with Android and Windows devices)

USB-C Power Delivery

Data transfer & charging with USB-C Connection for Android devices

External Power Supply

Yes

Easy Paper Loading

Simple "drop-in and print" paper loading for fast turnaround

No Paper Jams

Includes mechanism designed to prevent paper jams when printer is kept clean, even with linerless sticky labels

Tool-Free Maintenance

Automatic maintenance alerts, printed QR code instructions, and color-coded components simplify cleaning and part replacement while helping reduce downtime

Cable Management

Visible cable management for clean counter space

Front Exit Printing

Printing from the front for under the counter printing.

Digitally Signed Driver (WHQL)

Certified by Microsoft for worry-free operation

Warranty

2-Year Limited Manufacturer Warranty (US & Canada)

Warranty Options

SWAP-A-STAR® Warranty Program (US) EXTEND-A-STAR® Extended Warranty Program (US and Canada)

Cloud Ready

Engage with customers through cloud-based services, including Star Micronics Cloud Services with benefits for software developers and business owners.

Label Builder

Label Builder on Star Micronics Cloud Services empowers users to craft and store up to three label designs directly on the mC-Label3 Multimedia Printer. With its intuitive One Touch button, users can then print the stored designs—even without an internet connection.

PromoPRNT

Add customized promotional material to receipts. Easily promote specials, discounts, loyalty rewards, social media, announcements, and more! Schedule different promotions for different dates and automate them.

Add Graphics

Add logos, promotions, and coupons to receipts, and more.

Target Marketing

Assign keywords to trigger coupons based off of what customers purchase to keep them returning.

Enhance Barcodes

Adjust barcode size for professional looking receipts.

Text Reversal

Reverse the entire receipt for vertical orientation; when the receipt is printed, it will be presented front-side up to the user.

OPOS/JPOS Configuration

Very easily configure for OPOS or JPOS use.

Printer Method

Direct Thermal (Thermosensitive type)

Print speed

180 mm/sec

Printer Case Color

Black

Models Available

USB, Lightning, Ethernet (LAN), WLAN, CloudPRNT, Bluetooth* (*MCL32CBi model only)

Print resolution

8 dots/mm (203 dpi)

Bar Codes

• 1D: UPC-A, UPC-E, JAN/EAN8, JAN/EAN13, ITF, CODE39, CODE93, CODE128, CODABAR (NW-7) GS1-128, GS1 Omnidirectional, GS1 Truncated, GS1 Limited, GS1 Expanded • 2D: PDF417, GS1 Stacked, GS1 Stacked Omnidirectional, GS1 Expanded Stacked, QR Code • Composite: GS1 Composite Symbols

Media Supported

Linerless Label (Sticky + Permanent), Die Cut Label, Continuous Label, Thermal Receipt

Paper Load

"Drop-in and print" paper loading

Paper Out Sensor

Standard

Paper Low Sensor

Standard

Multiple Print Widths

Prints on any paper width between 25mm - 80mm

Top Margin

3mm (default), 11mm

Auto-Cutter

Guillotine, Partial & Full Cut

Sensors

• Taken, Paper Jam • GAP, BM, PE, Cover Open • Paper Width • Paper Roll Position • Cutter Home Position • If mC-Label3 gets too hot, printing will pause until temperature returns to normal

Water & Insect Proofing

Protection equivalent to IP22 rating

Logo Store Capacity

Unlimited

Charging / power

External: PS65AT-24A

Drivers Available

Windows 10, Windows 8.1, Windows® XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady2009, OPOS™, JavaPOS™, USB Vendor Clss, CUPS, Mac, Mac OS X, Linux™, StarPRNT SDK with support for iOS and Android

Software

CloudPRNT, StarwebPRNT (H/W), StarwebPRNT browser, PassPRNT, StarXpand SDK, StarPRNT SDK

Digitally Signed (WHQL)

Yes

Connectivity

MCL32CI : USB-C and LAN MCL32CBI : USB-C, LAN, Bluetooth MCL32WCi : USB-C, WLAN, LAN MCL32WCBi : USB-C, WLAN, LAN, Bluetooth

Emulation Modes

StarPRNT

Power Consumption

At 24 VDC, room temperature, without USB power supply: During power ON idling: Approx. 0.08 A (average) During ASCII printing: Approx. 2.1 A (average)

Operating Conditions

Temperature: 5 o C to 45 o C Humidity: 10% - 90% RH (without condensation) *Die-cut label paper, full-surface label paper, receipt paper10% - 80% RH (without condensation) *Linerless label paper

Storage Conditions

Temperature: -20 o C to 60 o C Humidity: 10% - 90% RH (no condensation)

Dimensions

143 x 169 x 212 mm (w x h x d)

Safety Standards

UL, C-UL, TuV, FCC, VCCI, EN55022, CE

Reliability MCBF

36 Million Lines

Print Head

Permanent Linerless Label Paper: 30 km (30 million pulses) Repositionable Sticky Linerless Label Paper: 75 km (75 million pulses)

Auto Cutter

Permanent Linerless Label Paper: 200k cuts Repositionable Sticky Linerless Label Paper: 1 million cuts

What's Included

AC Adapter Power Cable USB Cable (C-C 1m & C-A 1.8m) LAN Cable (1m) Simple Setup Sheet Safety Guide Self-Cleaning Paper Roll

Optional Accessories

POS Scales like the mG-S322, mG-S1501, and mG-S8200, 2D Barcode Scanners, mC-Sound, Kitchen Buzzer, Cash Drawer
