Star Micronics · Receipt printer

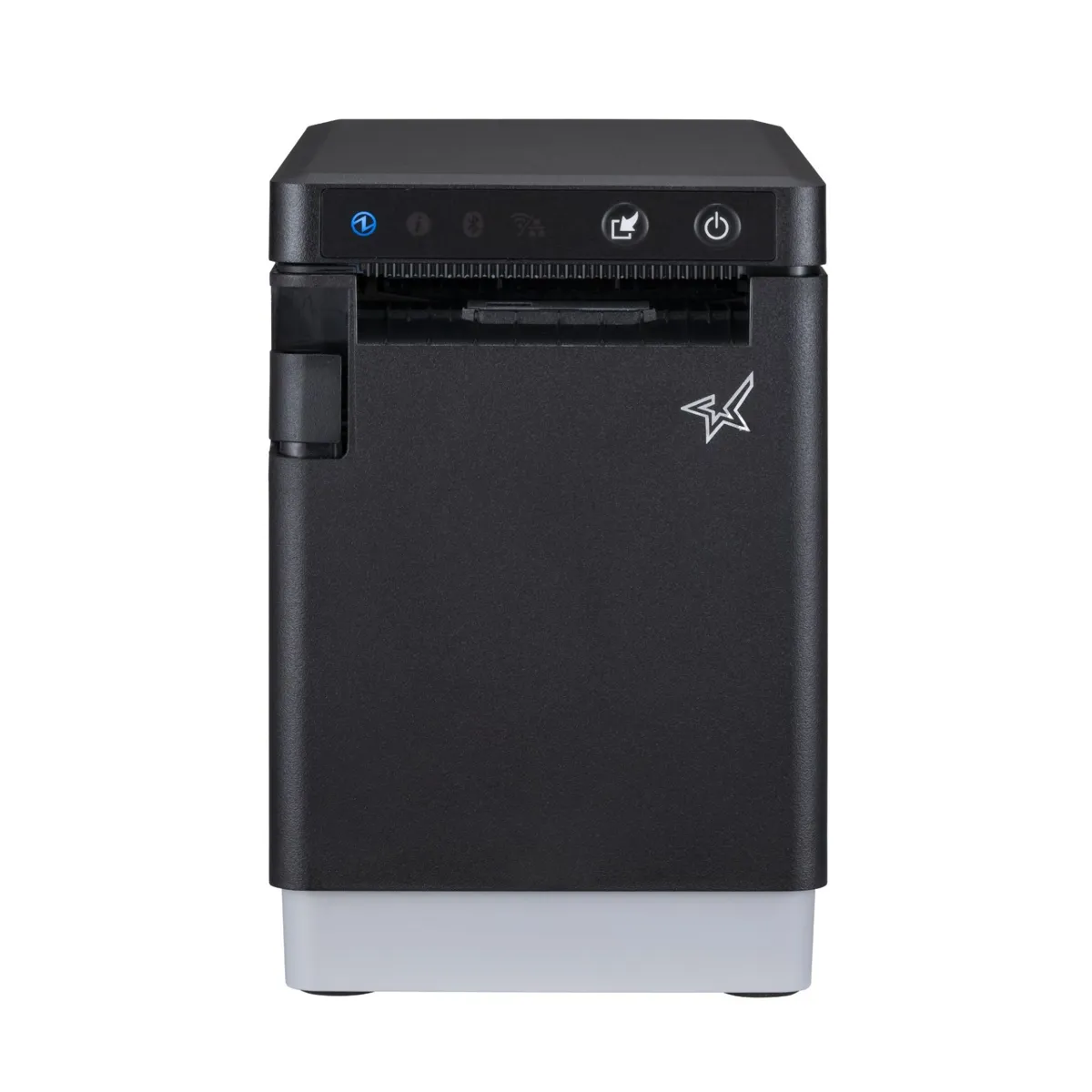

Star Micronics mC-Label2
Explore the compact and cloud-ready mC-Label2 multimedia label printer with 300 dpi high-resolution output, front-exit printing, and support for receipts, linerless, and die-cut labels.
Product page at Star Micronics
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Part #
- 37955400
- SKU
- 37955400
- UPC
- 088047276411
- Print resolution
- 300 dpi
- Custom label designs stored
- 3
- USB-C power delivery
- 20 W
- Compact Front-Loading Design
- Fits under counters or against walls with front paper loading and exit
- 300 DPI Resolution
- Prints sharp text, barcodes, and small-format labels with high clarity
- Flexible Media Support
- Prints on linerless, die-cut, continuous labels, and receipts (MCL21Ci & MCL21CBWI models only); die-cut only printer also available
- One Touch Label
- Stores and prints up to three pre-designed labels without a network connection
- Paper Width Range
- Supports media from 25 mm to 60 mm wide
- Connectivity
- X4 Models: "Ultra-C" USB-C, LAN, WLAN, USB-A (for peripherals), and Bluetooth Ci Models: "Ultra-C" USB-C and LAN connectivity with USB-A for peripherals
- Apple MFi-Certified
- Bluetooth pairing with iOS devices on X4 models
- Cloud-Connected
- Supports StarIO.Online, Label Builder, and CloudPRNT Next
- Maintenance Features
- Tool-less cleaning and swapping of common replacement parts, common color coded parts to identify user adjustable and cleanable parts, LED alerts, QR code instructions
- Model Options
- mC-Label2 Models (all-media): MCL21Ci, MCL21CWBI (X4) mC-Label2 LBL Models (die-cut & receipt only): MCL21Ci LBL, MCL21CWBI LBL (X4)
- Effortless Paper Loading
- Quick and easy front-loaded "drop in and print" paper changes to maximize efficiency
- Label Jam Prevention
- Mechanism designed to reduce jams with linerless label support
- Printer Management
- Remote updates and control through Star Micronics Cloud Services
- Platform Compatibility
- Works with all major operating systems, including iOS, Android, and Windows
- Warranty
- 2-Year Limited Manufacturer Warranty (US & Canada)
- Warranty Options
- SWAP-A-STAR® Warranty Program (US) EXTEND-A-STAR® Extended Warranty Program (US and Canada)
- Printer Method
- Direct Thermal
- Print resolution
- 300 dpi (11.8 dots/mm)
- Print speed
- Up to 180 mm/sec
- Paper Width
- 25 mm – 60 mm
- Print width
- 15 mm – 56.9 mm
- Roll Diameter
- Max. φ102mm
- Paper Thickness
- 53 – 154μm (Varies depending on paper type)
- Media Types Supported
- MCL21 Models : Linerless labels (sticky/permanent), Die-cut, Continuous, Thermal receipt MCL21 LBL Model s: Die-cut labels, Thermal receipt
- Top Margin
- 3 mm (default), 11 mm supported
- Cut Method
- MCL21 Models : Guillotine style (partial/full cut) MCL21 LBL Models : Tear bar
- Ports / interfaces
- MCL21 X4 (CWBI) Models : USB-C as Ultra-C, USB-A, LAN, WLAN, Bluetooth (MFi-certified) MCL21 (CI) Models : USB-C as Ultra-C, USB-A, LAN, Optional WLAN
- Emulation
- StarPRNT
- Flexible Connection
- StarXpand SDK, StarPRNT SDK, Star PassPRNT™, CloudPRNT™, CloudPRNT Next , Various drivers, Star Quick Setup Utility®, SteadyLAN™
- System Compatibility
- All major operating systems: iOS (MFi on Bluetooth models), macOS, Android, Windows, Linux
- Cloud Compatibility
- CloudPRNT Next , CloudPRNT, StarIO.Online , Star Micronics Cloud Services , Label Builder
- One Touch Label
- Store and print up to 3 static label designs offline
- Paper Loading
- Front loading and drop in
- Paper Exit
- Front exit
- Sensors
- MCL21 Models : Cover open, paper end, GAP/black mark, hold print (taken), paper jam, cutter home position MCL21 LBL Models : Cover open, paper end, GAP/black mark
- Dimensions
- 98 x 185 x 145.5 mm (W x D x H)
- Weight
- Approx. 1.6 kg (main unit only)
- Ingress Protection Rating
- IP22
- Included Accessories
- Power supply, AC cable, USB cable (A to C), easy setup guide, safety guide
- AC Adapter
- PS65AT-24A
- Model Variants
- mC-Label2 Models (all-media) : MCL21Ci, MCL21CWBI mC-Label2 LBL Models (die-cut & receipt only) : MCL21Ci LBL, MCL21CWBI LBL
- Operating temperature
- 5°C to 45°C
- Humidity Range
- 10% to 90% RH (non-condensing)
- Options
- Replacement Parts : 2in1(Cutter & Platen), Cutter Unit, Platen Roll Unit Peripherals : Star Barcode Scanners, Wireless LAN Unit (MCW10)
- Color
- Black
- Printer Specifications
- Printer Method: Direct Thermal Print Speed: 180mm/second Effective Print Width: 15mm –56.9mm (Default : 48.7mm) Paper Width: 25mm – 60mm (No paperwidth sensor) Dimensions: 98 x 185 x 145.5mm Emulation: StarPRNT, ESC/POS¹ ² ¹ Specific models only ² Not compatible with all Star Utilities and SDKs External Power Supply Cutter* Life: 200,000 cuts (high tack) / One Million cuts (low tack) Head Life: 30 Million pulses (high tack) / 75 Million pulses (low tack) *LBL Model does not include autocutter, t
- Sensors
- Taken, Paper Jam, Gap, Black Mark, Paper End, Cover Open, Roll Position
- Linerless Sticky Paper Printing
- MCL21 LBL: Die Cut Label, Thermal Receipt
- Ports / interfaces
- MCL21 X4 (CWBI Models) MCL21 (CI Models)
- Multiple Media Widths mC-Label2
- 39653511 MCL21CI LBL
