ProDVX · Accessory

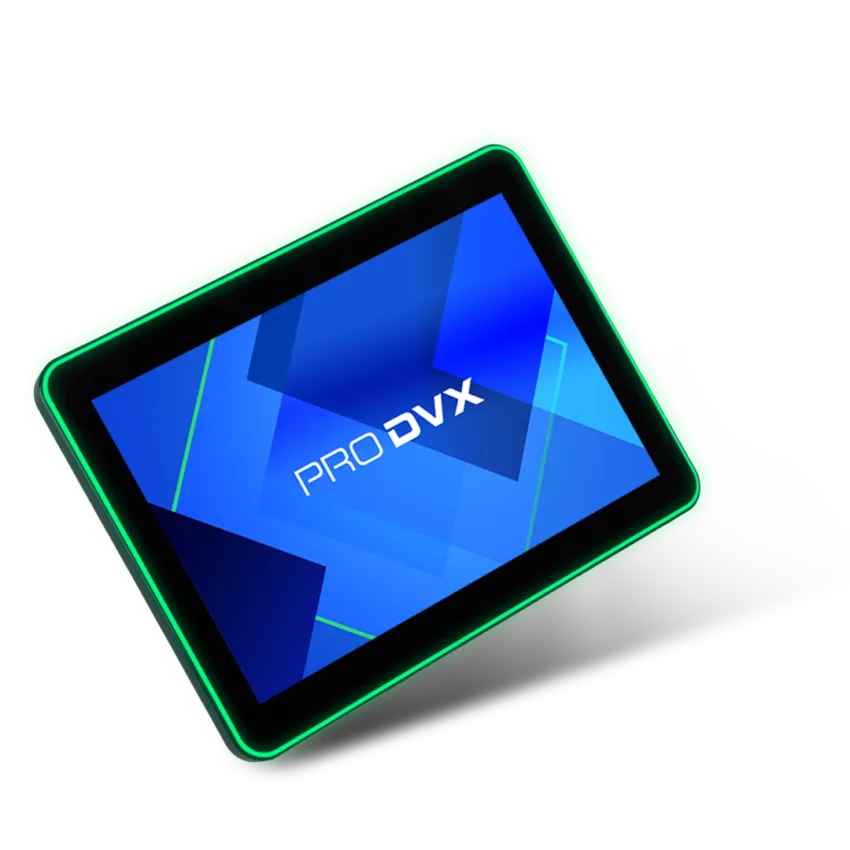

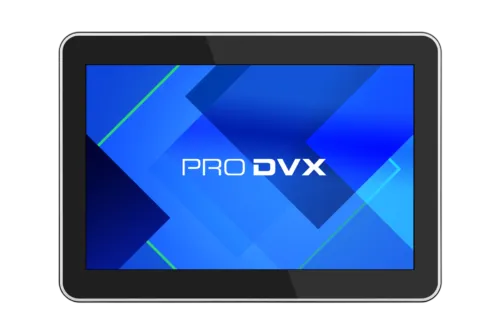

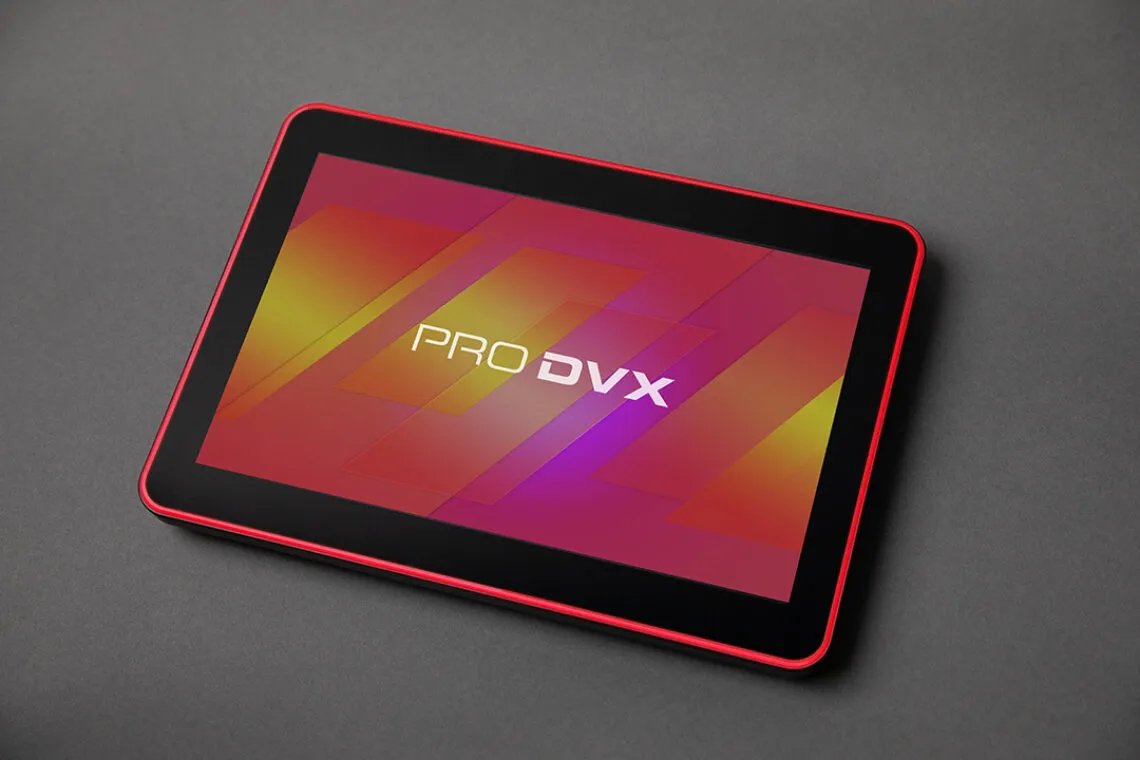

ProDVX APPC-10SLBe
Check out our newest device, the APPC-10SLBe. This panel pc comes with Android 11 with Google Mobile Services, bringing unlimited possibilities.
- Operating systemAndroid 13 with Google Mobile Services
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Panel type
- TFT LCD IPS
- Resolution
- 1280 x 800
- Aspect ratio
- 16:10 wide
- Backlight
- Edge-LED backlight
- Brightness
- 500 cd/m2
- Viewing angle
- H160 / V160
- Contrast ratio
- 800 to 1
- Touch Type
- 10 TP Pcap 10ms
- Treatment
- Non-glare
- Convenience
- Landscape,Portrait,Table Mode,Flushmount
- Operation hours
- 24h / 7d
- Processor
- RK3399 (Dual Core Cortex A72 with Quad Core A53)
- GPU
- MALI T860MP4 / 3D Graphic Engine (4K)
- Cooling
- Fanless
- RAM / storage options
- 4 GB DDR4 SDRAM
- Video out
- Yes, HDMI out
- Internal storage
- 16 GB eMMC Flash
- External storage
- SD-Card Slot (door)
- Card slot
- SD
- Operating system
- Android 13 with Google Mobile Services

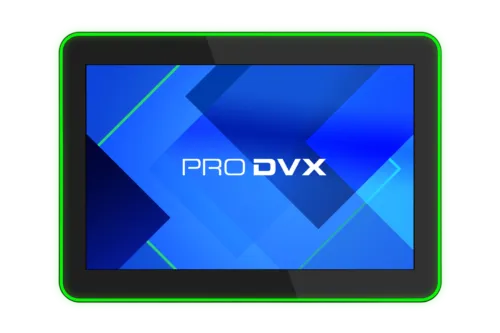

- LED Light Bar
- Surround LED Bar (full RGB)

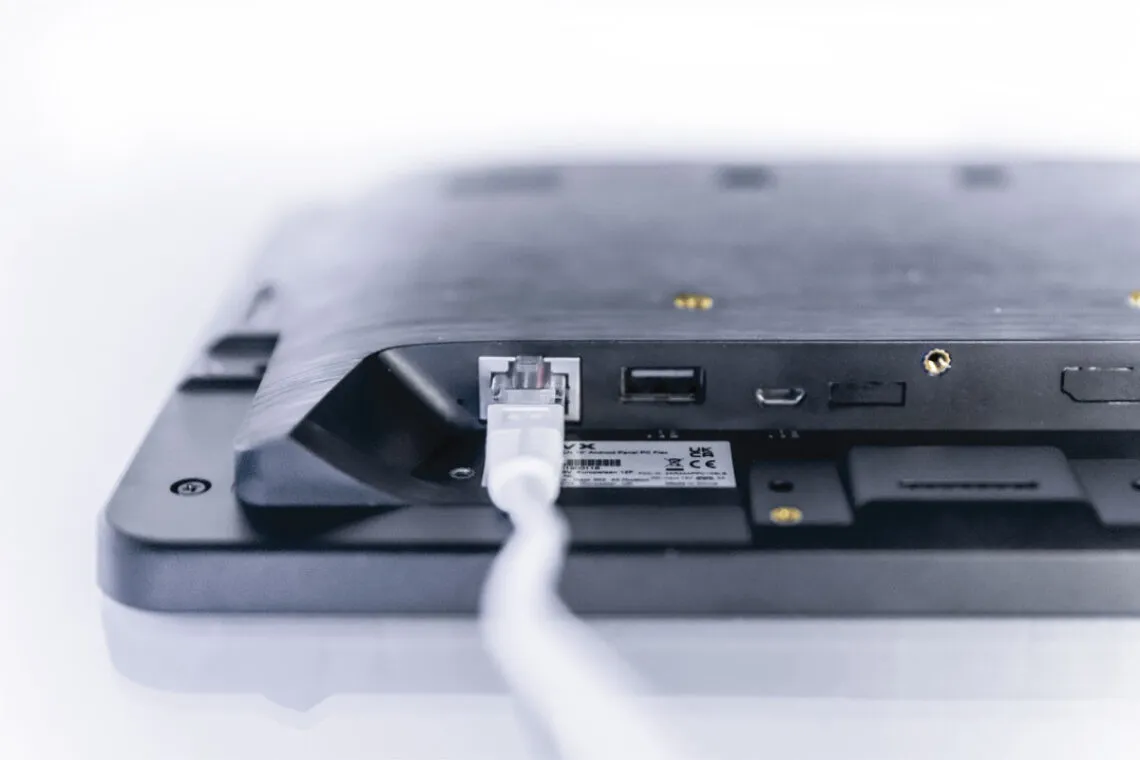

- Ports / interfaces
- 12 V DC-IN,3.5 mm audio-out,Micro-USB,RJ45,HDMI out,USB 2.0
- Network LAN RJ45
- 10/100/1000 Mbps LAN
- Wi-Fi / WLAN
- 802.11 a/b/g/n
- Bluetooth
- BT 4.2
- Power over Ethernet (PoE)
- IEEE 802.3at (PoE+)
- Integrated NFC
- Integrated NFC reader (NXP PN553)
- Cameras
- No camera API
- Video support
- 3GP,ASF,AVI,DAT,FLV,MKV,MOV,VOB,WMV,MP4,MPG,RM,TS
- Audio support
- AAC,ASF,MP2,OGG,WAV,WMA
- Photo support
- JPG,JPEG,PNG,BMP,GIF
- Microphone
- YES
- Speakers
- 2 x 2 W
- Audio Jack Output 3.5mm
- YES
- Housing
- ABS+PC (Macrolon)
- Color
- Black
- Weight
- 650 g
- Dimensions
- 255,3 x 181 x 26,7 mm
- Mounting / VESA
- VESA 75
- Charging / power
- 12 V / 2 A (EU, UK, US)
- Power Supply Included?
- No
- Power Usage
- 10 ~ 20 Watt
- Pogo Pins
- 3x (bottom/left/right)
- OSD Language
- Multi OSD language
- Clock Battery (for RTC)
- CR1220 Lithium metal, non rechargeable
- Storage temperature
- -10~55 degrees C
- Working Temp
- 0 ~ 40 degrees C
- Storage/Working Humidity
- 10 ~ 90 % non-condensing
- MTBF
- 45,000 hours demonstrated
- Standard Warranty
- 5 years
- Certifications
- UKCA, CE, FCC, RoHS, REACH
- Art. No
- 5010825
