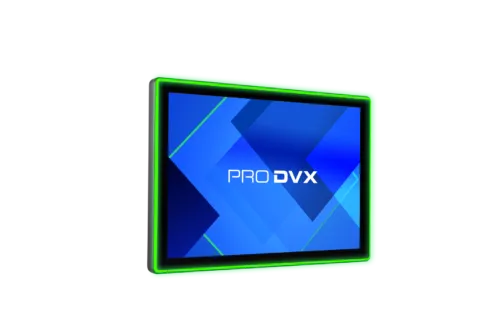

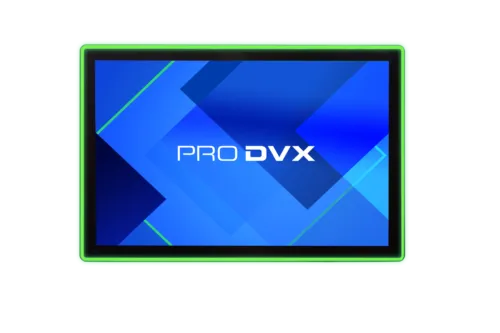

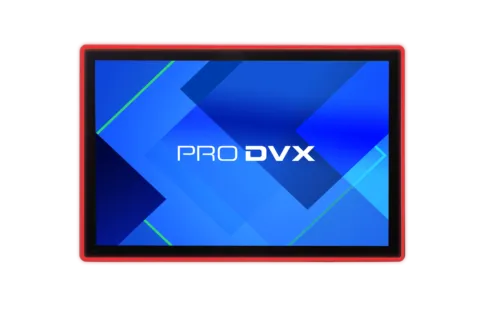

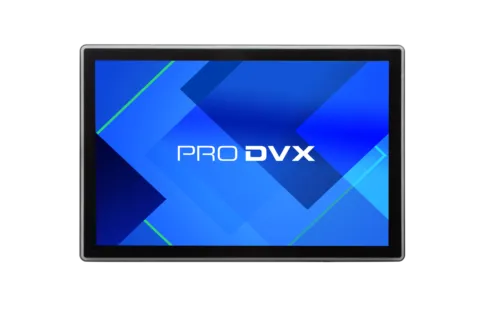

ProDVX APPC-10SFN
Discover the ProDVX APPC-10SFN | Android Panel PC. Slim by design, ready for AI.
- Operating systemAndroid 13
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Panel type
- Direct bonded TFT LCD IPS
- Resolution
- 1280 x 800
- Backlight
- Edge-LED backlight
- Brightness
- 450 cd/m2
- Viewing angle
- H160 / V160
- Contrast ratio
- 1000 to 1
- Touch Type
- 10 TP Pcap 10ms
- Treatment
- Non-glare
- Convenience
- Landscape,Portrait,Flushmount
- Operation hours
- 24h / 7d
- Processor
- Cortex A55, 2.0 GHz, 4-Core
- Processor
- RK3568
- GPU
- Mali-G52
- Cooling
- Fanless
- RAM / storage options
- 4GB LPDDR4 SDRAM
- Video out
- Yes, mini-HDMI out
- Internal storage
- 16GB eMMC
- External storage
- SD-Card Slot
- Operating system
- Android 13
- LED Light Bar
- Individually controlled Full RGB LED
- Network LAN RJ45
- 10/100/1000 Mbps LAN
- Wi-Fi / WLAN
- optional via USB dongle
- Bluetooth
- optional via USB dongle
- Power over Ethernet (PoE)
- IEEE 802.3at (PoE+)
- Integrated NFC
- Integrated NFC reader (NXP PN7160)
- Cameras
- via PoGo & USB
- Video support
- H.264,MP4,MPG,MPEG2,MPEG4
- Audio support
- AAC,ASF,MP2,OGG,WAV,WMA
- Photo support
- JPG,JPEG,PNG,BMP,GIF
- Microphone
- Microphone array
- Speakers
- 2 x 2 W
- Housing
- ABS+PC (Macrolon)
- Color
- Black
- Weight
- 600 g
- Dimensions
- 240,9 x 159,7 x 24,4 mm
- Mounting / VESA
- VESA 75
- Charging / power
- 12 V / 2 A (EU, UK, US)
- Power Usage
- 10 ~ 23 Watt
- Pogo Pins
- 2x (bottom/left)
- OSD Language
- Multi OSD language
- Clock Battery (for RTC)
- CR1220 Lithium metal, non rechargeable
- Storage temperature
- -10~55 degrees C
- Working Temp
- 0 ~ 40 degrees C
- Storage/Working Humidity
- 10 ~ 90 % non-condensing
- MTBF
- 50,000 hours demonstrated
- Standard Warranty
- 3 years
- Certifications
- UKCA, CE, FCC, RoHS, REACH
- Art. No
- 5010730
