Opticon · Accessory

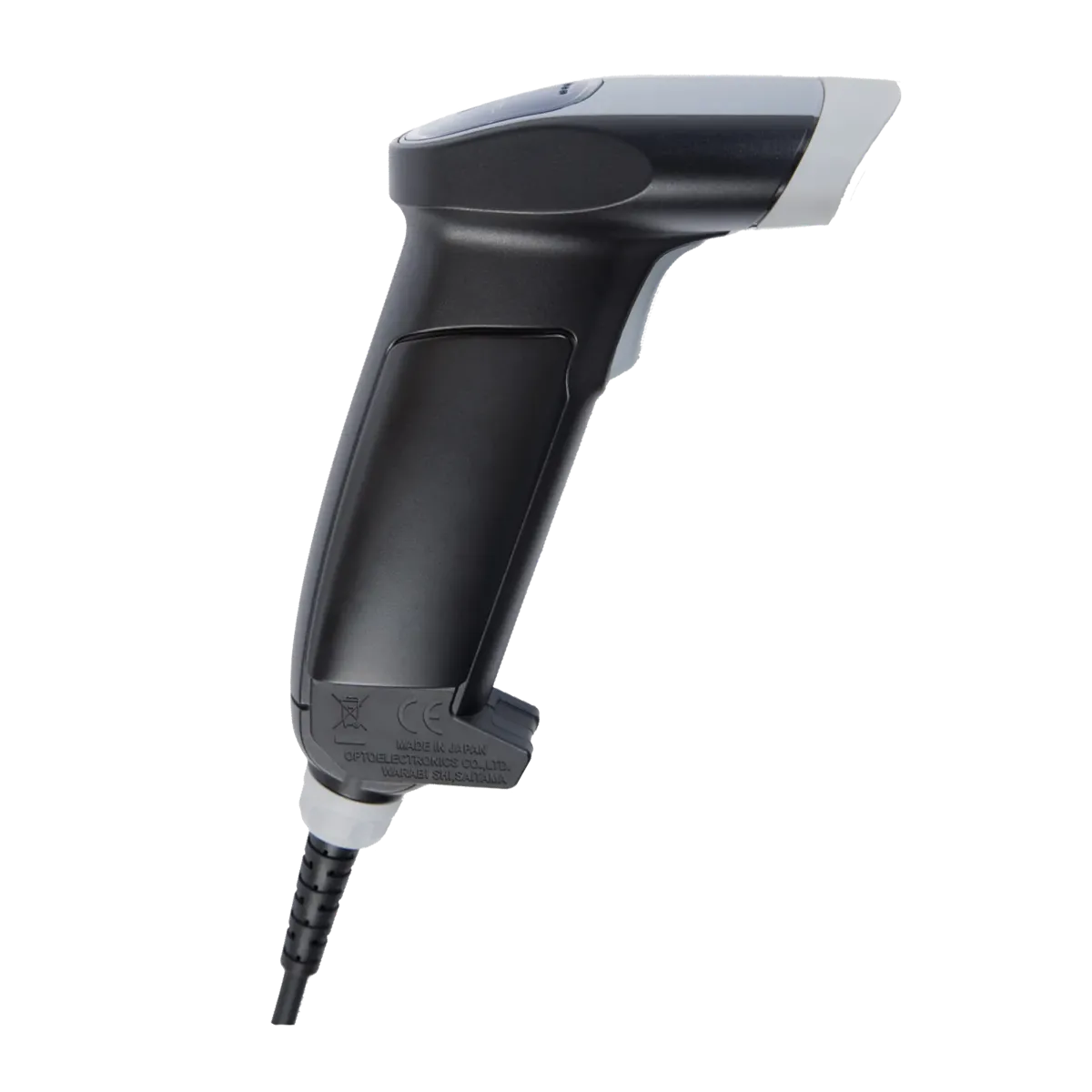

Opticon OPR-3201Z
The OPR-3201 is a fast & Comfortable handheld laser barcode scanner. This is a handheld scanner that is a good addition to your service.
- SealingIP42
- Drop1.5 m / 5 ft drop onto concrete surface
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Form factor
- Pistolgrip scanner
- Connection
- Cabled
- Reading type
- 1D Laser
- Communication interface
- USB
- USB
- ver. 1.1, HID/VCP, USB-A connector
- Light source
- 650 nm visible laser diode
- Scan method
- Bi-directional scanning
- Scan rate
- Up to 100 scans / second
- Drop specification
- 1.5 m / 5 ft drop onto concrete surface
- IP / sealing
- IP42
- Dimension (WxHxD)
- 56 x 149 x 109 mm / 2.20 x 5.87 x 4.29 in
- Dimension stand (WxHxD)
- 146 x 106 x 295 mm / 5.75 x 4.17 x 11.61 in (excl. scanner)
- Weight body
- Ca. 90 g / 3.2 oz (excl. cable)
- Weight stand
- Ca. 390 g / 3.76 oz
- Product compliance
- CE, FCC, VCCI, RoHS, JIS-C-6802 Class 2, IEC60825-1 Class 2, FDA CDRH Class II, EN55022, EN55024
