Opticon · Accessory

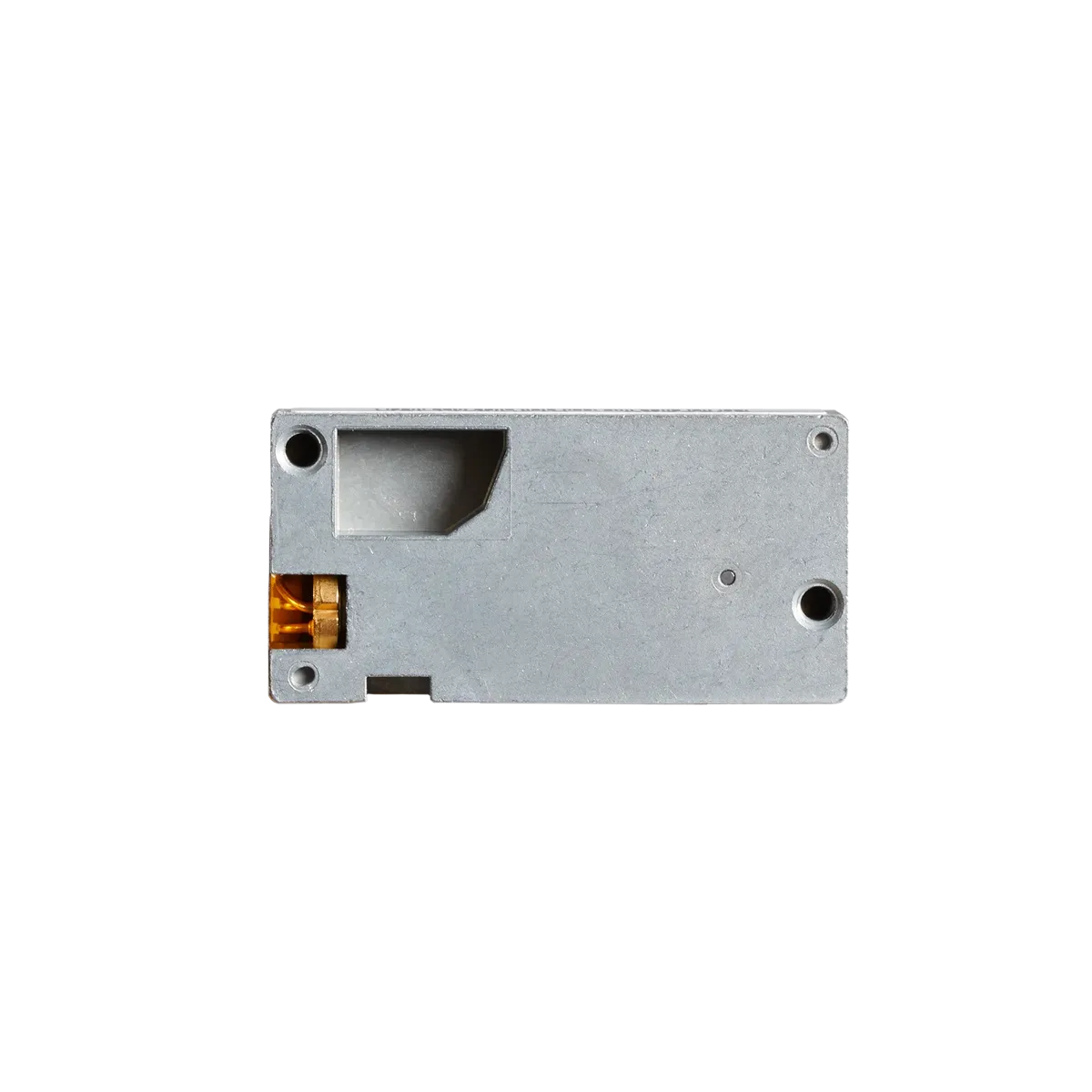

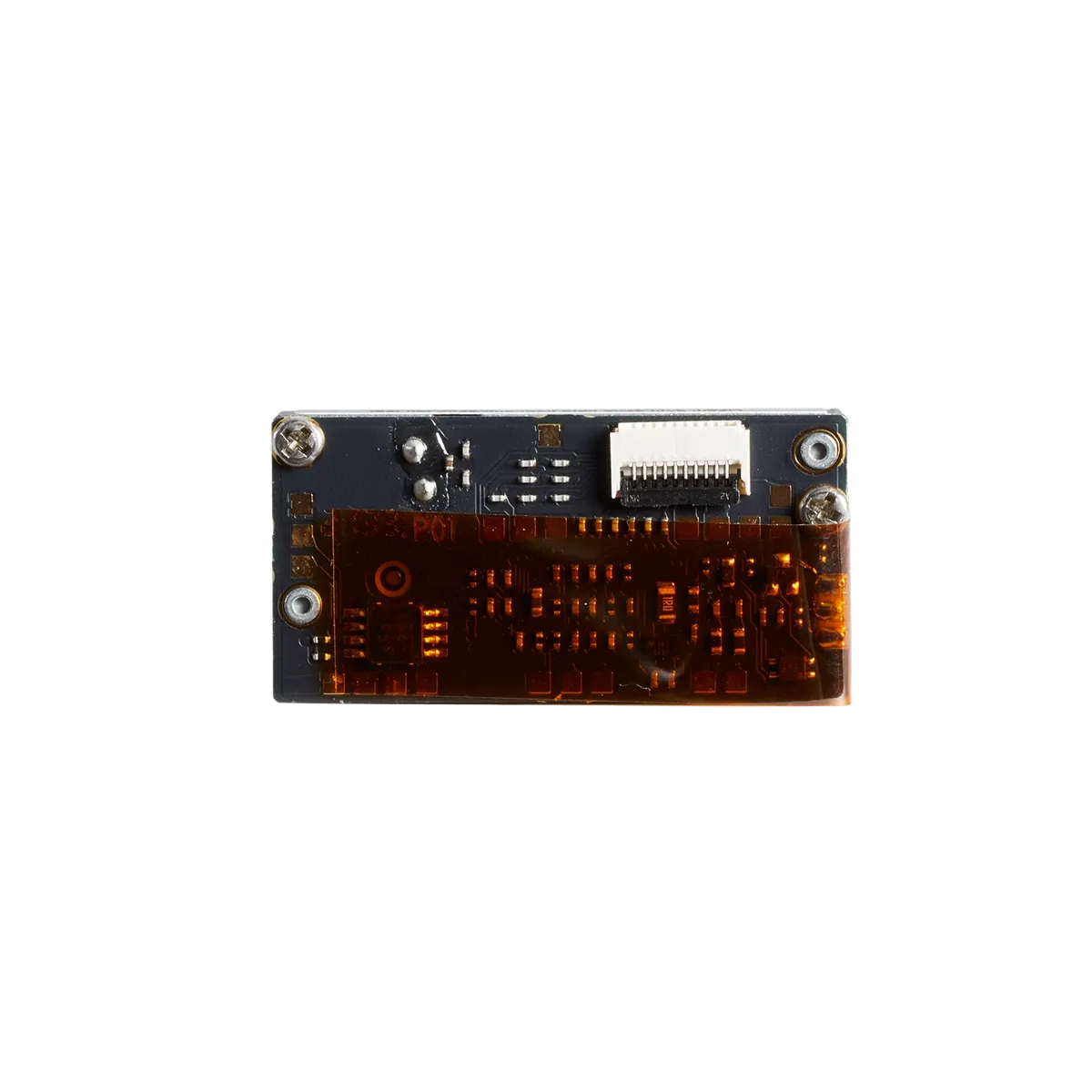

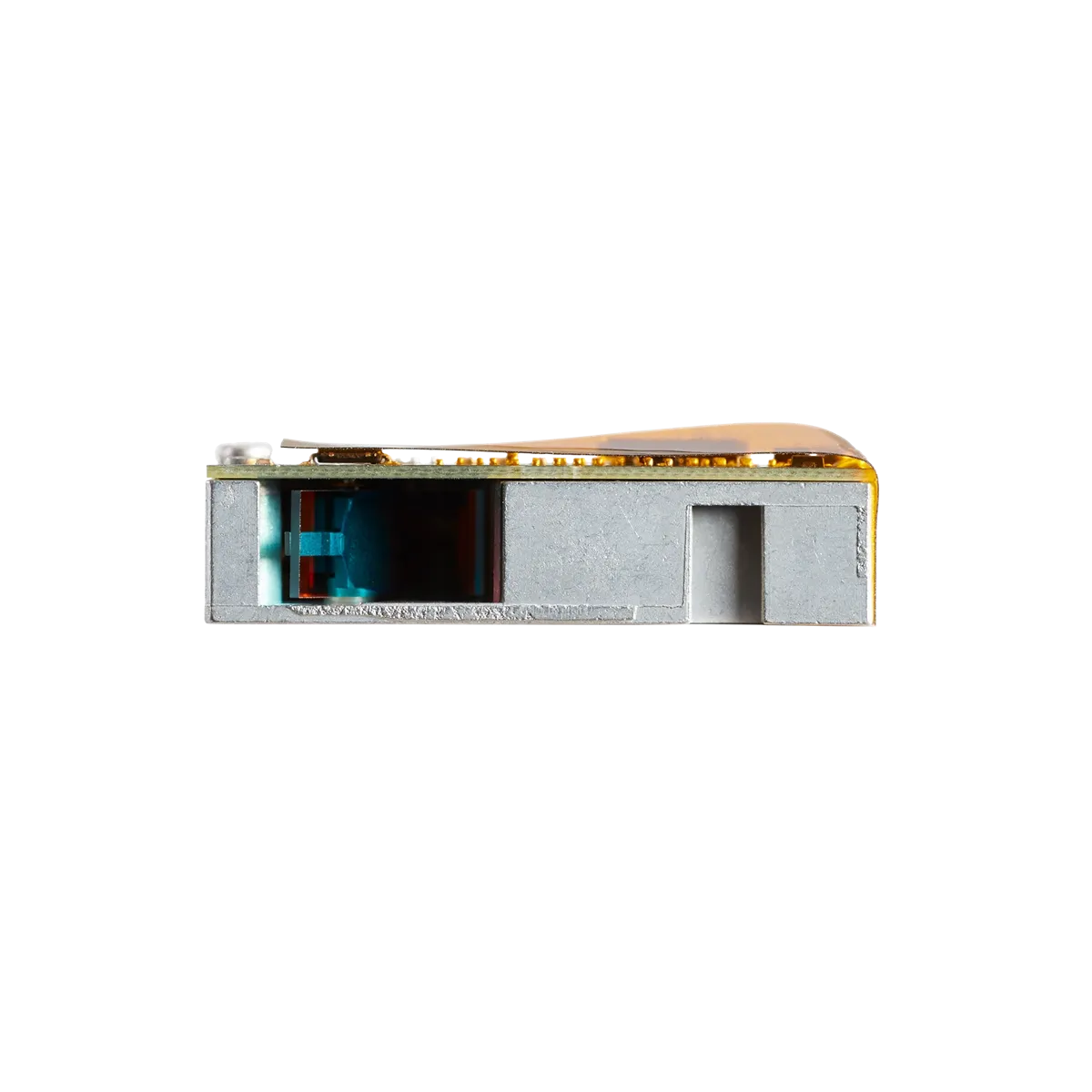

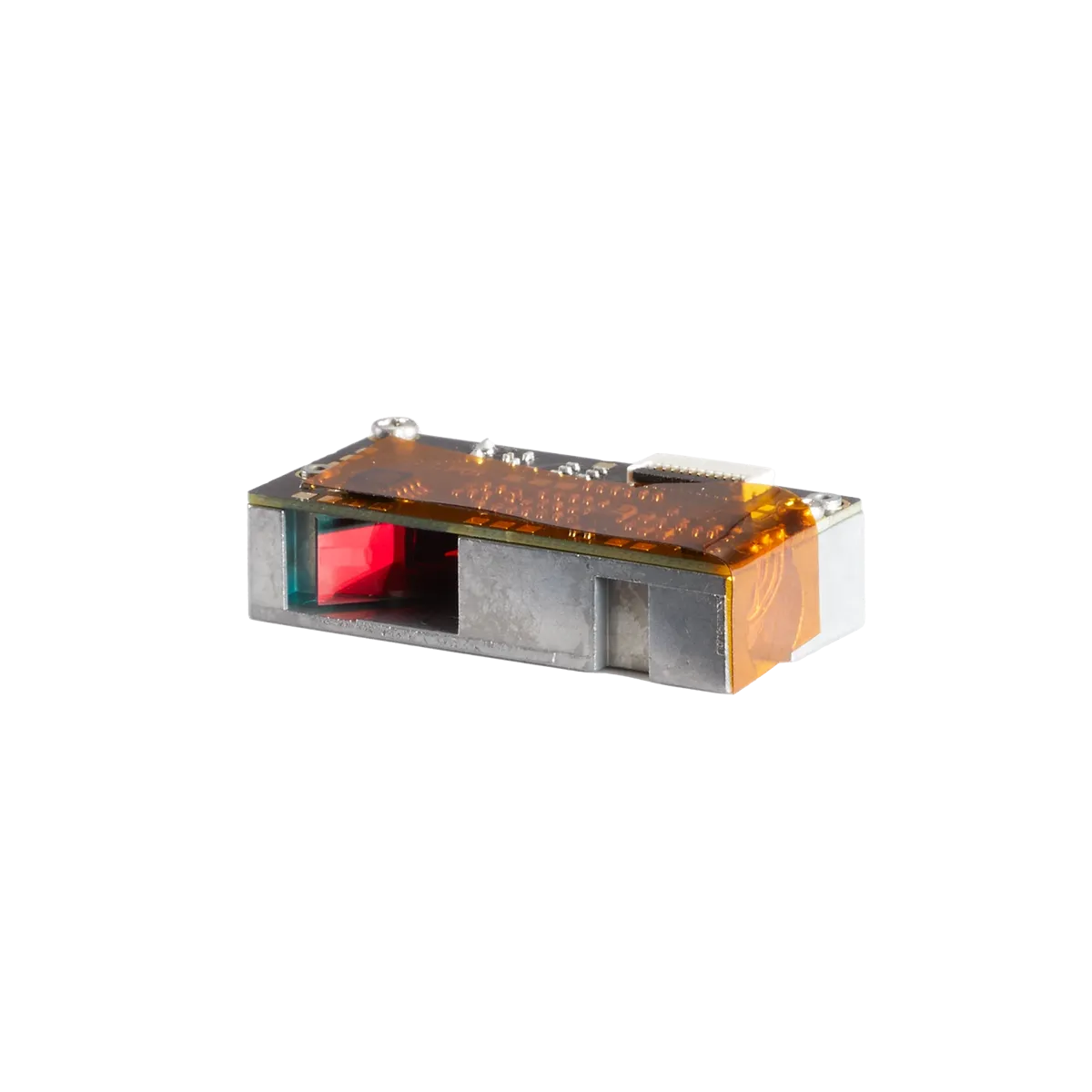

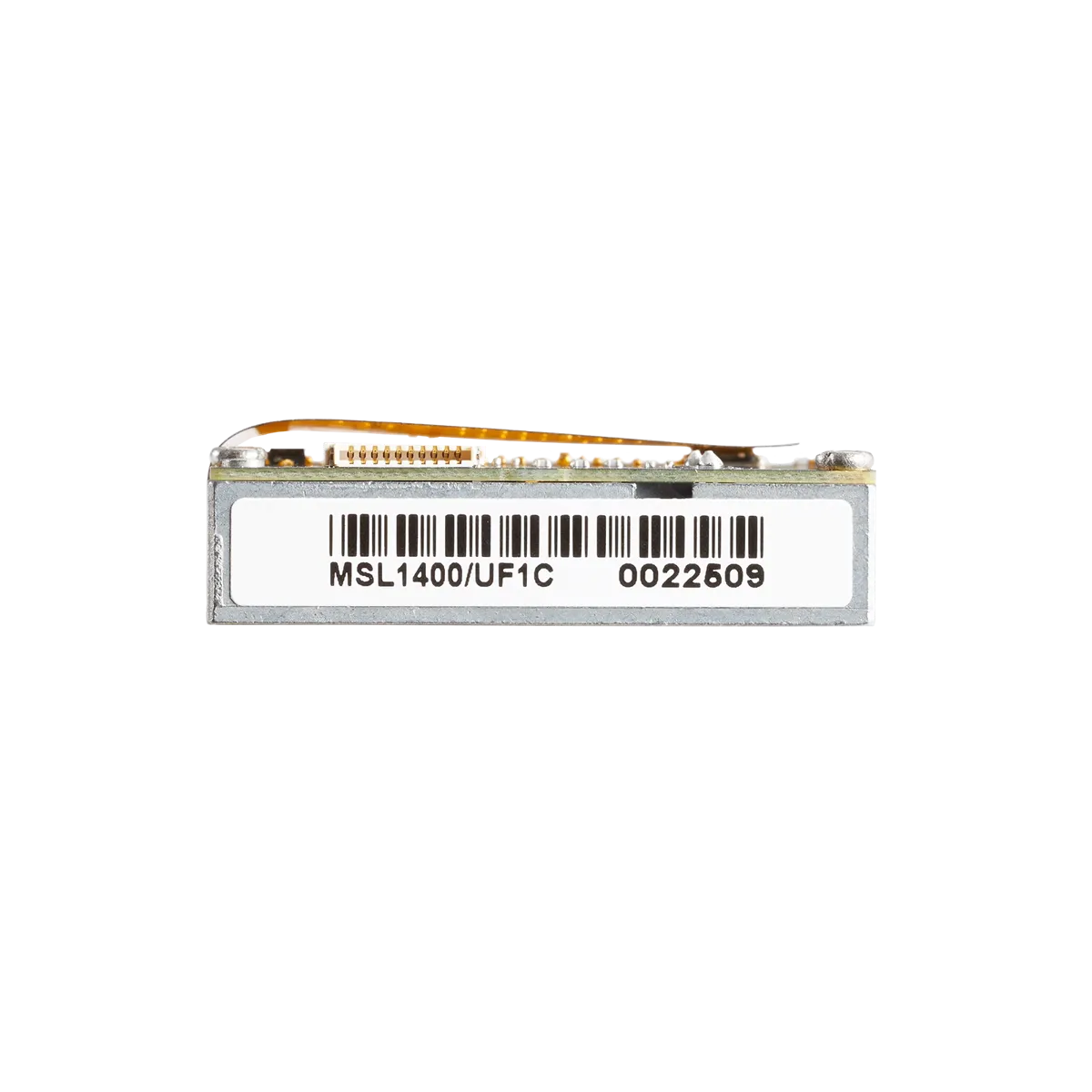

Opticon MSL-1400
The MSL-1400 is an undecoded laser scan engine designed to be fully in your control. It communicates on a logic-level signal.
- DropPacked in dummy case 1.8 m / 6 ft drop onto concrete surface
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Form factor
- OEM
- Reading type
- 1D Laser
- Light source
- 650 nm visibele laser diode
- Scan method
- Bi-directional scanning
- Scan rate
- 100 scans / seconds
- Drop specification
- Packed in dummy case 1.8 m / 6 ft drop onto concrete surface
- MTBF
- 30,000 hours except laser diode (10.000 hours) and except mirror scan unit (10,000 hours)
- Dimensions
- 28 x 8 x 14 mm / 1.1 x 0.32 x 0.55 in
- Weight body
- Ca. 8.4 g / 0.3 oz
- Product compliance
- RoHS, IEC 60825-1 : 2014, EN60825-1: 2014 Class 1
- Sold separately
- MEK-3100 SDK (with power supply, RS232 cable, USB cable, PCBs)
