Opticon · Accessory
Opticon MDL-2001

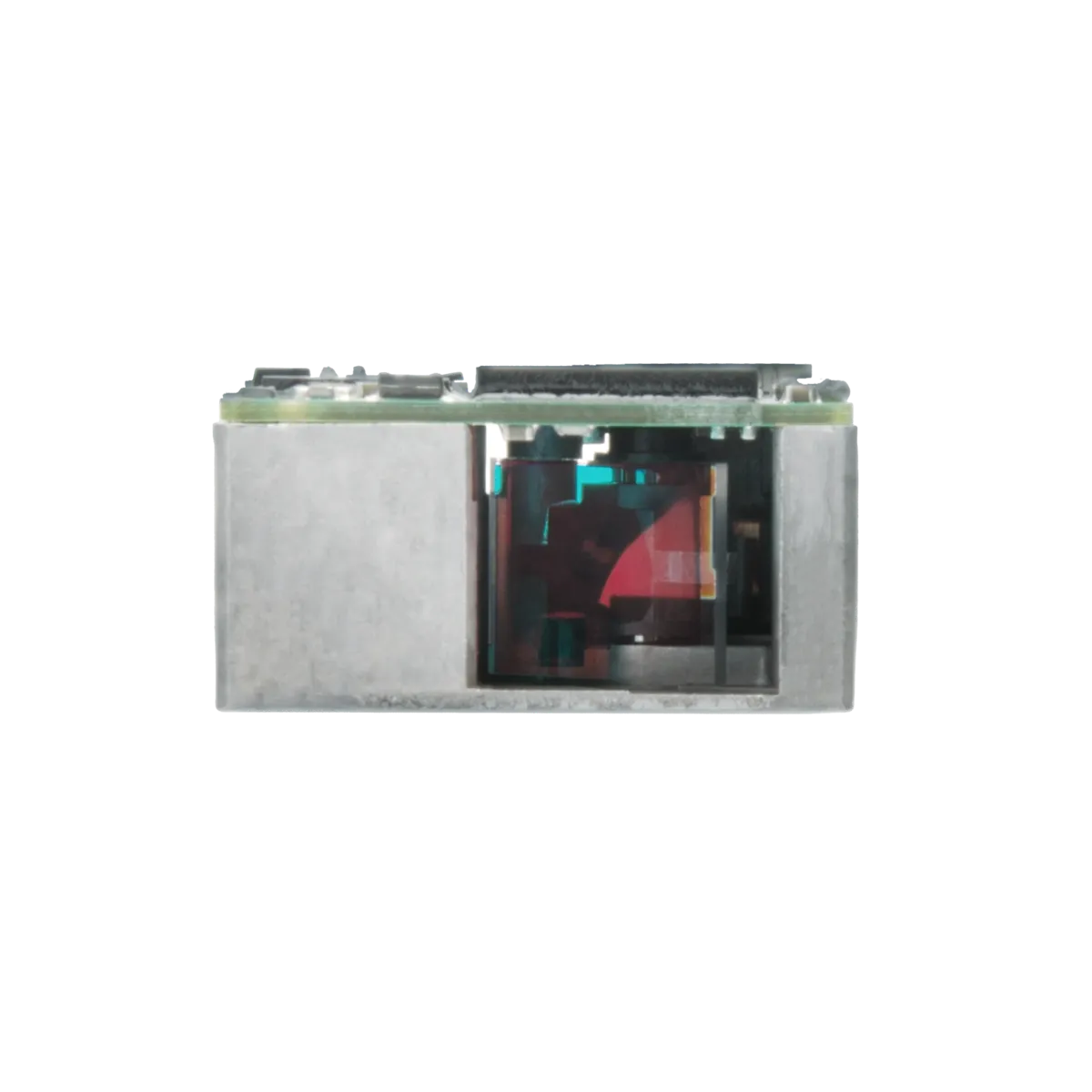

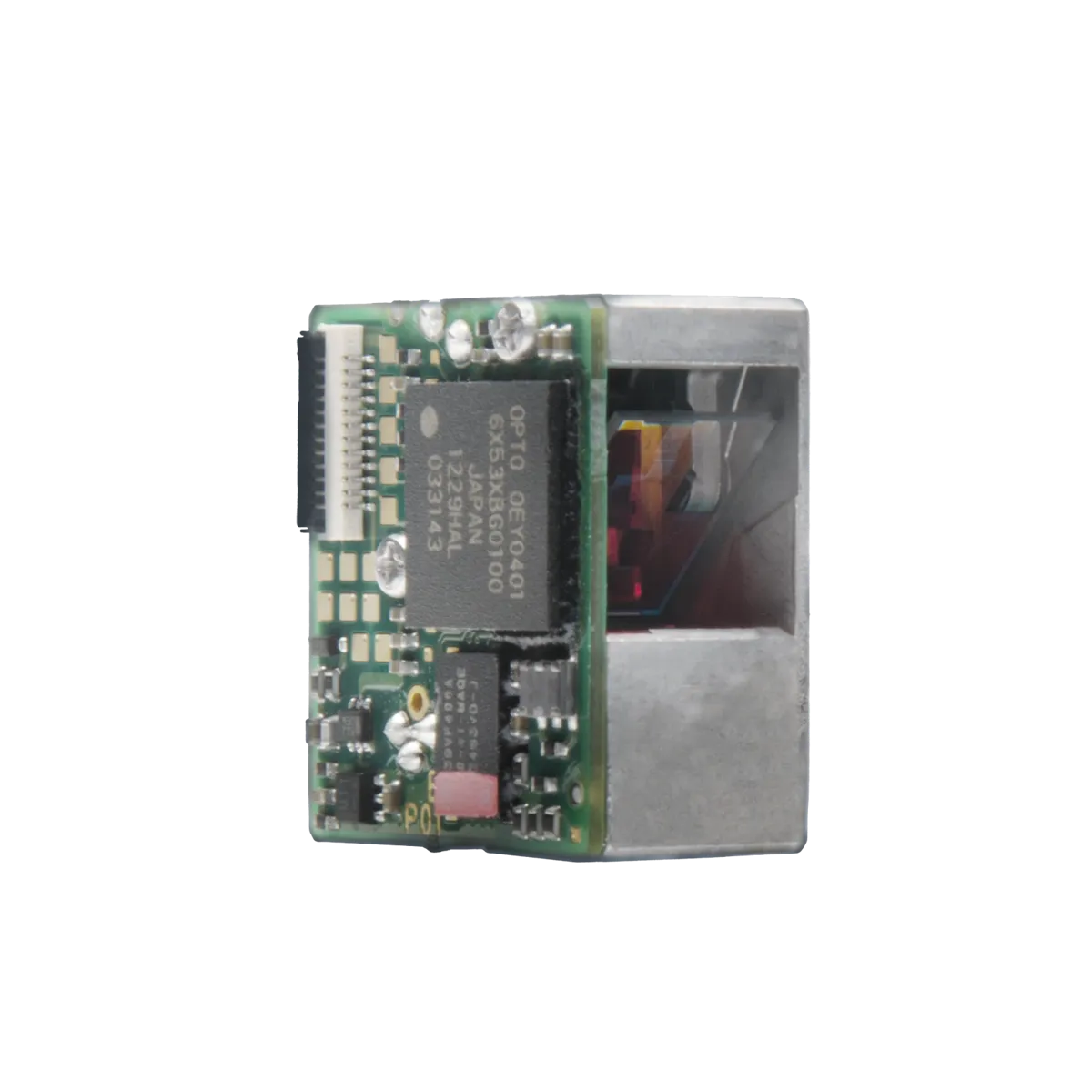

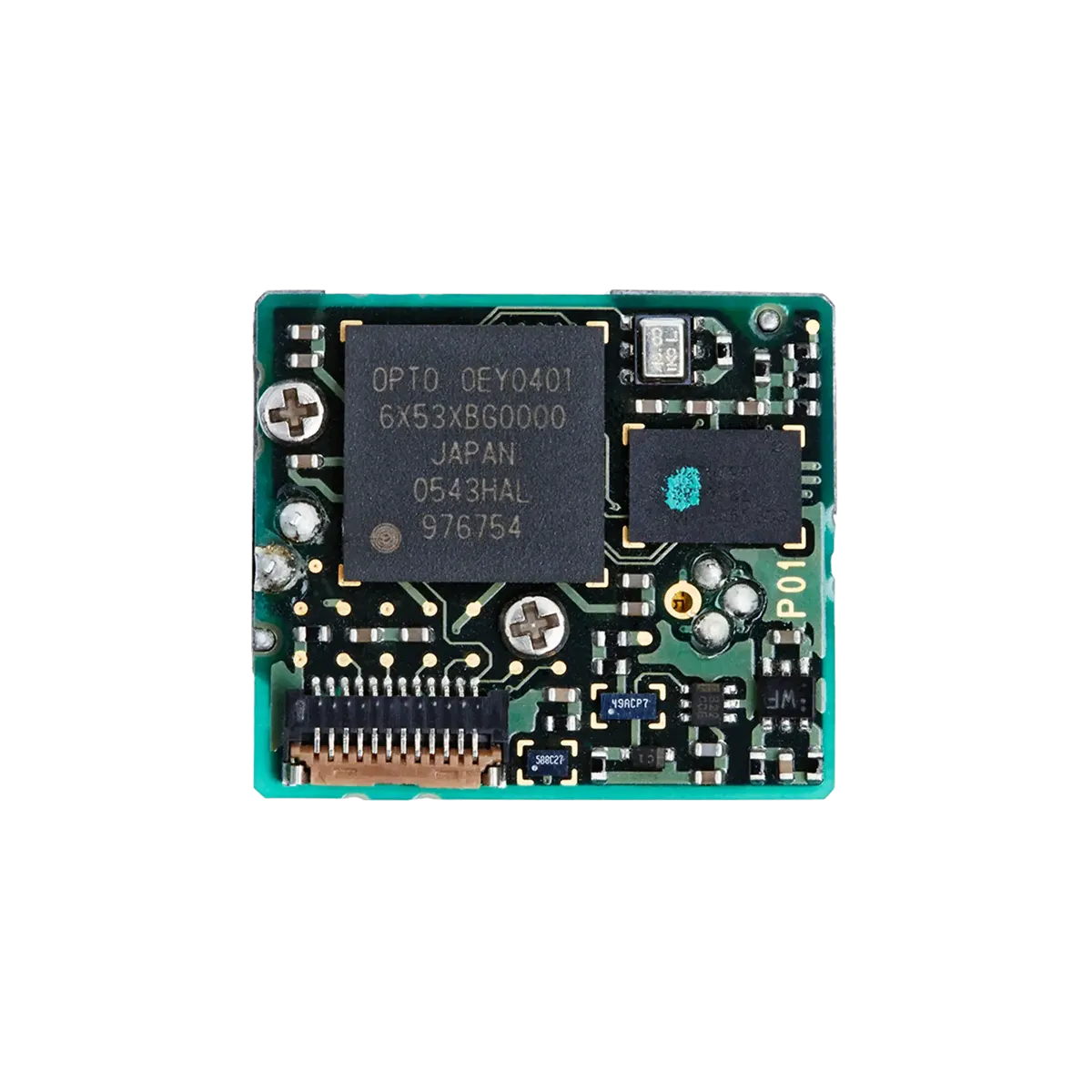

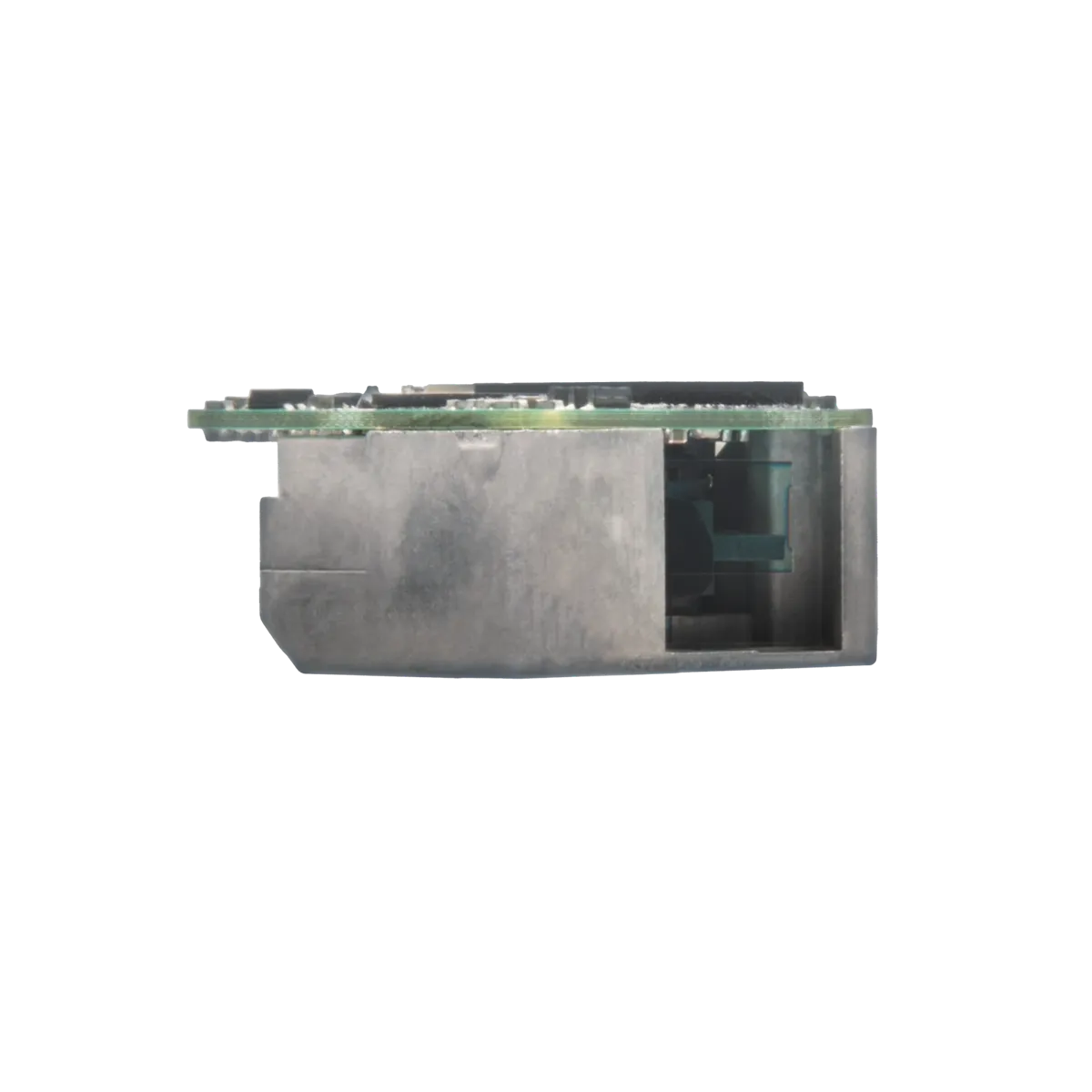

The MDL-2001 is a small laser scan engine made by Opticon. This engine scan at a speed of a 100 scans per second and has compact dimensions.
- DropPacked in dummy case 1.8 m / 6 ft drop onto concrete surface
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Form factor
- OEM
- Reading type
- 1D Laser
- Light source
- 650 mn visible laser diode
- Scan method
- Bi-directional scanning
- Scan rate
- 100 scans / seconds
- Drop specification
- Packed in dummy case 1.8 m / 6 ft drop onto concrete surface
- MTBF
- 30,000 hours except laser diode (10.000 hours) and except mirror scan unit (10,000 hours)
- Dimensions
- 20.4 x 11.2 x 18.0 mm / 0.80 x 0.44 x 0.71 in
- Weight body
- Ca. 4.7 g / 0.17 oz
- Product compliance
- RoHS, JIS-C-6802 Class 2, FDA CDRH Class II
- Sold separately
- MEK-3100 development board (With power supply, RS232 cable, USB cable, PCBs)
