Opticon · Accessory

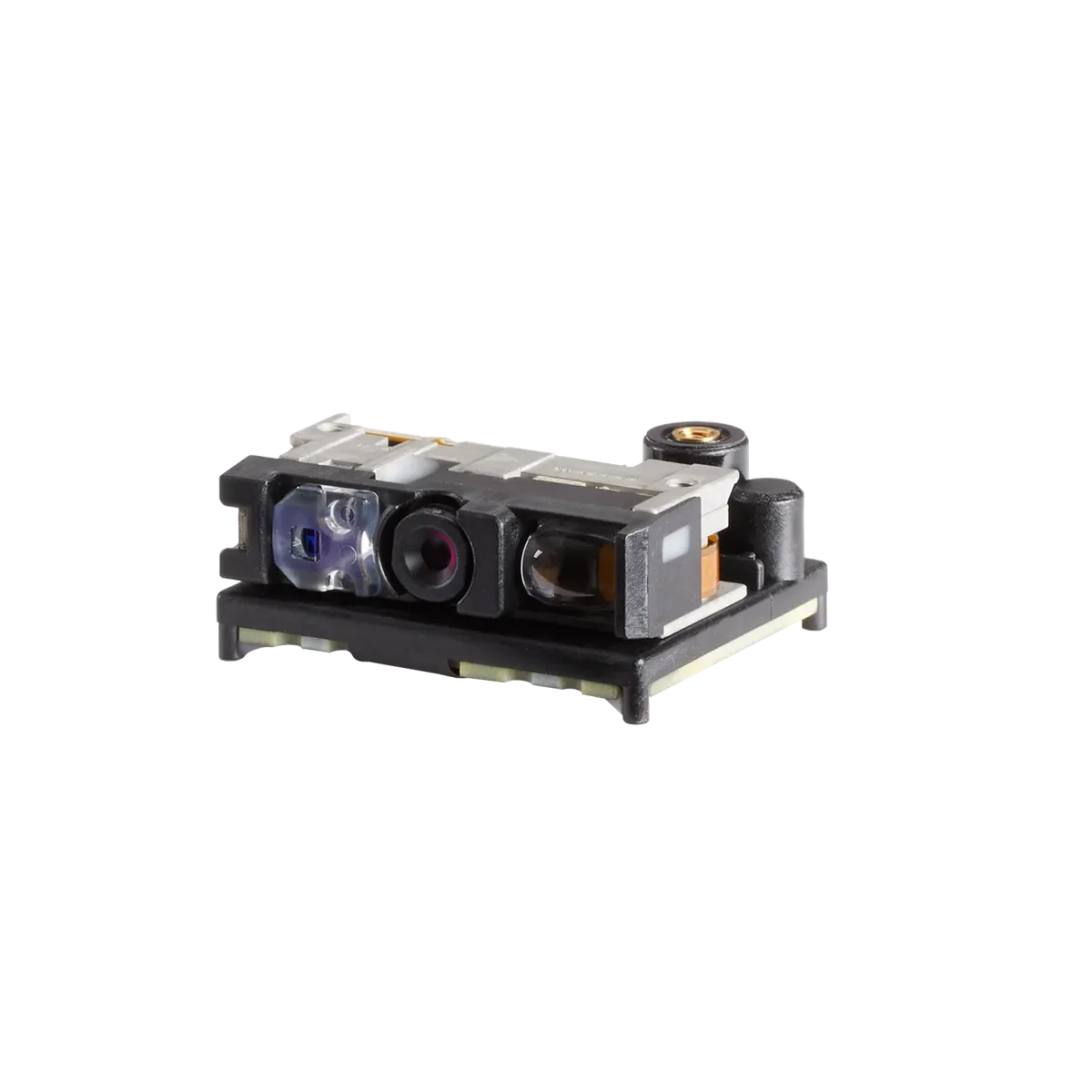

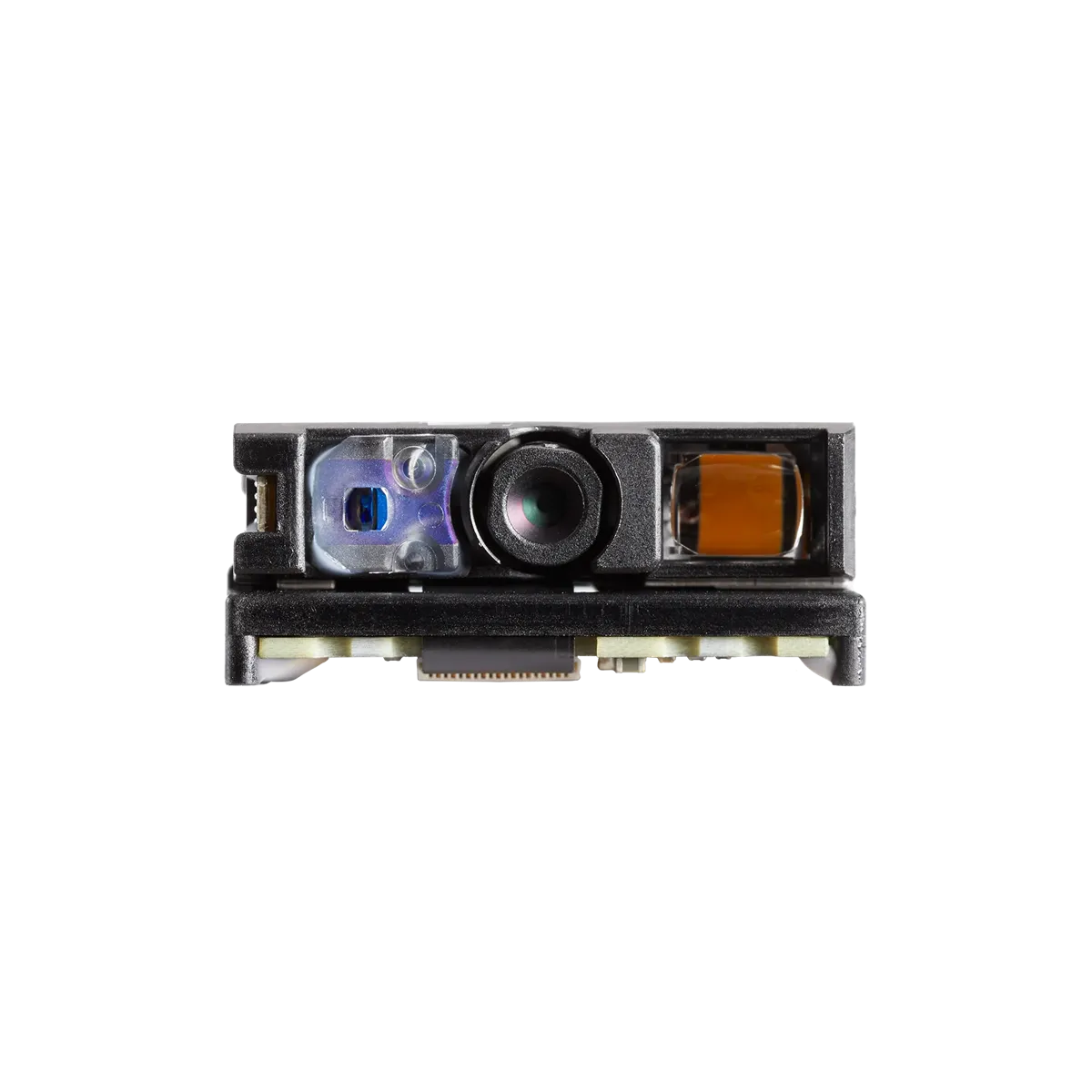

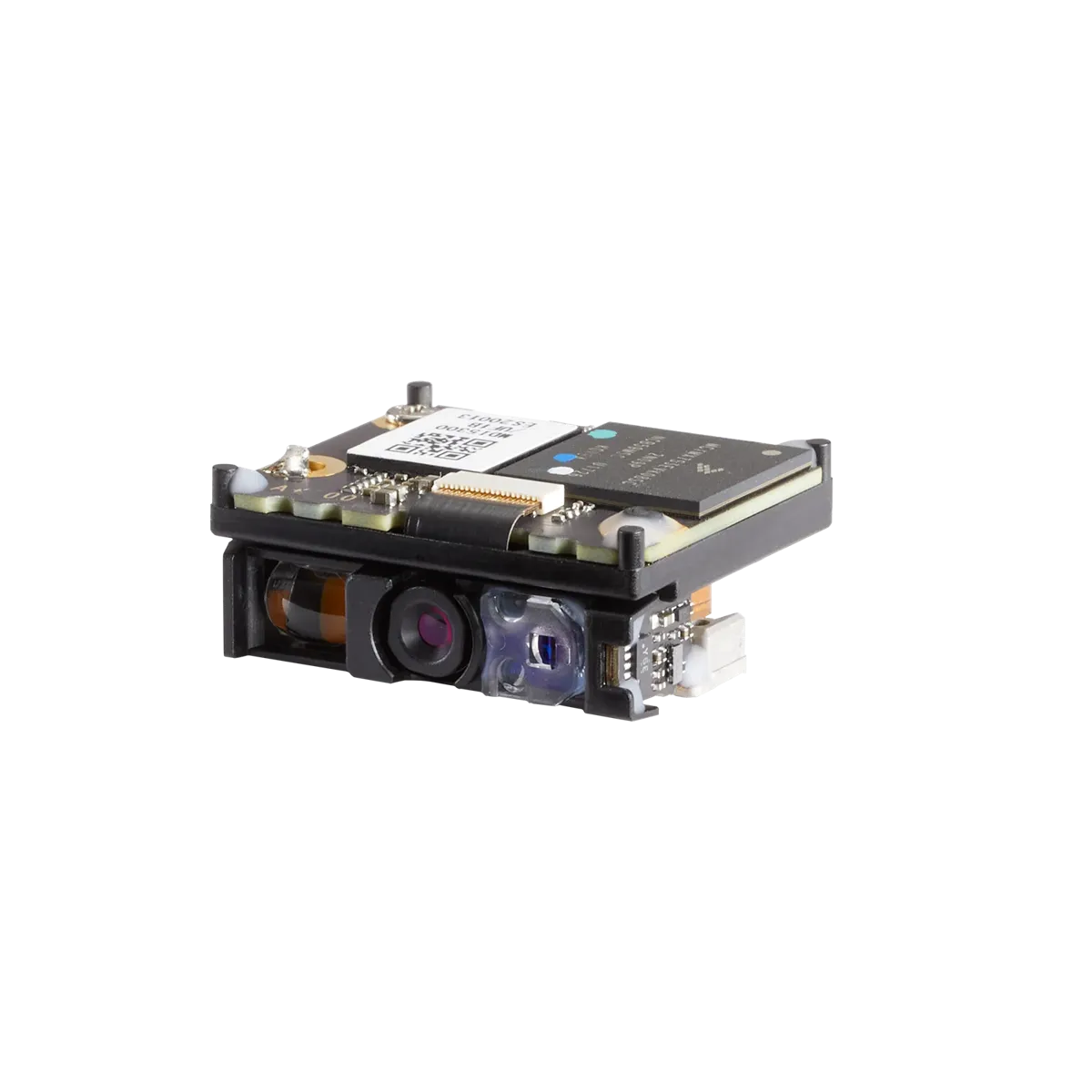

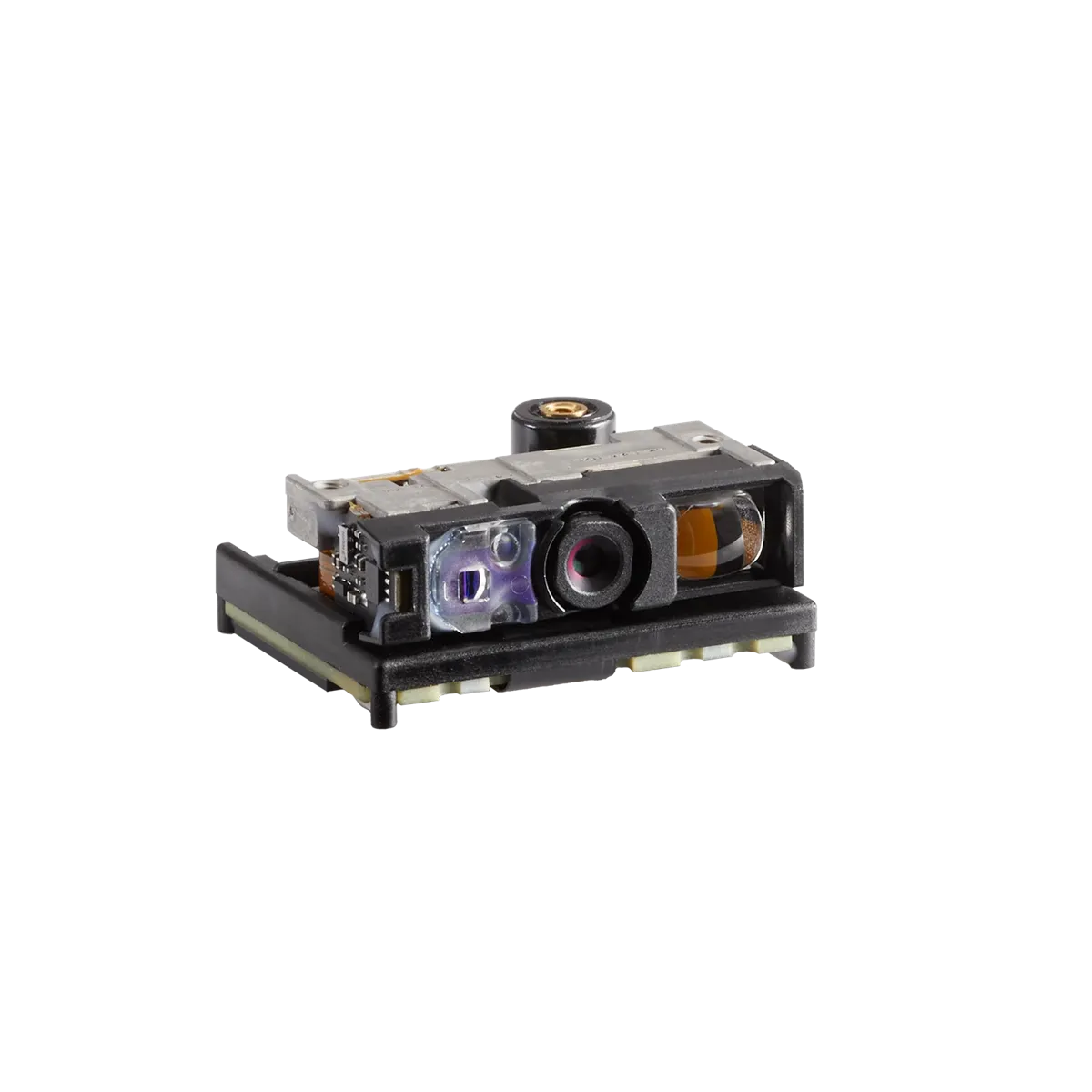

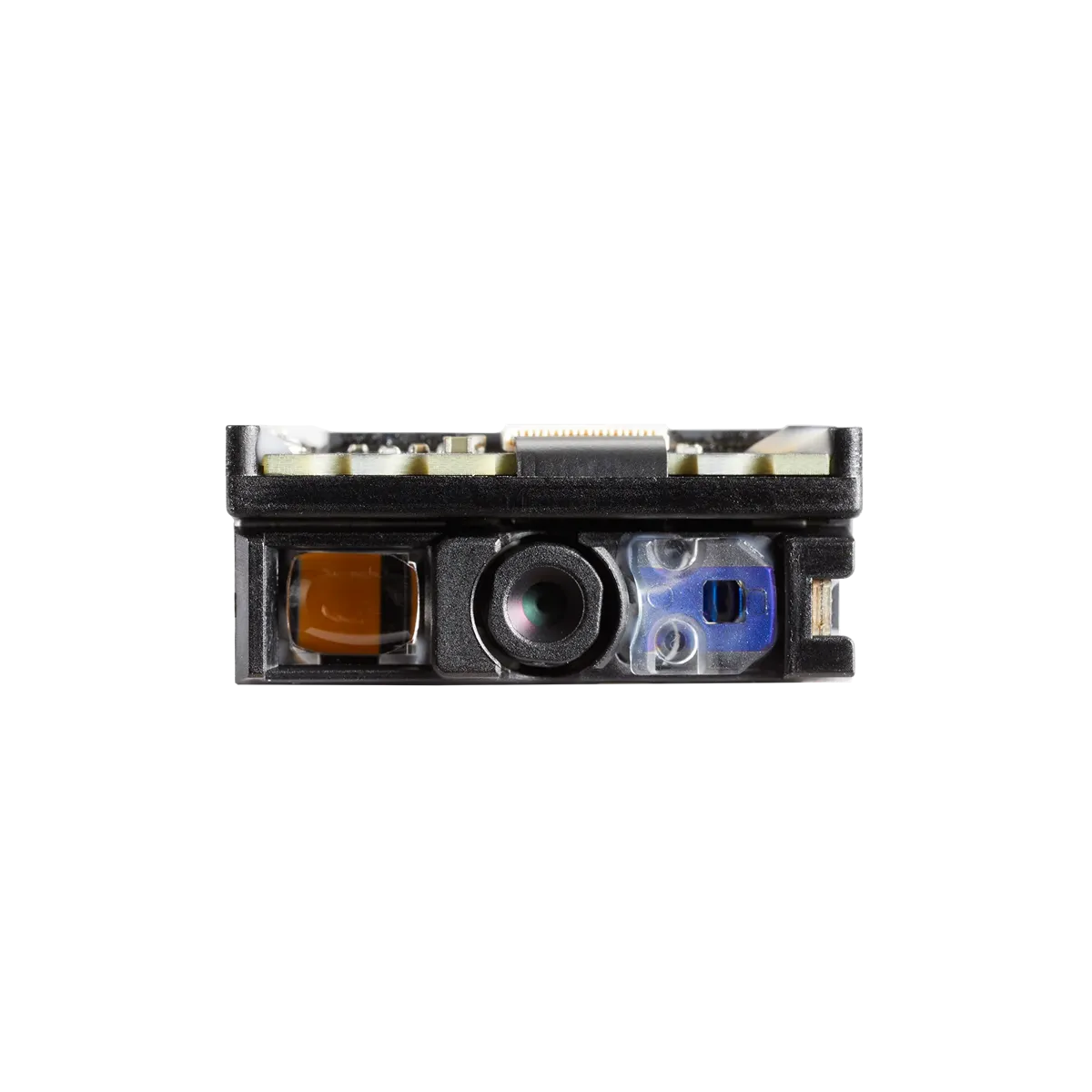

Opticon MDI-5350
MDI-5350 has an improved performance, lower power and high-speed 1 MP scan engine captures images at 120 fps, for scanning & decoding of 1D/2D barcodes.
- DropPacked in dummy case 1.8 m / 6 ft drop onto concrete surface
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Form factor
- OEM
- Reading type
- 2D
- Light source
- Red cross aiming laser, warm white illumination LED
- Scan method
- 1 MP CMOS area sensor, 1280 x 800 pixels, black and white
- Scan rate
- Up to 120 fps
- Drop specification
- Packed in dummy case 1.8 m / 6 ft drop onto concrete surface
- MTBF
- 375,419 hours
- Dimensions
- 25.3 x 10.8 x 21 mm / 0.99 x 0.43 x 0.83 in
- Weight body
- Ca. 7.3 g / 0.26 oz
- Product compliance
- RoHS, IEC62471:2006, IEC/EN 60825-1
- Sold separately
- MEK-3100 development board (With power supply, RS232 cable, USB cable, PCBs)
