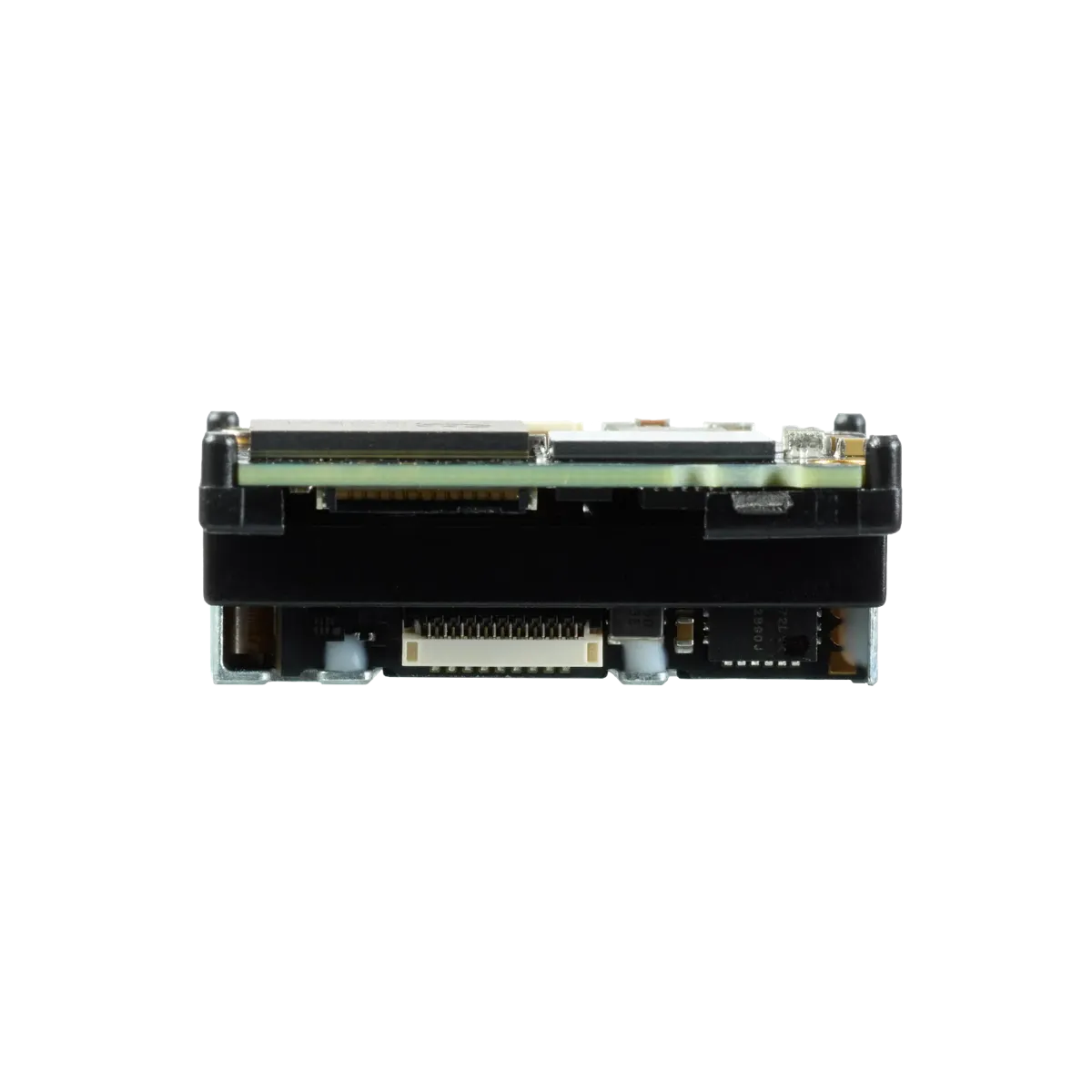

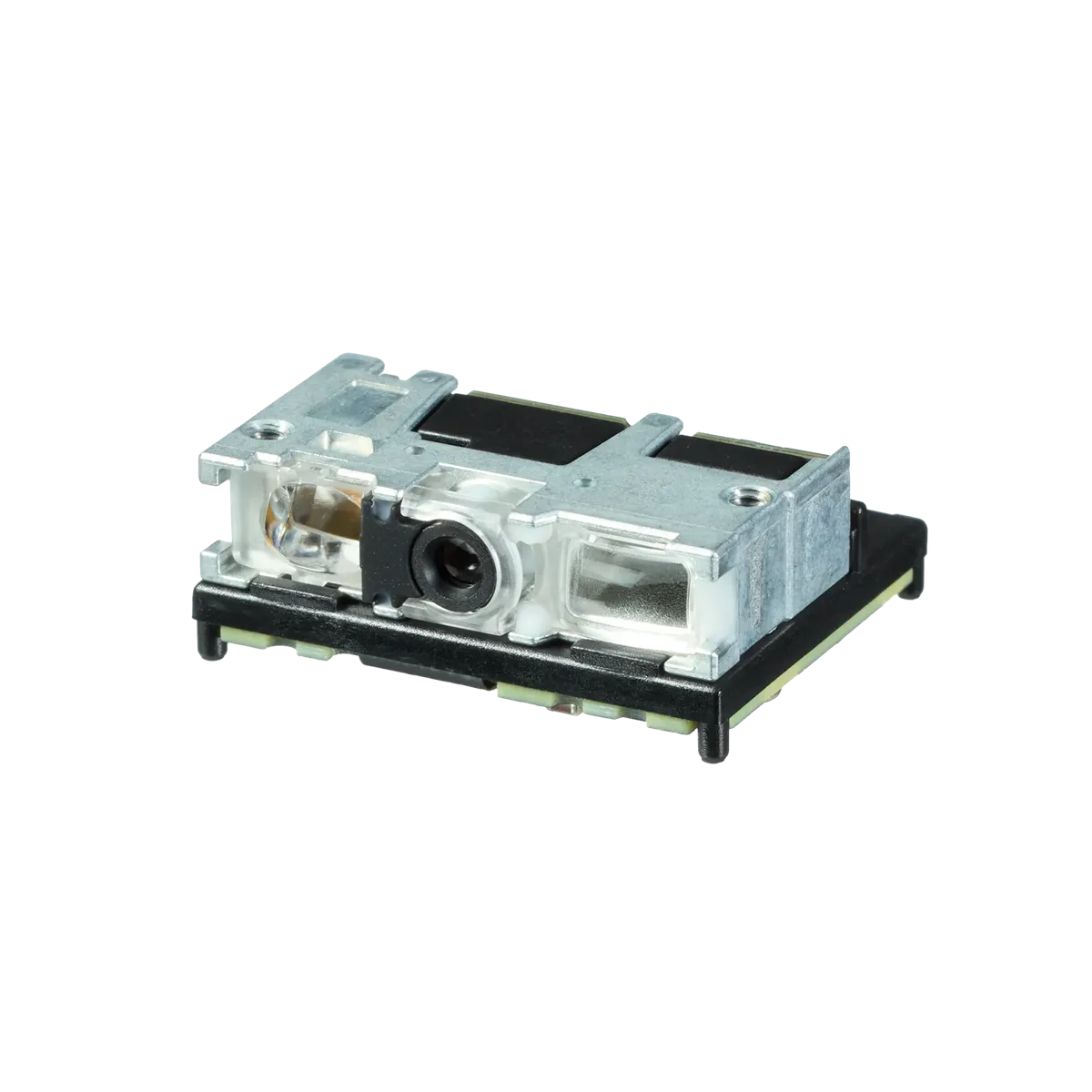

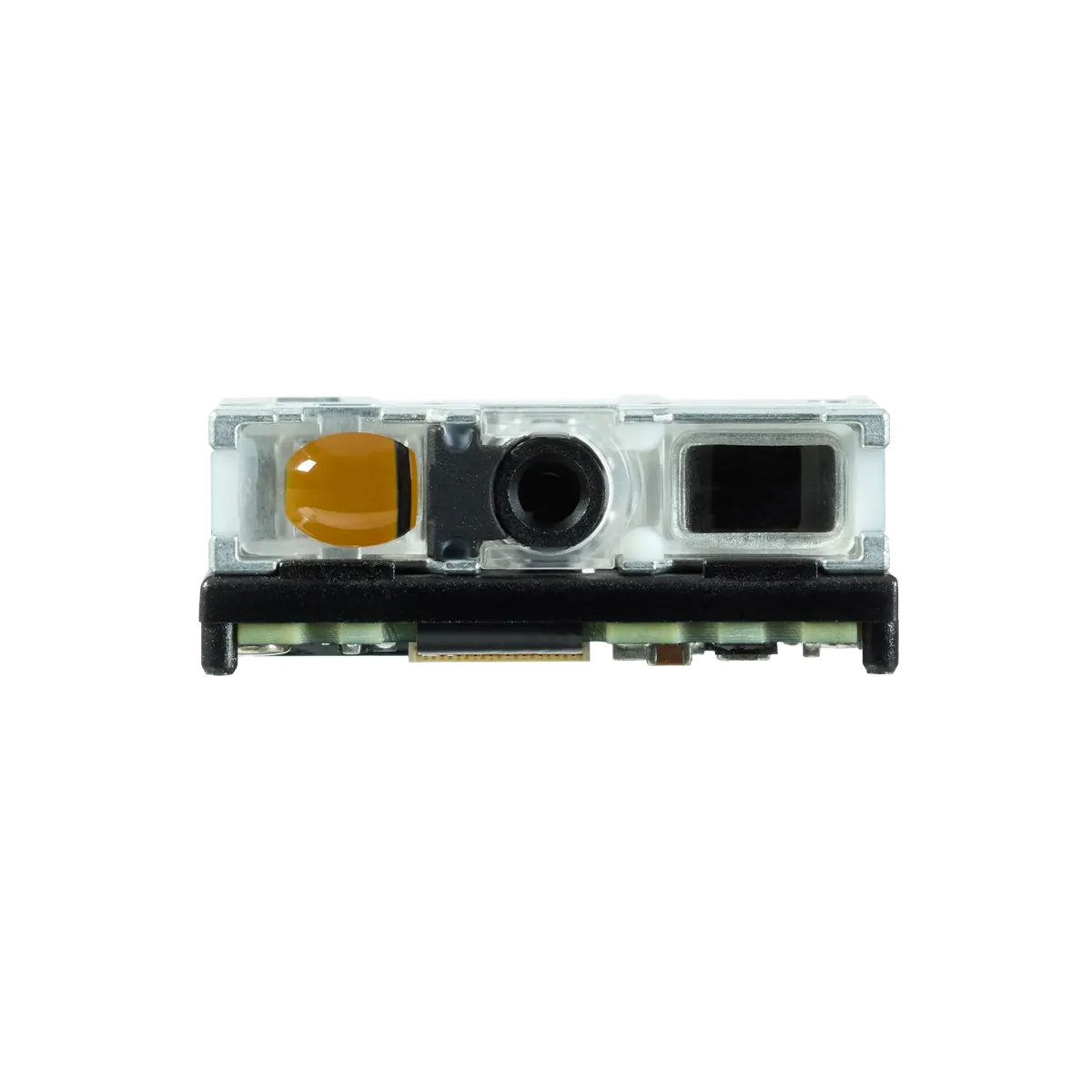

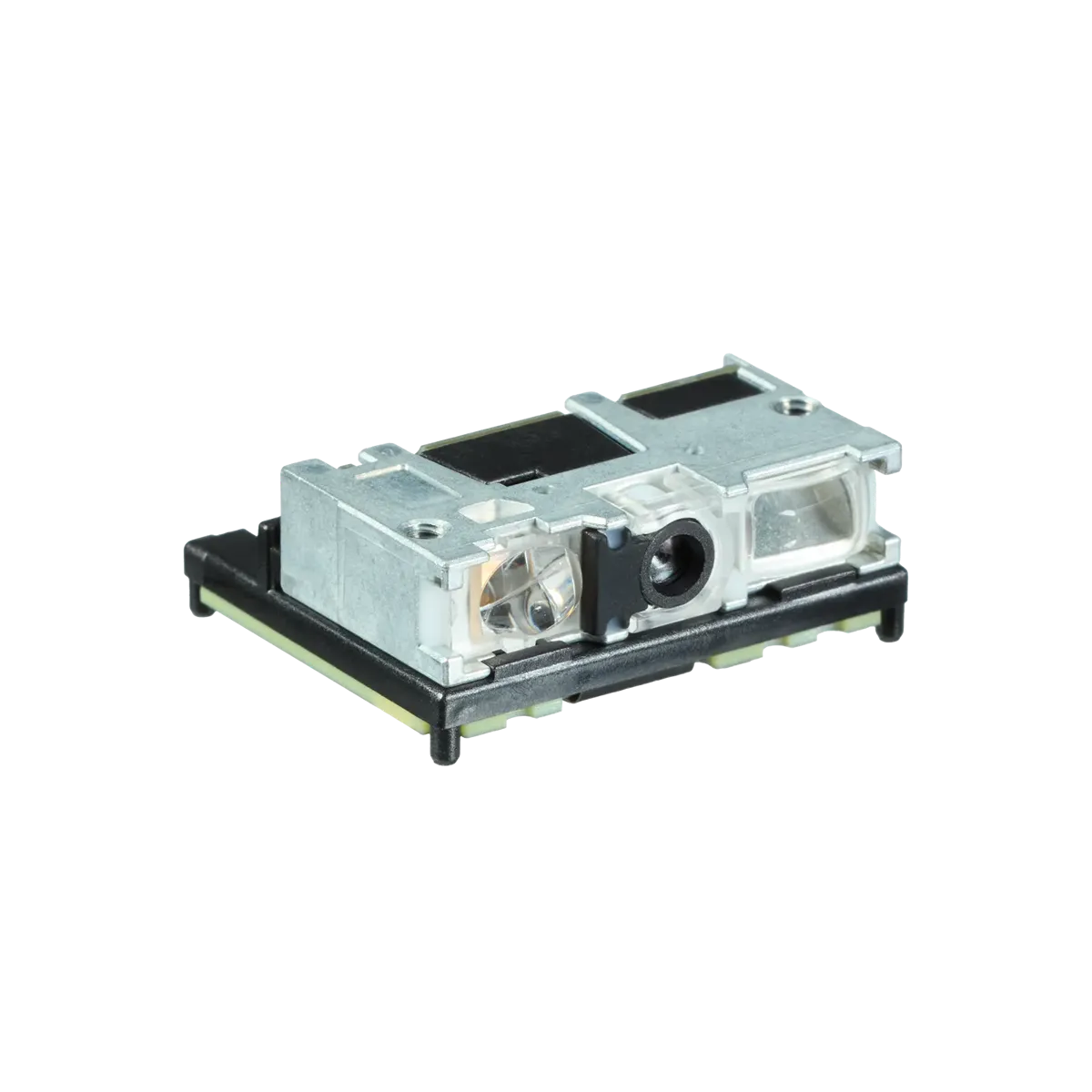

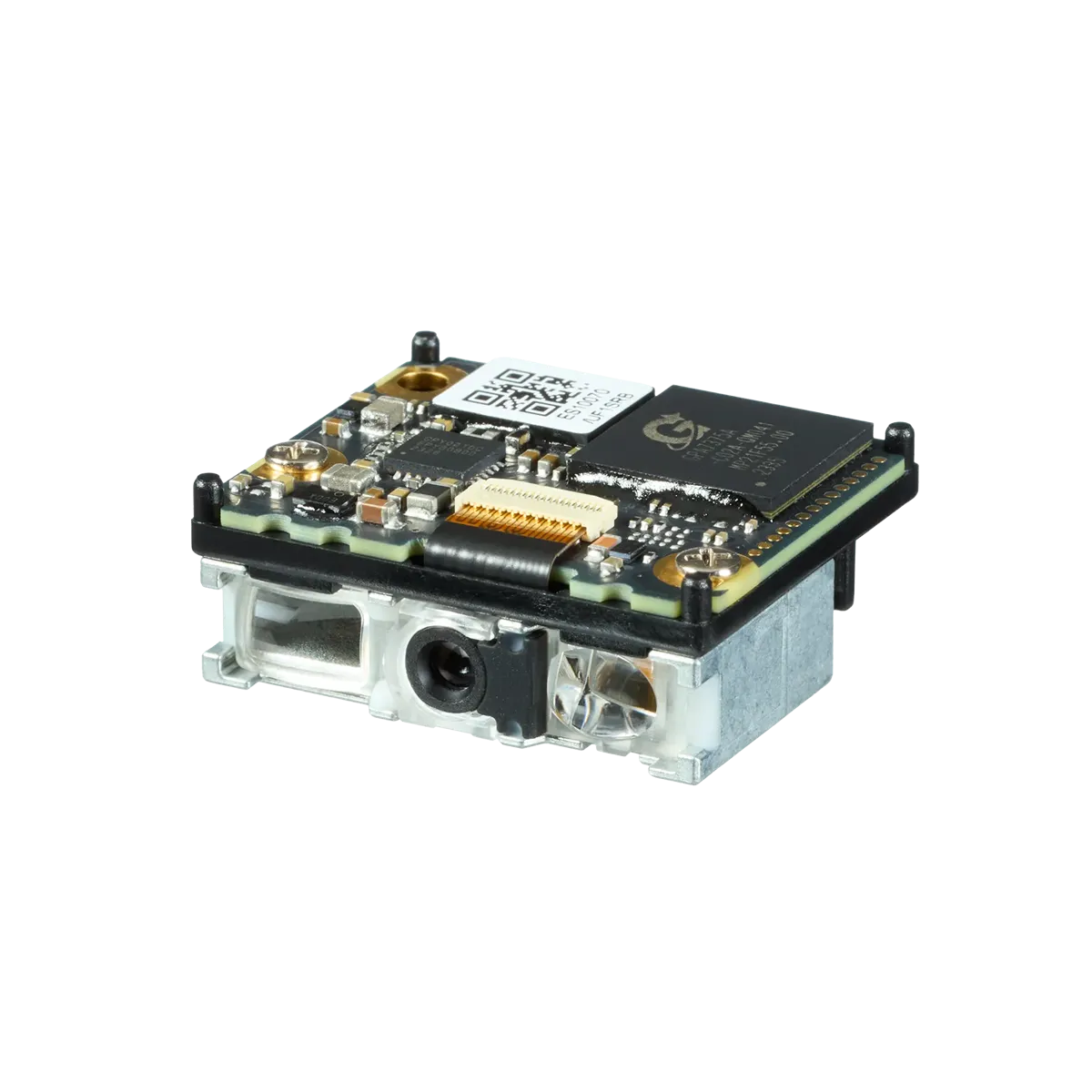

Opticon MDI-4700
The Opticon MDI-4700 an ultra-fast and extremely efficient scan engine. A must-have for every engineer that needs an easy to integrate engine.
- DropPacked in dummy case 1.8 m / 6 ft drop onto concrete surface
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Form factor
- OEM
- Reading type
- 2D
- Light source
- Aiming green LED, warm white LED illumination
- Scan method
- CMOS area sensor, 640 x 480 pixels, black and white
- Scan rate
- Up to 120 fps
- Drop specification
- Packed in dummy case 1.8 m / 6 ft drop onto concrete surface
- MTBF
- 444,514 hours
- Dimensions
- 25.3 x 10 x 21 mm / 0.99 x 0.39 x 0.82 in
- Weight body
- Ca. 7.1 g / 0.25 oz
- Product compliance
- RoHS, IEC62471
- Models
- MDI-4700-SR, MDI-4700-HD, MDI-4700-UD
- Sold separately
- MEK-3100 development board (With power supply, RS232 cable, USB cable, PCBs)
