Opticon MDI-4000 series
The Opticon MDI-4000 serie is the most powerful and reliable scan engine. Don't let the small size fool you, it houses immense power.
- DropPacked in dummy case 1.8 m / 6 ft drop onto concrete surface
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Form factor
- OEM
- Reading type
- 2D
- Light source
- Aiming green LED, warm white illumination LED
- Scan method
- CMOS area sensor, 640 x 480 pixels, black and white
- Scan rate
- Up to 100 fps
- Drop specification
- Packed in dummy case 1.8 m / 6 ft drop onto concrete surface
- MTBF
- 50,000 – 396,252 hours (depending on model)
- Dimensions

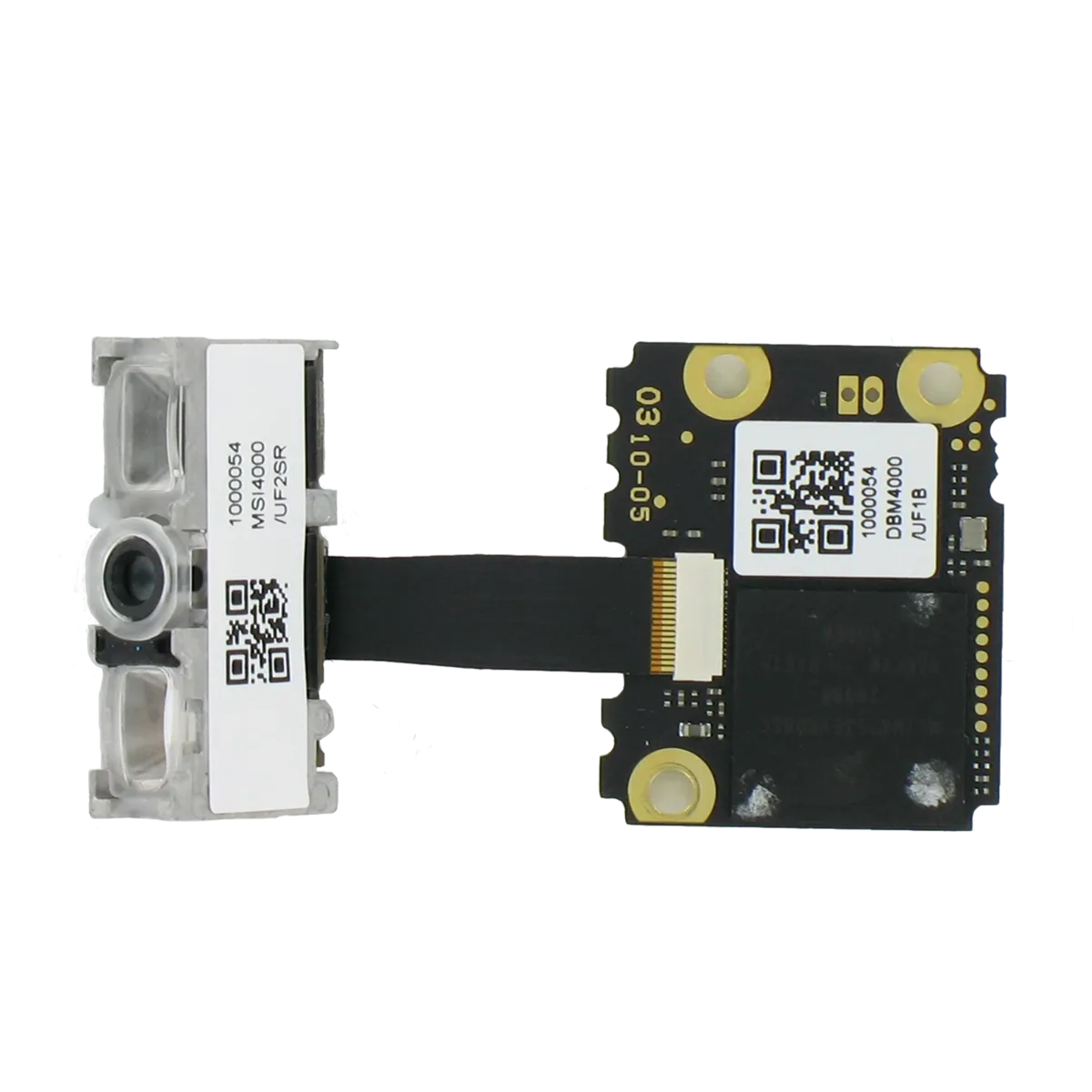

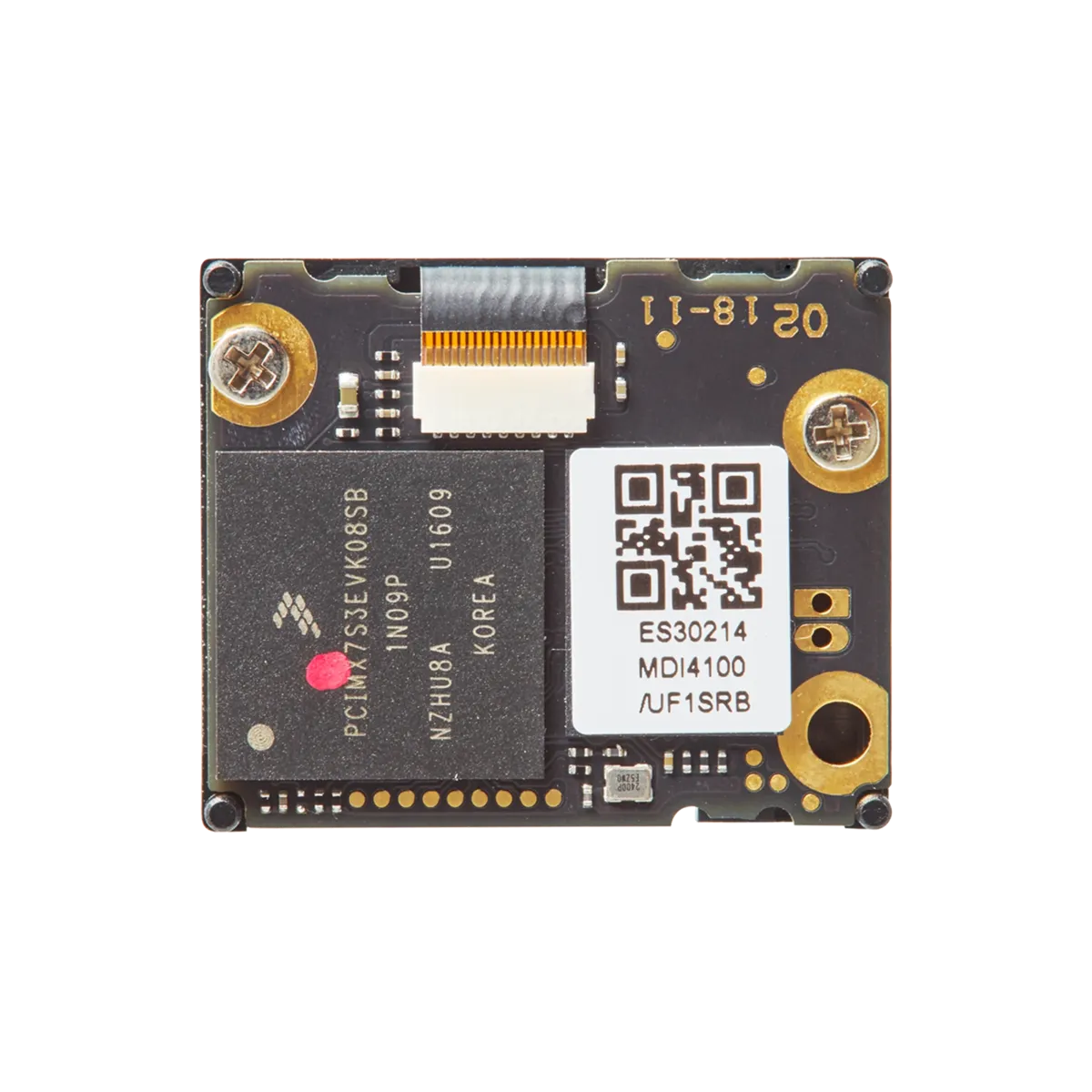

- Camera (CMOS) 24.6 x 6.0 x 13.5 mm / 0.97 x 0.24 x 0.53 in PCB (decoder board) 27.0 x 3.0 x 22.0 mm / 1.06 x 0.12 x 0.87 in
- Weight body
- Ca. 5.5 g / 0.19 oz
- Product compliance
- RoHS, IEC62471
- Sold separately
- MEK-3100 development board (With power supply, RS232 cable, USB cable, PCBs)
