Opticon · Accessory

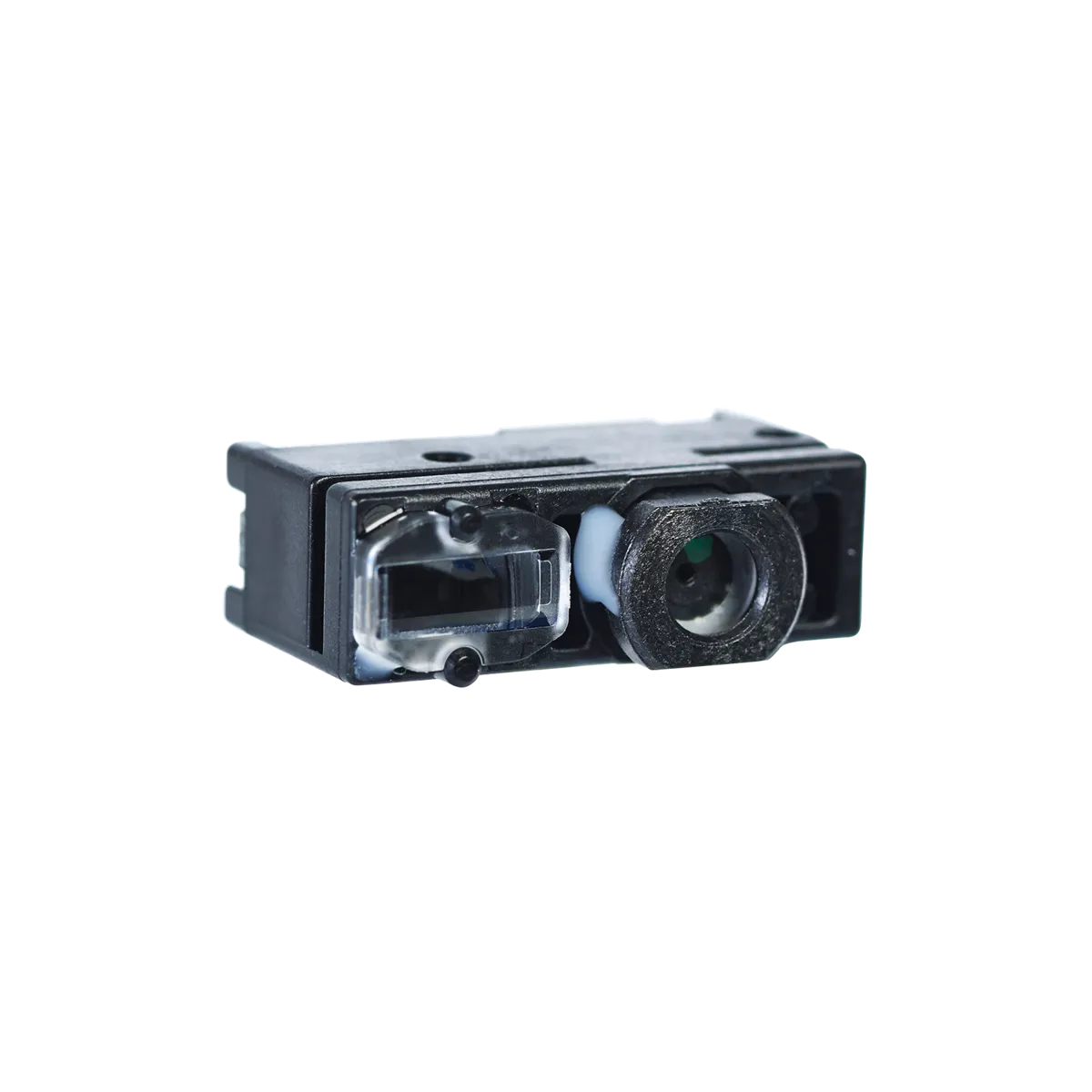

Opticon MDC-200
The MDC-200 is a very small CCD scan engine with an performance of 300 scans per second. The size allows you to integrate it almost anywhere.
- DropPacked in dummy case 1.8 m / 6 ft drop onto concrete surface
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Form factor
- OEM
- Reading type
- 1D CCD
- Light source
- 1 red LED
- Scan method
- CCD linear sensor
- Scan rate
- 300 scans / second
- Drop specification
- Packed in dummy case 1.8 m / 6 ft drop onto concrete surface
- Dimensions
- 22.8 x 7.5 x 15 mm / 0.90 x 0.30 x 0.59 in
- Weight body
- Ca. 2.6 g / 0.09 oz
- Product compliance
- RoHS, IEC62471
- Sold separately
- MEK-3100 development board (With power supply, RS232 cable, USB cable, PCBs)
