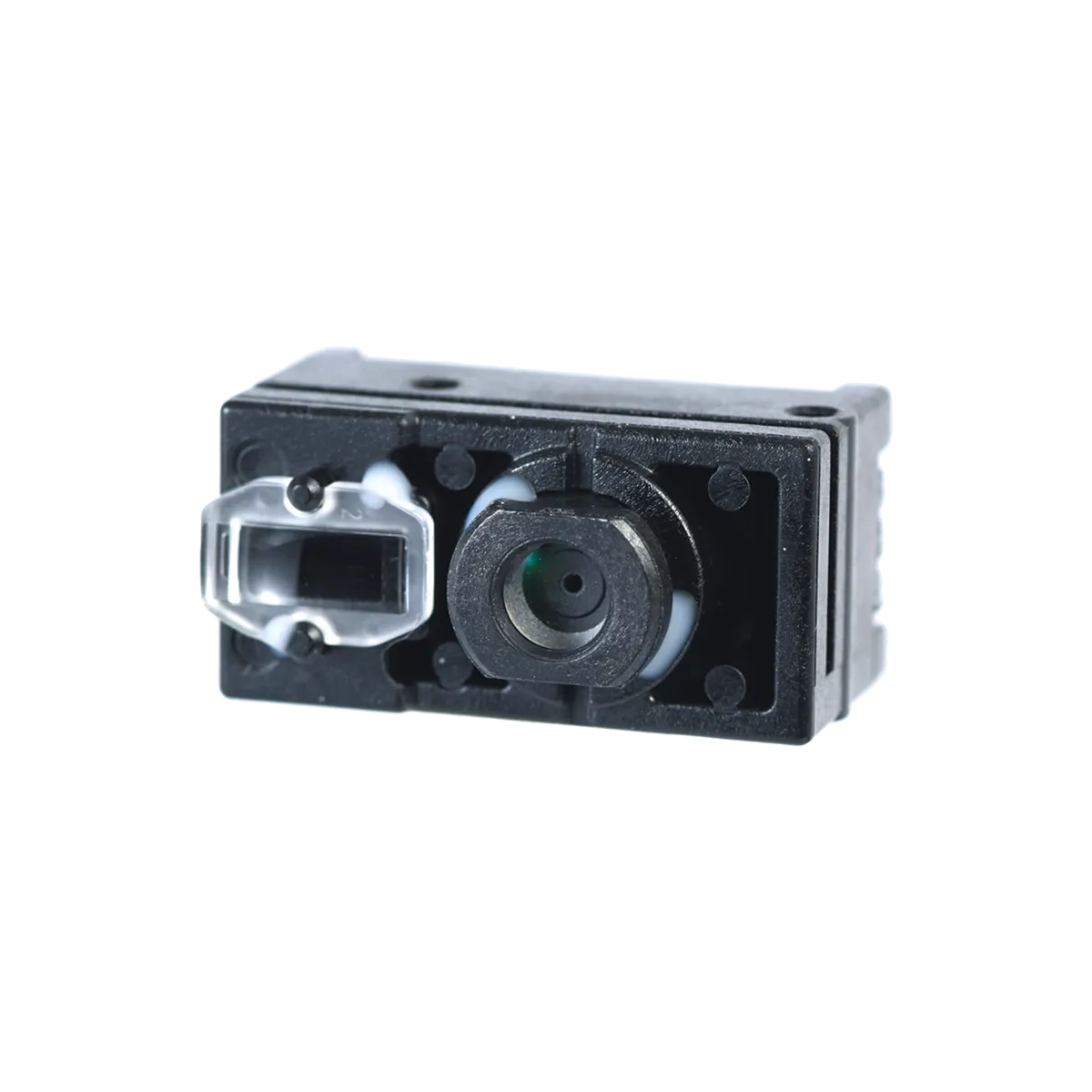

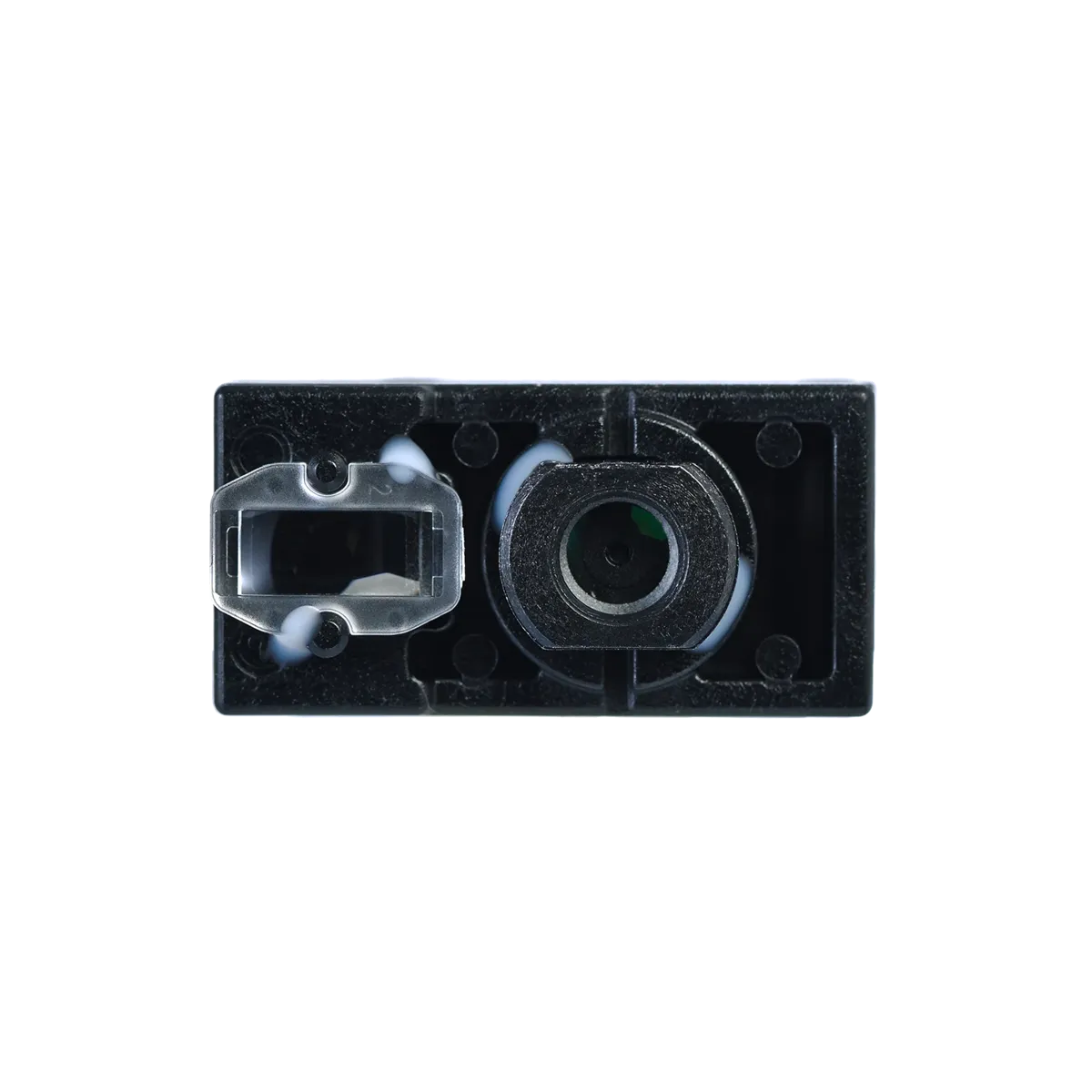

Opticon MDC-100
The MDC-100 is a CCD scan engine designed and produced by Opticon. The key point of the engine are that it is small, fast and reliable.
- DropPacked in dummy case 1.8 m / 6 ft drop onto concrete surface
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Form factor
- OEM
- Reading type
- 1D CCD
- Light source
- 1 red LED
- Scan method
- CCD linear sensor
- Scan rate
- 300 scans / second
- Drop specification
- Packed in dummy case 1.8 m / 6 ft drop onto concrete surface
- Dimensions
- 22.8 x 11.5 x 15 mm / 0.90 x 0.45 x 0.59 in
- Weight body
- Ca. 3.5 g / 0.12 oz
- Product compliance
- RoHS, IEC62471
- Sold separately
- MEK-3100 development board (With power supply, RS232 cable, USB cable, PCBs)
