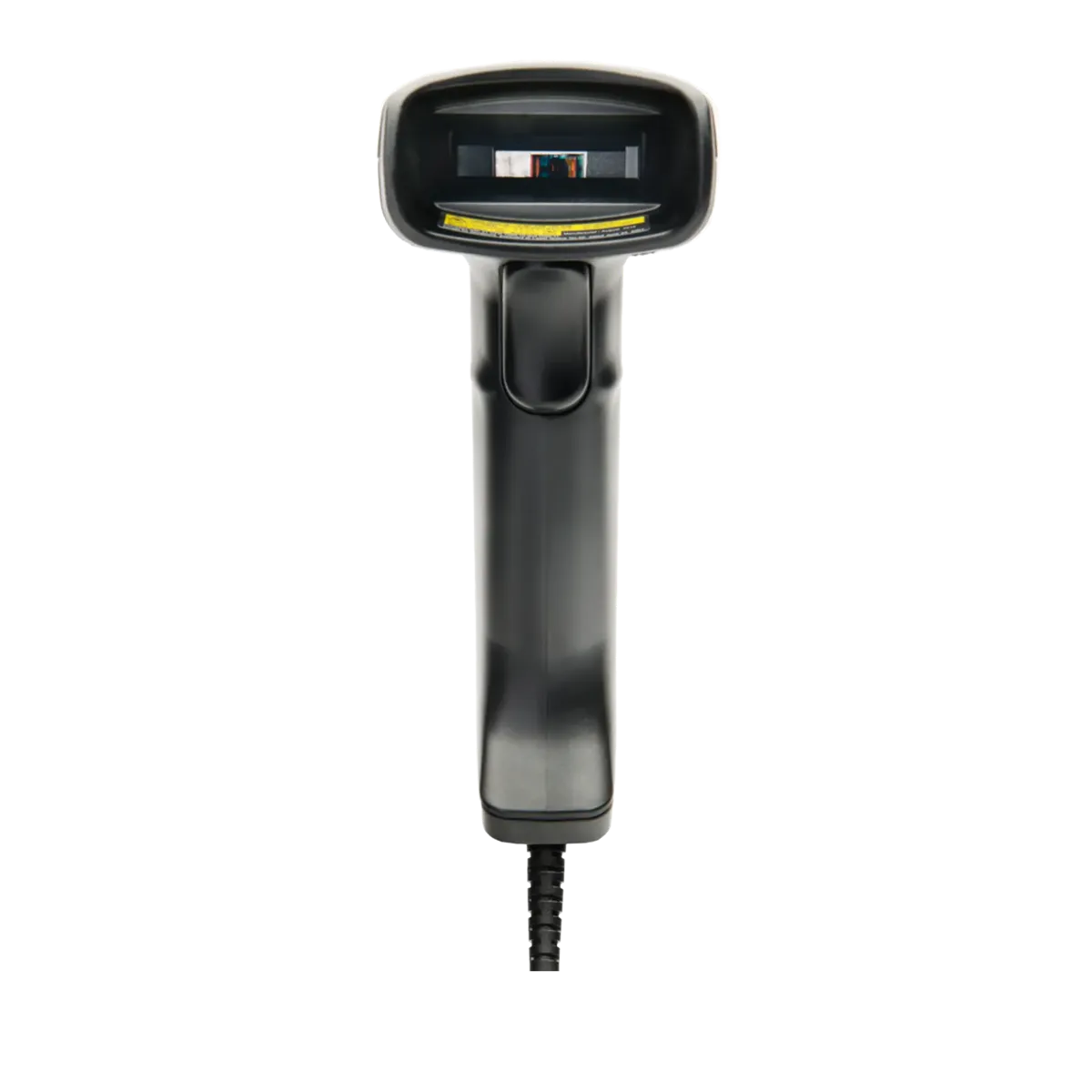

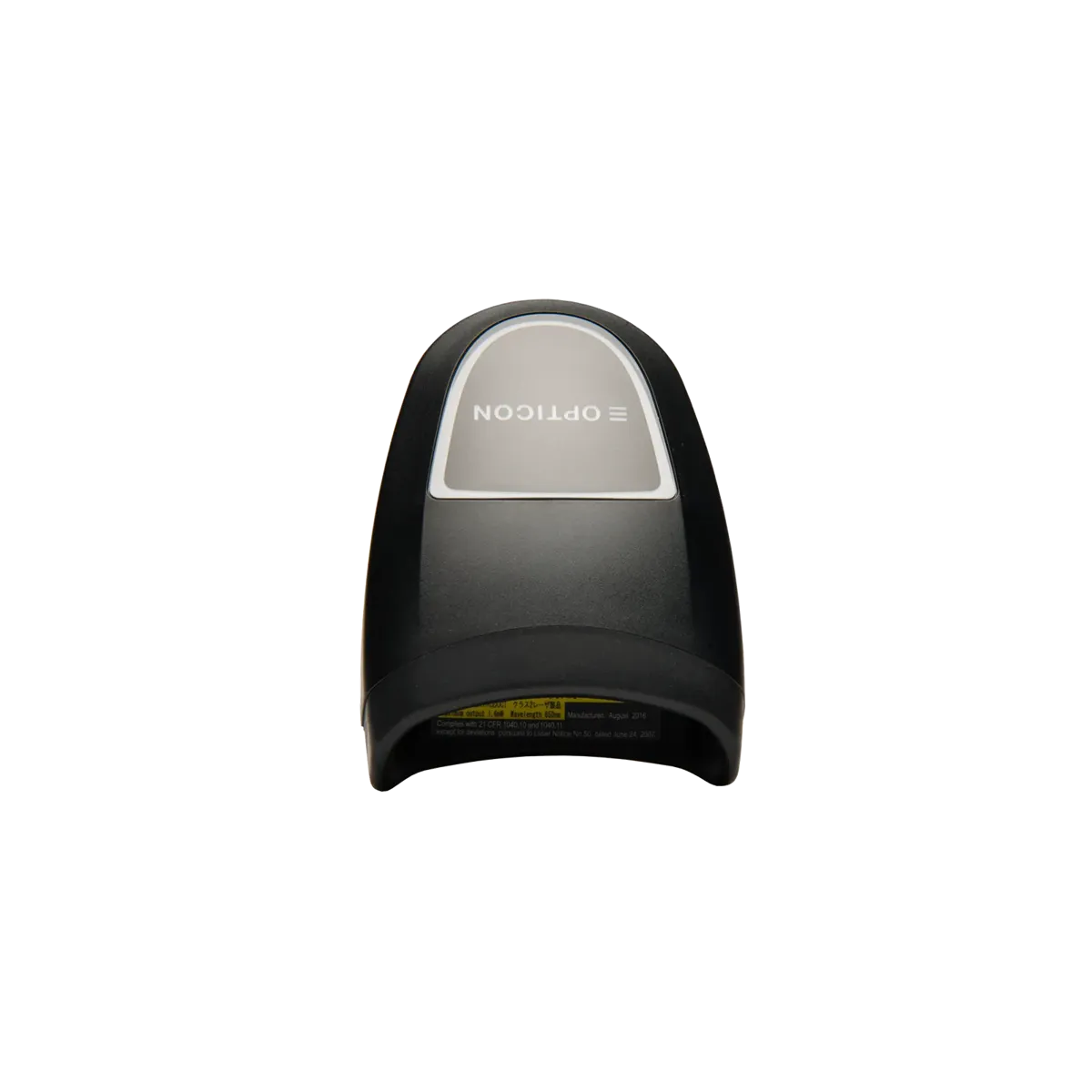

Opticon L-46R
The L-46R is a 1D laser handheld scanner with a speed of 100 scans per second. The cables are interchangeable, making it easy to switch.
- SealingIP42
- Drop1.8 m / 6 ft drop onto concrete surface
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Form factor
- Pistolgrip scanner
- Connection
- Cabled
- Reading type
- 1D Laser
- Communication interface
- RS232 , USB
- RS232
- DB9 pin (with external power supply), RS232(gp) pin 9 power supply
- USB
- ver. 2.0, HID/VCP, USB-A connector
- Light source
- 1D: Red laser, 650 nm
- Scan method
- 650 nm red laser diode, bi-directional scanning
- Scan rate
- Up to 100 fps/sps
- Drop specification
- 1.8 m / 6 ft drop onto concrete surface
- IP / sealing
- IP42
- Dimensions
- 105.4 x 153.4 x 60 mm / 4.15 x 6.04 x 2.36 in
- Dimensions
- 53 x 112 x 73 mm / 2.09 x 4.41 x 2.87 in
- Weight body
- Ca. 111 g / 3.9 oz (excl. cable)

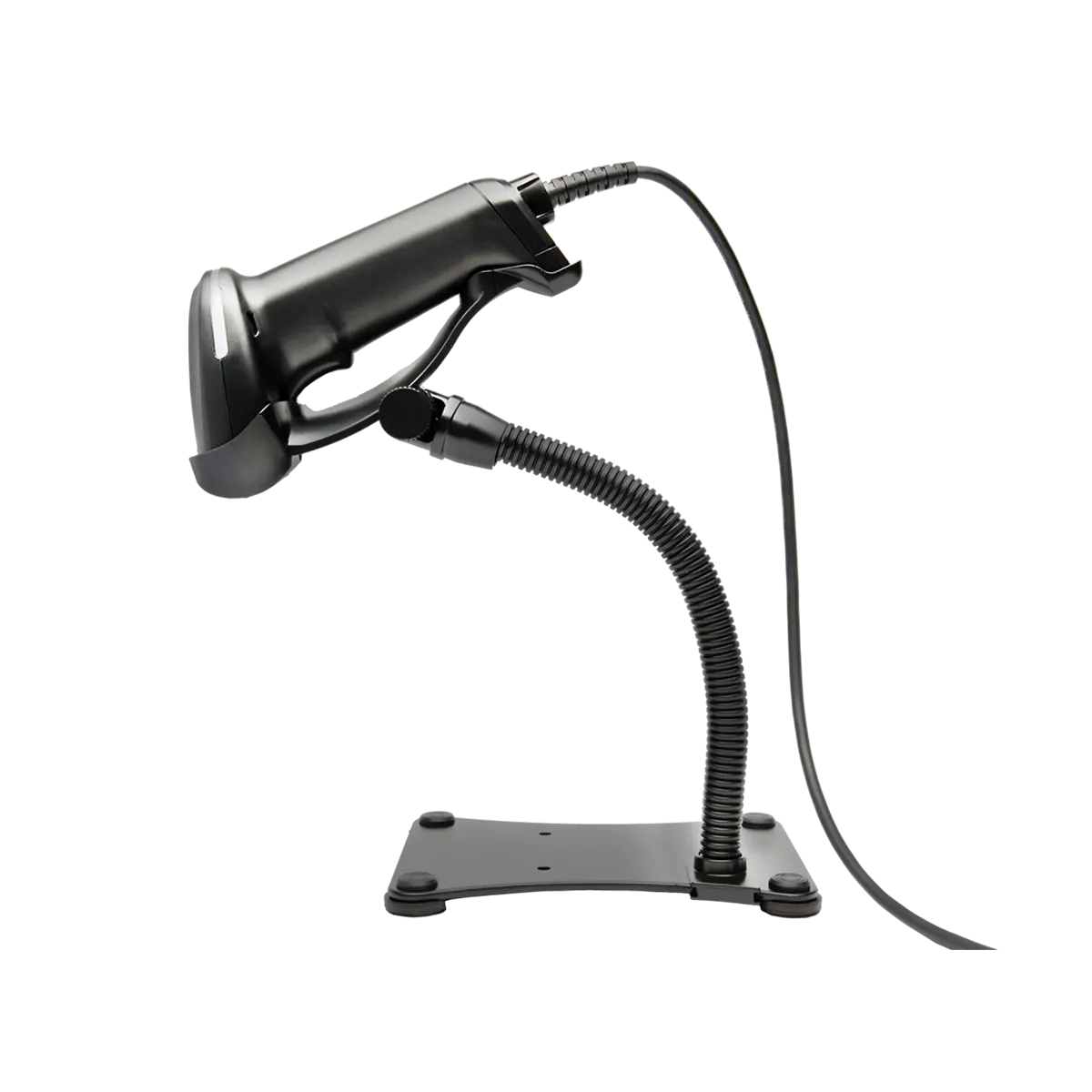

- Weight stand
- Ca. 365 g / 12.9 oz
- Cable length
- 2.0 Meter
- Product compliance
- CE, FCC, VCCI, RoHS, IEC62471-1:2006, EN55032, EN55024
