Opticon · Accessory

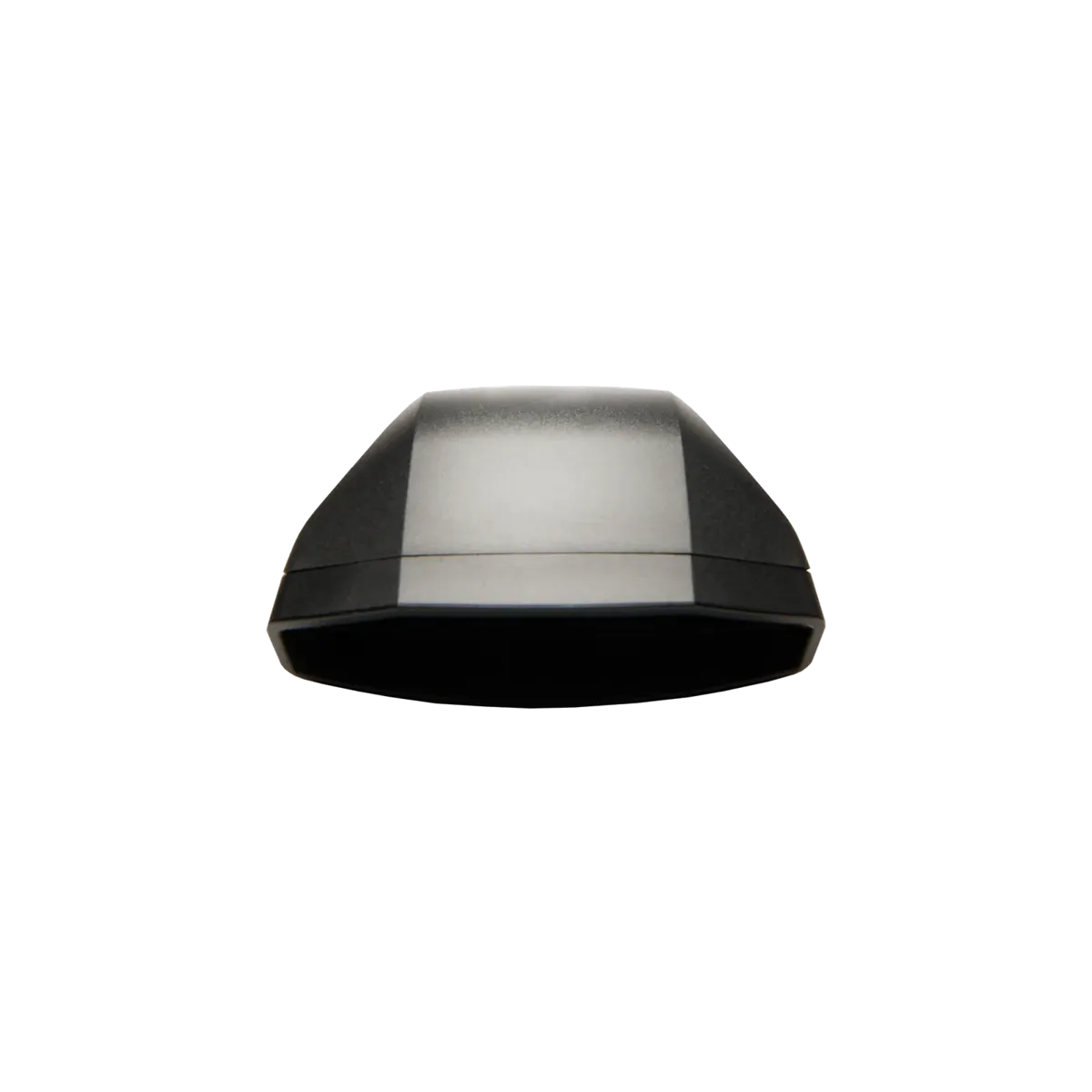

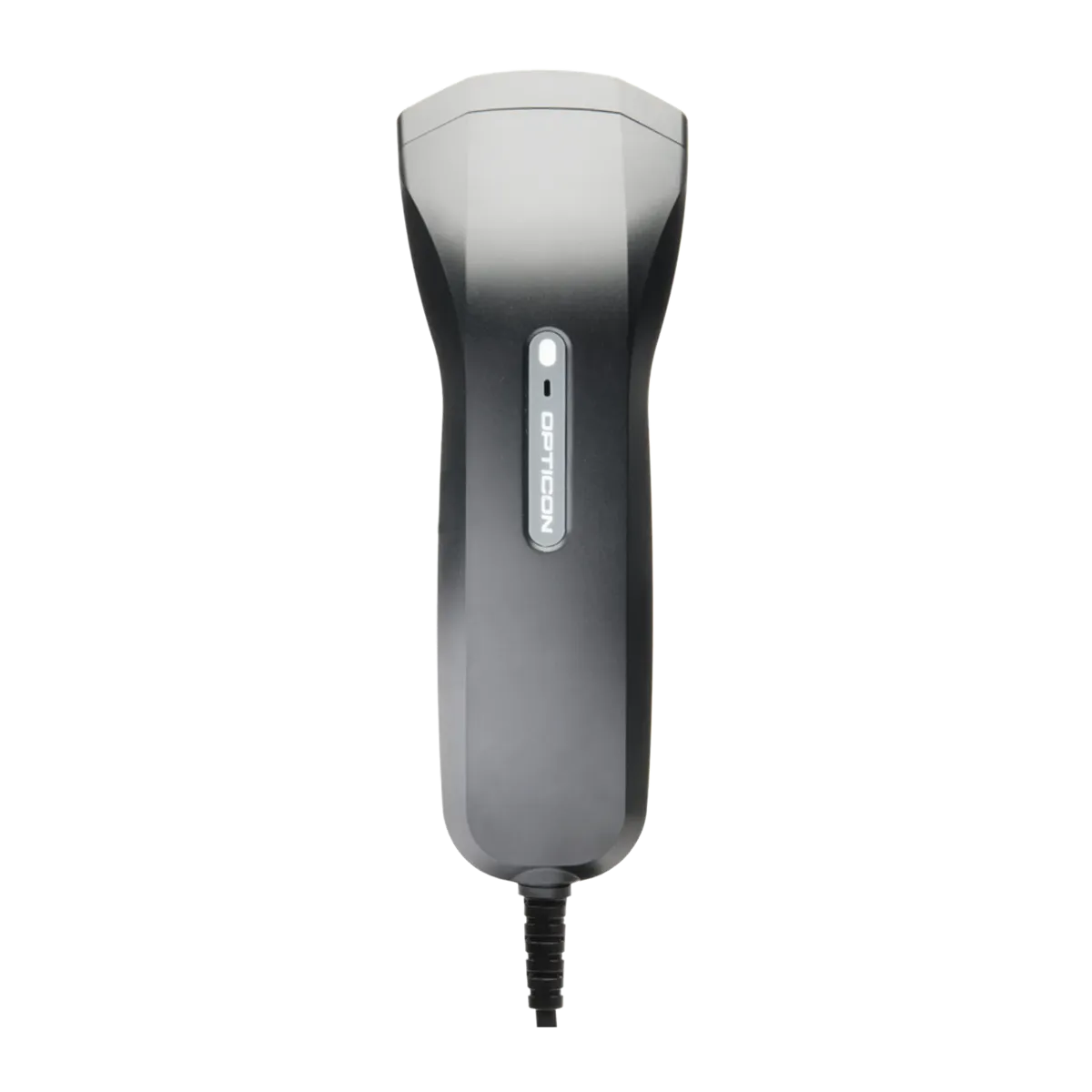

Opticon C-41S
A Fast and Durable Handheld Scanner that provides an Accurate Scanning Performance. Years of Experience by Opticon made for the Customer!
- SealingIP42
- Drop1.5 m / 5 ft drop onto concrete surface
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- Form factor
- Handheldscanner
- Connection
- Cabled
- Reading type
- 1D CCD
- Communication interface
- USB
- USB
- Ver. 2.0, HID/VCP, USB-A connector
- Light source
- 1 red LED, 624 nm
- Scan method
- CCD linear image sensor, 1500 pixels
- Scan rate
- 300 scans/sec
- Drop specification
- 1.5 m / 5 ft drop onto concrete surface
- IP / sealing
- IP42
- Dimensions
- 55.9 x 33.8 x 154 mm / 2.2 x 1.33 x 6.06 in
- Weight body
- Ca. 55 g / 1.9 oz (excl. cable)
- Product compliance
- CE, FCC, VCCI, RoHS, IEC62471, EN61000, EN55022, EN55024
Send a request
Get a quote for the C-41S
Tell us where you are and what you need.
Raptool does NOT sell hardware. We are a pure software company. The devices are sold by our hardware partners around the world. Your request goes straight to a partner in your country, and they send you the quote.
