Newland · Wearable computer

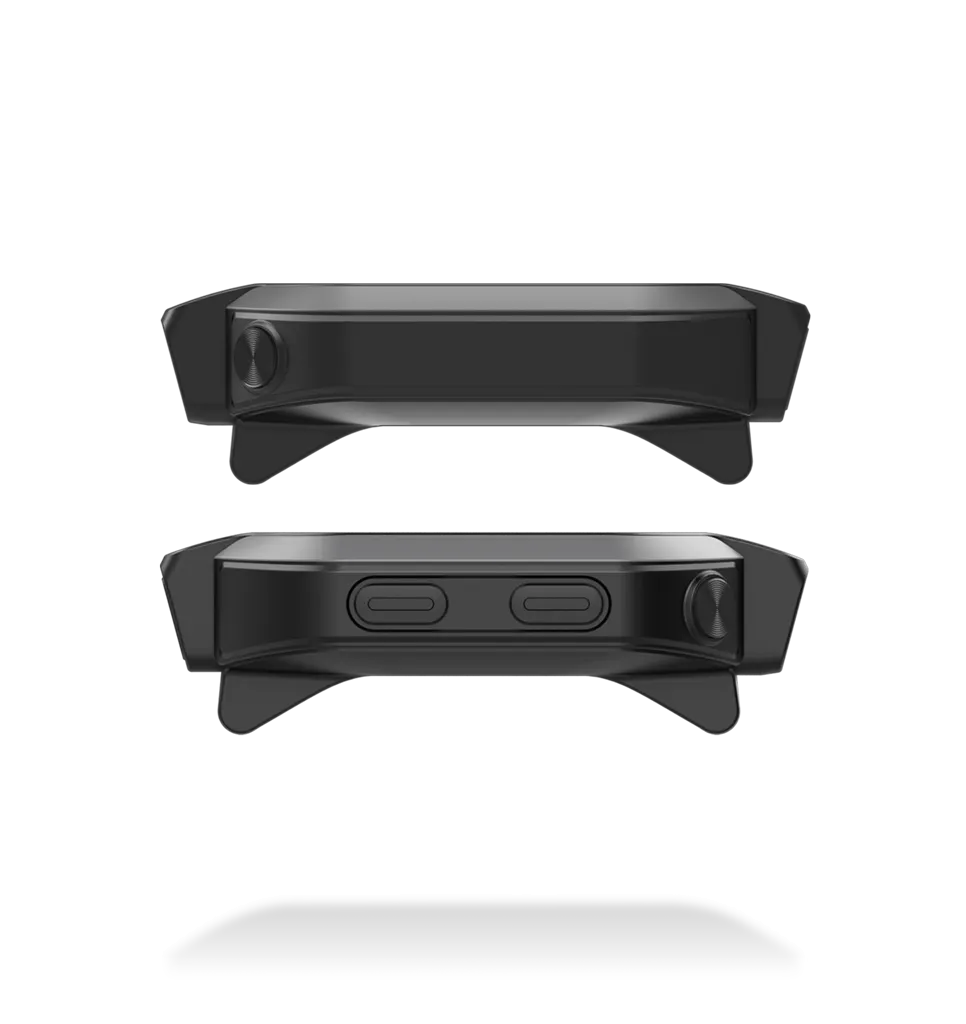

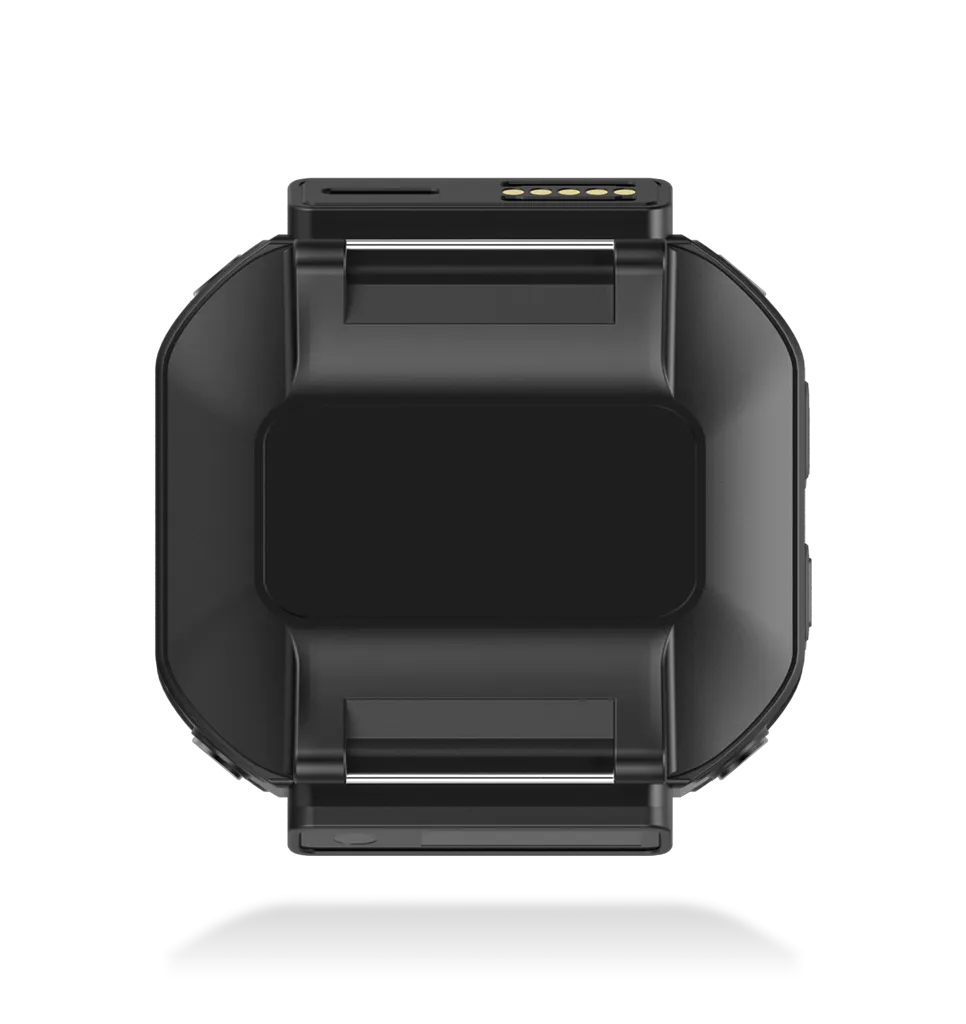

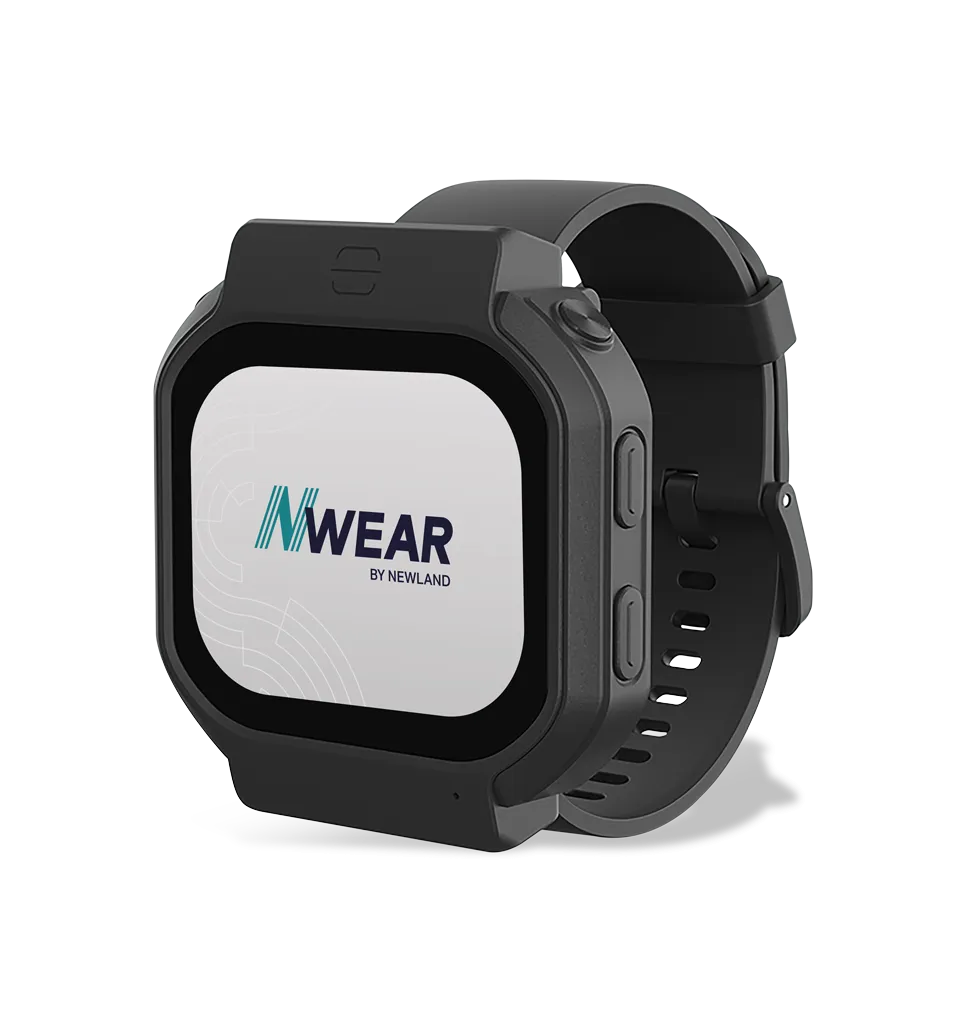

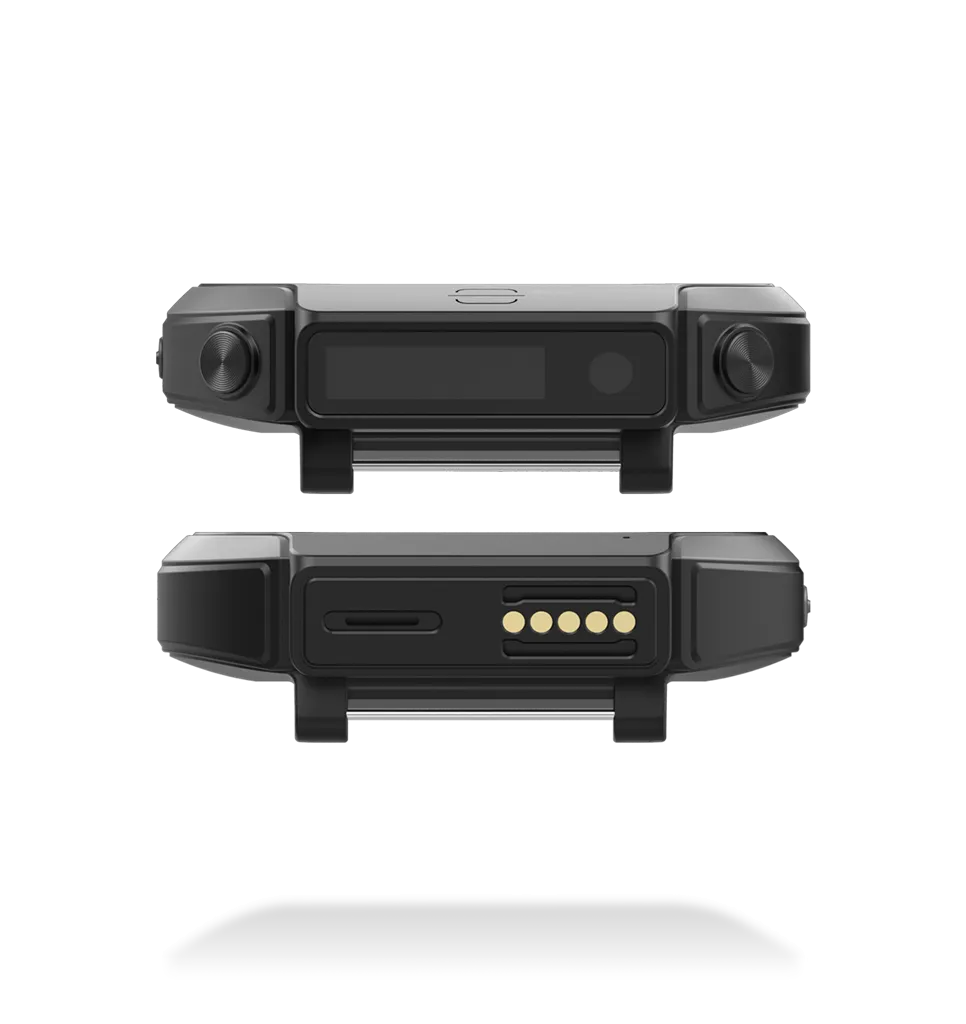

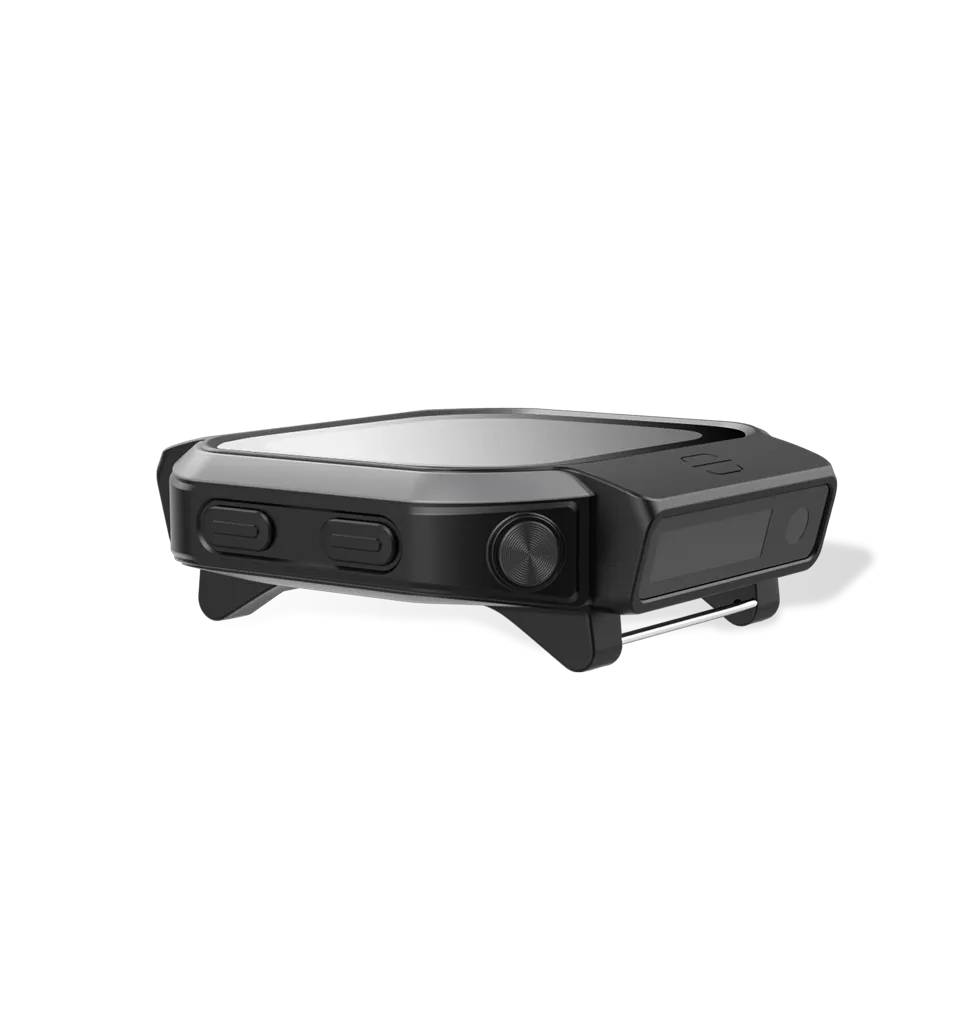

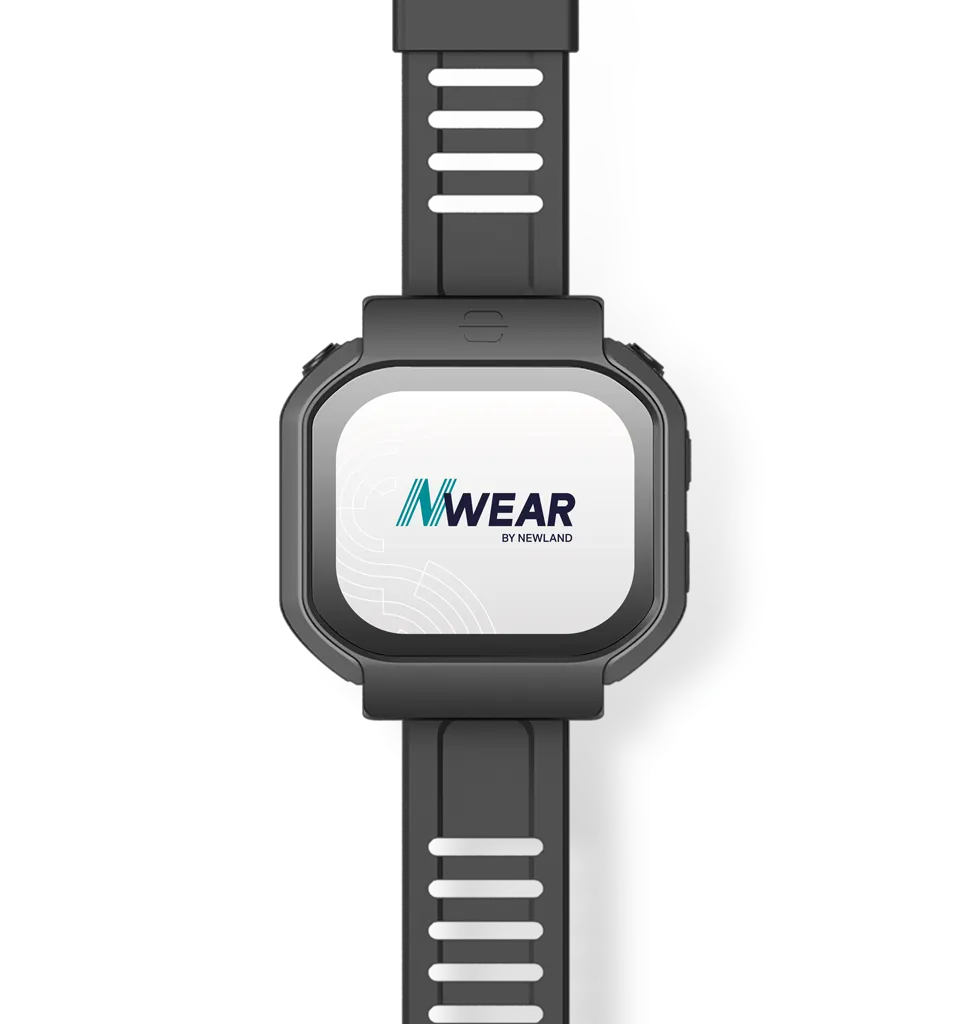

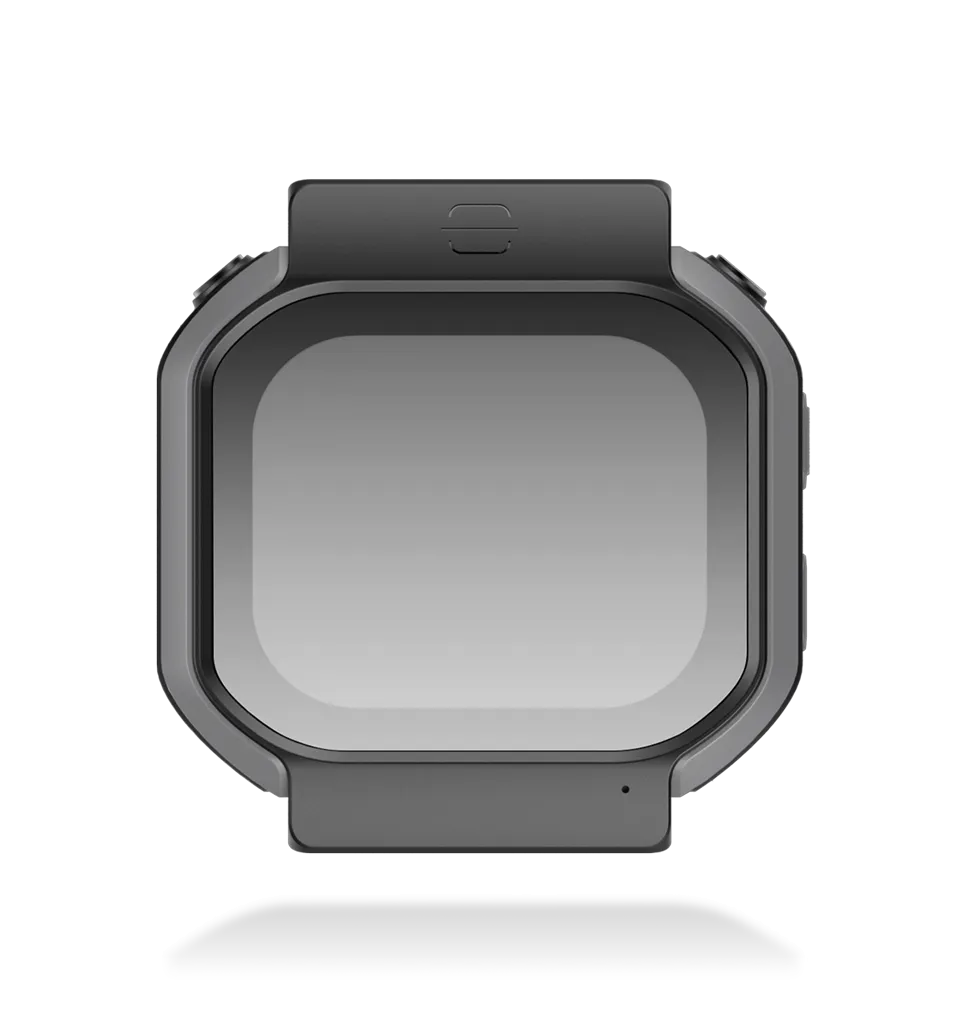

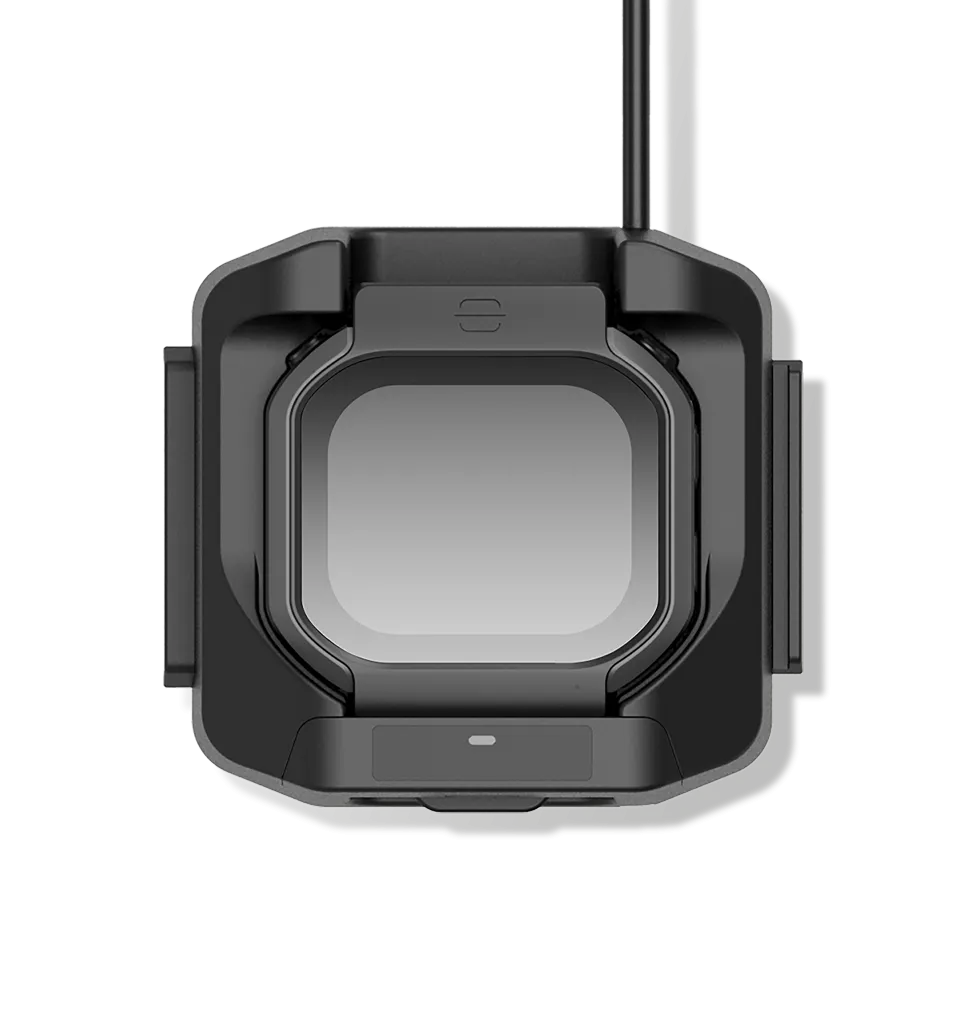

Newland WD5 Industrial Smartwatch
The WD5 Industrial Watch Scanner offers the hands-free scanning efficiency of the future. Powered by Android 13 and a lightning-fast 2.0 GHz octa-core processor, it is designed to exceed your business needs. Check out the specs now.
- DisplayAcuscan Android
- Scanning1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6,
- Battery3,85 V, 1200 mAh
- SealingIP67
- Drop1.5m drops to concrete (for six sides, one drop per side)
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Processor
- 2.0 GHz octa-core, 64-bit
Display
- Display size
- Acuscan Android
- Keyboard / keys
- 4 keys
Data capture
- Scan engines / capture options
- 1D Code 128, EAN-13, EAN-8, Code 39, UPC-A, UPC-E,Codabar, Interleaved 2 of 5, ITF-6,
- Scan range / decode distances
- 65 mm - 150 mm 55 mm - 120 mm 65 mm - 295 mm 60 mm - 120 mm 35 mm - 180 mm Image Sensor 800 x 640 CMOS
- RFID
- ISO14443A/B, ISO15693, MIFARE, FeliCa RF, Kovio, NFC Forum Type 1-4 Tags
Power
- Battery / runtime
- 3,85 V, 1200 mAh
Connectivity
- Bluetooth
- 5.1
- Ports / interfaces
- Pogo pins
Rugged
- IP / sealing
- IP67
- Drop specification
- 1.5m drops to concrete (for six sides, one drop per side)
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -30°C to 60°C (-22°F to 140°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 81 g (including battery)
- Dimensions
- 265(W) × 58(D) × 19(H) mm; Wristband: 24mm
Software & service
- Warranty
- 2 Years Comprehensive Service Contract 3 Years, 5 Years
