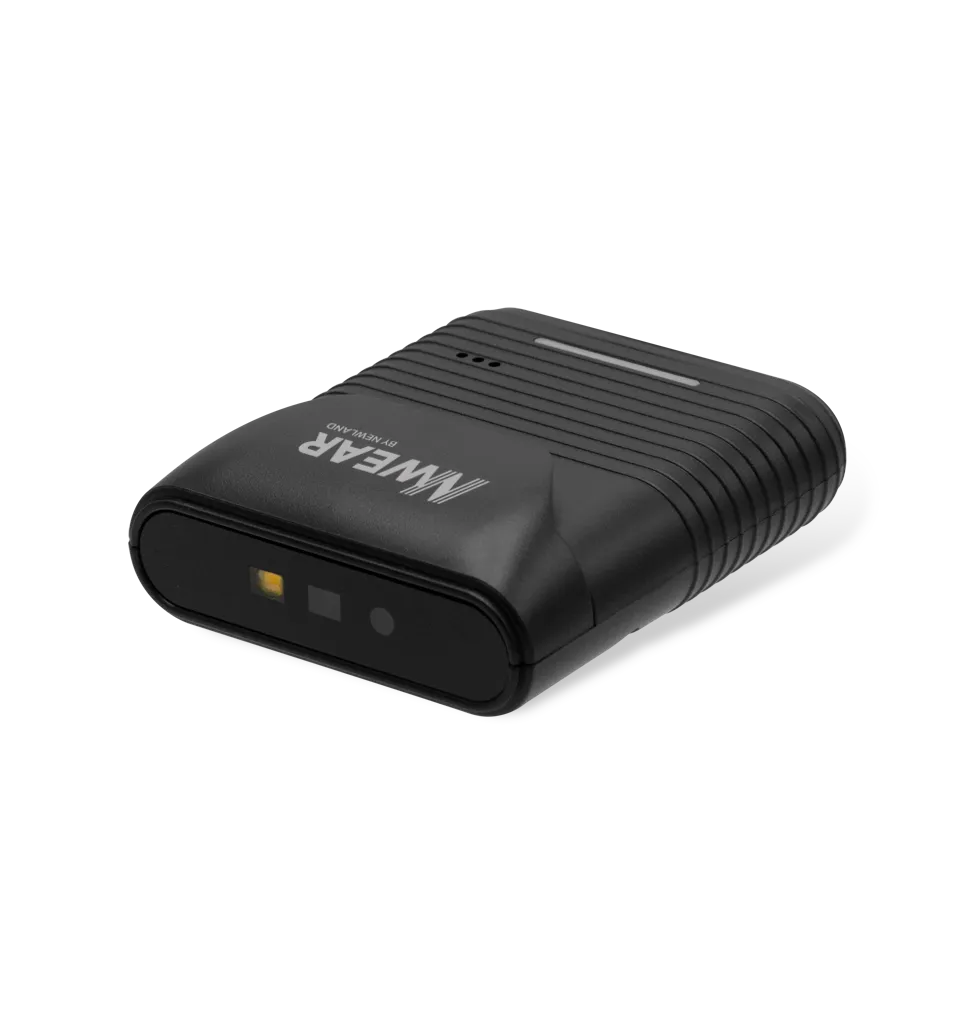

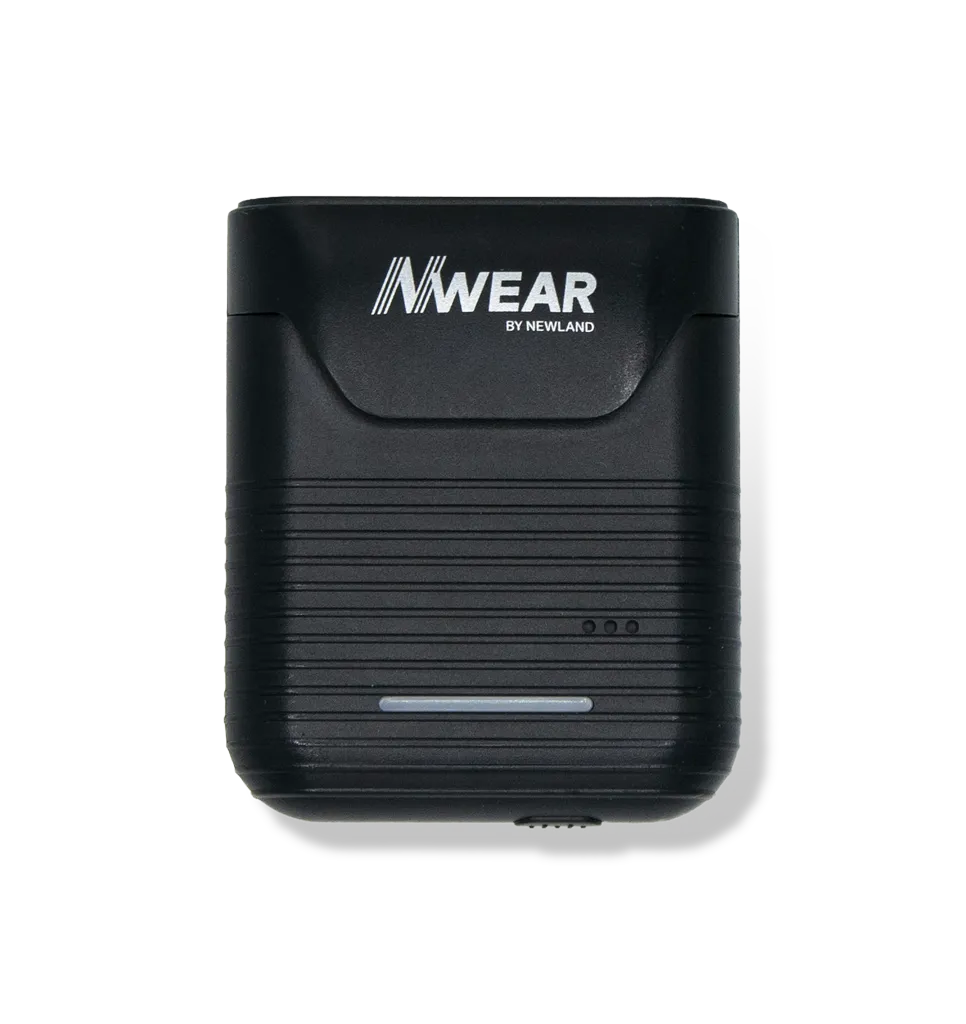

Newland WD2 Wearable Scanner

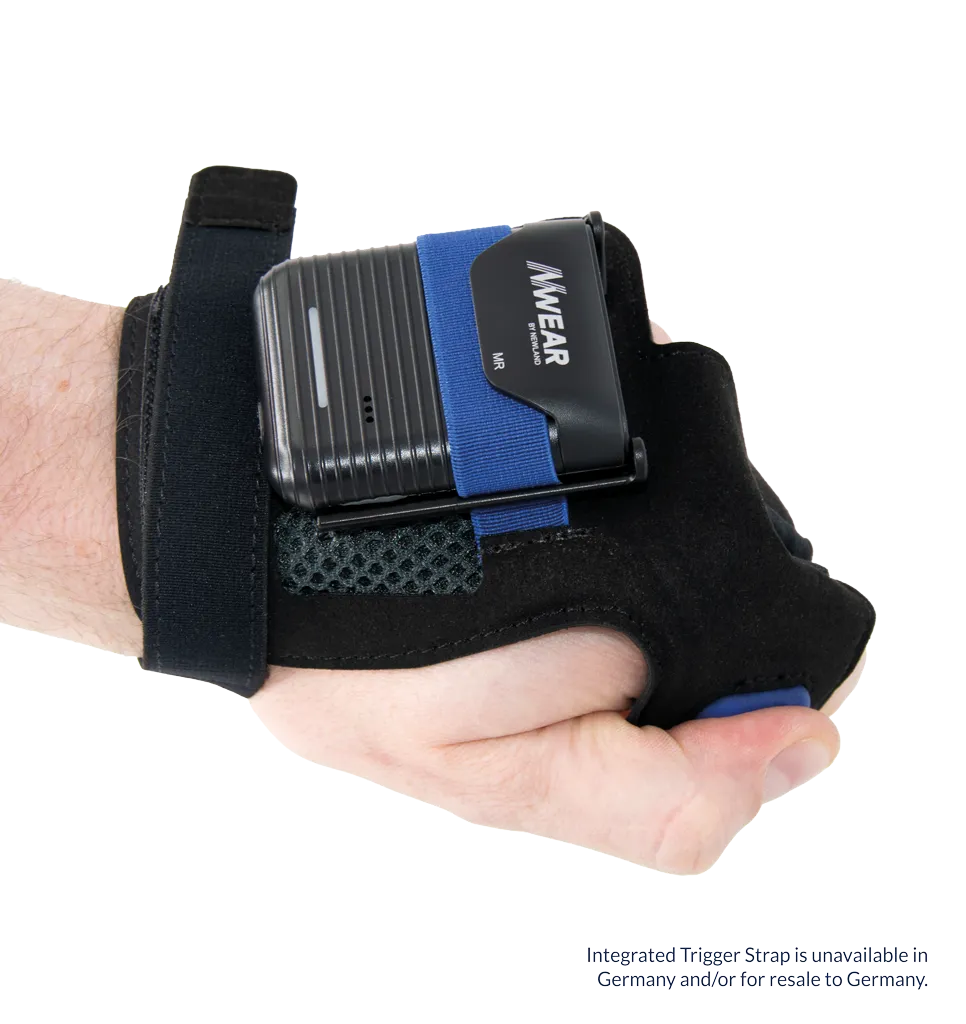

Multitask with the WD2 Wearable Barcode Scanner. The WD2 ensures no wasted time on putting away a device while picking or moving boxes as it sits on top of the palm of your hand. It's the perfect wearable scanner for logistics and warehousing.
- Scanning1D EAN-8, EAN-13, UPC-E, UPC-A, Code128, UCC/EAN128, I2Of5, ITF14, ITF6, Matrix
- Battery670 mAh lithium-ion battery
- SealingIP65
- Drop1.5 m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D EAN-8, EAN-13, UPC-E, UPC-A, Code128, UCC/EAN128, I2Of5, ITF14, ITF6, Matrix
- Scan range / decode distances
- MR: 190mm-300mm MR: 250mm-3500mm MR: 80mm-1300mm SR: 120 mm - 330 mm SR: 125 mm - 240 mm, MR: 160 mm - 300 mm SR: 65 mm - 540 mm, MR: 60 mm - 850 mm SR: 125 mm - 240 mm SR: 40 mm - 360 mm Field of View Horizontal SR: 40°, MR: 33°
Power
- Battery / runtime
- 670 mAh lithium-ion battery
- Charging / power
- 5 VDC ±5%
Rugged
- IP / sealing
- IP65
- Drop specification
- 1.5 m
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 43 g
- Dimensions
- 58.8(W) × 48.8(D) × 18(H) mm
Software & service
- Warranty
- 2 Years Comprehensive Service Contract 3 Years, 5 Years
