Newland · Wearable scanner

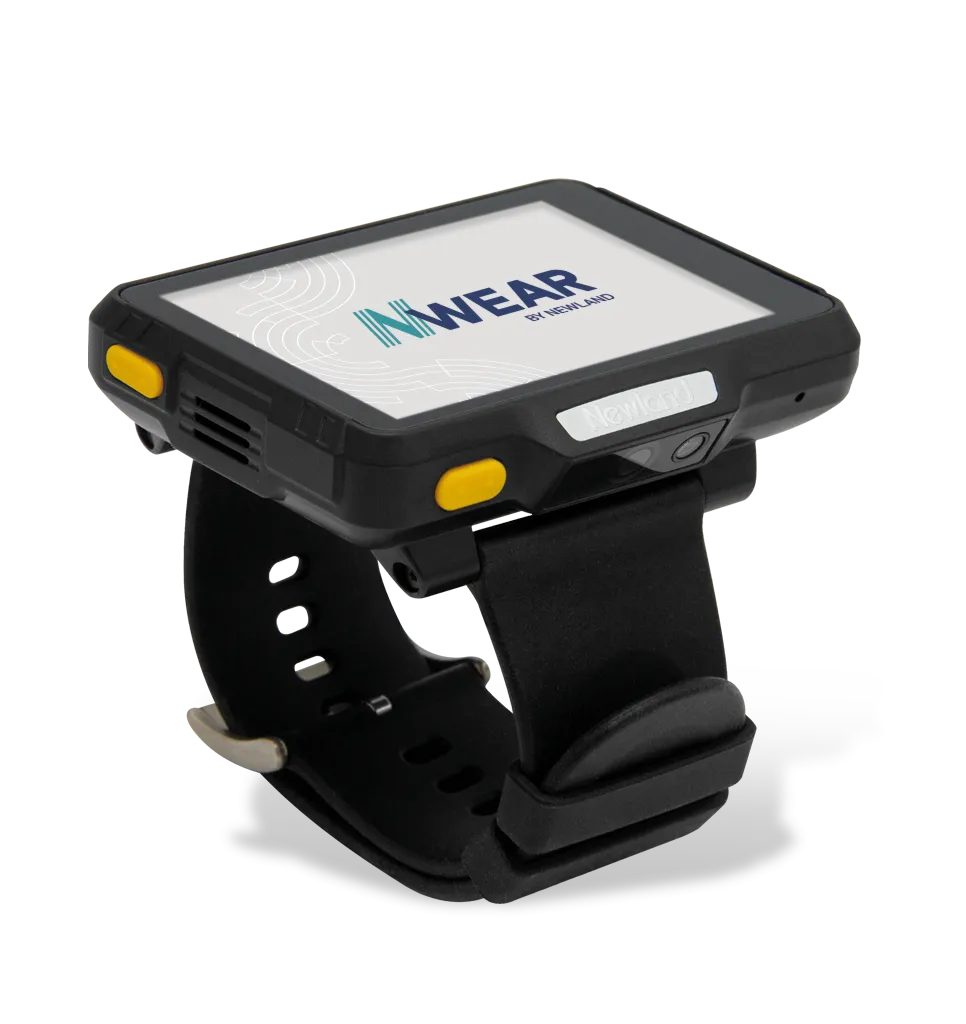

Newland WD1 II Watch Scanner
The WD1 II Watch Scanner is our upgraded wearable watch scanner and uses Android 13 to lift productivity to a new level. Scan barcodes handsfree and on the go. Visit our page for more information.
- Display3,300
- BatteryLithium-ion polymer battery: 3.8 V, 3300 mAh (non-removable)
- SealingIP67
- Drop1.2m drops to concrete (for six sides, one drop per side)
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Platform
- Processor
- 2.0 GHz octa-core, 64-bit
Display
- Display size
- 3,300
- Keyboard / keys
- Power key/lock screen key, user-defined key 2 keys
Data capture
- Cameras
- 13 MP, Barcode scanning, Auto focus, LED flash, Torch mode
Power
- Battery / runtime
- Lithium-ion polymer battery: 3.8 V, 3300 mAh (non-removable)
Connectivity
- Bluetooth
- 5.0
- Location / GPS
- GPS (AGPS), GLONASS, Beidou, Galileo
- Ports / interfaces
- USB-C, 2 pogo pins
Rugged
- IP / sealing
- IP67
- Drop specification
- 1.2m drops to concrete (for six sides, one drop per side)
- Operating temperature
- -20°C to 55°C (-4°F to 131°F)
- Storage temperature
- -30°C to 70°C (-22°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 146 g
- Dimensions
- Dial plate: 77mm × 56mm; Dial plate thickness: 17.8mm
Software & service
- Warranty
- 2 Years Comprehensive Service Contract 3 Years, 5 Years
