Newland · Barcode scanner

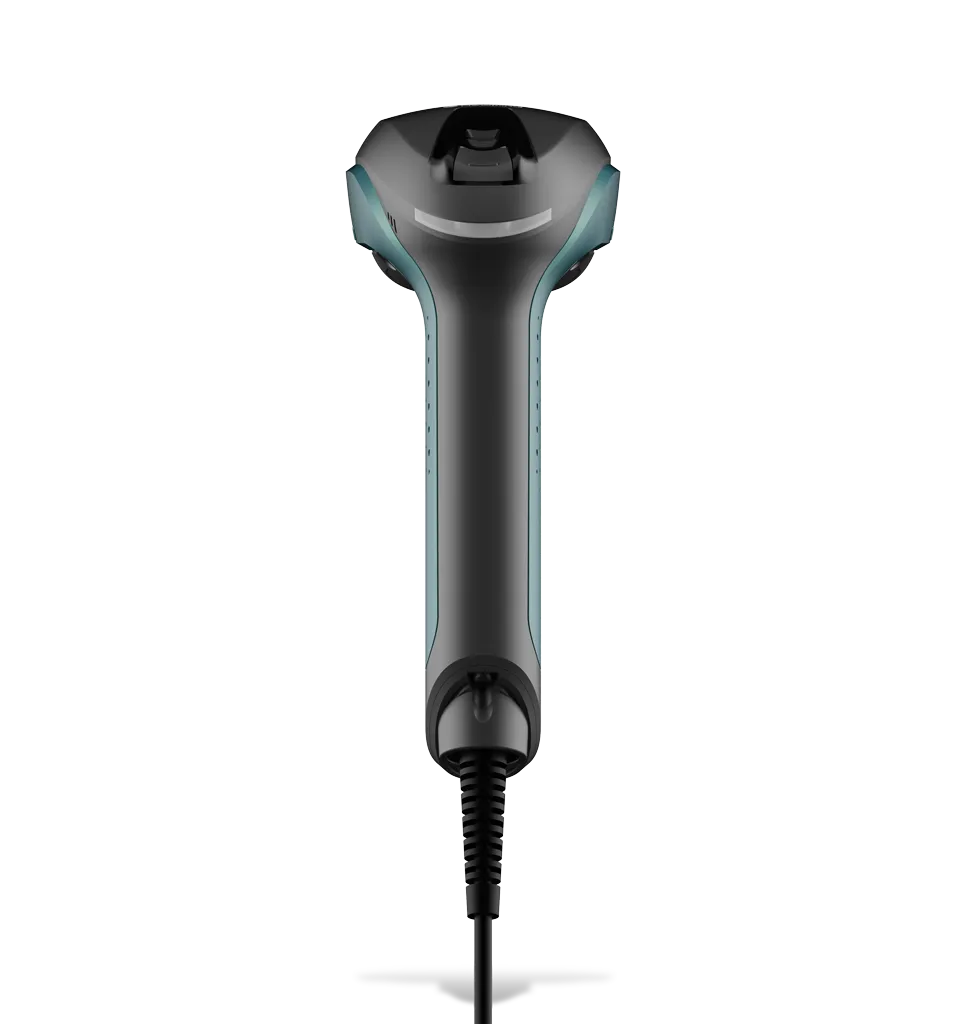

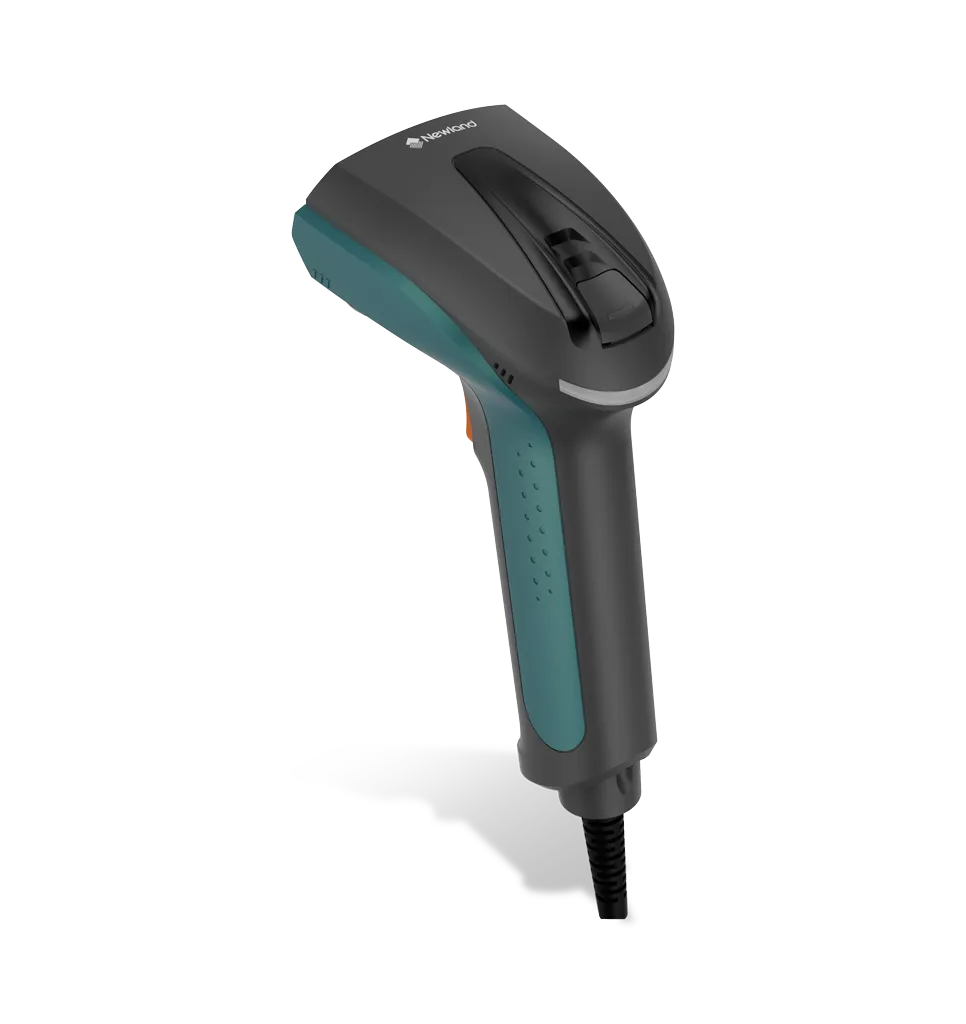

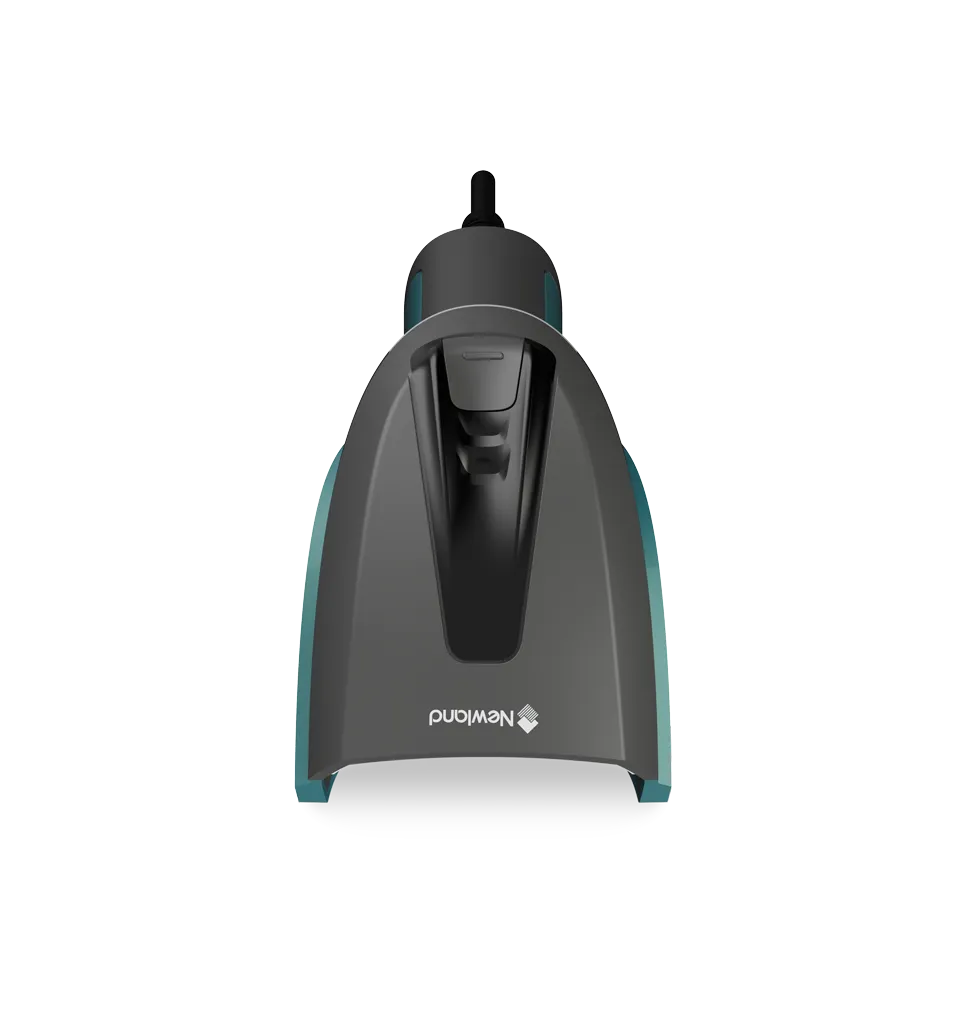

Newland NVH220 Lophius AI Corded
The NVH220 Lophius AI Corded is a reliable, cost-effective DPM scanner that performs well at decoding barcodes in industrial applications. Check out all its features here.
- Scanning1D EAN-13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,Codabar,Code128,Code93,ITF-6,ITF14,Interleaved 2 of 5,Industrial 2 of…
- SealingIP64
- Drop1.8m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D EAN-13,EAN-8,UPC-A,UPC-E,ISSN,ISBN,Codabar,Code128,Code93,ITF-6,ITF14,Interleaved 2 of 5,Industrial 2 of 5,Standard 2 of 5,Matrix 2 of 5,Code 39,AIM
- Scan range / decode distances
- 35 mm - 510 mm 0 mm - 160 mm 15 mm - 220 mm 0 mm - 225 mm Field of View Horizontal 33°
Power
- Charging / power
- 5 VDC ±5%
Connectivity
- Ports / interfaces
- USB, RS-232, Ethernet
Rugged
- IP / sealing
- IP64
- Drop specification
- 1.8m
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight
- 160g (without cable)
- Dimensions
- 68(W) × 86(D) × 180(H) mm Input Voltage 5 VDC ±5%
Software & service
- Warranty
- 5 Years Comprehensive Service Contract 3 Years, 5 Years
