Newland · Barcode scanner

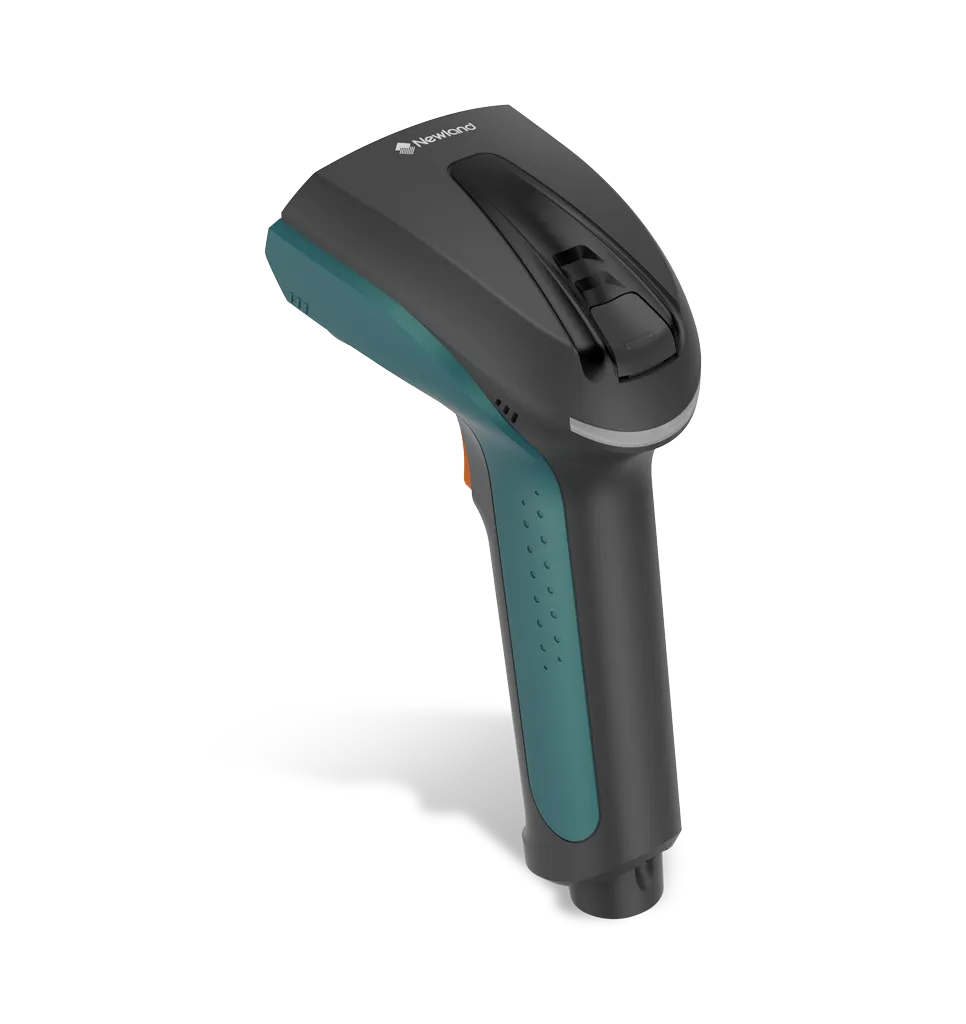

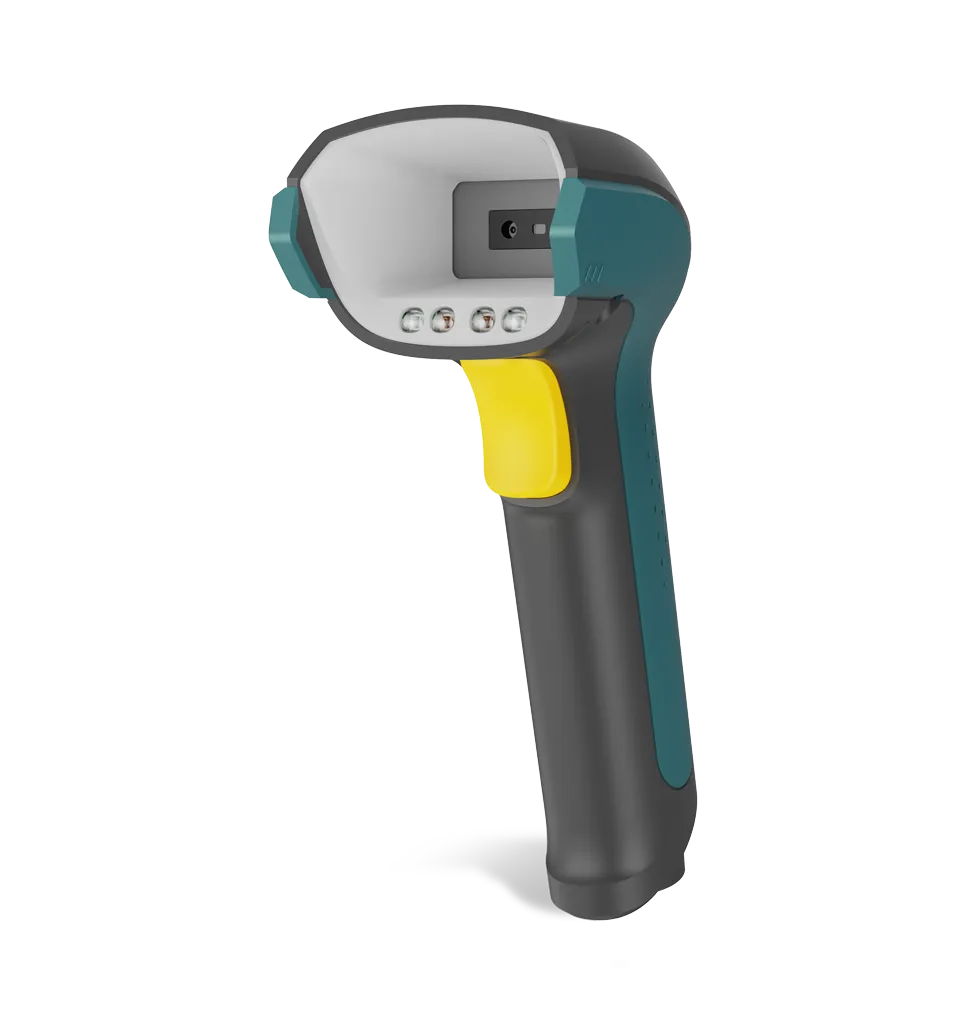

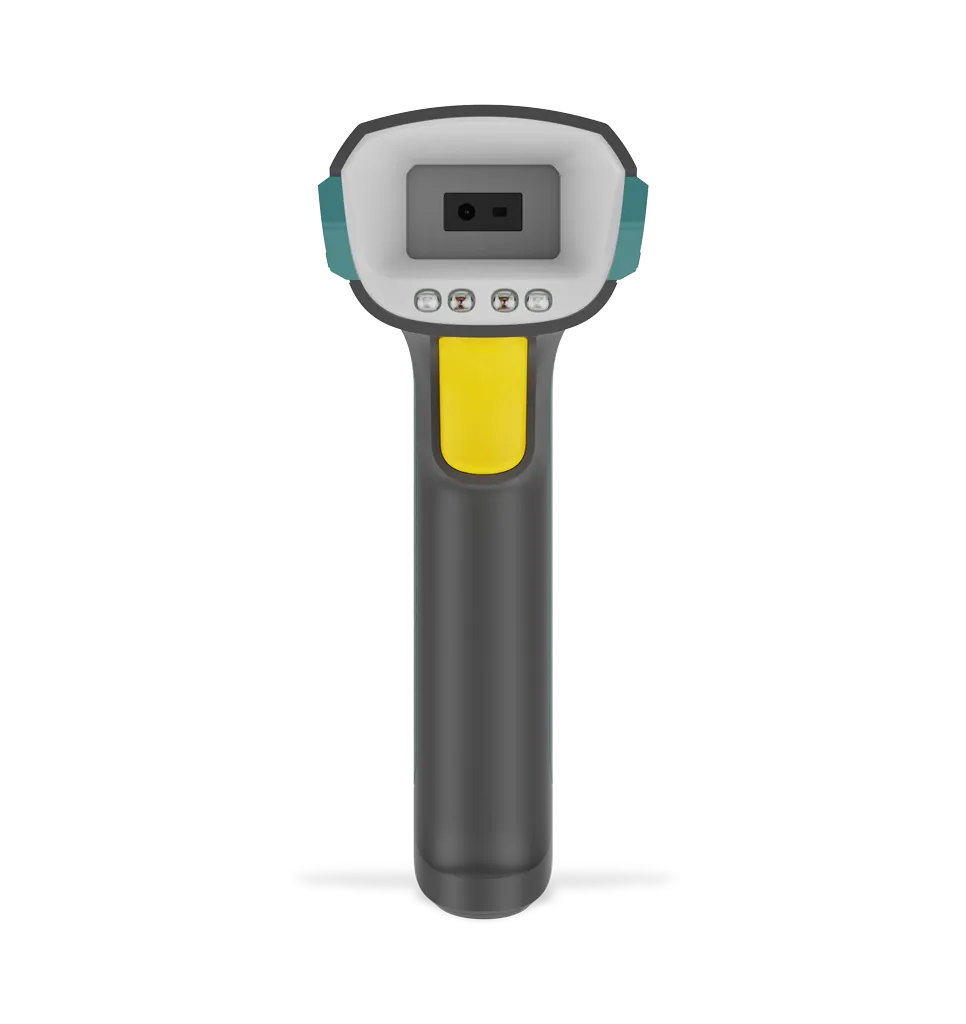

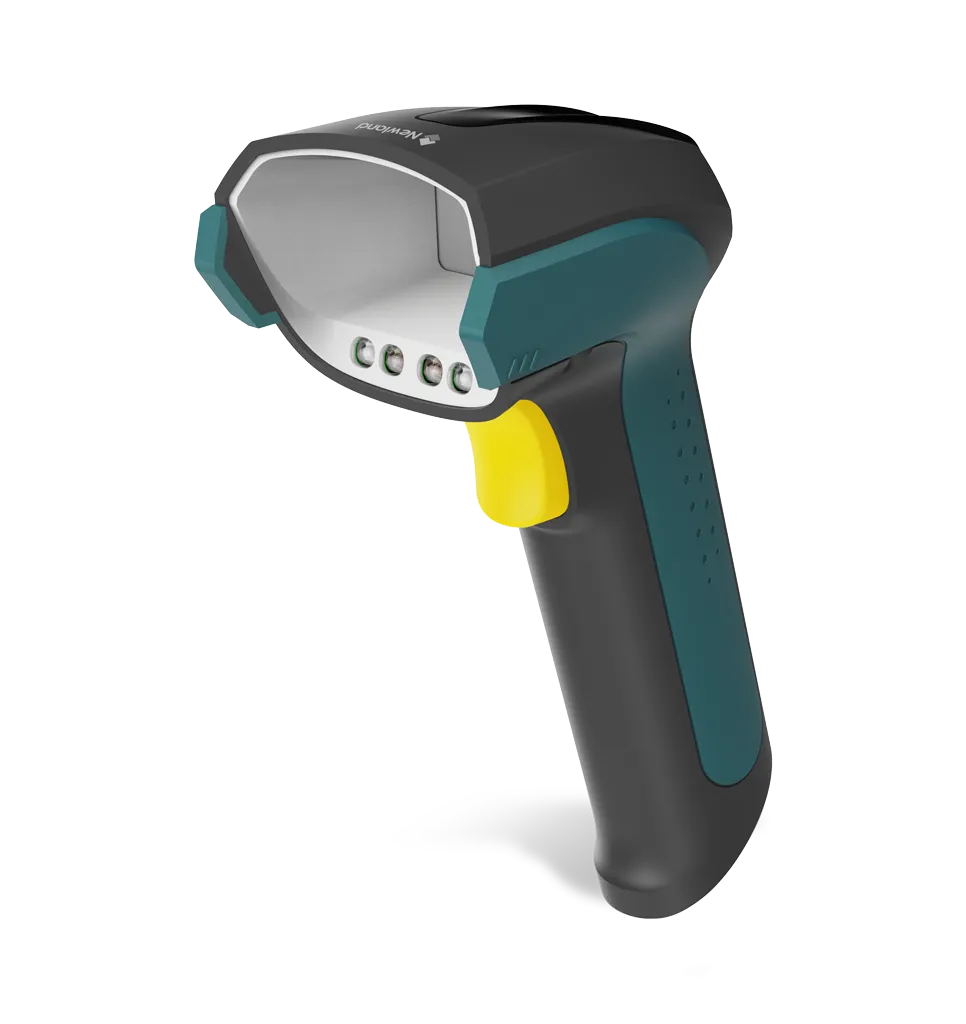

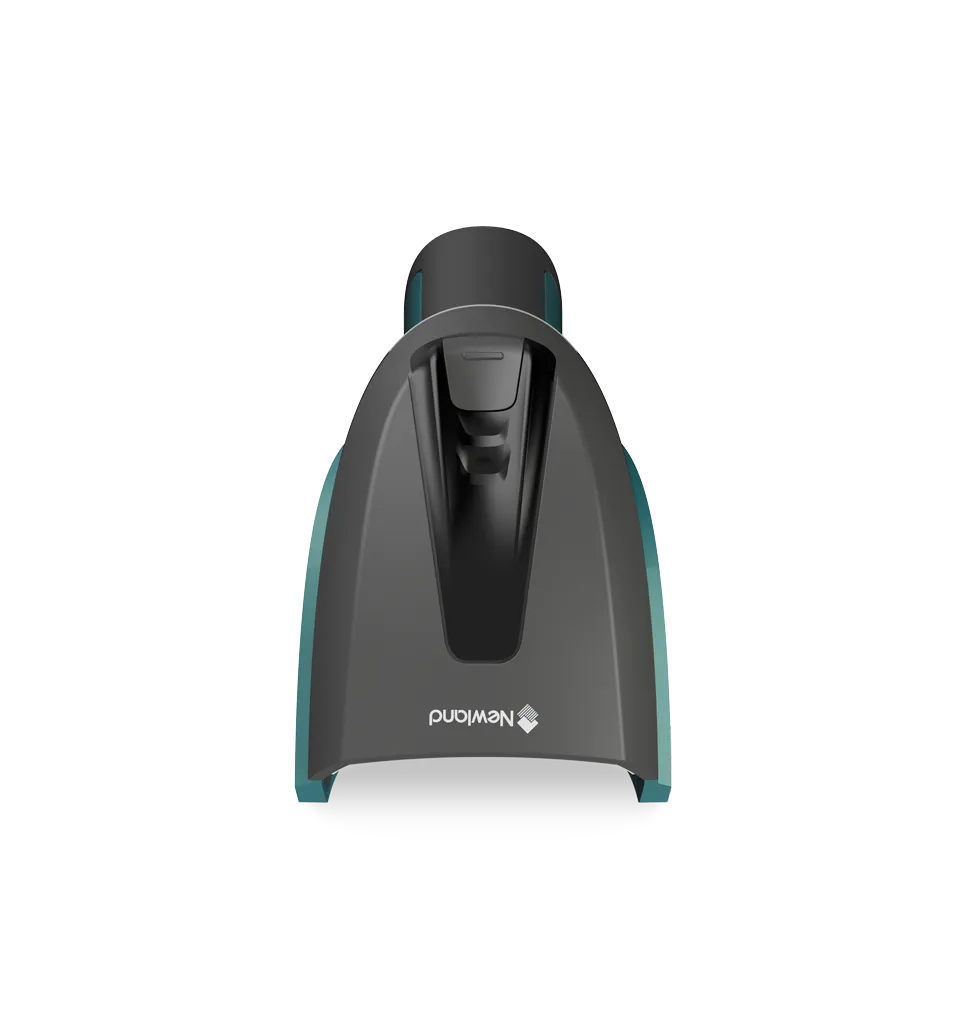

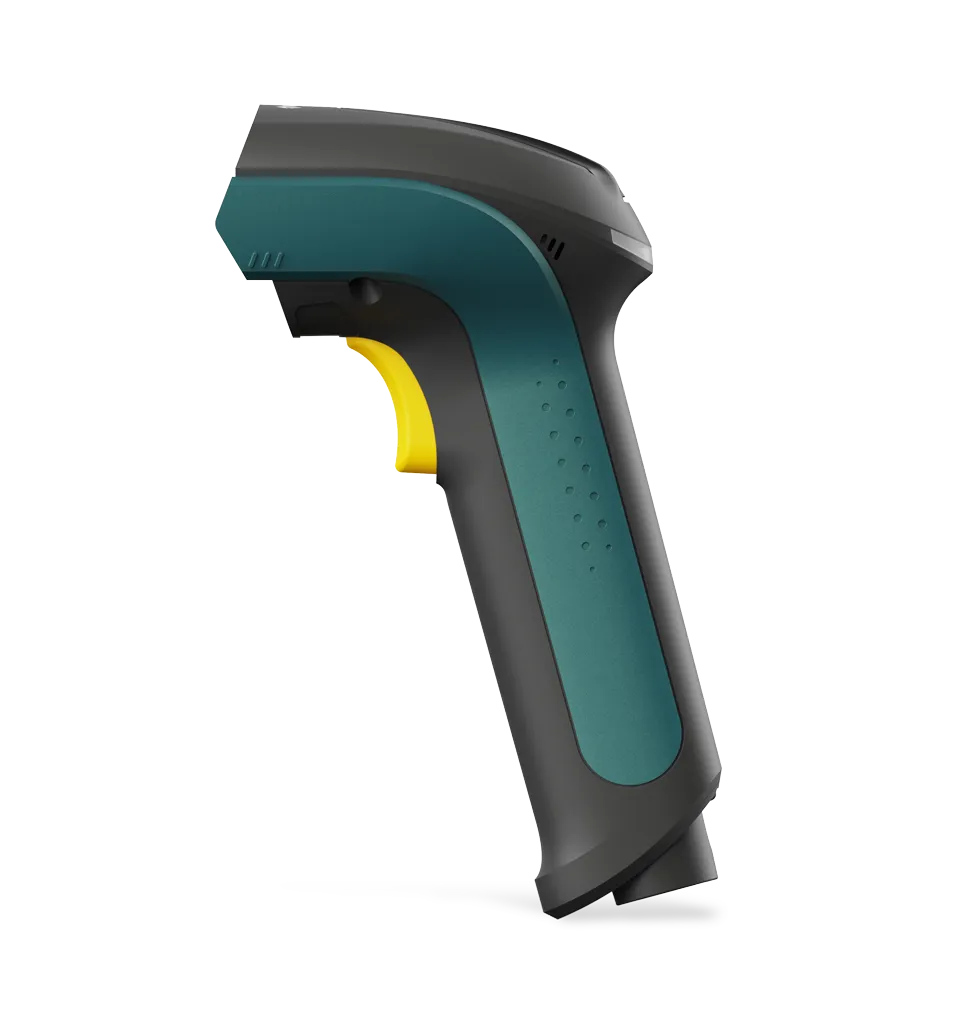

Newland NVH220 Lophius AI Bluetooth
The NVH220 Lophius AI Bluetooth is a wireless DPM scanner that performs well at decoding barcodes in industrial applications. See more now.
- Scanning1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14,
- Battery2,900 mAh
- SealingIP64
- Drop1.8 m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Data capture
- Scan engines / capture options
- 1D EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code128, Code93, ITF-6, ITF-14,
- Scan range / decode distances
- 65 mm - 350 mm 0 mm - 160 mm 15 mm - 220 mm 0 mm - 225 mm Field of View Horizontal 33˚
Power
- Battery / runtime
- 2,900 mAh
Connectivity
- Bluetooth
- 5.0
- Ports / interfaces
- RS-232, Ethernet, TCP/IP, ModbusTCP, Profinet, MELSEC/SLMP
Rugged
- IP / sealing
- IP64
- Drop specification
- 1.8 m
- Operating temperature
- -20°C to 50°C (-4°F to 122°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Humidity
- 5% to 95% (non-condensing)
Size
- Weight

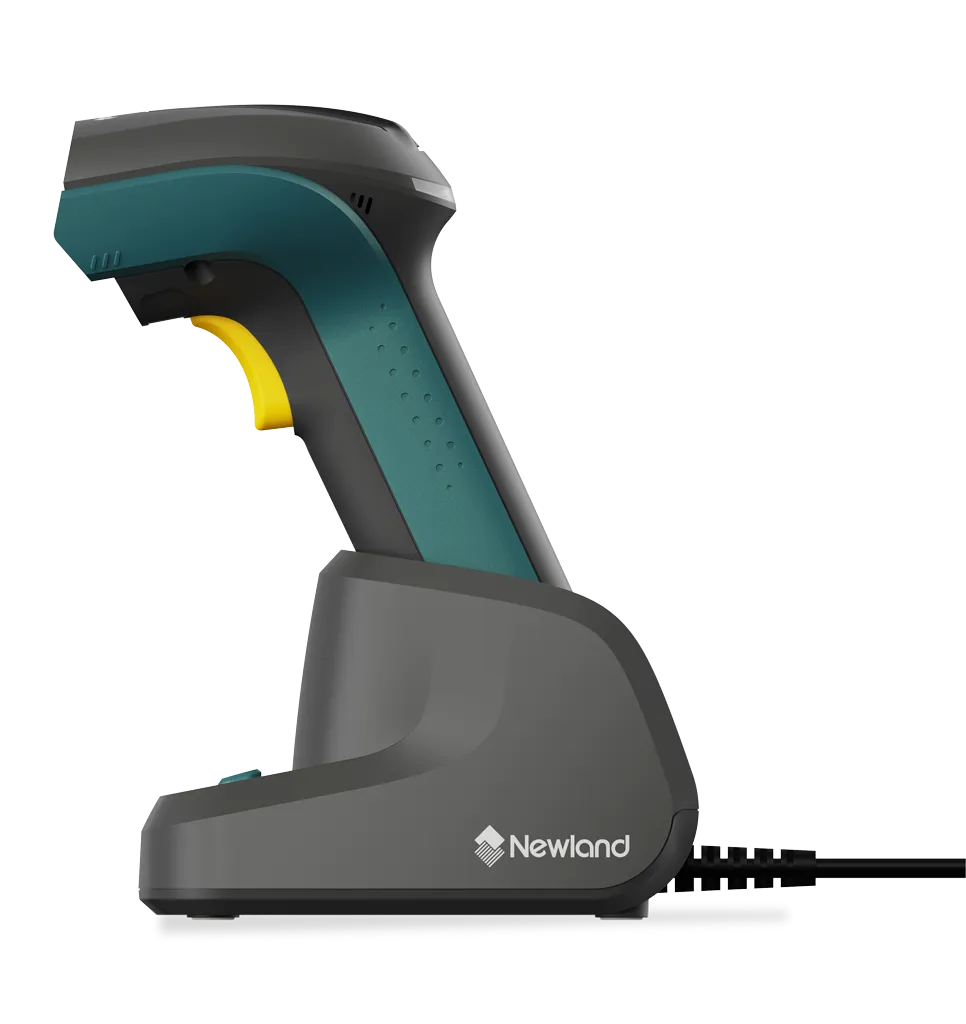

- Scanner: 218g (with battery); Cradle:217g
- Dimensions
- Scanner: 68(W) × 86(D) × 180(H) mm, Cradle: 103(W) x 127(D) x 123(H) mm
Software & service
- Warranty
- 3 Years Comprehensive Service Contract 3 Years, 5 Years
