Newland · Accessory

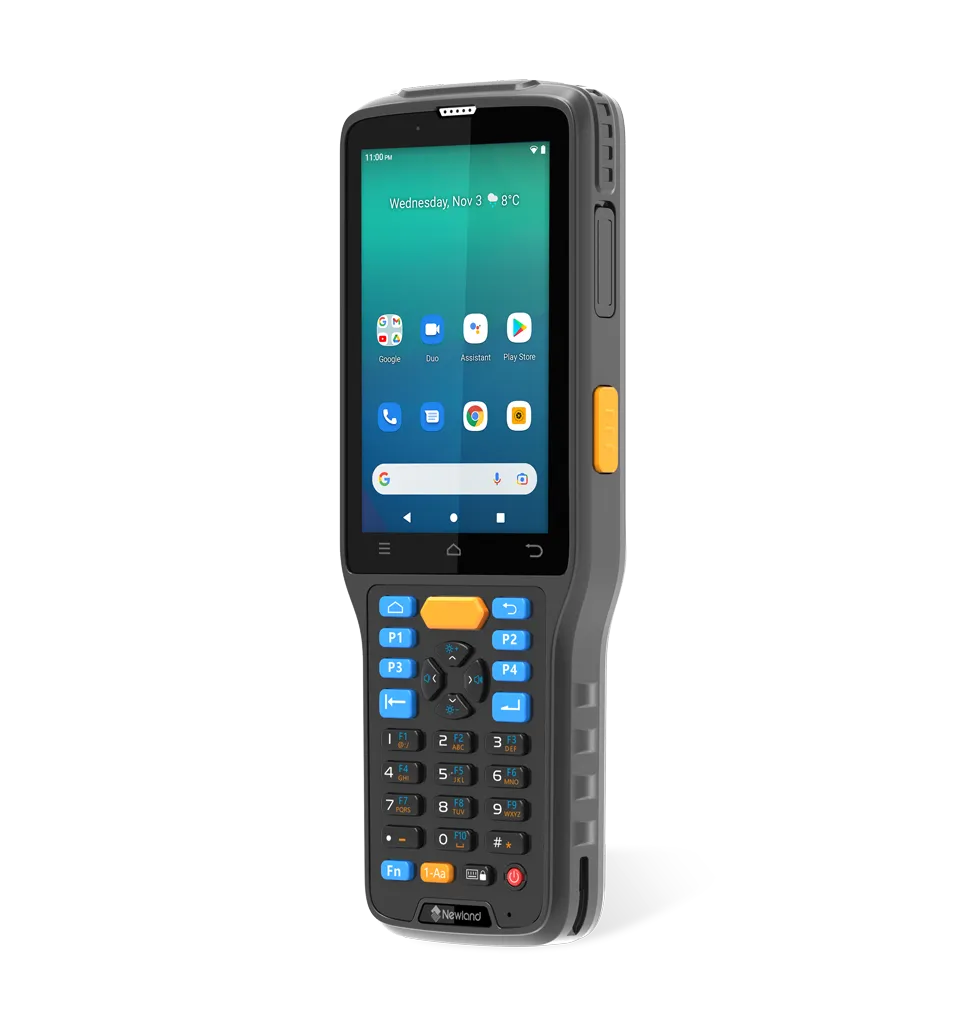

Newland N7 Cachalot Pro II
The N7 Cachalot Pro II: your go-to mobile computer scanner for warehouse and logistics industries. With dual near & far scan engines, high IP rating, and the option of 3 keyboard layouts, it's the perfect combination of ruggedness and flexibility.
- Battery3.8 V, 5100 mAh, Removable
- SealingIP65
- Drop1.8 m
Runs Raptool WMS and other Raptool apps in the Raptool Client, with full access to the scanner, camera, RFID and printers, online and offline. Scanner apps
Specifications
Specifications
- 1D
- All major 1D symbologies
- 2D
- All major 2D symbologies
- Aiming
- Laser diode
- Scan range / decode distances
- Duo Near & Far: 440mm - 9800mm
- Scan range / decode distances
- SR: 60 mm - 480 mm
- Scan range / decode distances
- Duo Near & Far: 75 mm - 2600 mm
- Scan range / decode distances
- SR: 100 mm - 180 mm
- Scan range / decode distances
- Duo Near & Far: 50 cm - 600 cm
- Scan range / decode distances
- SR: 50 mm - 575 mm; Duo Near & Far: 20 cm - 140 cm
- Scan range / decode distances
- Duo Near & Far: 40 mm - 430 cm
- Scan range / decode distances
- SR: 80 mm - 350 mm
- Scan range / decode distances
- Duo Near & Far: 105 mm - 310 mm
- Scan range / decode distances
- SR: 55 mm - 355 mm
- Scan range / decode distances
- Duo Near & Far: 190 mm - 3900 mm
- Scan range / decode distances
- SR: 40 mm - 480 mm; Duo Near & Far: 20 cm - 180 cm
- Scan range / decode distances
- SR: 60 mm - 320 mm
- Scan range / decode distances
- Duo Near & Far: 110 mm - 250 mm
- Scan range / decode distances
- SR: 50 mm - 400 mm
- Scan range / decode distances
- Duo Near & Far: 195 mm - 3700 mm
- Illumination
- White LED (625±10nm)
- Image Sensor
- 1280 x 800 CMOS
- Scan Modes
- Trigger Mode
- Scan Rate
- 60 frames per second
- Current Operating System
- GMS, Android Enterprise Recommended (AER), Android 13
- Memory Flash
- 64GB
- Memory RAM
- 4GB
- Memory Storage Expansion (max.)
- Micro SD/TF card (max. 128 GB)
- Processor
- 2.0 GHz octa-core
- Battery / runtime
- 3.8 V, 5100 mAh, Removable
- Keyboard / keys
- Two scan buttons (left/right), three touch navigation keys
- Dimensions
- 200(W) x 70(D) x 29(H) mm
- Display/Touch Panel
- 4.0" WVGA (800 x 480), brightness: 480 nits, Gorilla glass, Supports input with gloves
- Expansion Slot
- MicroSD card (max. 128GB)
- Expected Battery Life
- Scanning:> 15 hours of continuous operations; standby: 500 hours
- Keyboard / keys
- 29 keys, 38 keys, 47 keys
- Notifications
- Speaker, Multi-color LEDs, Vibration
- Power Supply Input
- AC 100 to 240 V (50 to 60 Hz)
- Power Supply Output
- Type-C 5 V/3 A, 9 V/2 A, 12 V/1.5 A
- Cameras
- 13 MP, LED flash, Auto focus
- Sensors
- Gravity Sensor, Hall switch
- SIM/TF
- Nano+Nano or Nano+TF
- Touch panel
- Gorilla glass, Supports input with gloves
- Weight
- 360 g (including battery)
- Location / GPS
- Beidou, Galileo, GLONASS, GPS (AGPS)
- RFID
- NFC: 13.56MHz IS014443A/B, Ml FARE, Felica, NFC Forum Tags (not supported with pistol grip configuration)
- WLAN RADIO
- IEEE 802.11 a/b/g/n/ac, compatible with 11 d/h/i/k/r/v/w, support 2.4GHz and 5GHz dual frequency; Roaming: Super Fast Roaming
- WPAN RADIO
- Dual mode, Bluetooth 5.0 BLE (backward compatible)
- WWAN RADIO
- 2G: GSM: 850/900/1800/1900MHz; 3G: WCDMA: B1/B2/B5/B7/B8/ B20/B28a&b, CDMA lx/EVDO: BCO; 4G: FDD-LTE: B1/B2/B3/B5/B7/B8/B20/B28a&b, TDD-LTE: B38/B39/B40/B41 (100M)
- Drop specification
- 1.8 m
- Electro Static Discharge (ESD)
- ±8 kV (direct discharge), ±15 kV (air discharge)
- Humidity
- 5% to 95% (non-condensing)
- IP / sealing
- IP65
- Operating temperature
- -20°C to 55°C (-4°F to 131°F)
- Storage temperature
- -40°C to 70°C (-40°F to 158°F)
- Configuration Tools
- Ndevor
- MDM (certified)
- Ndevor, SOTI, Airwatch
- Terminal Emulation (compatible)
- StayLinked, Ivanti Velocity
- Certifications Hardware
- CE RED, RoHS 2.0, IEC 60825, FCC, BIS, REACH, AER, SOTI, UN38.3, IEC 62471
- Comprehensive Service Contract
- 3 Years, 5 Years
- Warranty Extension
- +1 Year, +3 Years
